Home > LED Flex > COB >   COB 5mm 320LEDs/m single color led strip DC5V

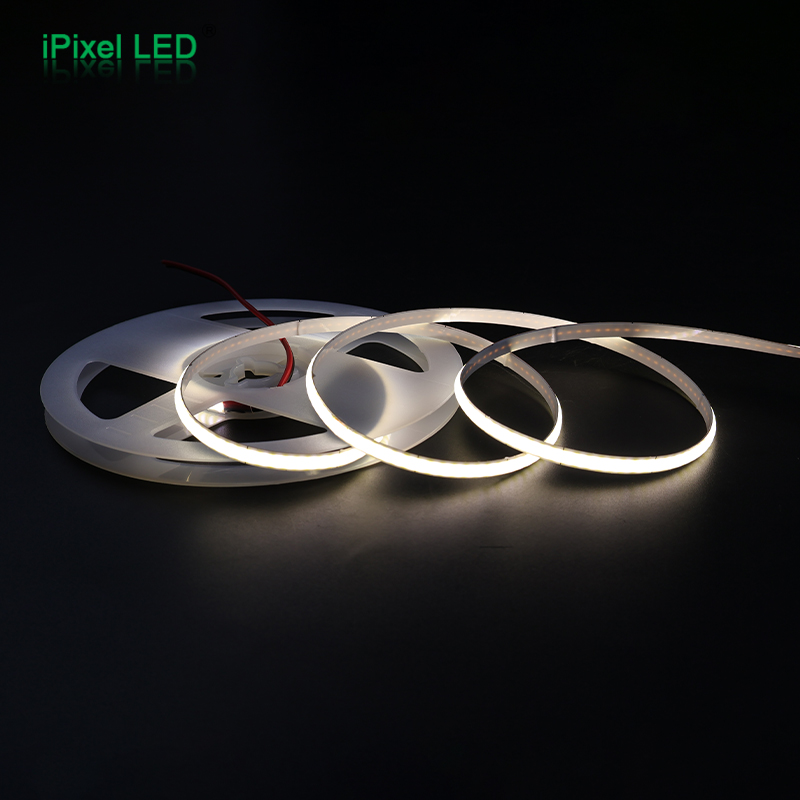

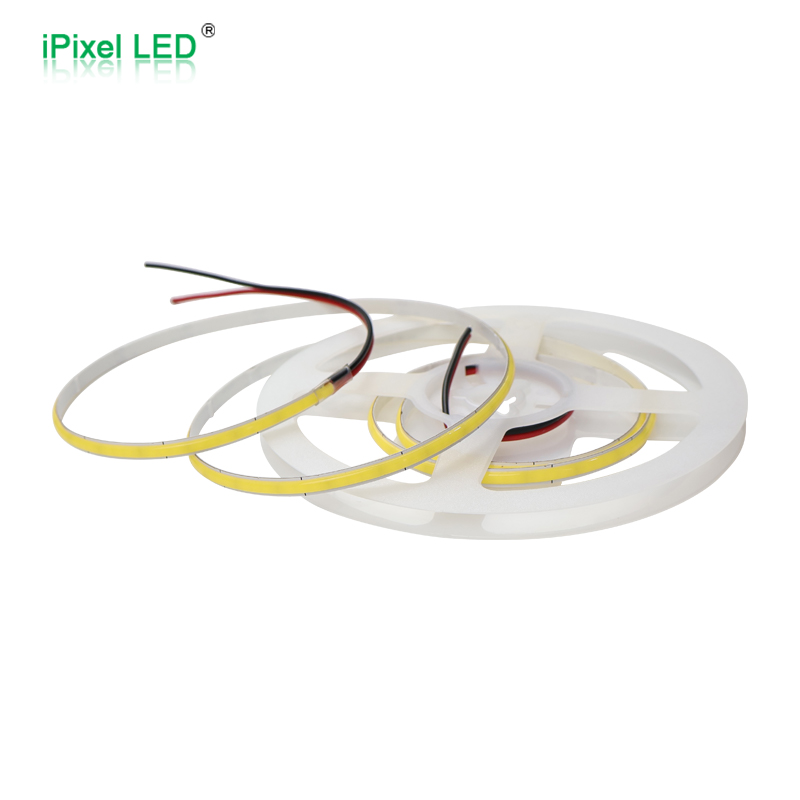

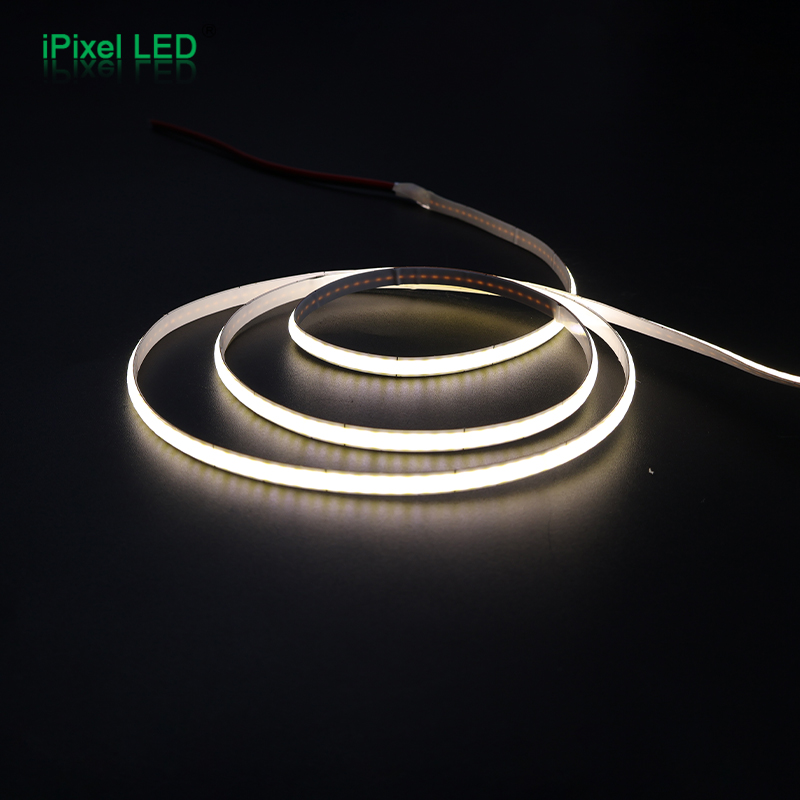

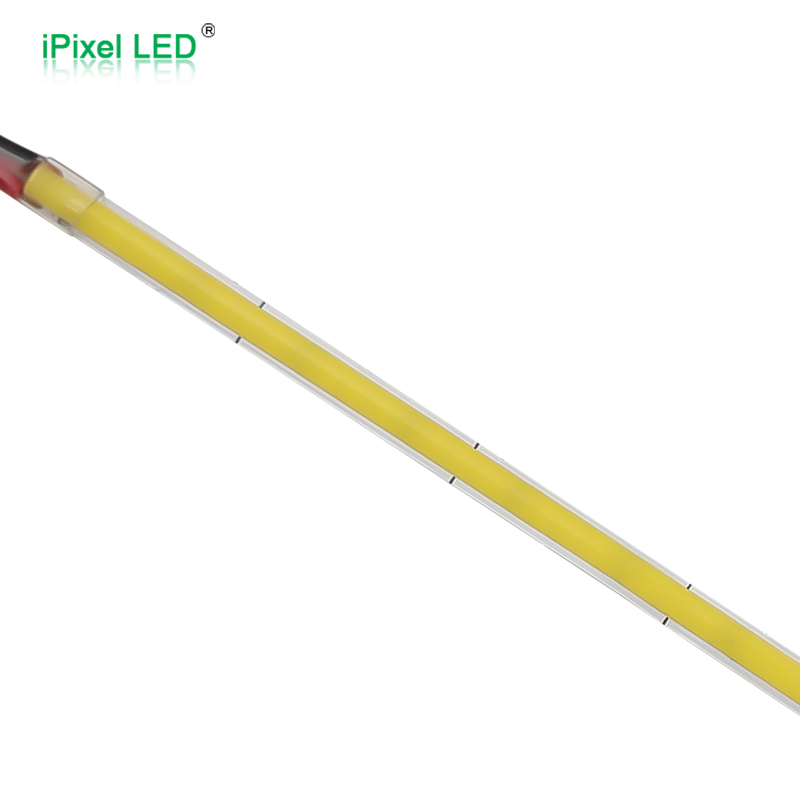

COB 5mm 320LEDs/m single color led strip DC5V

-Reel-to-reel PCB, no more solder joints at every halfmeter, which eliminates common issues like falsesoldering, or inaccurate length caused by lap solder inconventional LED strips.

-Chip Scale Package design, high density LED, even anduniform lighting.

-5mm width slim PCB, with convenient 25mm cut unit,remarkable flexibility adapt to diverse design configurationssuch as furniture lighting.

-Double layer 2oz FPC, balancing Voltage drop, heatdissipation and flexibility


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S005320ZA1LZ
    Voltage
    DC5V
    Power
    7.5W/m
    SMD Type
    COB
    LED Quantity     320LEDs/m
    Color
    W:3000K/4000K/6500K
    Cutting length
    25mm
    Dimension
    5000*5mm
    Luminance/m
     W:440 lm
    Beam Angle     180°
    IP Rate
    IP20/IP65
    O.T     -25℃ ~ 60℃

Dimension (unit:mm)
