-Chip-on-board design, with more chips on PCB,the lighting effects are more evenly

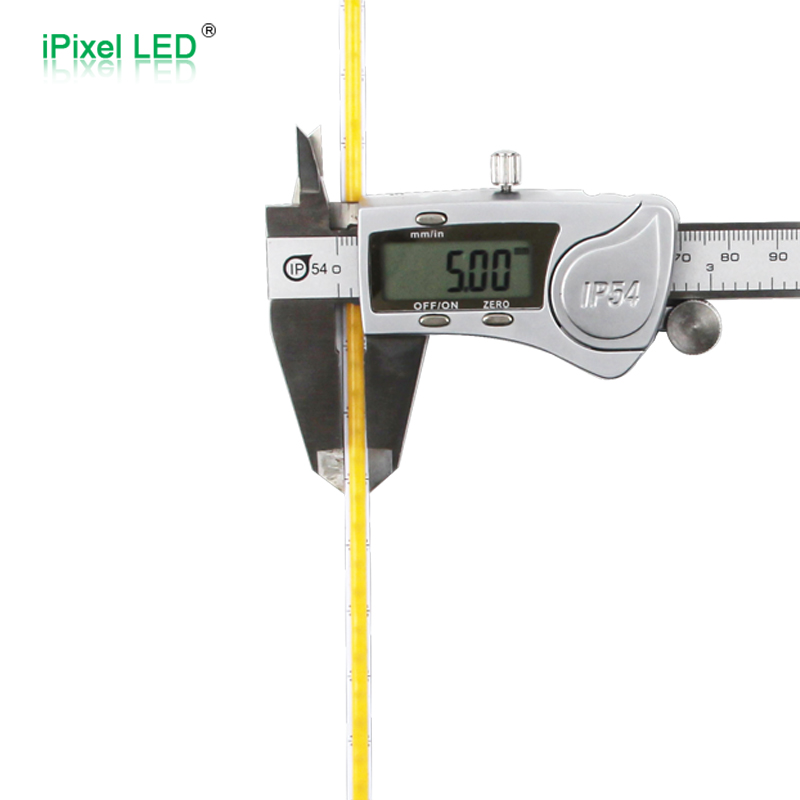

-5mm ultra slim PCB, cut length is only12V 7.94mm ro 24V13.89mm, better formore applications in furniture lighting or display lighting.
-Double layer 2oz PCB, for better flexibility, heat dissipationand voltage drop.
|
PN |
S005504ZB1LZ |
S005504ZC1LZ |
|
Voltage |
DC12V |
DC24V |
|
Power |
6W/m |
6W/m |
|
SMD Type |
COB |
COB |
| LED Quantity |
504LEDs/m |
504LEDs/m |
|
Color |
W:3000K/4000K/6500K |
W:3000K/4000K/6500 |
|
Cutting length |
7.94mm |
13.98mm |
|
Dimension |
5000*5mm |
5000*5mm |
|
Luminance/m |
W:570 lm |
W:480 lm |
| Beam Angle | 180° |
180° |
|
IP Rate |
IP20/IP65 |
IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
