COB single color 320LEDs/m led strip DC5V/DC12V/DC24V

Description

-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-The maximum luminous angle is 180°
-Chip longitudinal distribution, high reliability;
-Product have good color rendering consistency CRI  better than 80 (90 optional)
-SDCM is less than 5 steps

-Standard 5M/roll, length can be customized



Share to

Facebook Twitter g+

Specification

Product Parameter (S008320ZC1LZ/S008320ZB1LZ/S008320ZA1LZ)er

    PN
    S008320ZA1LZ
  S008320ZB1LZ   S008320ZC1LZ
    Voltage
    DC5V
  DC12V
  DC24V
    SMD Type
    COB
  COB
  COB
    LED Quantity     320LEDs/m
  320LEDs/m
  320LEDs/m
    CCT
    3000K/4000K/6500K
  3000K/4000K/6500K
  3000K/4000K/6500K
    Dimension
    5000*8mm
  5000*8mm
  5000*8mm
    Lumens/m
    525Lm
  525Lm
  525Lm
    PCB Color     White   White
  White
    Power
   10W/m
  8W/m
 10W/m
    CRI
    90RA   90RA
  90RA
    O.T     -25℃ ~ 60℃   -25℃ ~ 60℃
  -25℃ ~ 60℃

Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

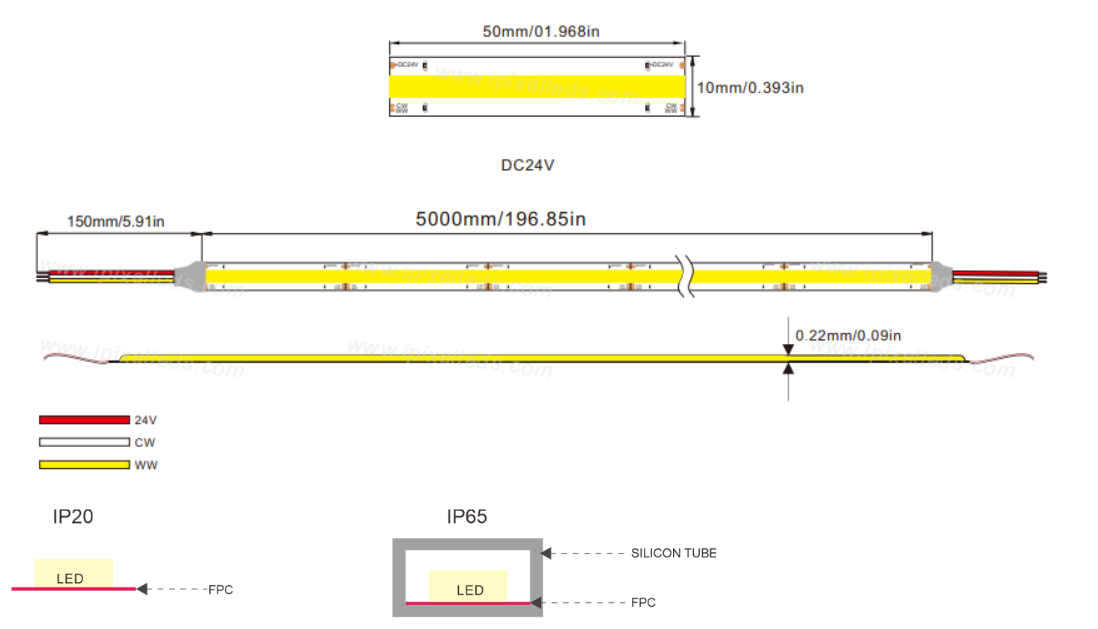

Dimension (unit:mm)

IP Rate
