Description
-This is a Side emitting COB LED strip,high density with 480LEDs/m
-The chip mounted on FPC directly,uniform light no hot spot /shadow-Standard 5M/roll, length can be customized
|
PN |
S008480ZB1LZ(C) |
S008480ZC1LZ(C) |
|
Voltage |
DC12V |
DC24V |
|
Power |
10W/m |
10W/m |
|
SMD Type |
COB |
COB |
| LED Quantity |
480LEDs/m |
480LEDs/m |
|
CCT |
3000K/4000K/6500K |
3000K/4000K/6500K |
|
Dimension |
5000*8mm |
5000*8mm |
|
Cutting length |
16.65mm |
33.33mm |
|
Lumens(lm/m) |
800 |
800 |
|
SDCM |
≤5 |
≤5 |
| PCB Color | White |
White |
|
Power |
12W/m |
12W/m |
|
CRI |
≥90RA |
≥90RA |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |

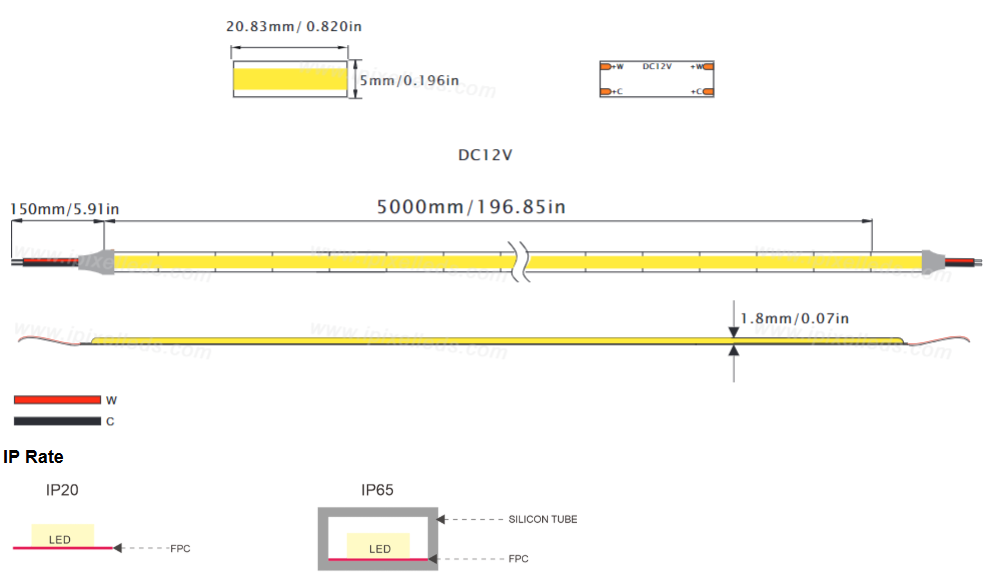

Dimension (unit:mm)
IP Rate
