12mm SMD 2835 RGB+CCT LED Strip 144LEDs/M DC48V
Description
This is a PWM control RGBW color LED strip without Pixel
72pcs SMD2835 RGB + 72pcs SMD3528 WW per meter
The cutting unit length is 166.66mm(48V) per section
12mm PCB, 3 Ounce copper
All soldering Pads are very large, allowing you to easily cut and reconnect
Both ends have 6pin bare wires for powering
3M tape attached on backside of FPC
Share to
Specification
Product Parameter
| PN | S012144BJ5PZ |
| Voltage | DC48V |
| LED Type | SMD 2835RGB+3528WW |
| LED Quantity | 144LEDs/m |
| Color | RGB+WW:3000K+CW:6500K |
| Dimension | 5000*12mm |
| Cutting unit | 166.66mm |
| Lumen/m | R:59G:230 B:47 W:230 W:220lm |
| Power | 26W/m |
| Protocol | PWM |
| O.T | -25 - 60℃ |

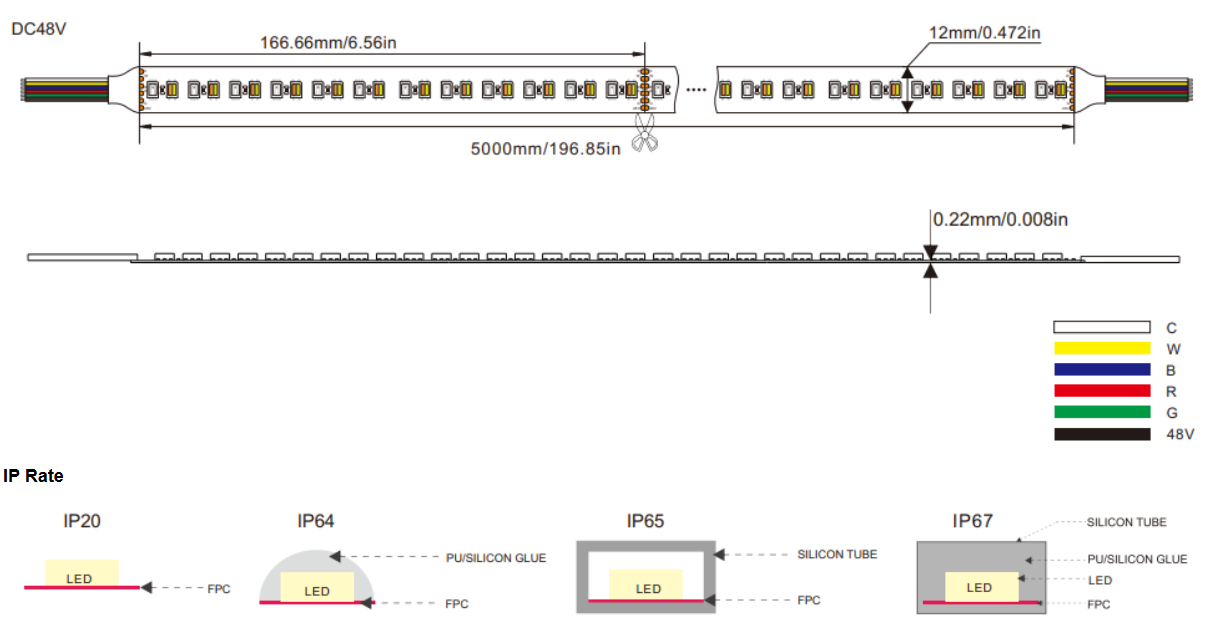

Dimension (unit:mm)
