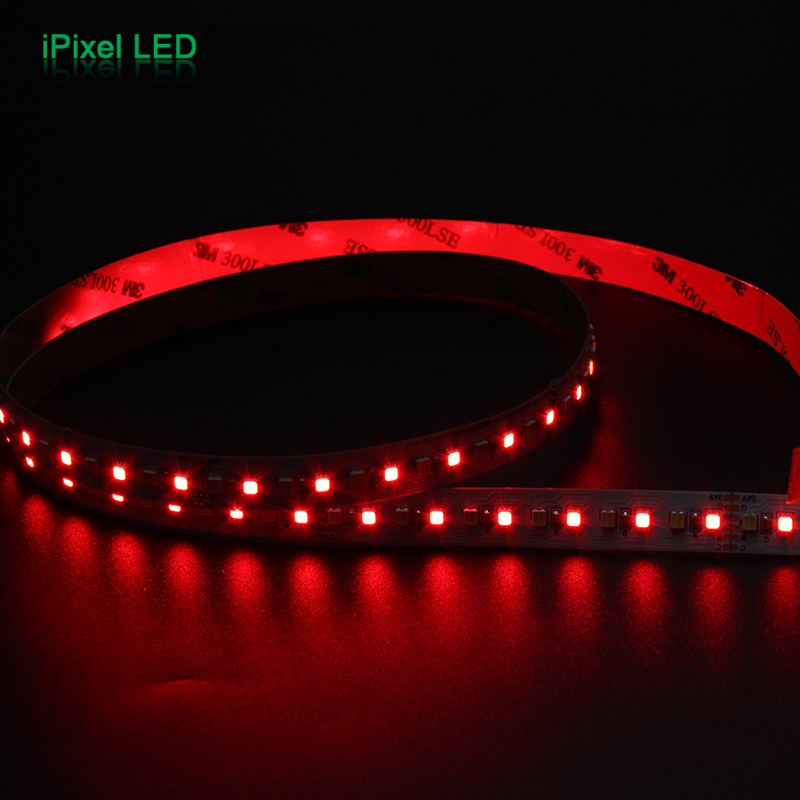

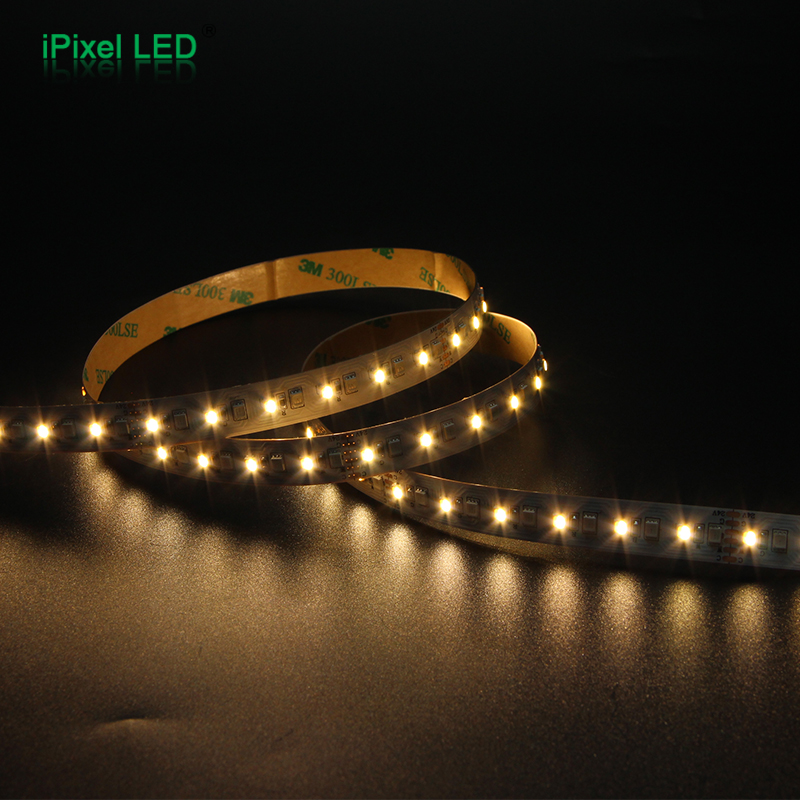

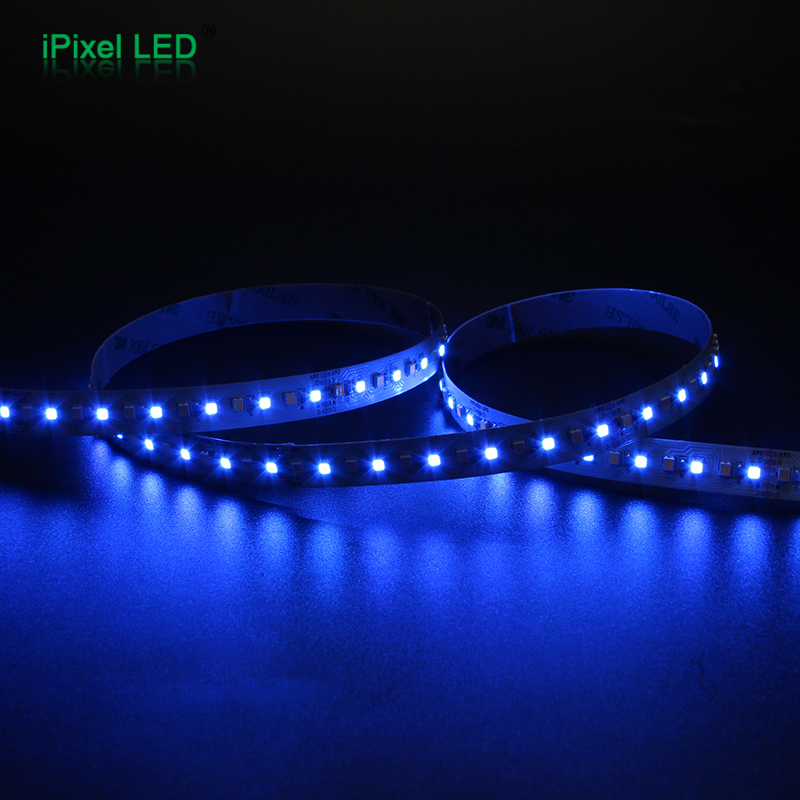

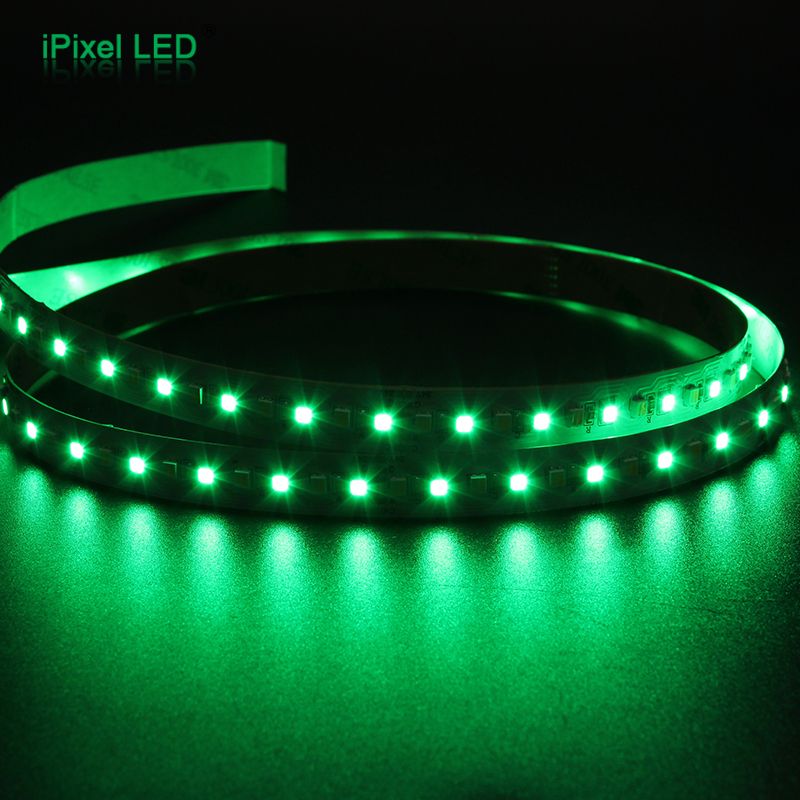

RGB+CCT flex led strip 144LEDs/m DC24V
Description
This led strip with 72pcs 2835 RGB + 72pcs 3528
dual white CCT LED chips, 144LEDs/m
You can use PWM controller to control it
The input voltage is DC24V
Flexible PCB, the FPCB color is white
The FPCB width is 12mm, 1 + 2 Oz copper
Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S012144AC5PZ |
| Voltage | DC24V |
| LED Type | SMD 2835RGB+3528WW |
| LED Quantity | 144LEDs/m |
| Color | RGB+W:6500K+W:3000K |
| Dimension | 5000*12mm |
| Cutting unit | 83.3mm |
| Wavelength | R/G/B/W:3000K/4000K/6500K |
| Luminance/M | Ｒ:100 Ｇ:306 Ｂ:67 W:370 W380lm |
| Materiar | FPC |
| Power | 26W/m |
| Protocol | PWM |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
