Description

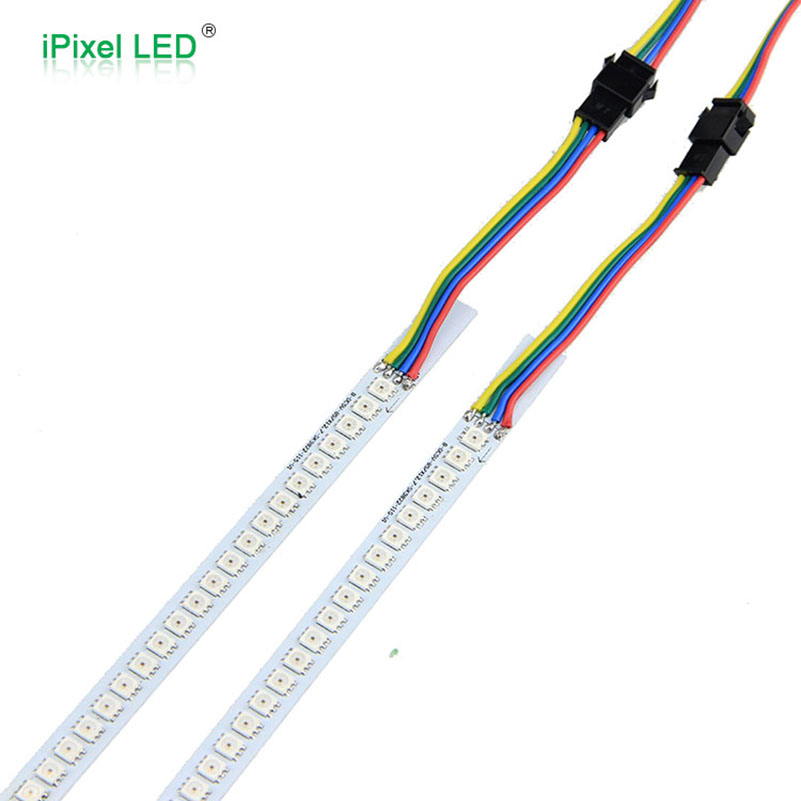

This fexible LED strip solders 60pcs SMD 5050 LEDS per meter
FPC in white color with 10mm Width
All soldering Pads are very large, allowing you toeasily cut and reconnect
Both ends have 2pin bare wires for powering
3M tape attached on backside of FPc, 5 meters in a reel,3 different Waterproof types, lP64, 1P65, 1P67
A variety of colors are available
|
PN |
S010060CA1LZ |
S010060CB1LZ |
S010060CC1LZ |
|
Voltage |
DC5V |
DC12V |
DC24V |
|
Power |
12W/m |
14.4W/m |
14.4W/m |
|
LED Type |
SMD 5050 |
SMD 5050 |
SMD 5050 |
| LED Quantity |
60LEDs/m |
60LEDs/m |
60LEDs/m |
|
Cutting lenght |
16.7mm/1LED |
50mm/3LED |
100mm/6LED |
|
CCT |
3000K/4000K/6500K |
3000K/4000K/6500K |
3000K/000K/6500K |
|
Dimension |
5000*10mm |
5000*10mm |
5000*10mm |
|
Lumens/m |
800lm |
1070lm |
1070lm |
| SDCM | ＜5 |
＜5 |
＜5 |
|
Power |
14.4W/m |
14.4W/m |
14.4W/m |
|
CRI |
80RA |
80RA |
80RA |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
