Description
-Use 2835 high brightness led, high purity gold line, SANAN chip.
- 240LEDs/M, single row LED, high luminance efficiency .
- Input voltage DC12V/DC24V.
- Flexible PCB, FPC color: white.
- 1+2 OZ copper thickness FPC, 10mm PCB width.
- Standard length 5m per roll. The length also can be customized
|
PN |
S010240BB1LZ |
S010240BC1LZ |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 2835 |
SMD 2835 |
| LED Quantity |
240LEDs/m |
240LEDs/m |
| CCT | 3000K/4000K/6500K |
3000K/4000K/6500K |
|
Dimension |
5000*10mm |
5000*10mm |
|
Cutting length |
12.5mm |
12.5mm |
|
Lumens/m |
1900lm |
1900lm |
| PCB Color | White/Black |
White/Black |
|
Power |
19W/m |
19W/m |
|
CRI |
90RA |
90RA |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |

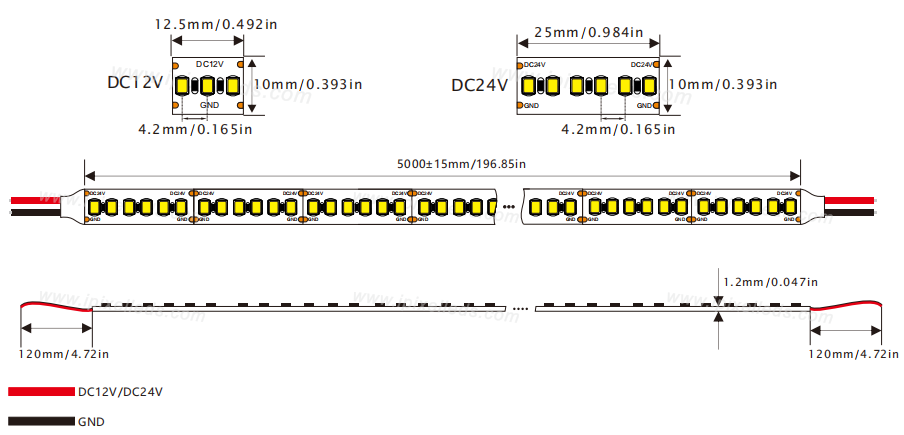

Dimension (unit:mm)

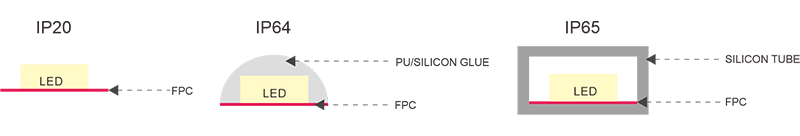

IP Rate
