Features:

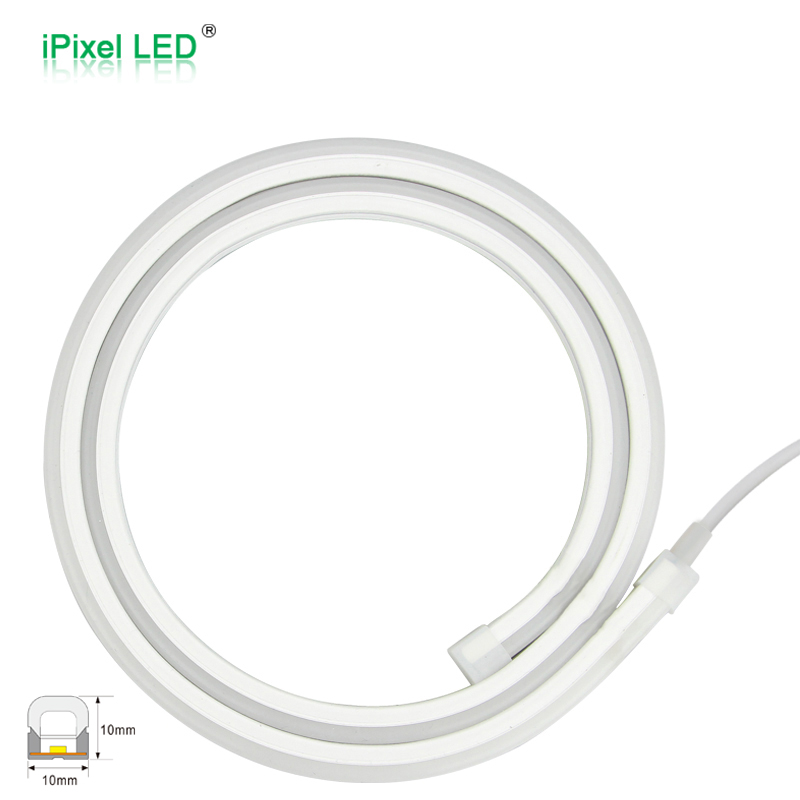

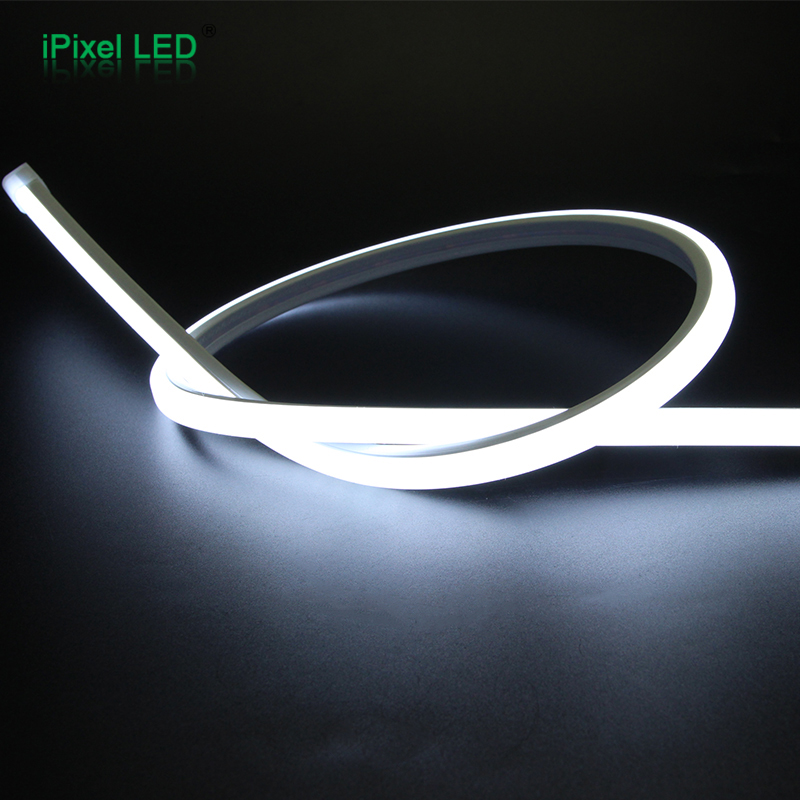

This neon strip is top view with a translucent silicone rubber as a diffuser, light uniform and no spot.
It is designed to be bent side to side with light projecting upwards.
This silicone rubber is anti-UV, anti-yellowing, anti-aging, environmental protection, non-toxic,
and very soft.
Use highlighted 2835 LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)
|
PN |
Ｎ010120BB1LZ |
Ｎ010120BC1LZ |
|
Voltage |
DC12V |
DC24V |
| Cutting Length | 25mm |
50mm |
|
LED Quantity |
120LEDs/m |
120LEDs/m |
|
SMD Type |
SMD2835 |
SMD2835 |
|
Color |
3000K/4000K/6500K |
3000K/4000K/6500K |
|
Power |
7.2W/m |
7.2W/m |
|
Lumens/m |
W: 580lm | W: 580lm |
| Size (mm) | (5025±15)x10x10mm |
(5025±15)x10x10mm |
| Net Weight/Roll | 0.5KG |
0.5KG |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Note: Length tolerance applies. Actual product dimensions may vary
