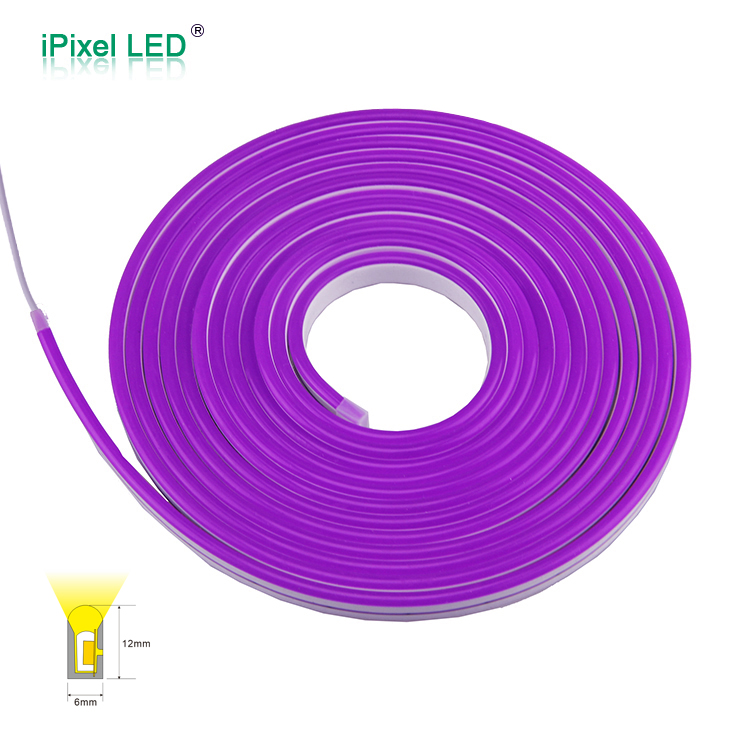

6x12mm Mini static color Side View LED Neon flex DC12V/DC24V

Description

Single color mini Neon Flexible strip made of silicon material
Fire resistance, Anti - UV, Anti - Corrosion and deformation resistance
Very soft and easy to be bend to make any small sign or LOGO
Standard 5 meters/ reel, but can be customized within 50meters
The cutting unit length is 25mm(12V), or 50mm(24V) per section
Cutting mark on the side of neon body
Waterproof IP65 Rated for outdoor installation
Including 10pcs mounting clips per reel(5M)

Share to

Specification

Product Parameter

PN	N006120BB1LZ	N006120BC1LZ
Voltage	DC12V	DC24V
LED Type	SMD2835	SMD2835
LED Quantity	120LEDs/m	120LEDs/m
CCT	R/G/B/P/Y/V/IB/GY 3000-3500K 8000-9000K
Dimension	(5025±15)612mm	(5025±15)612mm
Material	Silicon	Silicon
Power	8W/m	8W/m
Cutting unit	25mm	50mm
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃

Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice;
6. Length tolerance applies. Actual product dimensions may vary.

Dimension (unit:mm)

Note: Length tolerance applies. Actual product dimensions may vary

Accessory
