Home > LED Neon > Side View > 6x12mm Mini RGB Side View LED Neon strip DC12V/DC24V

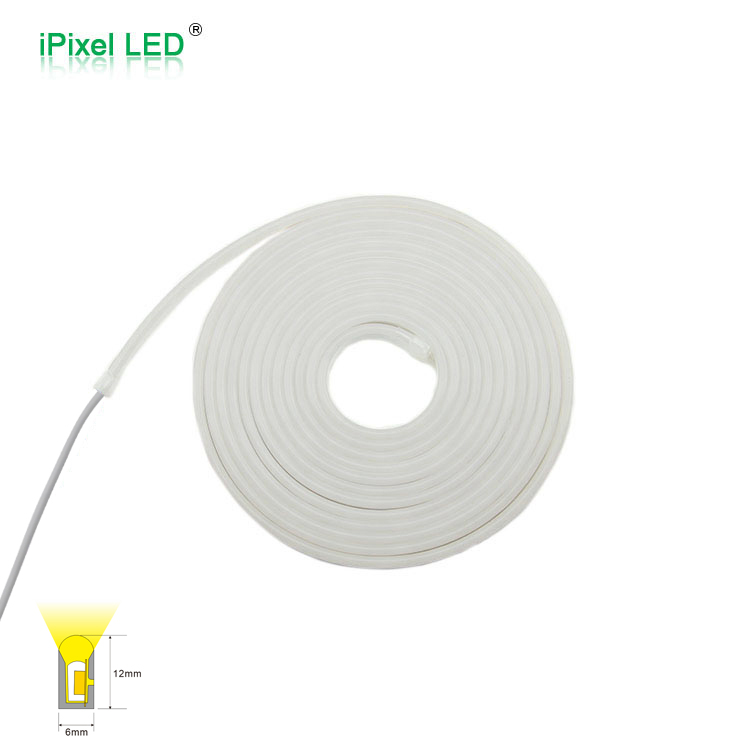

6x12mm Mini RGB Side View LED Neon strip DC12V/DC24V

Feature:

This is a PWM control RGB color LED Neon flexible strip without Pixel

The whole body is made by silicon material Fire resistance,

Anti - UV, Anti - Corrosion and deformation resistance Very soft and

easy to be bend to make any small sign or LOGO RGB led flex strip inside,

side emitting and can only be bend side to side

Share to

Specification

Product Parameter

PN	N006120TB3PZ	N006120TC3PZ
Voltage	DC12V	DC24V
LED Type	SMD LED RGB	SMD LED RGB
CCT	RGB	RGB
Dimension	(5025±15)612mm	(5025±15)612mm
Material	Silicon	Silicon
Power	14W/m(Max)	14W/m(Max)
Cutting unit	31.3mm	62.6mm
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃

Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary

Dimension (unit:mm)

Note: Length tolerance applies. Actual product dimensions may vary
