Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
|
PN |
S010840ZC3PZ |
|
Voltage |
DC24V |
|
SMD Type |
COB |
| LED Quantity |
840 LEDs/m |
|
View Color |
RGB |
|
Dimension |
5000*10mm |
|
Lumens/m |
R:135LM G:271LM B:72LM |
| PCB Color | White |
|
Power |
16 W/M |
|
Minimum Cutting Length |
25mm |
| IP Rate | IP20/IP64/IP65 |
Description
1. This PWM RGB COB led strip is very soft and can be bent at will.
2. It has three basic colors, red, green and blue and the color can be adjusted by controller.
3. It uses SMD flip chip, which is highly integrated, 840LEDs/m
4. High brightness, uniform luminescence and no spot.
5. Every 25mm can be cut, and thicker PCB with 1+2 ounce copper thickness.
6. It is suitable for dark grooves, parks, squares, buildings, architectural lighting...

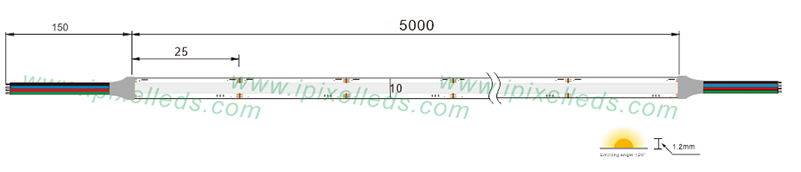

Dimension (unit:mm)
IP Rate
