Description

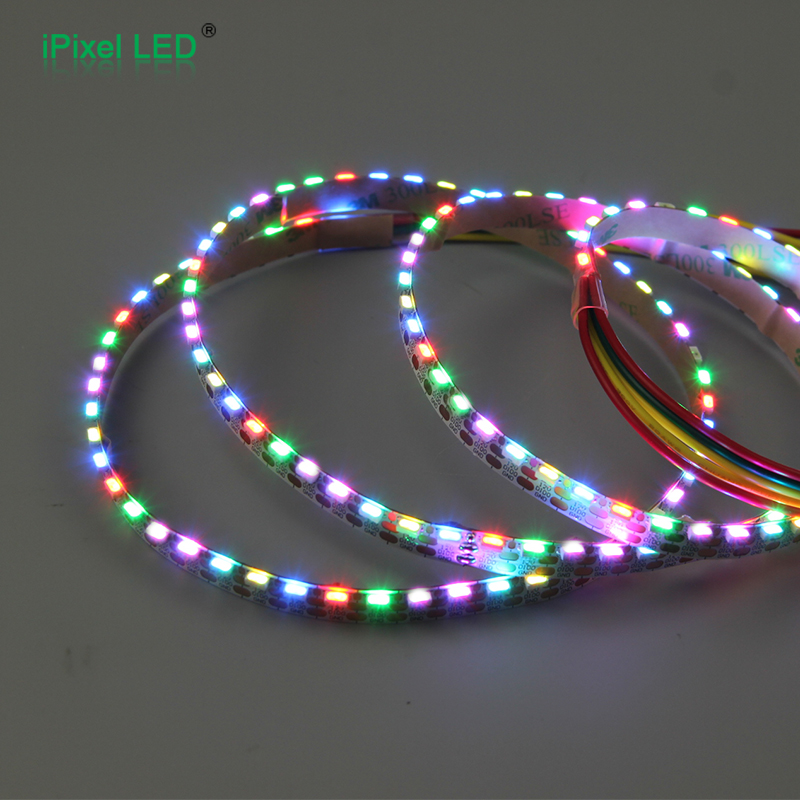

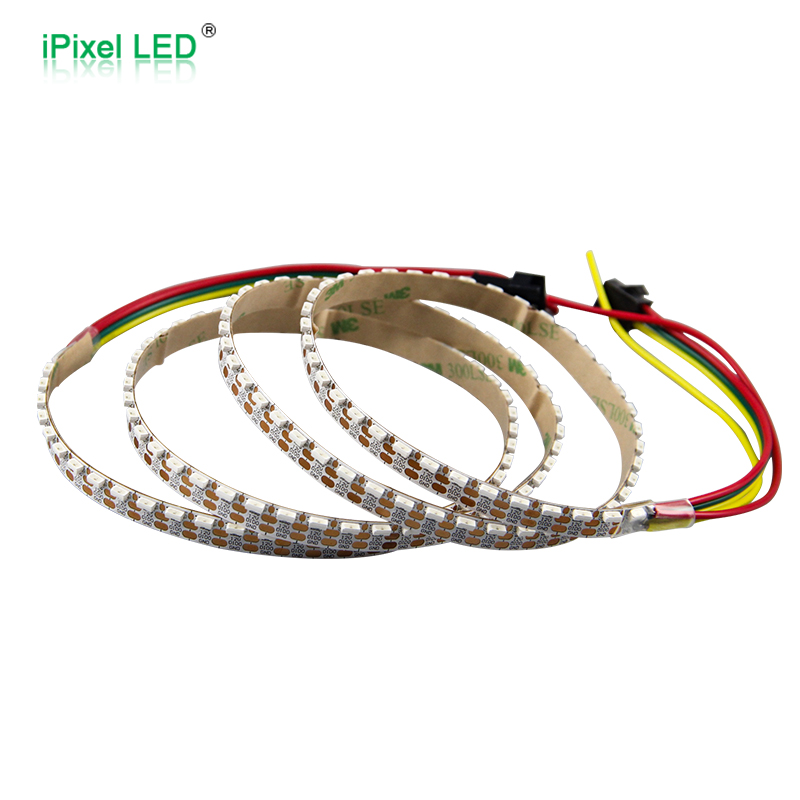

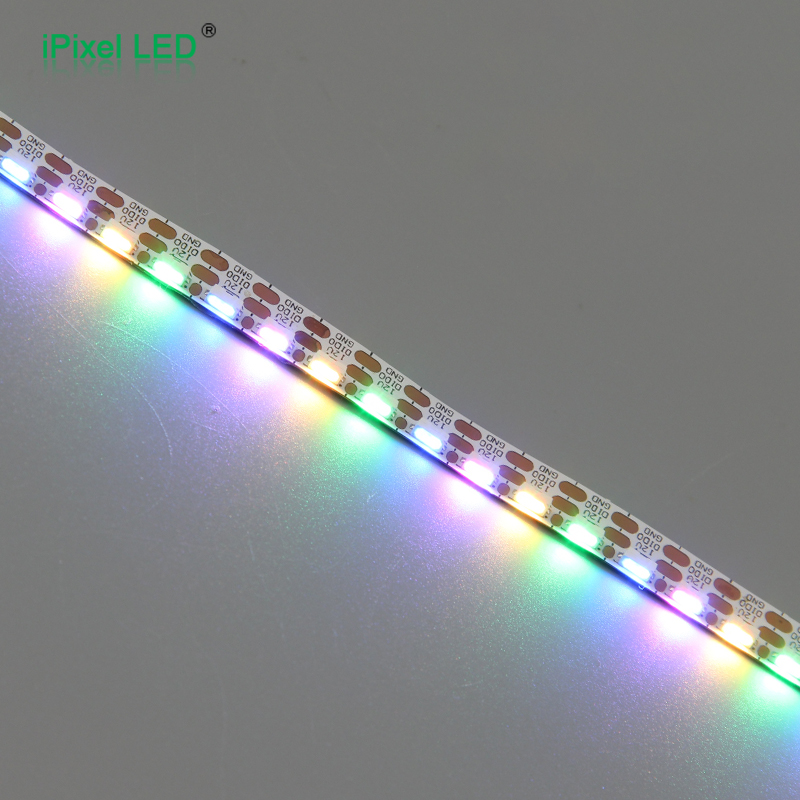

Side emitting addressable LED strip with SMD4020 RGB LED chips
144pixels/m, cut-able every 6.94mm

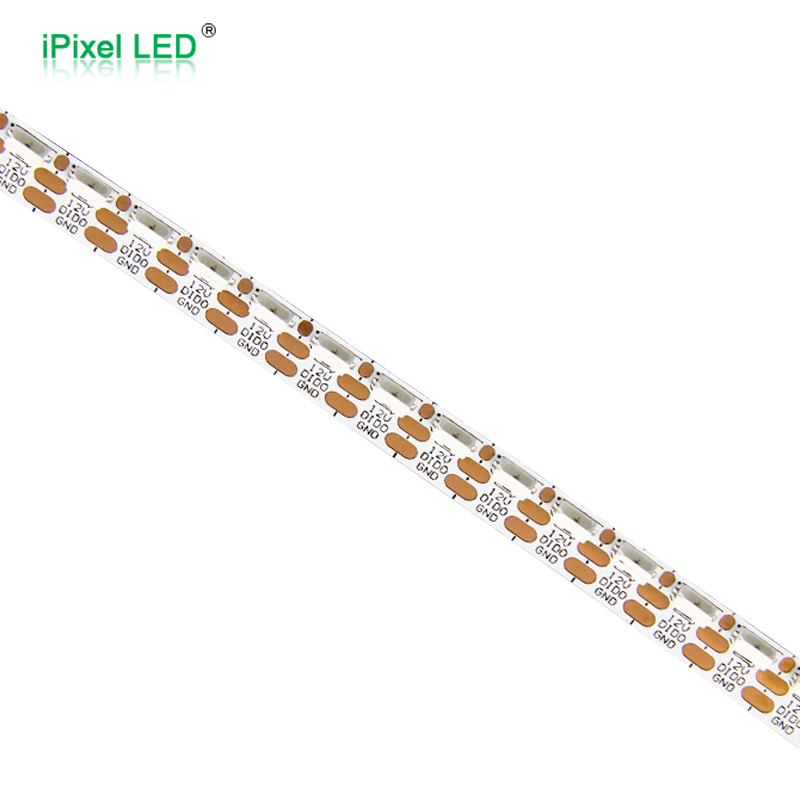

The PCB is 3 Ounce copper, 8mm width
PCB Color: White only, DC12V voltage, SPI signal protocol 1 Meter per reel,
customized sizes are also available 3Pin JST SM connector
|
PN |
S008144IB3SA1 |
|
Voltage |
DC12V |
|
Power |
16W/m |
|
LED Type |
SMD 4020 |
| LED Quantity |
144LEDs/m |
|
Cutting length |
6.94mm / 1LED |
|
Protocol |
SPI - SK6812 |
|
Dimension |
1000*8mm |
|
Pixel/m |
144 |
| Luminance/m | R:95 G:313 B:77 lm |
|
Beam Angle |
120° |
|
IP Rating |
IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm/in)
