Home > Digital Strip > DMX >   DMX512 small angle 5050 RGB flex led strip 60LEDs/m DC24V

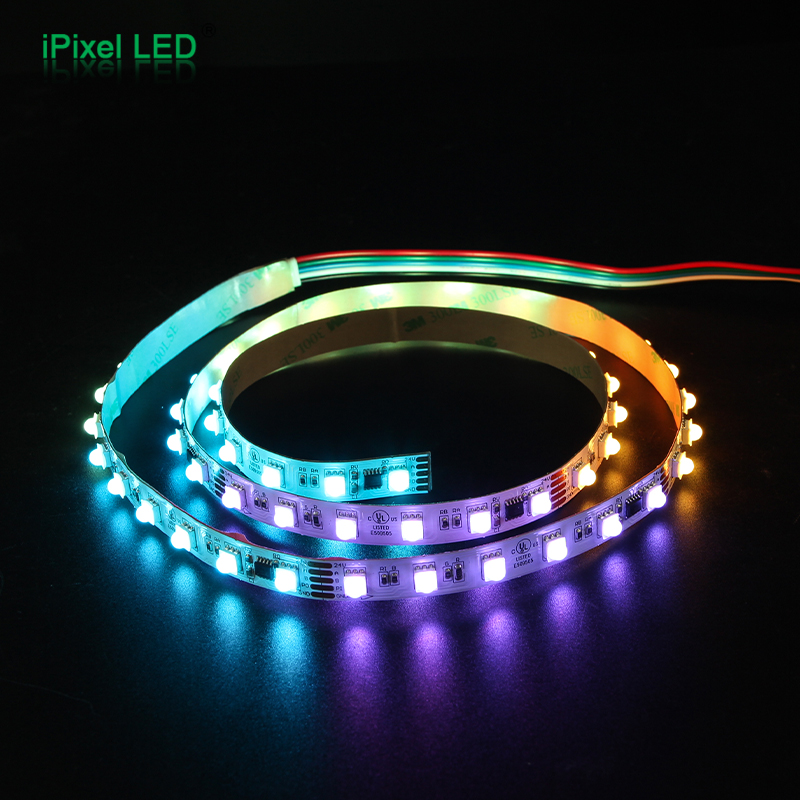

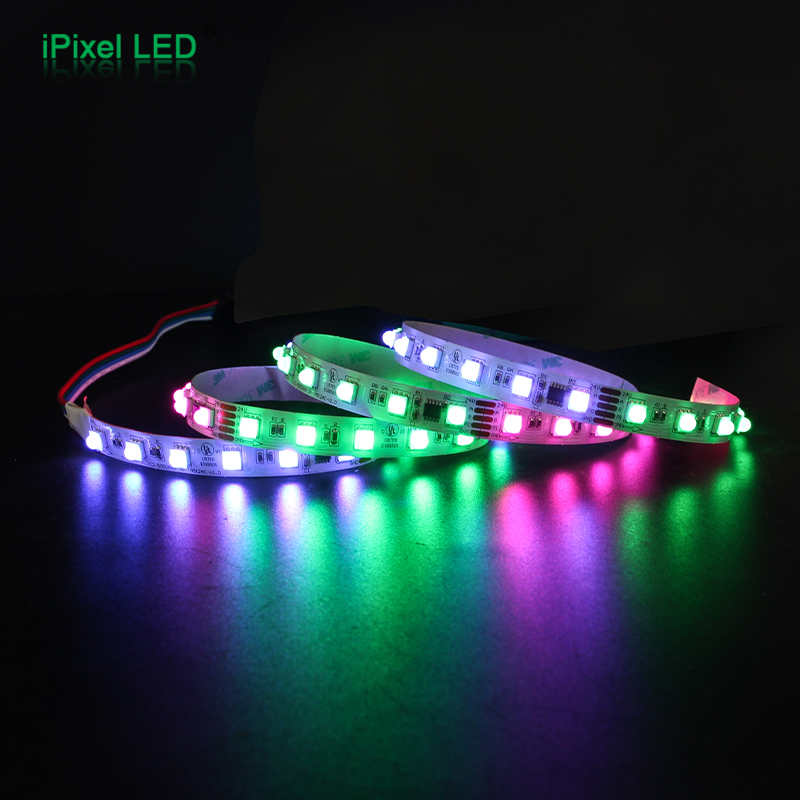

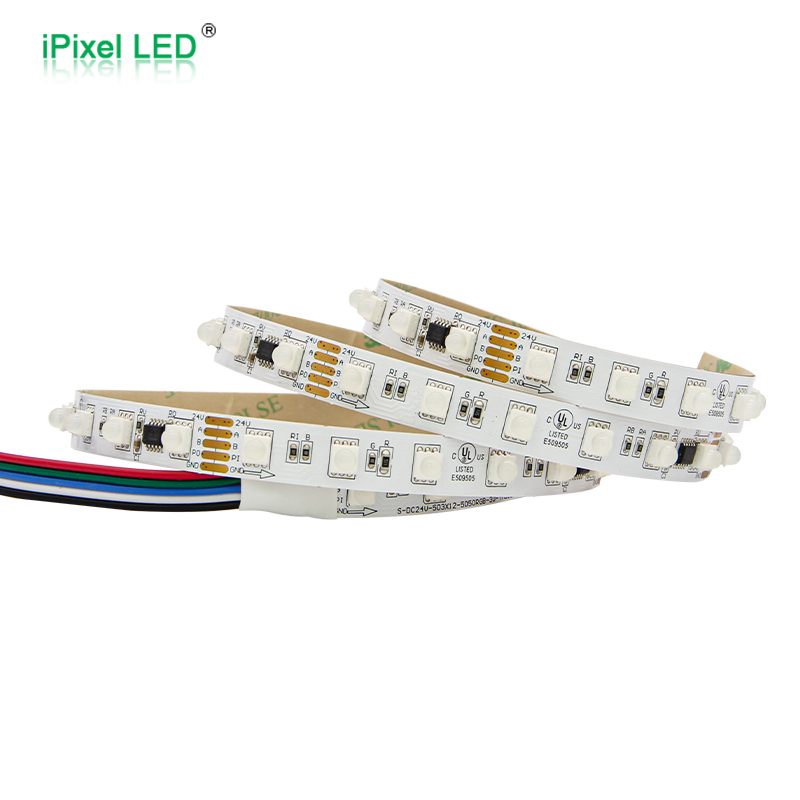

DMX512 small angle 5050 RGB flex led strip 60LEDs/m DC24V

Description

SMD5050 RGB LED chip, 60LEDs/m
DMX control, every 6 LEDs/pixel(4CH)
Input voltage is DC24V
Flex PCB and PCB color is white
1+2 Ounce copper, 12mm wide

Standard 5M/roll, length can be customized



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S012060CC3DC0(T)
    Voltage
    DC24V
    LED Type
    SMD5050
    LED Quantity
    120LEDs/m
    Dimension
    5000*12mm
    Cutting unit
    100mm
    Luminance/M
    R:148 G:356 B:64 W:383lm
    Power
   14.4W/m
    Pixel/M
   10
    Beam Angle
    45°
    Control     DMX/TM512AC
     O.T
    -25℃ ~ 60℃

Dimension (unit:mm)

DMX512 small angle 5050 RGB flex led strip 60LEDs/m DC24V

IP Rate
