Home > Digital Strip > SPI > SK9822 RGB Addressable LED strip 30/60/144LEDs/M DC5V

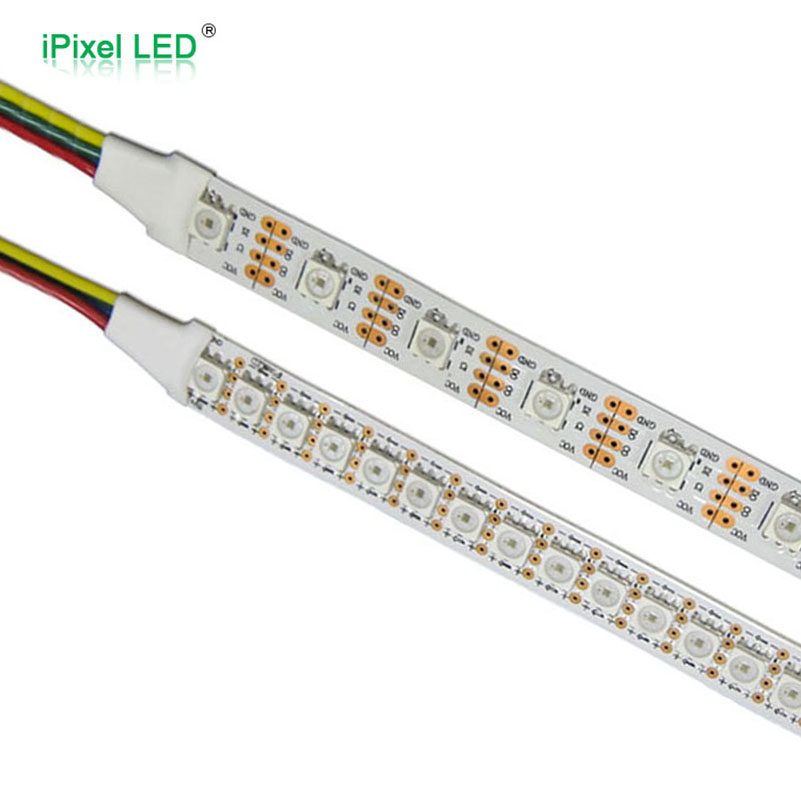

SK9822 RGB Addressable LED strip 30/60/144LEDs/M DC5V

Description
Control IC included, supporting numerous Color-change effects,
Pcontrol by SD controller, Arduino, DMX512, Artnet,
Flexible PCB 5V low voltage input,
PCB Color: White & Black available for choose,
Absolutely addressable ,each IC built inside RGB LED,
5M per roll,Customer’s size available also,
The non-waterproof version strip attached white color 3M tape on back side of PCB

Each LED cut-able.

Share to

Specification

Product Parameter

PN	S010030CA3SA2	S012060CA3SA2	S012144CA3SA2
Voltage	DC5V	DC5V	DC5V
LED Type	SMD 5050 RGB	SMD 5050 RGB	SMD 5050 RGB
LED Quantity	30LEDs/m	60LEDs/m	144LEDs/m
Protocol	SPI - SK9822	SPI - SK9822	SPI - SK9822

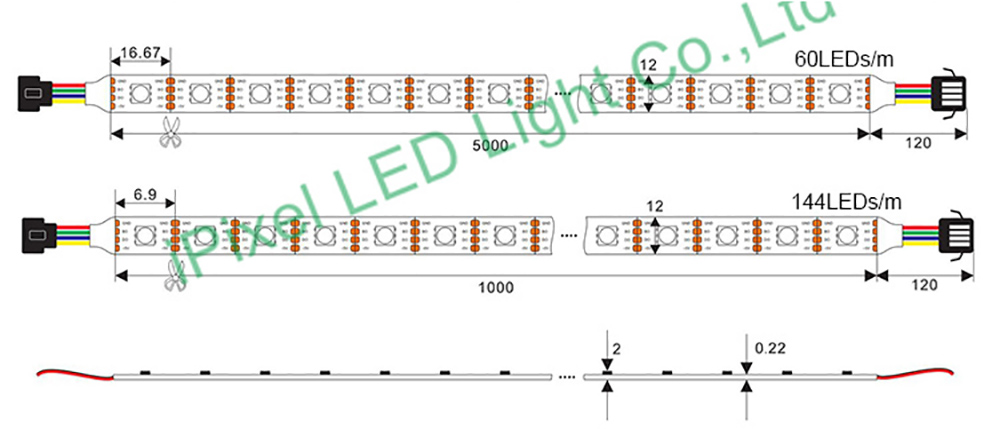

Dimension	5000*10mm	5000*12mm	1000*12mm
Pixel/m	30PCS	60PCS	144PCS
PCB Color	White/Black	White/Black	White/Black
Power	7.2W/m	15.5W/m	34W/m
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃	-25℃ ~ 60℃
