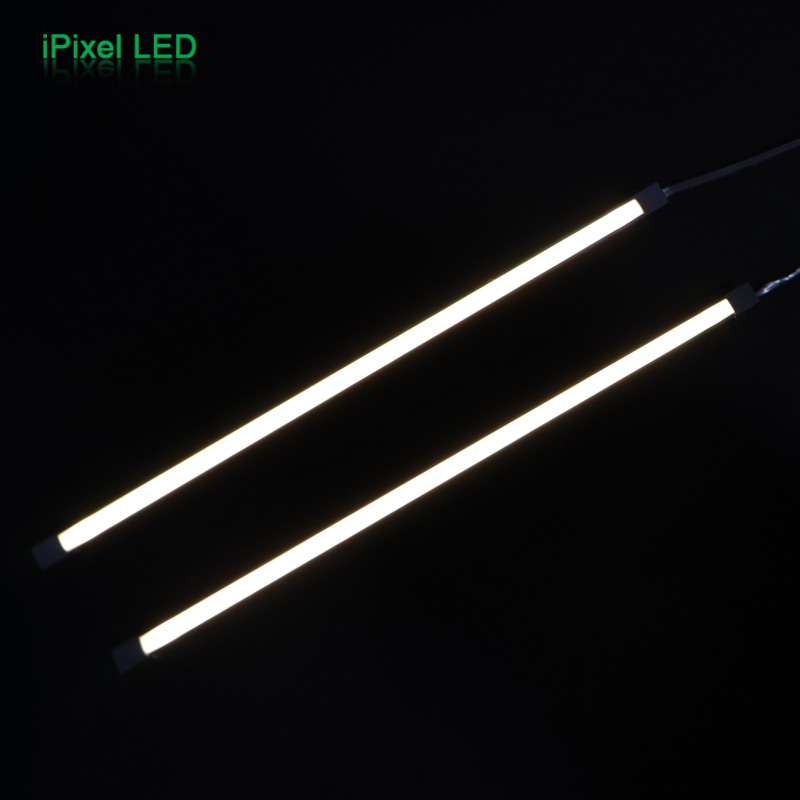

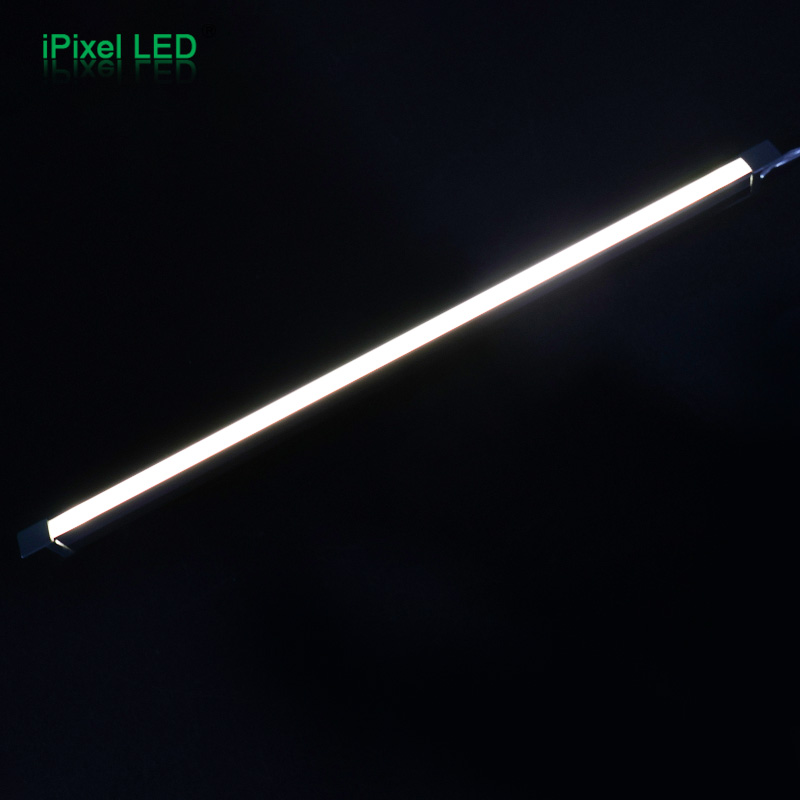

07×09mm Ultra-Narrow Solder-Free LED Rigid Bar Series
07×09mm Ultra-Narrow Solder-Free LED Rigid Bar Series
Compact Embedded Cabinet Lighting Solution with Plug-and-Play Installation
Ultra-slim 7×9mm embedded profile design
Solder-free plug-and-play connector system
Crystal end cap design for soft and glare-free illumination
Compact aluminum profile with heat dissipation
Hidden installation for premium furniture appearance
Customized length from 200mm to 3000mm
Available in 3000K / 4000K / 6500K
Overview & Key Features
Overview
The 07×09mm Ultra-Narrow Solder-Free LED Rigid Bar Series is designed for high-end furniture and cabinet lighting applications where installation space is limited.

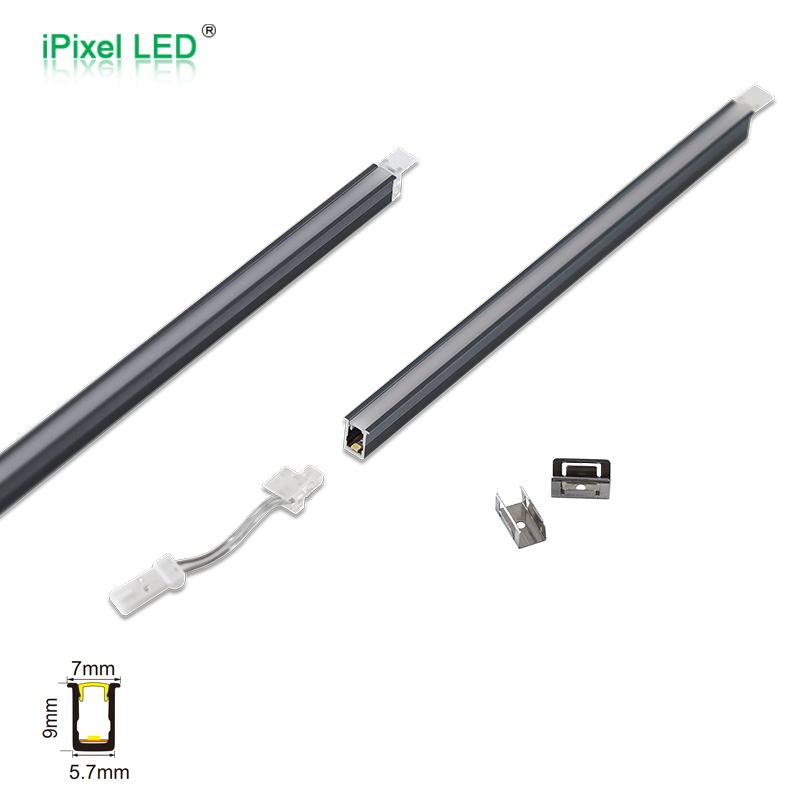

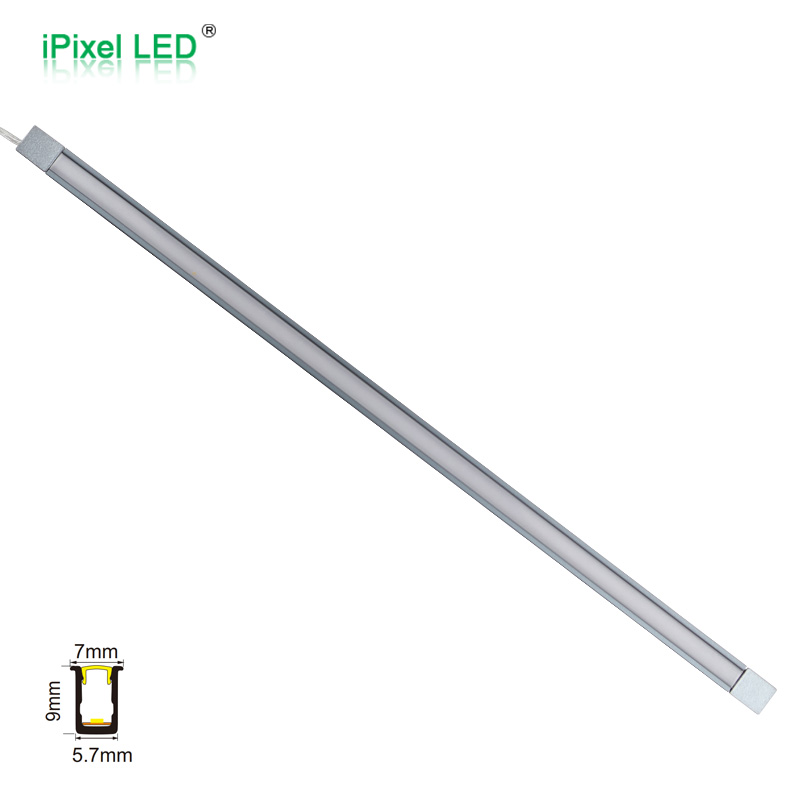

With an ultra-compact 7×9mm aluminum profile, the LED bar can be recessed into narrow grooves while maintaining a clean and integrated appearance.
The solder-free plug-and-play connector allows direct electrical connection without manual soldering, reducing installation time and improving assembly consistency for OEM furniture manufacturers.
The innovative crystal end cap provides softer light output and helps reduce glare, creating a premium lighting effect for close-view applications.
According to the datasheet, the product uses a 7×9mm aluminum profile, DC12V constant voltage drive, 8W/m power, SMD1612 LEDs, 130 LEDs/m, and supports 3000K/4000K/6500K color temperatures.
Key Features
- Ultra-slim 7×9mm embedded profile design
- Solder-free plug-and-play connector system
- Crystal end cap design for soft and glare-free illumination
- Compact aluminum profile with heat dissipation
- Hidden installation for premium furniture appearance
- Customized length from 200mm to 3000mm
- Available in 3000K / 4000K / 6500K
Product Series Specification Matrix
| Product Model | Voltage | LED Type | LED Density | Power | CCT | CRI | Beam Angle | Size | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| B007130UB1LZ | DC12V | SMD1612 | 130 LEDs/m | 8W/m | 3000K / 4000K / 6500K | ≥90 | 120° | 200×7×9mm | IP20 |
Dimension & Customization
Standard size:
| Item | Dimension |
|---|---|
| Width | 7mm |
| Height | 9mm |
| Length | 200mm |
Customized length:200mm - 3000mm
How to Choose
| Requirement | Recommended Option |
|---|---|
| Limited installation space | 07×09mm Ultra-Narrow LED Bar |
| Need hidden furniture lighting | Embedded Installation |
| Need faster assembly | Solder-Free Connector |
| Need premium appearance | Crystal End Cap Version |
| Need customized cabinet sizes | 200-3000mm Length |
| Need different white tones | 3000K/4000K/6500K |

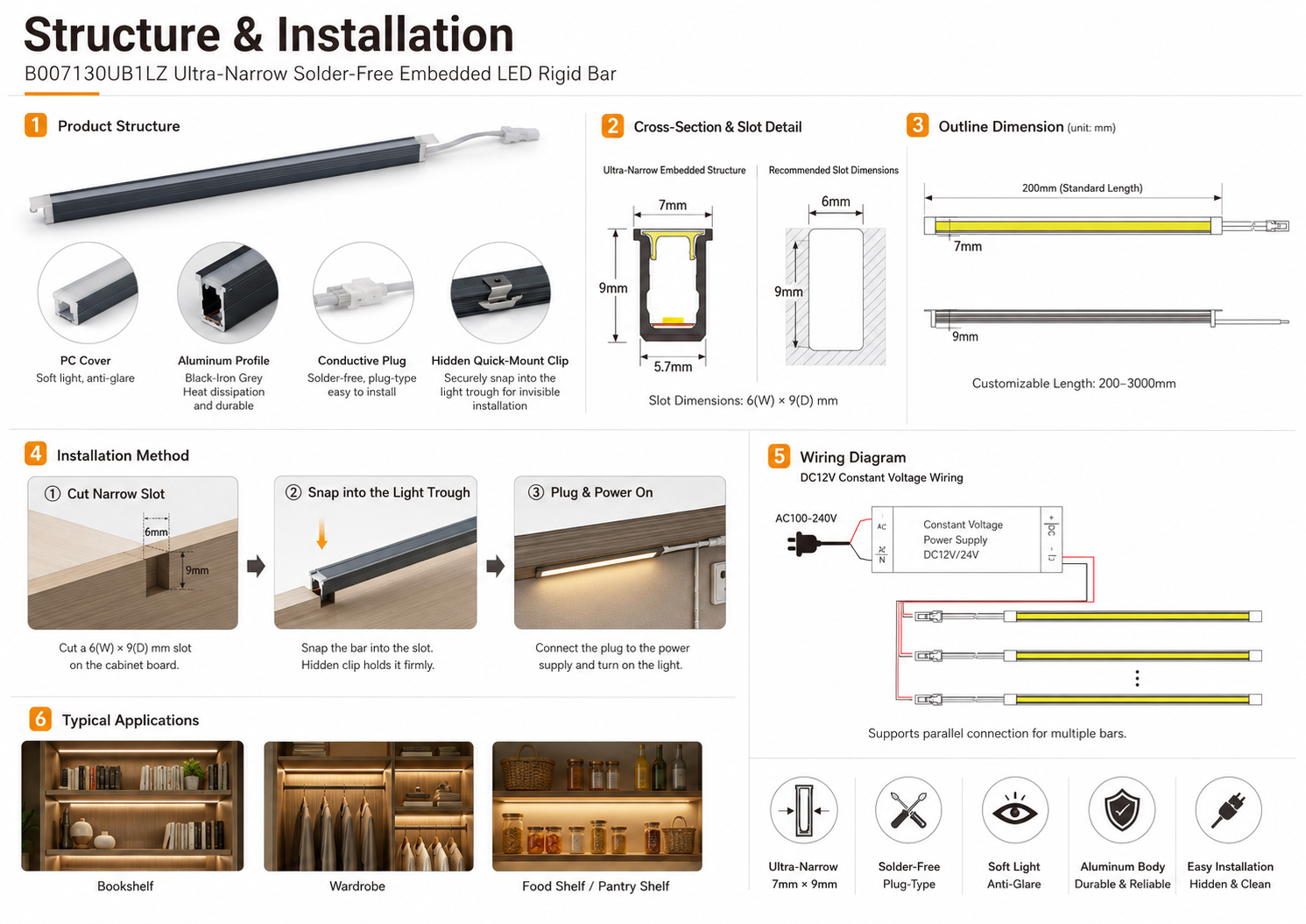

Structure & Installation
Customization Options
| Custom Item | Available Options |
|---|---|
| Length | 200mm-3000mm |
| CCT | 3000K / 4000K / 6500K |
| Housing Color | Black / Iron Grey |
| Connector | Solder-Free Plug / Custom Cable |
| Cable Length | Customized |
| Installation | Embedded / Surface Mount |
| Profile Design | OEM Customized |
| Application | Cabinet / Wardrobe / Display Furniture |
FAQ
No. The plug-type connector allows direct connection without soldering.
Yes. Standard length is 200mm, and customized lengths from 200mm to 3000mm are available.
Yes. The crystal end cap design provides softer illumination and reduces glare.
It is suitable for cabinets, wardrobes, wine cabinets, display shelves and other furniture lighting applications.
