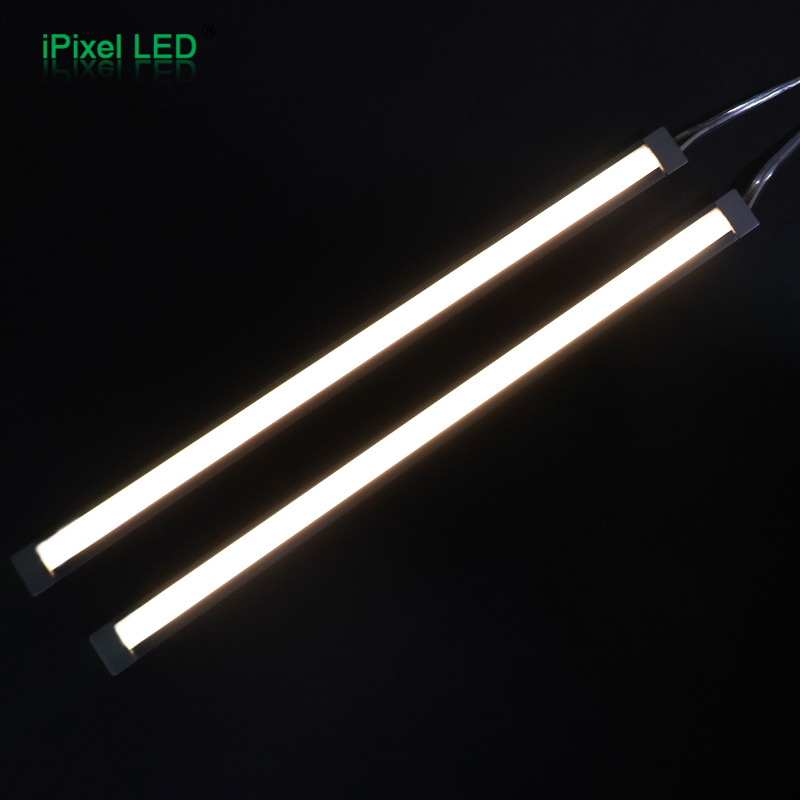

12×10mm 45° Angle Embedded LED Rigid Bar Series

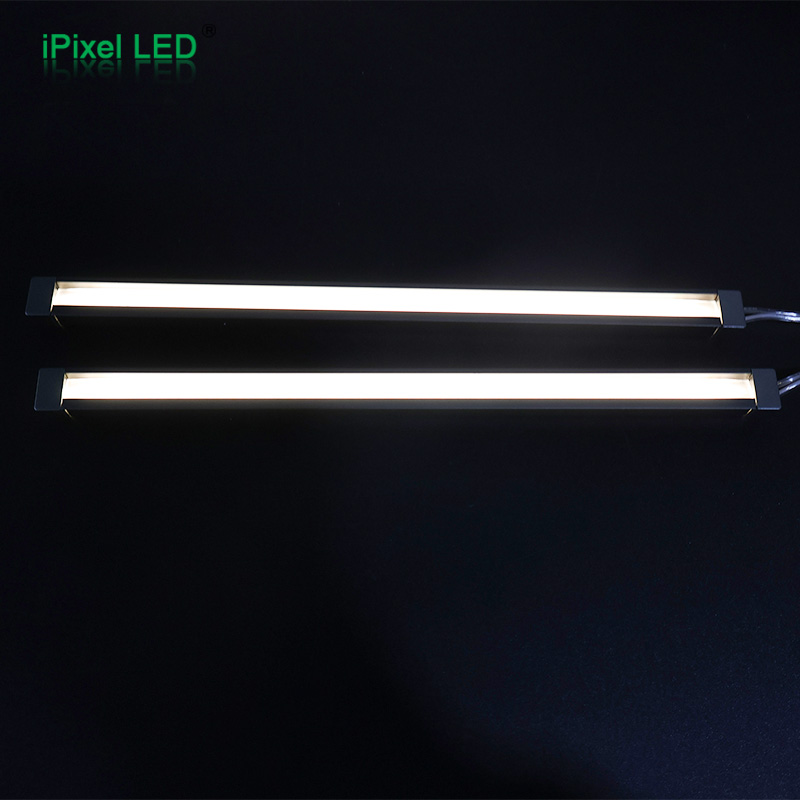

12×10mm 45° Angle Embedded LED Rigid Bar Series
Solder-Free Cabinet Lighting Solution with Anti-Glare Wide-Angle Illumination
45° angled lighting design for cabinet applications
COB LED technology with dot-free illumination
Honeycomb diffuser for soft and comfortable lighting
Solder-free plug-and-play connection
Embedded installation for clean furniture appearance
Anti-glare wide-angle illumination
Customized length from 200mm to 3000mm
Available in 3000K / 4000K / 6500K
Overview & Key Features
Overview
The 12×10mm 45° Angle Embedded LED Rigid Bar Series is specially designed for premium furniture and cabinet lighting applications.
Different from traditional front-emitting LED bars, this series adopts a 45° inclined lighting structure that directs light inward toward the cabinet space, achieving the ideal lighting effect:
Light visible, lamp hidden.
The integrated honeycomb lampshade provides soft and uniform light output while reducing glare, making it suitable for close-view furniture applications.
With COB LED technology and a solder-free plug-and-play connection design, the product provides both excellent lighting performance and efficient installation for OEM furniture manufacturers.
According to the datasheet, the product uses a COB 300LED/m light source, DC12V operation and 8W/m power output.
Key Features
- 45° angled lighting design for cabinet applications
- COB LED technology with dot-free illumination
- Honeycomb diffuser for soft and comfortable lighting

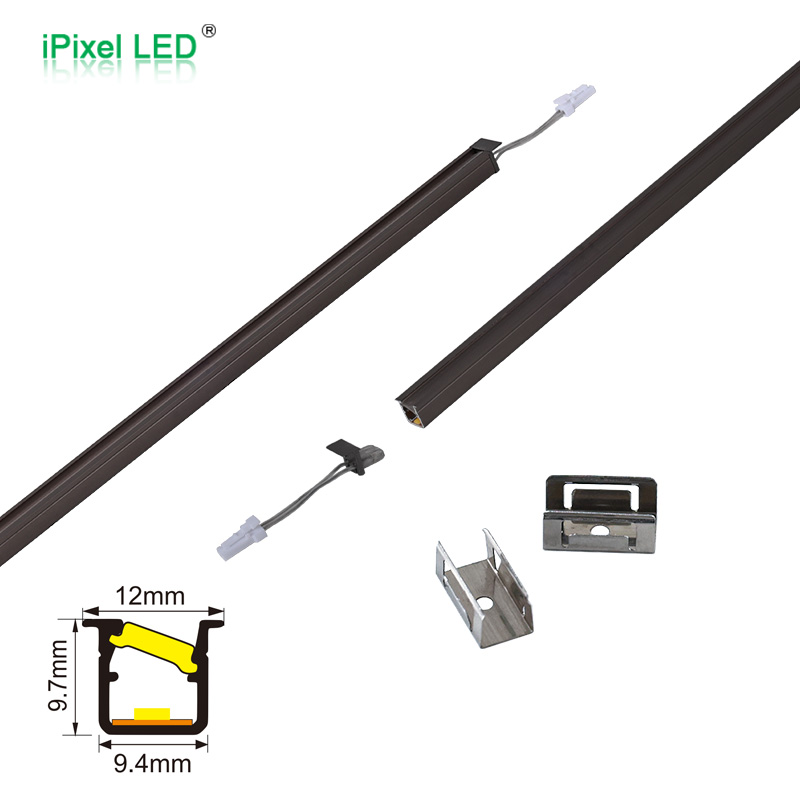

- Solder-free plug-and-play connection
- Embedded installation for clean furniture appearance
- Anti-glare wide-angle illumination
- Customized length from 200mm to 3000mm
- Available in 3000K / 4000K / 6500K

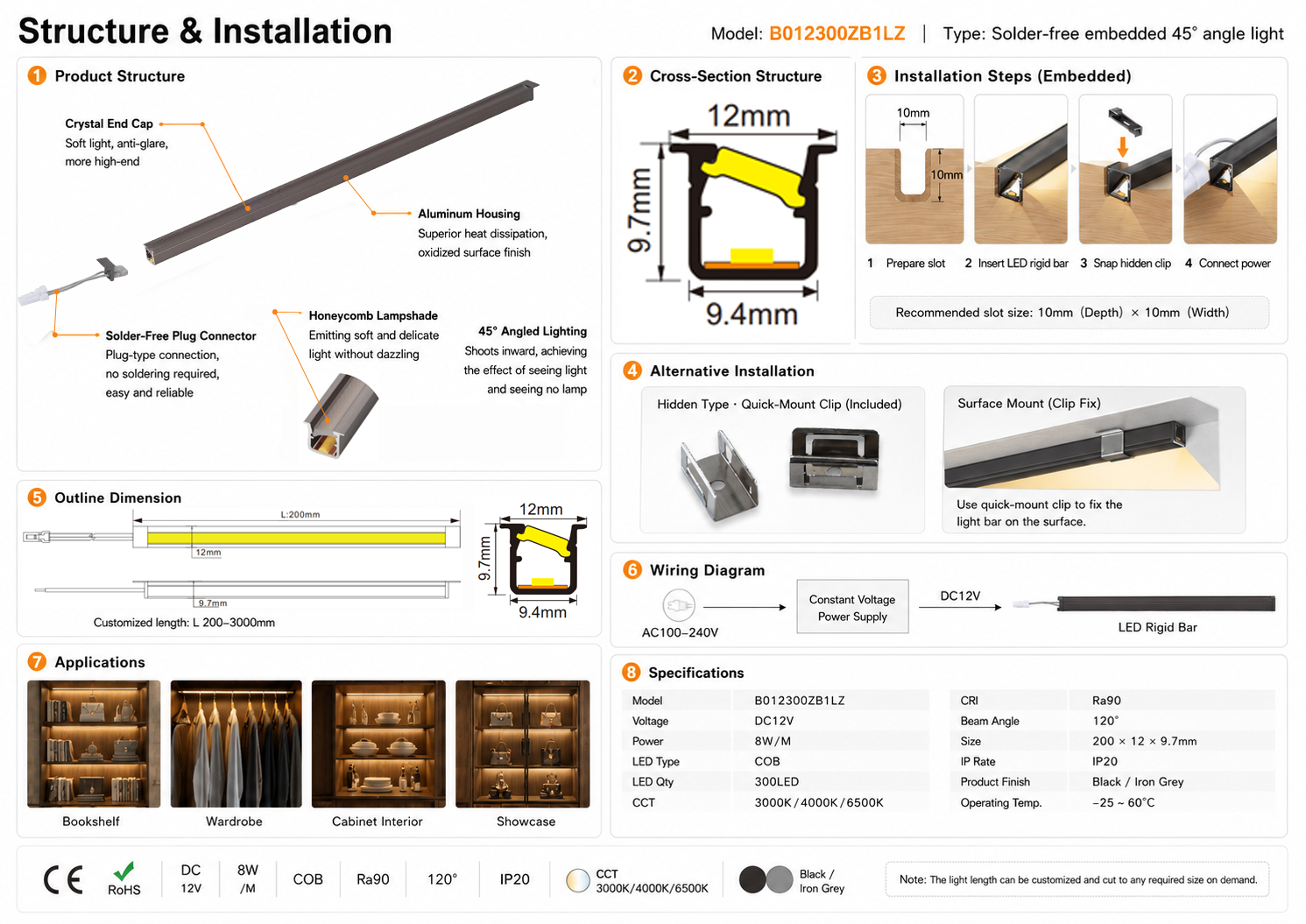

Product Series Specification Matrix
| Product Model | Voltage | LED Type | LED Density | Power | CCT | CRI | Beam Angle | Size | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| B012300ZB1LZ | DC12V | COB | 300LED/m | 8W/m | 3000K / 4000K / 6500K | ≥90 | 120° | 200×12×9.7mm | IP20 |
45° Angle Embedded Lighting Structure
1. 45° Inclined Light Output Design
The LED emitting surface is positioned at a 45° angle, allowing light to project inward.
Advantages:
- Reduces direct eye exposure
- Creates softer cabinet illumination
- Improves visual comfort
- Achieves hidden lighting appearance
Anti-Glare Lighting Performance Honeycomb Diffuser Design
The honeycomb-shaped lampshade provides:
- Soft light transmission
- Reduced glare
- Delicate illumination effect
- Premium furniture appearance
- Suitable for applications where users directly view the lighting source.
COB Dot-Free Illumination
Uniform Linear Lighting
COB technology provides:
- Continuous light output
- Reduced LED hotspots
- Smooth lighting appearance
- Better close-distance visual experience
Dimension & Customization

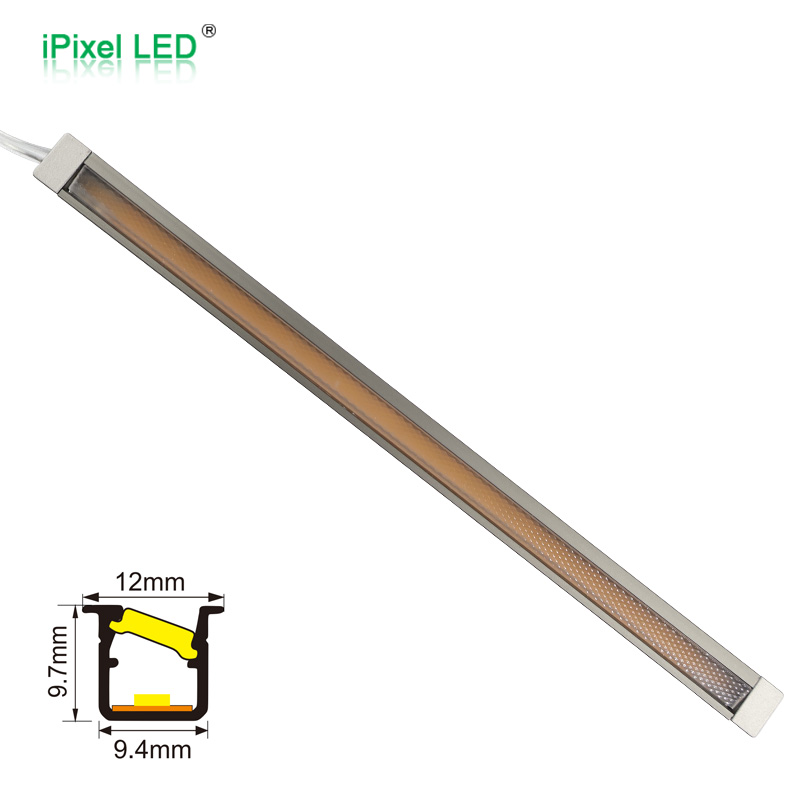

Compact 12×10mm Profile
Standard size:
| Item | Dimension |
|---|---|
| Width | 12mm |
| Height | 9.7mm |
| Standard Length | 200mm |
Customized length:200mm - 3000mm
How to Choose
| Requirement | Recommended Solution |
|---|---|
| Need hidden lighting effect | 45° Angle LED Bar |
| Need anti-glare lighting | Honeycomb diffuser version |
| Need no LED dots | COB LED technology |
| Need fast installation | Solder-free connector |
| Need furniture integration | Embedded structure |
| Need customized size | 200-3000mm length |
Customization Options
| Document Name | Type | Language | Download/Remark |
|---|---|---|---|
| IES File | IES | EN | Download |
| RoHS | Certificate | EN | Download |
| CE | Certificate | EN | Download |
| LM-80 Test Report | EN | Download |
FAQ
No. The COB LED design provides uniform dot-free illumination.
No. The plug-type connector allows quick installation without soldering.
Yes. Standard length is 200mm, and customized lengths from 200mm to 3000mm are available.

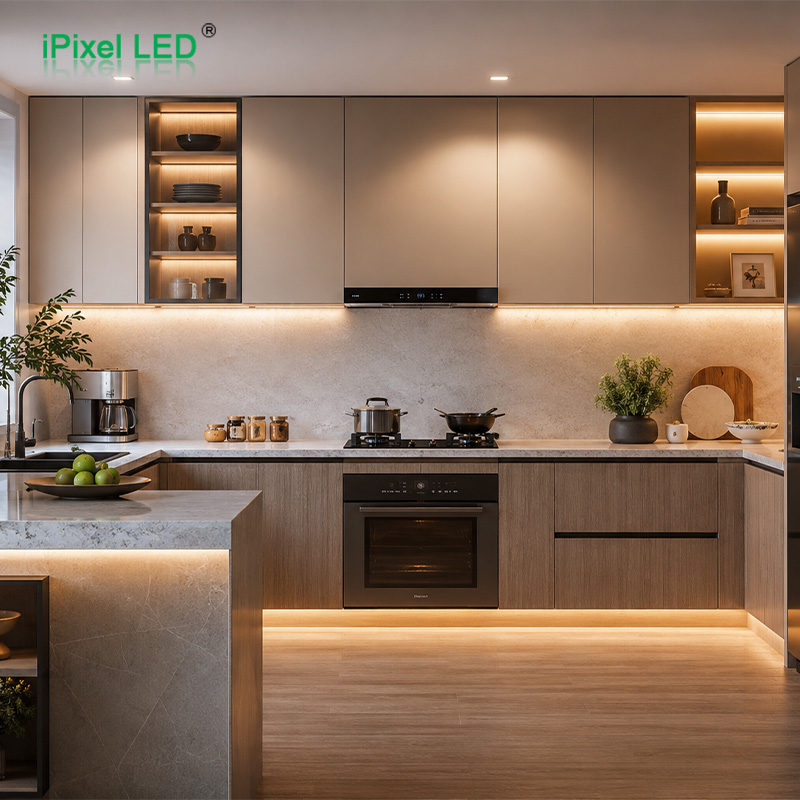

It is suitable for kitchen cabinets, wardrobes, wine cabinets, display cabinets and decorative furniture lighting.
