The triangular arc profile allows the LED bar to fit into right-angle furniture corners and provides wider, softer illumination.
13×13mm Triangular Arc LED Rigid Bar Series
13×13mm Triangular Arc LED Rigid Bar Series
Solder-Free Corner Lighting Solution for Cabinets, Wardrobes & Display Furniture

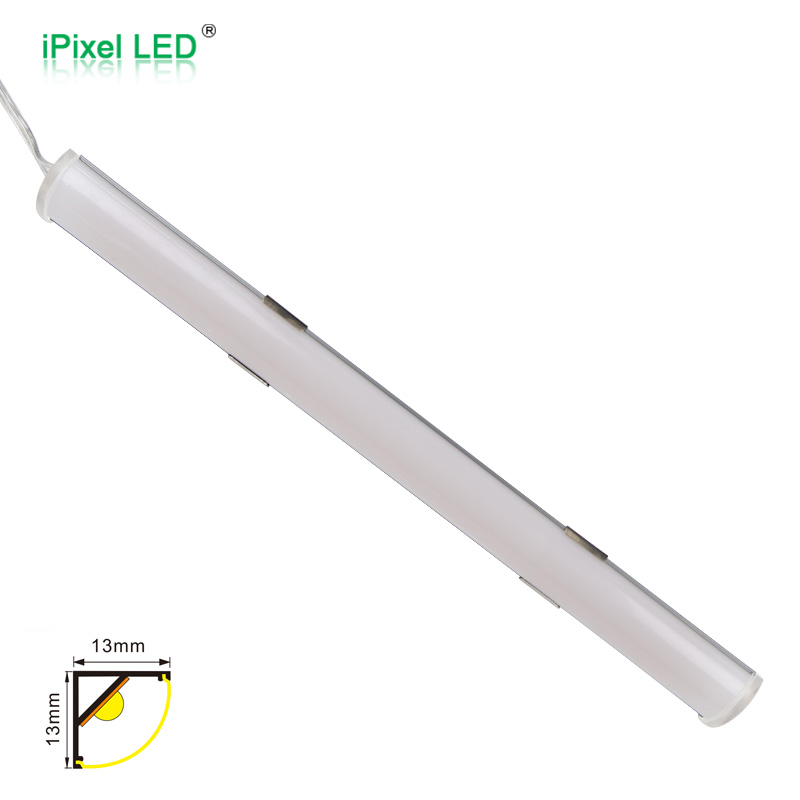

13×13mm triangular arc-shaped profile
Designed for right-angle cabinet corners

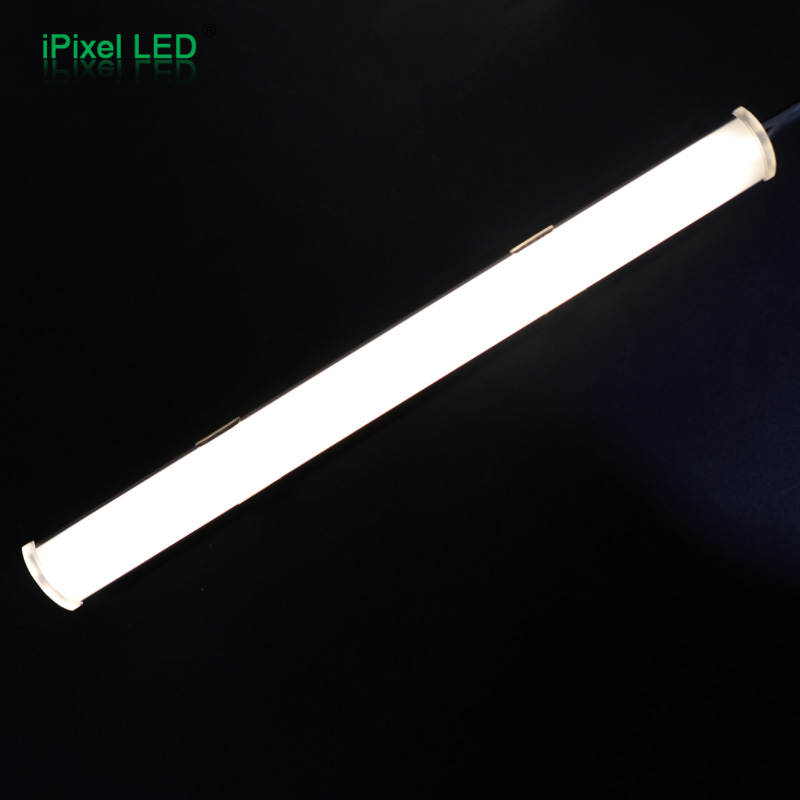

COB LED technology with dot-free illumination
Solder-free plug-and-play connection
Hidden installation with "light visible, lamp hidden" effect
3000K / 4000K / 6500K color temperature options
Customized length from 200mm to 3000mm
Overview & Key Features
Overview
The 13×13mm Triangular Arc LED Rigid Bar Series is designed for furniture lighting applications requiring both functional illumination and premium visual appearance.
With its unique triangular arc-shaped aluminum profile, the light bar fits perfectly into right-angle cabinet corners and furniture edges.

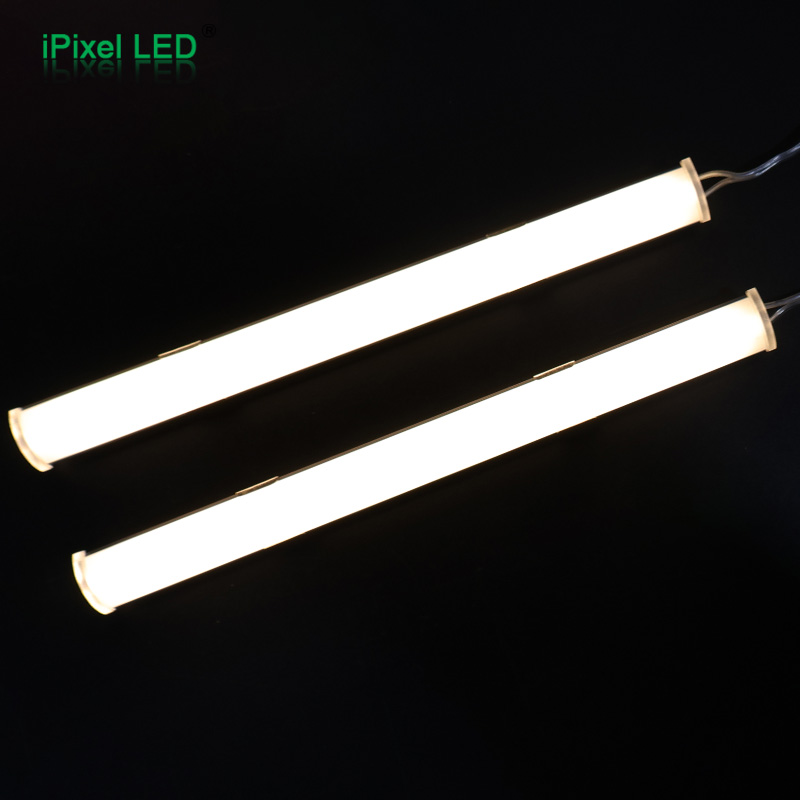

The curved light-emitting surface allows light to spread evenly inside the cabinet, creating a soft illumination effect while hiding the physical light source.
This design helps achieve the premium lighting concept:
"Light visible, lamp hidden."
The solder-free plug-and-play structure allows quick installation without manual soldering, making it suitable for OEM furniture manufacturers and lighting integrators.
Key Features
- 13×13mm triangular arc-shaped profile
- Designed for right-angle cabinet corners
- COB LED technology with dot-free illumination
- Solder-free plug-and-play connection
- Hidden installation with "light visible, lamp hidden" effect
- 3000K / 4000K / 6500K color temperature options
- Customized length from 200mm to 3000mm
Product Series Specification Matrix
| Product Model | Voltage | LED Type | LED Qty | Power | CCT | CRI | Beam Angle | Size | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| B013300ZB1LZ | DC12V | COB | 300 LEDs/m | 8W/m | 3000K / 4000K / 6500K | ≥90 | 120° | 200×13×13mm | IP20 |

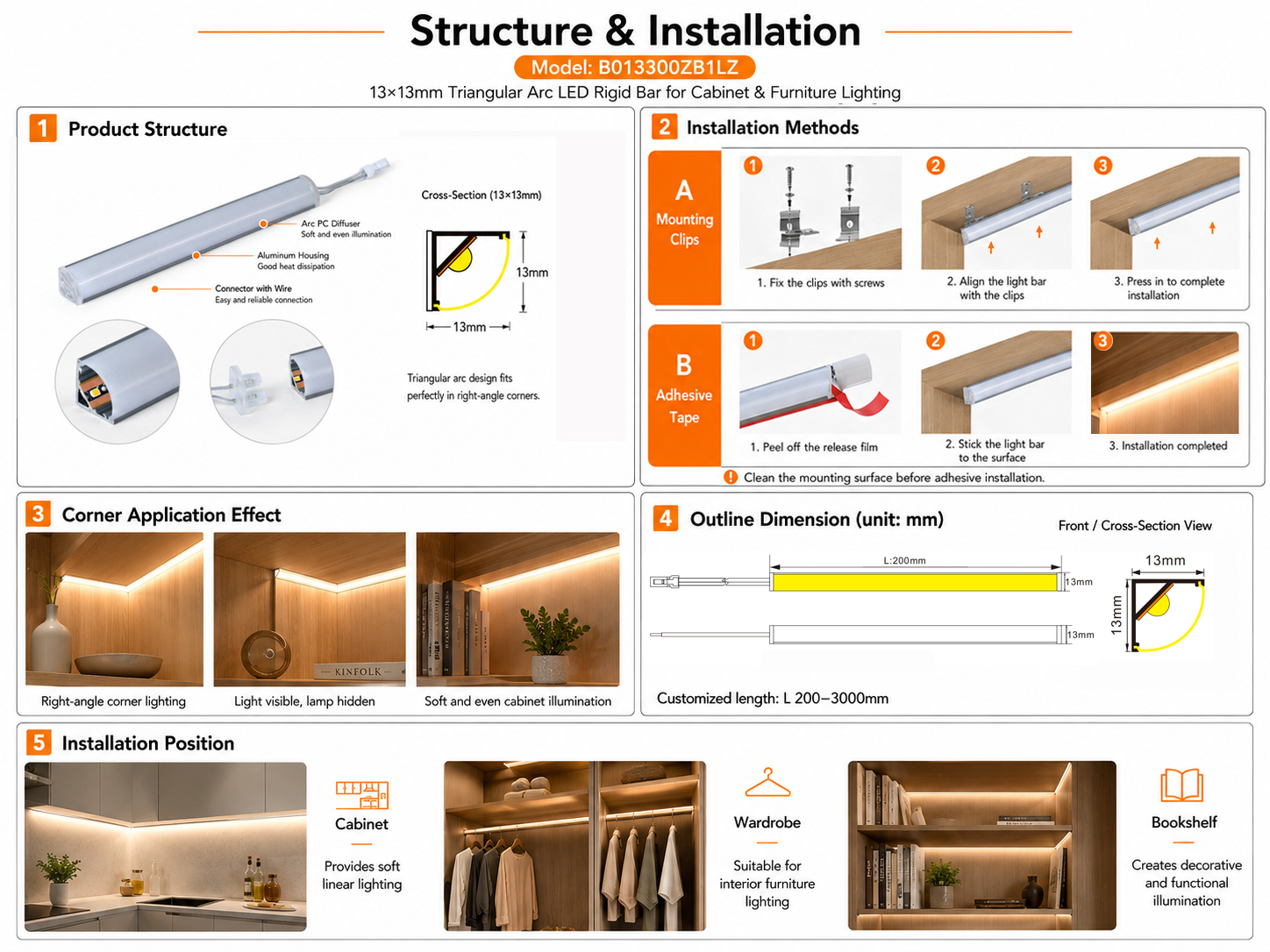

Structure & Installation
1. Right-Angle Corner Installation
The triangular profile is designed for:
- Cabinet corner positions
- Shelf edge lighting
- Furniture laminate applications
2. Hidden Lighting Effect
The arc-shaped diffuser directs light into the cabinet space while reducing direct visibility of the LED source.
Creates:
- No visible LED dots
- Reduced glare
- Comfortable visual experience

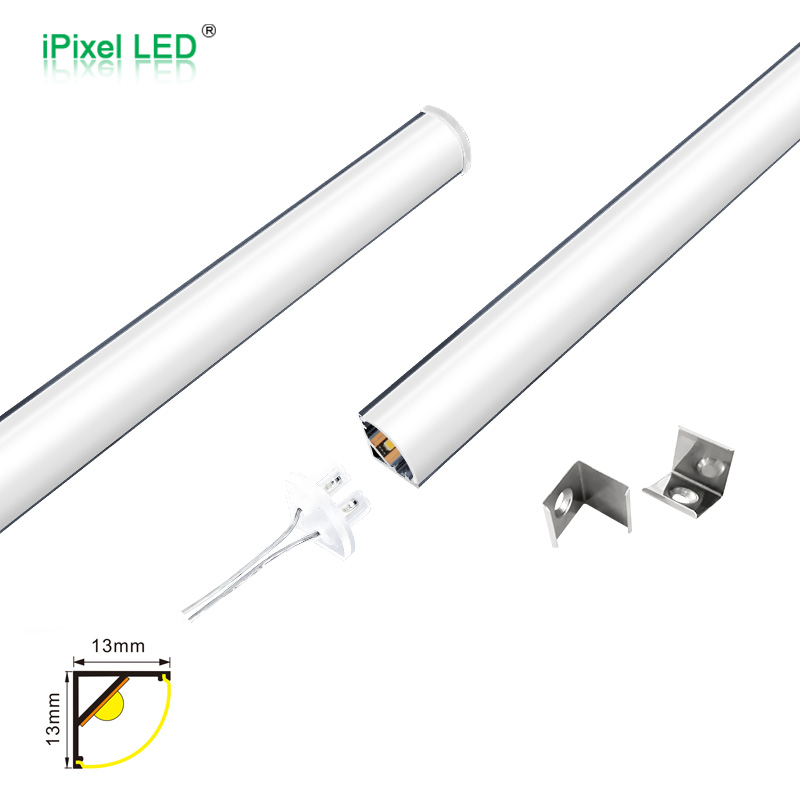

3. Surface-Mount Installation
Installation options:
Option A: Mounting Clips
- Fix clips with screws
- Snap LED bar into clips
Option B: Adhesive Installation
- Apply factory adhesive tape
- Direct surface mounting
How to Choose
| Requirement | Recommended Solution |
|---|---|
| Need corner lighting | Triangular Arc LED Bar |
| Want hidden light effect | Arc diffuser design |
| Need no visible LED dots | COB version |
| Need quick installation | Solder-free connector |
| Need furniture integration | Customized length |
| Need shelf/cabinet illumination | 13×13mm surface mount design |
Customization Options
| Item | Available Options |
|---|---|
| Length | 200mm-3000mm |
| CCT | 3000K / 4000K / 6500K |
| Housing Color | Black / Iron Grey |
| Connector | Solder-free plug / Custom cable |
| Cable Length | Customized |
| Installation | Clip mounting / Adhesive mounting |
| Application | Cabinet / Wardrobe / Display Furniture |
FAQ
No. The COB LED design provides continuous and uniform illumination without visible LED points.
Yes. Standard length is 200mm, and customized lengths from 200mm to 3000mm are available.
No. The solder-free plug connection allows quick installation without manual soldering.

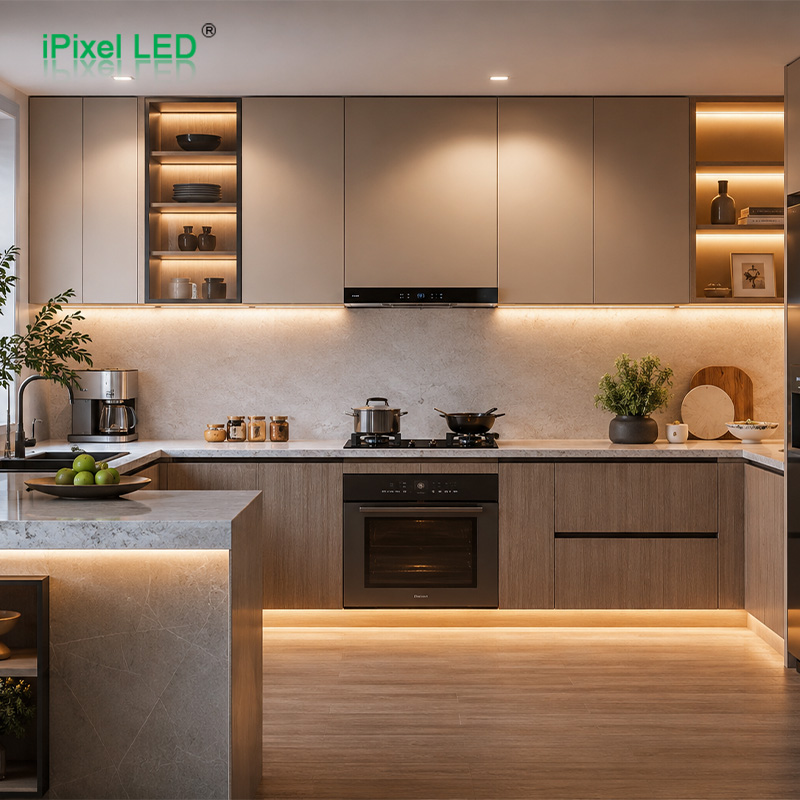

It is suitable for cabinets, wardrobes, bookshelves, display cabinets and commercial furniture lighting.
