Hand sweep sensor activates the light by waving your hand near the sensor, while motion sensor automatically detects human movement and turns the light on or off.
14×10mm Solder-Free Sensor LED Cabinet Light Series
14×10mm Solder-Free Sensor LED Cabinet Light Series
Solder-Free Cabinet Lighting Solution with Hand Sweep & Motion Sensor Options
Solder-free plug-and-play sensor design
14×10mm embedded installation profile
COB LED technology with dot-free illumination
Hand sweep sensor or human motion sensor options
Customized length from 200mm to 3000mm
Suitable for cabinet, wine cabinet and display lighting
Overview & Key Features
Overview
The 14×10mm Smart Sensor LED Rigid Bar Series is designed for integrated cabinet lighting applications requiring clean appearance, easy installation and intelligent control.

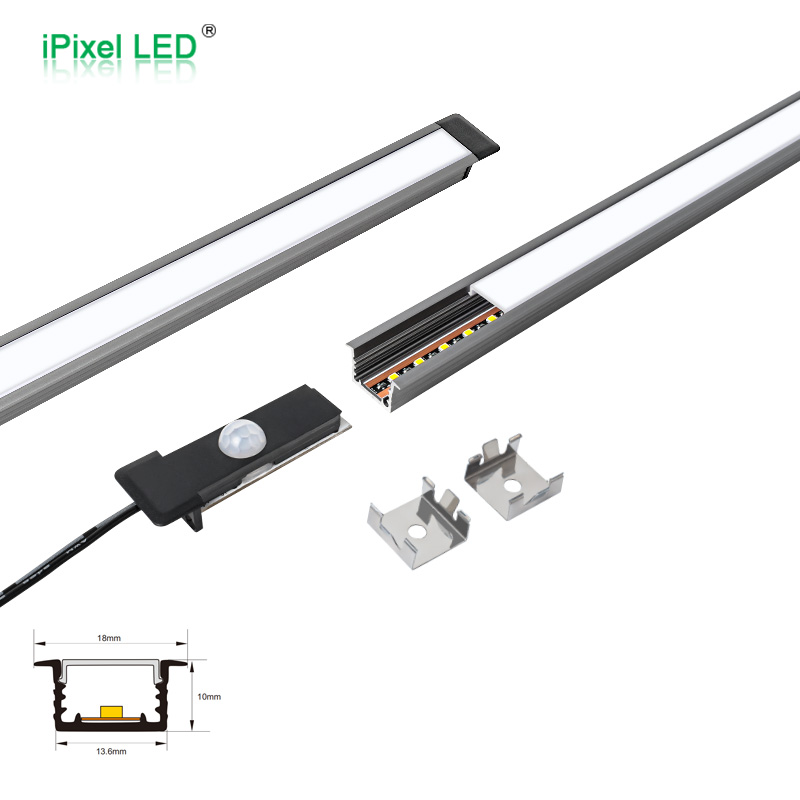

With a compact 14×10mm embedded aluminum profile, the light bar can be installed almost flush into a pre-cut slot, creating a seamless lighting effect.
The series adopts COB LED technology to provide uniform, dot-free illumination and supports different sensor options including hand sweep activation and human motion detection.
The solder-free sensor structure enables quick installation without additional wiring operations.
Key Features
- Solder-free plug-and-play sensor design
- 14×10mm embedded installation profile
- COB LED technology with dot-free illumination
- Hand sweep sensor or human motion sensor options
- Customized length from 200mm to 3000mm
- Suitable for cabinet, wine cabinet and display lighting
| Product Model | Sensor Type | Voltage | LED Type | LED Qty | Power | CCT | Beam Angle | Ra | Size | IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|
| B018300ZB1LZ | Hand Sweep Sensor | DC12V | COB | 300LED/m | 8W/m | 3000K/4000K/6500K | 120° | ≥90 | 200×18×10mm | IP20 |
| B018300ZB1LZ | Human Motion Sensor | DC12V | COB | 300LED/m | 8W/m | 3000K/4000K/6500K | 120° | ≥90 | 200×18×10mm | IP20 |
Intelligent Sensor Options
| Sensor Type | Working Principle | Recommended Application |
|---|---|---|

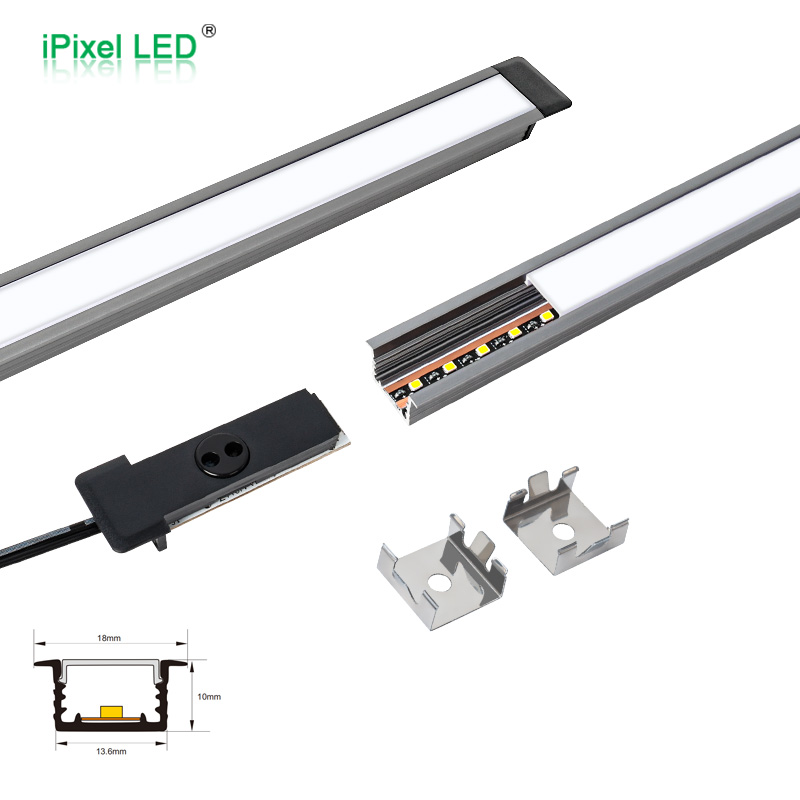

| Hand Sweep Sensor | Activate or deactivate lighting by hand movement | Kitchen cabinet, wardrobe, display cabinet |

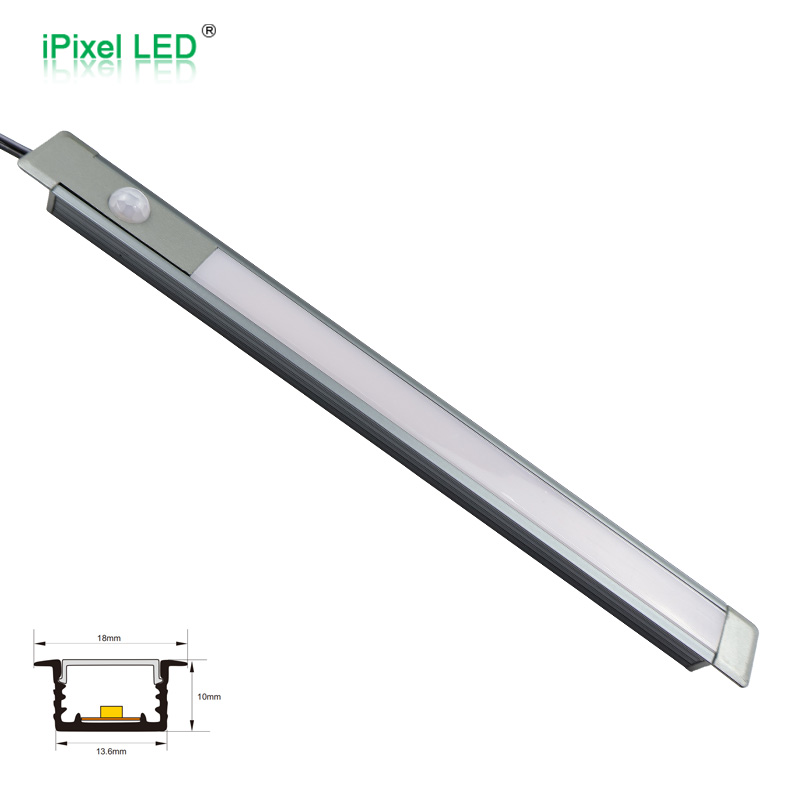

| Human Motion Sensor | Detect human movement and automatically control lighting | Wine cabinet, wardrobe, furniture interior |
How to Choose
| Requirement | Recommended Option |
|---|---|
| Need manual control | Hand Sweep Sensor Version |
| Need automatic lighting | Human Motion Sensor Version |
| Need invisible installation | Embedded 14×10mm Profile |
| Need no LED dots | COB LED Version |
| Need furniture OEM integration | Customized Length Version |
| Need different cabinet sizes | 200-3000mm Custom Length |

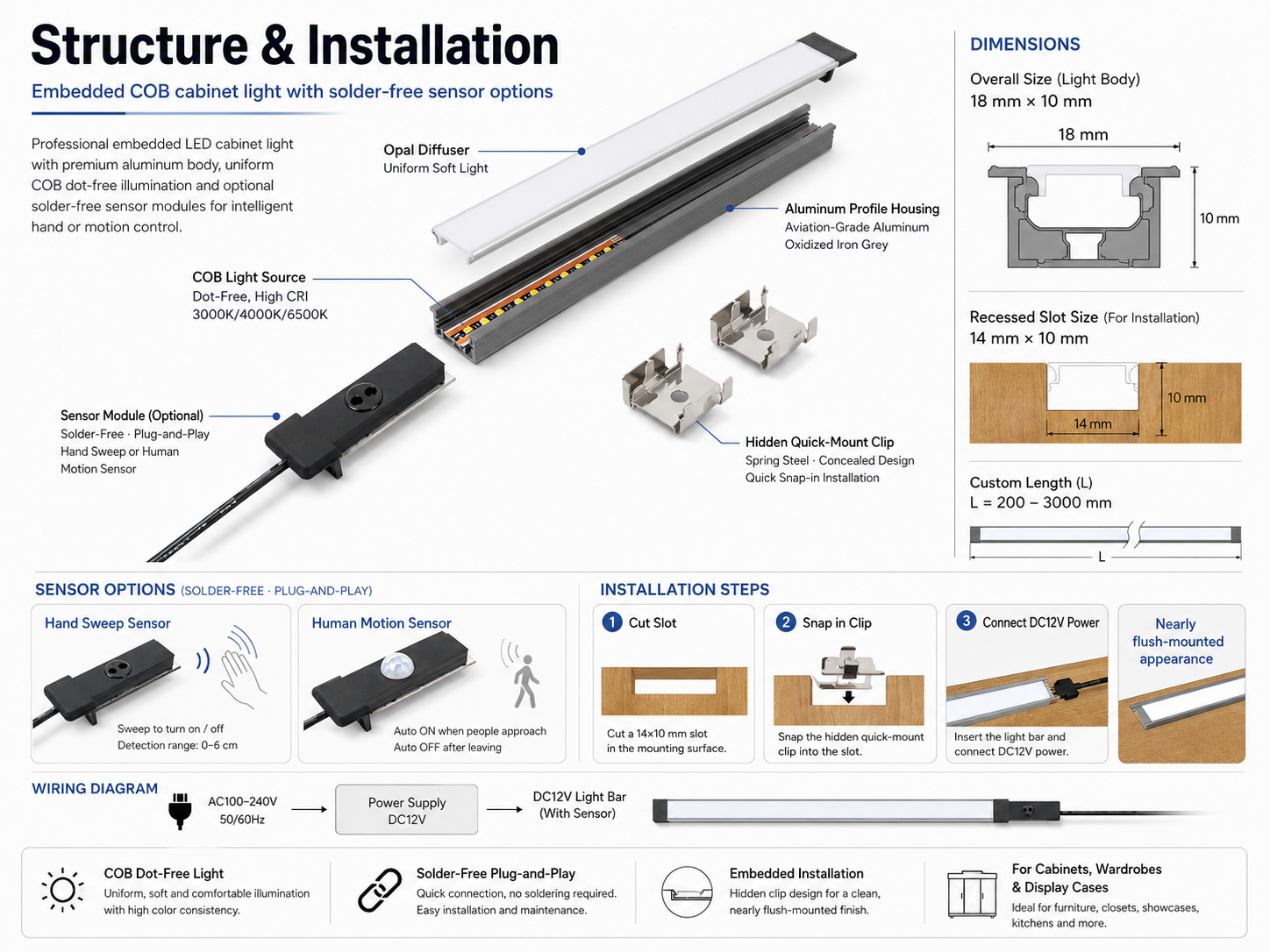

Structure & Installation
Typical Applications
| Application | Examples |
|---|---|

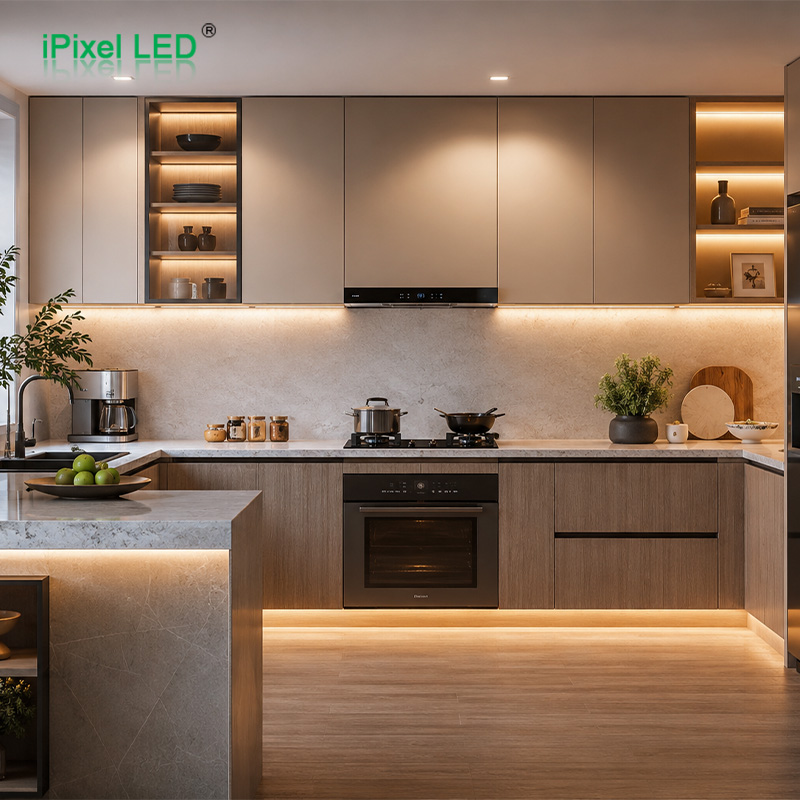

| Kitchen Cabinet | Under cabinet lighting |
| Wine Cabinet | Shelf illumination |
| Display Cabinet | Retail showcase |
| Wardrobe | Interior cabinet lighting |
| Bathroom Cabinet | Mirror and storage lighting |
| Furniture Lighting | Customized furniture projects |
Customization Options
| Option | Available |
|---|---|
| Length | 200mm-3000mm |
| CCT | 3000K / 4000K / 6500K |
| Sensor | Hand Sweep / Motion Sensor |
| Profile Color | Black / Iron Grey |
| Cable Length | Customized |
| Connector | Customized |
| Installation | Embedded / Surface Mount |
FAQ
Yes. Standard samples are 200mm, and customized lengths from 200mm to 3000mm are available.
No. The solder-free design allows plug-and-play installation with sensor connection.
Yes. 3000K, 4000K and 6500K are available.
Yes. The slim embedded structure and dot-free COB illumination make it suitable for cabinets, wine racks, showcases and furniture lighting.
