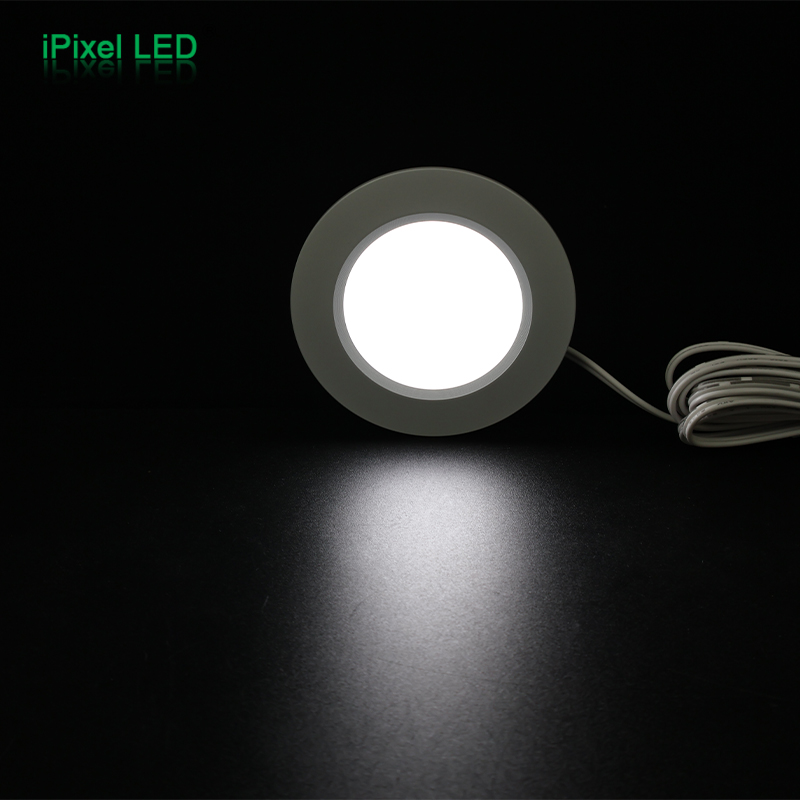

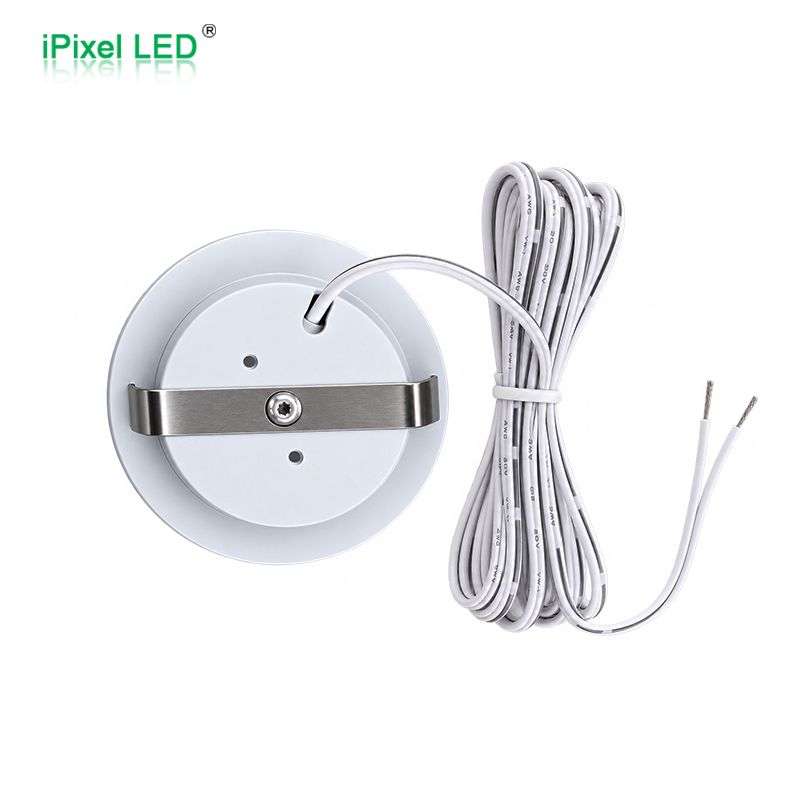

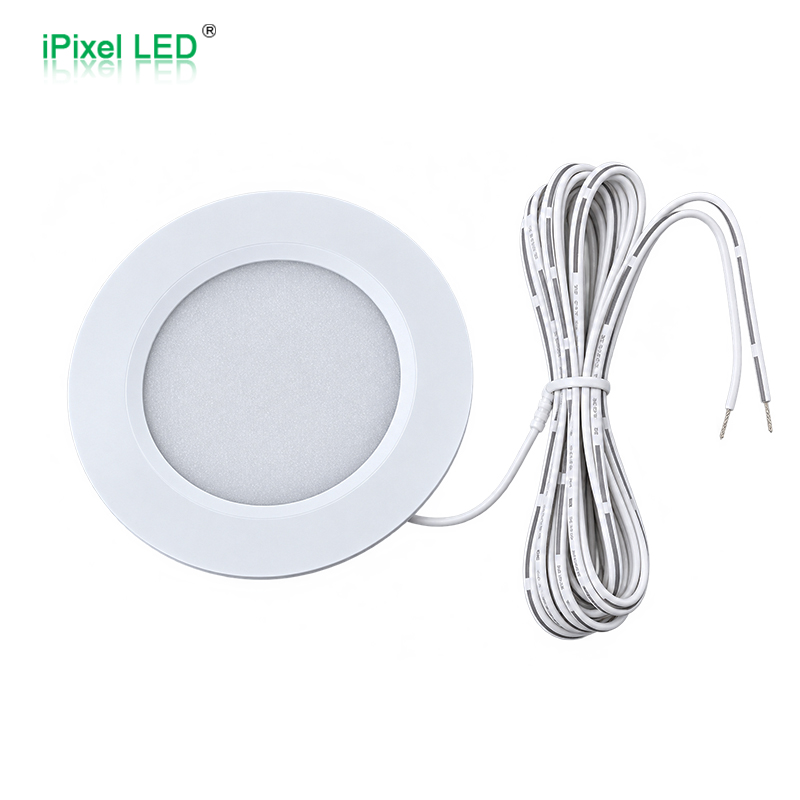

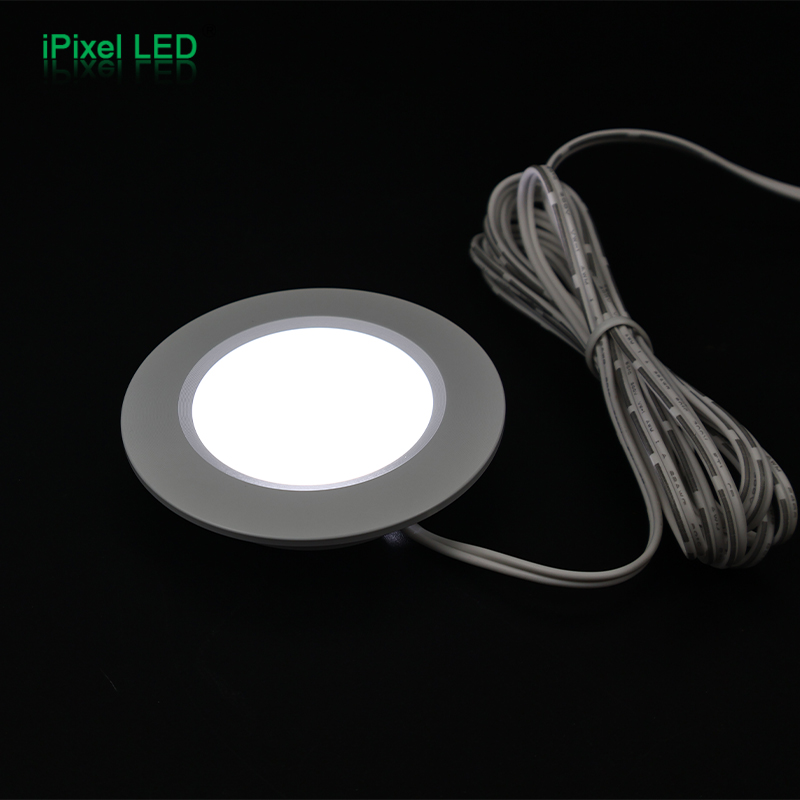

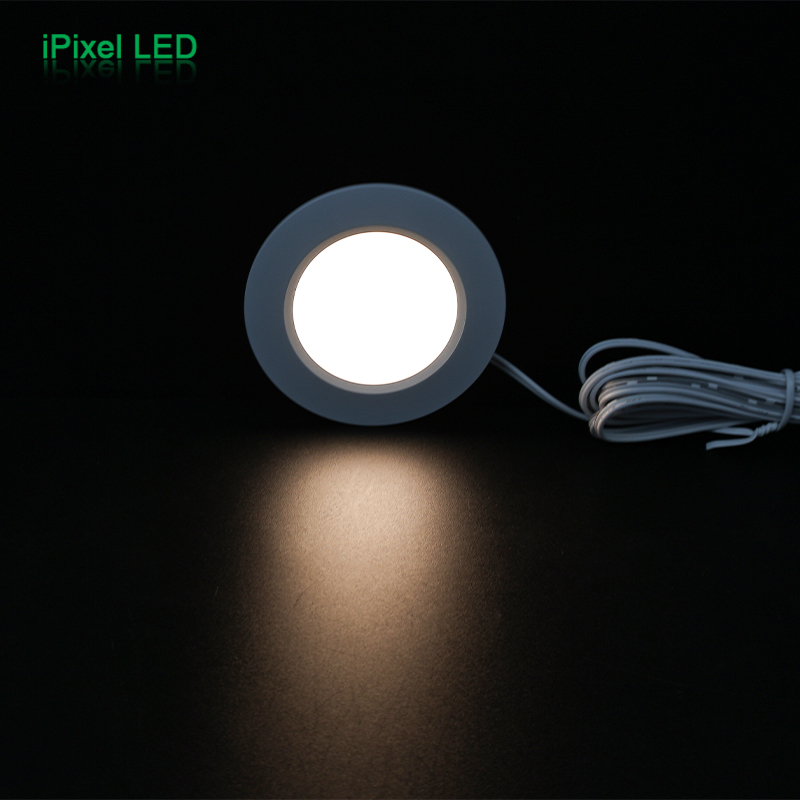

24V Recessed LED Puck Light for Cabinets – 6814
24V Recessed LED Puck Light for Cabinets – 6814
The 24V Recessed Under Cabinet Puck Light is a compact, low-profile lighting solution designed for cabinets, wardrobes, shelves and integrated furniture. Available in both Fixed CCT and Tunable White versions, it provides flexible lighting options for different furniture applications. With CRI >90, IP54 protection and a slim Ø68 × 14mm design, it delivers clean, uniform illumination while integrating discreetly into furniture surfaces.
- Model
- P068036UC1LZ / P068072UC2LZ
Overview & Key Features
Designed for professional furniture and cabinetry applications, this recessed LED puck light combines a compact structure with high-quality illumination.
Both versions operate at DC24V / 2.5W, use SMD 1515 LEDs and feature CRI >90 with SDCM <5 for consistent light quality. The fixture measures only Ø68 × 14mm and fits a Ø55–60mm cut-out, making it suitable for clean recessed installation in cabinets, wardrobes and shelving systems.
Key Features
- DC24V low-voltage operation
- 2.5W compact LED fixture
- Fixed CCT and Tunable White options
- CRI >90 for natural color rendering
- SDCM <5 for good color consistency
- IP54 protection
- Slim Ø68 × 14mm housing
- Ø55–60mm installation cut-out
- Suitable for 2–20mm panel thickness
- Designed for cabinets, wardrobes and shelves
- Recessed installation for a clean furniture finish
Available Lighting Options
Fixed CCT
Model: P068036UC1LZ
The Fixed CCT version uses 36pcs SMD 1515 LEDs and provides approximately 125lm output. It is designed for applications where a stable and consistent white light is required.
Suitable for standard cabinet, wardrobe and shelf lighting where the lighting atmosphere does not need to be changed frequently.
Best for:
- Kitchen cabinets
- Wardrobes
- Closets
- Display shelves
- Furniture accent lighting
Tunable White
Model: P068072UC2LZ
The Tunable White version uses 72pcs SMD 1515 LEDs in a dual-CCT configuration, allowing the light appearance to change from warm white to cool white.
It is designed for furniture systems requiring greater lighting flexibility and can be paired with a compatible CCT controller for brightness and color temperature adjustment. The specification shows approximately 127lm warm white / 136lm cool white output.
Best for:
- Premium cabinetry
- Smart wardrobes
- Adjustable furniture lighting
- Display furniture
- Custom lighting systems
Technical Specifications
| Parameter | Fixed CCT | Tunable White |
|---|---|---|
| Product Number | P068036UC1LZ | P068072UC2LZ |
| Operating Voltage | DC24V | DC24V |
| Power/pcs | 2.5W | 2.5W |
| LED Type | SMD 1515 | SMD 1515 |
| LED Quantity | 36pcs | 72pcs |
| Color Type | Fixed CCT | Tunable White |
| Luminous Flux/pcs | 125lm | WW: 127lm / CW: 136lm |
| CRI | >90 | >90 |
| SDCM | <5 | <5 |
| Size | Ø68 × 14mm | Ø68 × 14mm |
| IP Rating | IP54 | IP54 |
| Operating Temperature | -25°C to +45°C | -25°C to +45°C |
| Cut-out | Ø55–60mm | Ø55–60mm |
| Suitable Panel Thickness | 2–20mm | 2–20mm |
How to Choose
Choose Fixed CCT if:
You need a simple, reliable lighting solution with one consistent white light.
It is ideal for furniture manufacturers who prefer a straightforward installation and do not require color temperature adjustment.
Choose Tunable White if:
You want users to adjust the lighting atmosphere between warmer and cooler white light.
It is better suited to premium furniture systems, smart cabinetry and applications where lighting flexibility is part of the product experience.

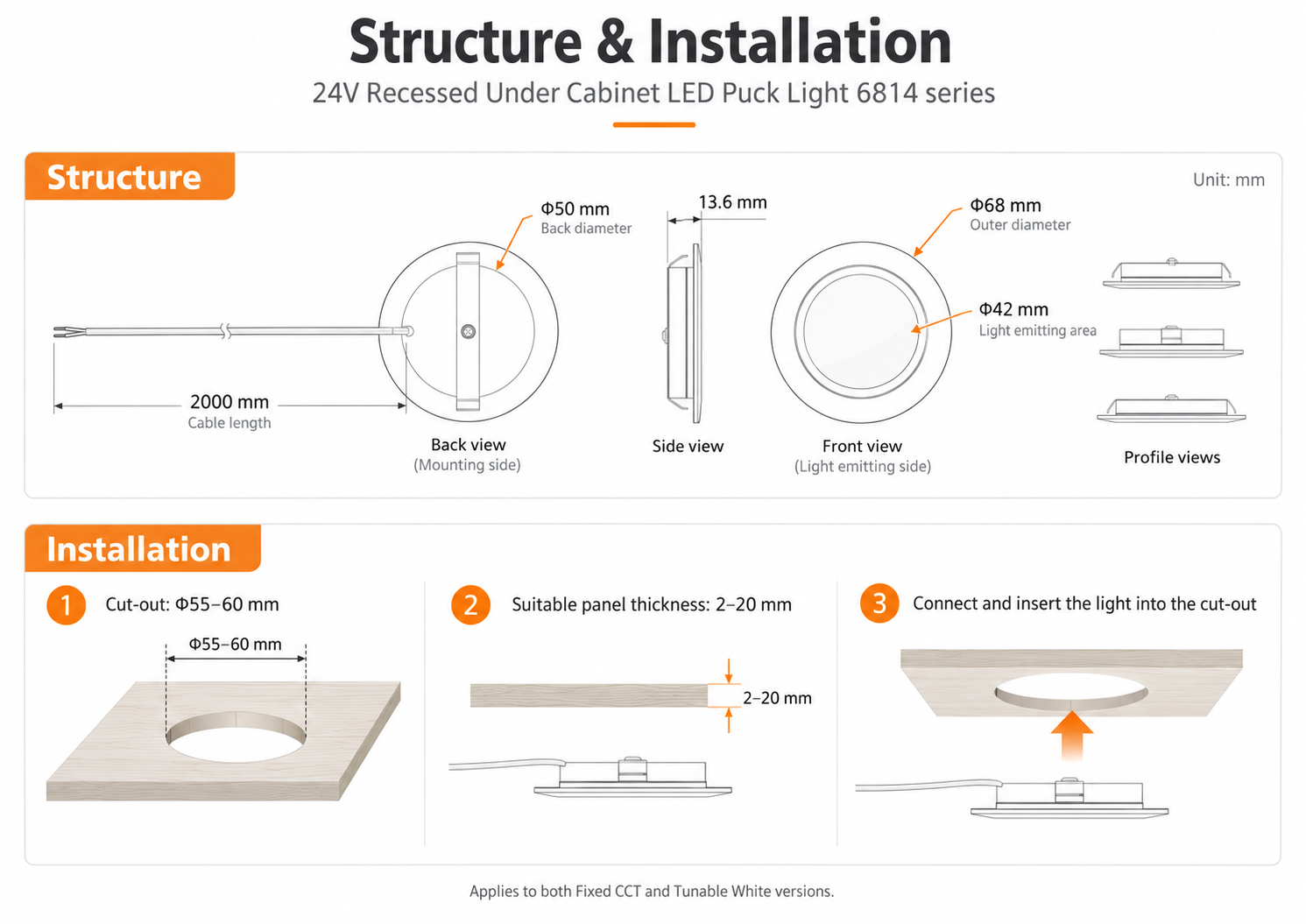

Installation
- Prepare a Ø55–60mm cut-out in the furniture panel.
- The recommended panel thickness is 2–20mm.
- Connect the light to the appropriate DC24V power supply or CCT controller.
- Insert the fixture into the prepared opening.
- Ensure the fixture is securely retained in position.
The recessed structure keeps most of the fixture hidden inside the furniture, creating a clean and minimal appearance.
FAQ
Both versions operate at DC24V.
Both versions are rated at 2.5W per fixture.
The recommended installation cut-out is Ø55–60mm.
The fixture is designed for panels approximately 2–20mm thick.
