B013120BB1LZ is slimmer, with a 200×13×8mm profile. B016120BB1LZ is larger and more square, with a 200×16×16mm profile.

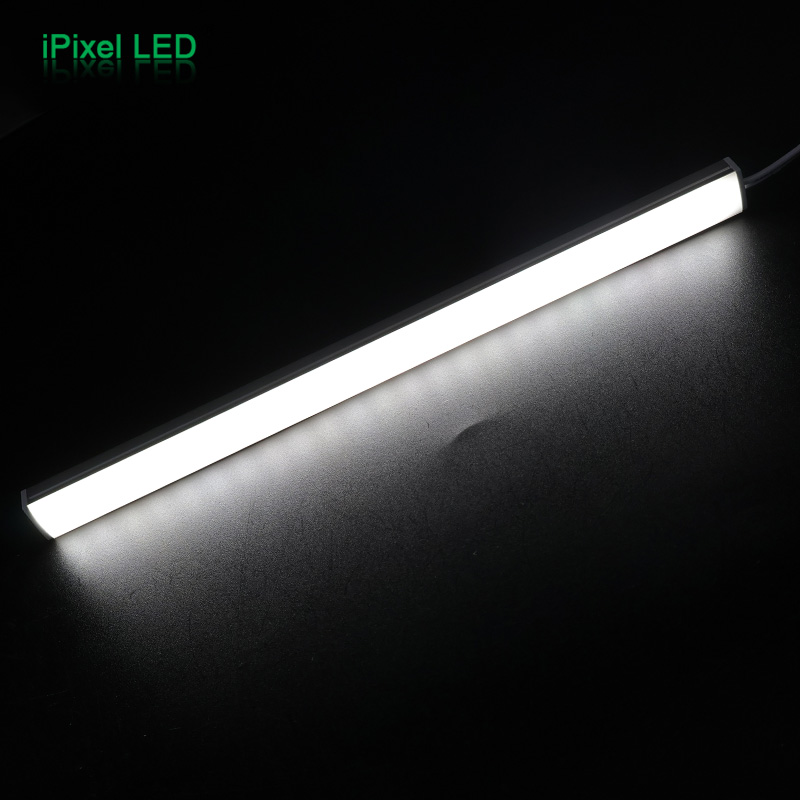

Magnetic LED Shelf Light Bar Series
Magnetic LED Shelf Light Bar Series

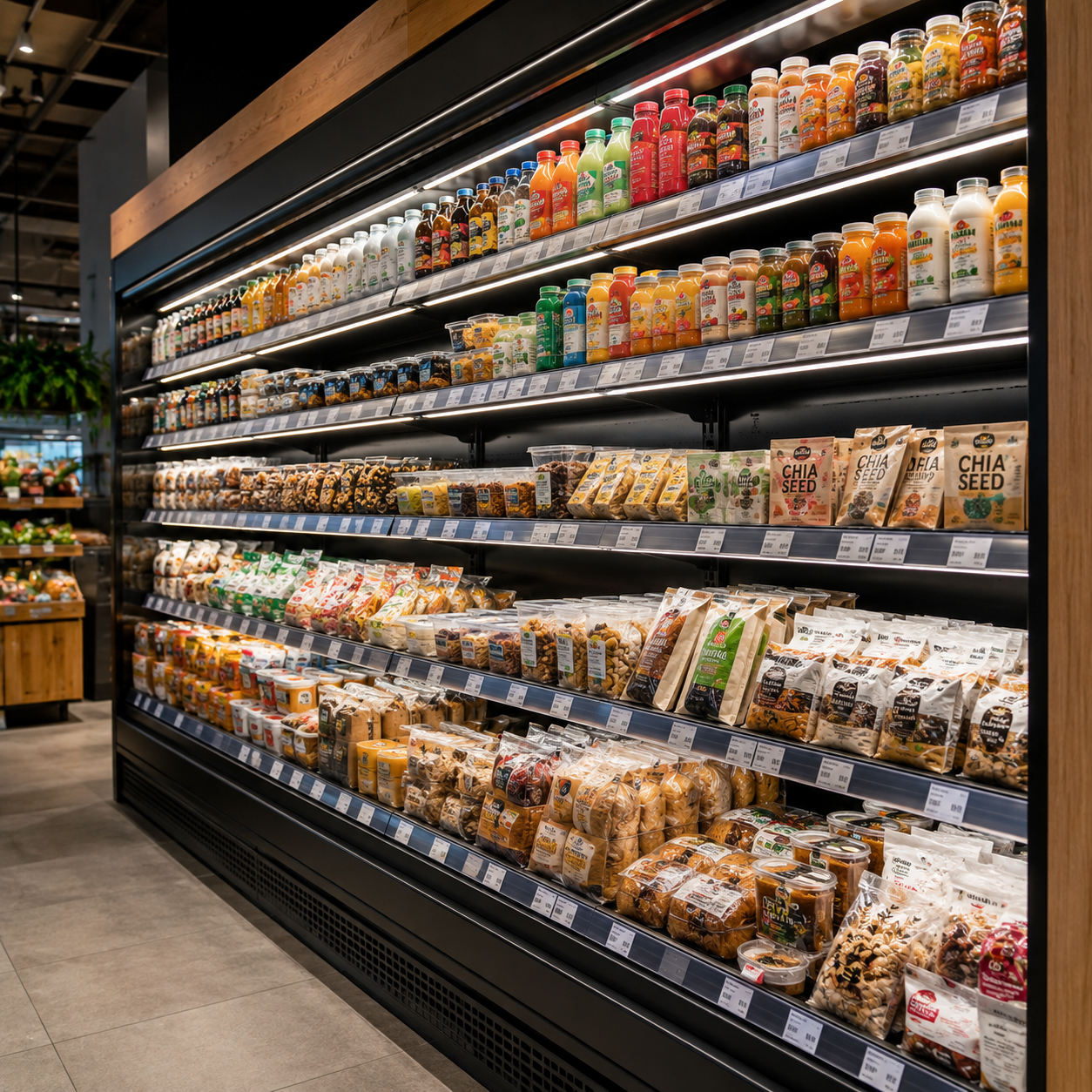

The Magnetic LED Shelf Light Bar Series is designed for retail shelves, supermarket shelving, metal display fixtures, warehouse shelves, display cabinets, and similar applications where fast installation and flexible positioning are required.
With built-in magnetic mounting, the light bar can be attached directly to metal surfaces without drilling, screws, or additional tools. It provides bright and even illumination to improve product visibility and shelf presentation.
This series includes two profile options:

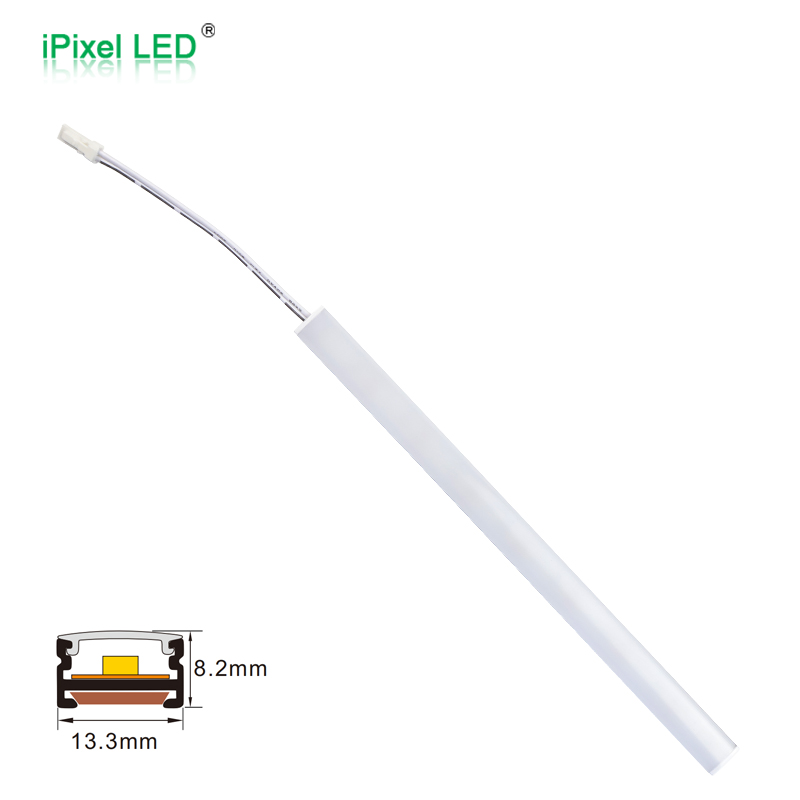

B013120BB1LZ: slim profile, 13×8mm class, suitable for compact shelves and low-profile installation.
B016120BB1LZ: square profile, 16×16mm class, suitable for stronger structure and more visible shelf lighting.
DC12V120LED Qty13/16mm WidthSingle ColorIP20
Overview & Key Features
Series Overview
This series is developed for quick-install shelf lighting. Both models use SMD2835 LEDs, operate at DC12V, and offer 3000K / 4000K / 6500K CCT options. The standard length is 200mm, and the datasheets show that the length can be customized from 200mm to 3000mm according to project requirements.
The main customer value is not only brightness, but also easy installation, repositioning, and clean shelf appearance. It is especially suitable for B2B projects where customers need lighting that can be installed quickly in metal shelving systems or retail display fixtures.
Key Features
- Magnetic attachment
Built-in magnetic mounting allows the light bar to attach securely to metal shelves, display cabinets, or refrigerator side panels without drilling. - Fast installation and removal
No tools required. The light can be installed, repositioned, or removed easily during shelf layout changes. - Bright and even shelf illumination
Designed to enhance product visibility and improve retail shelf presentation. - Two profile sizes
B013120BB1LZ offers a slimmer 13×8mm profile, while B016120BB1LZ offers a stronger 16×16mm profile. - Standard white CCT options
3000K / 4000K / 6500K available for different shelf display effects. - High CRI
Ra90 helps products appear more natural and visually attractive. - Custom length support
Standard length is 200mm; customized length from 200mm to 3000mm is available.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | SMD Type | CCT | Luminance | Spec Sheet |
|---|---|---|---|---|---|---|---|
| B013120BB1LZ | 120 LEDs/m | DC12V | 10W/m | SMD2835 | 3000K / 4000K / 6500K | Not specified in current datasheet | Download |
| B016120BB1LZ | 120 LEDs/m | DC12V | 10W/m | SMD2835 | 3000K / 4000K / 6500K | Not specified in current datasheet | Download |
Additional parameters
| Item | B013120BB1LZ | B016120BB1LZ |
|---|---|---|
| Size | 200×13×8mm | 200×16×16mm |
| Beam Angle | 120° | 120° |
| CRI | Ra90 | Ra90 |
| IP Rating | IP20 | IP20 |
| Option Color | Iron Grey | Iron Grey |
| Operating Temperature | -25~60°C | -25~60°C |
| Custom Length | 200–3000mm | 200–3000mm |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need a slim magnetic shelf light for limited space | B013120BB1LZ |
| Need a stronger and more visible profile | B016120BB1LZ |
| Need lighting for supermarket shelves or retail shelves | Both options |
| Need easy installation without drilling | Both options |
| Need to install on metal shelves or metal display fixtures | Both options |
| Need lower visual height and more hidden installation | B013120BB1LZ |
| Need more structural strength and a square profile | B016120BB1LZ |
| Need warm retail atmosphere | 3000K |
| Need neutral product display lighting | 4000K |
| Need bright supermarket / cooler shelf effect | 6500K |

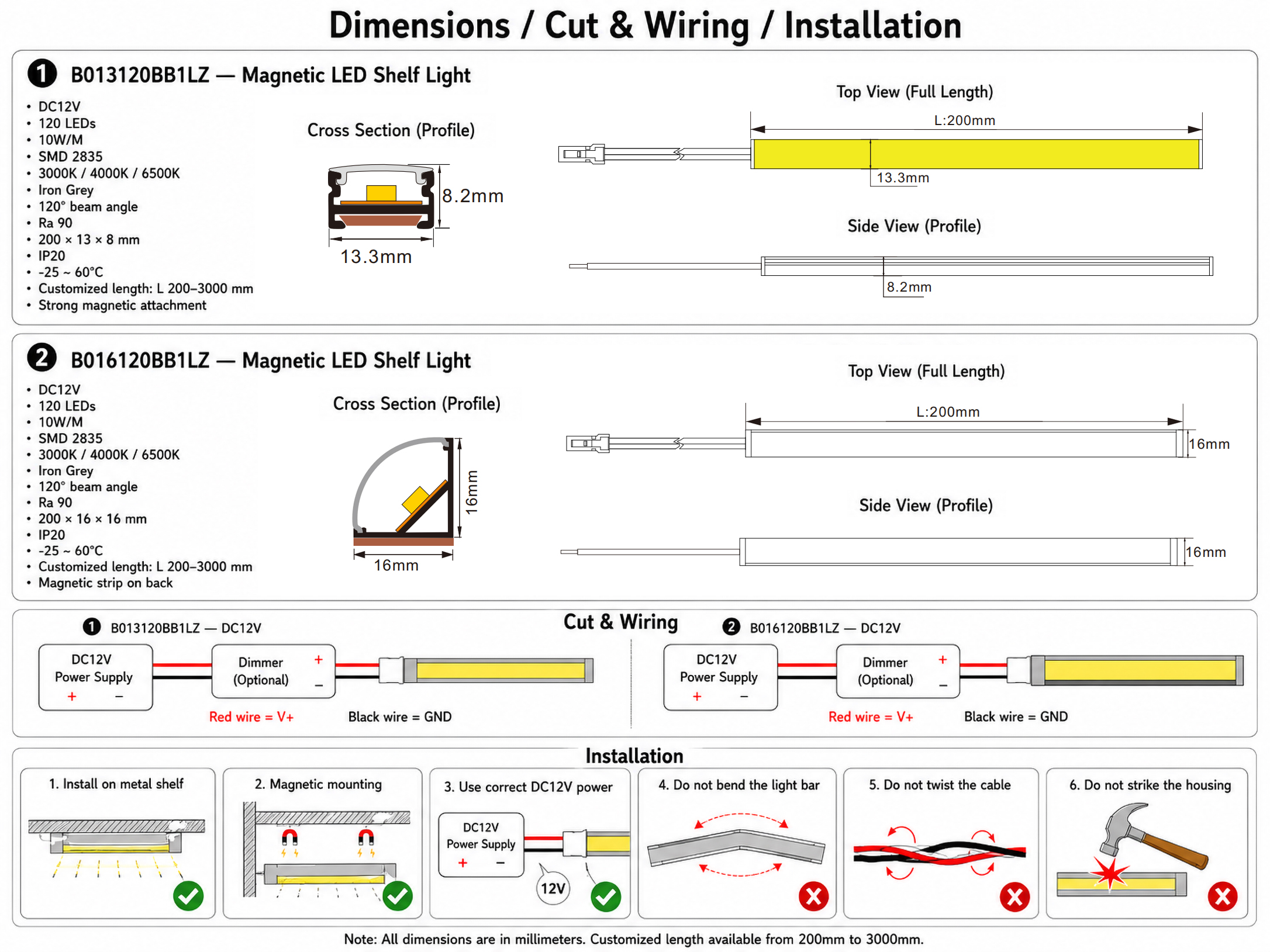

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V | Standard voltage for both models |
| LED Type | SMD2835 | Standard LED source |
| Color Type | Single color white | For shelf and display lighting |
| Color Range | 3000K / 4000K / 6500K | Other CCT can be discussed by project |
| Size (mm) | 200×13×8mm / 200×16×16mm | Depends on model |
| Power | 10W/m | Same for both models |
| IP Rating | IP20 | Standard indoor shelf lighting version |
| Length | 200–3000mm customized length | Cut/customized to project requirement |
| Connector | Standard lead wire / customized connector | Connector can be matched to customer system |
| Mounting | Magnetic mounting / clips / bracket / adhesive support | Magnetic mounting is the core standard option |
| Packing | Individual packing / project bulk packing / OEM packing | Can be adjusted for shipment and customer assembly |
Related Items
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
FAQ
Yes. Both are designed for magnetic attachment to metal shelves, display cabinets, or similar metal surfaces.
Yes. The main advantage of this series is tool-free magnetic installation.
Yes. The datasheets show customized length from 200mm to 3000mm.
