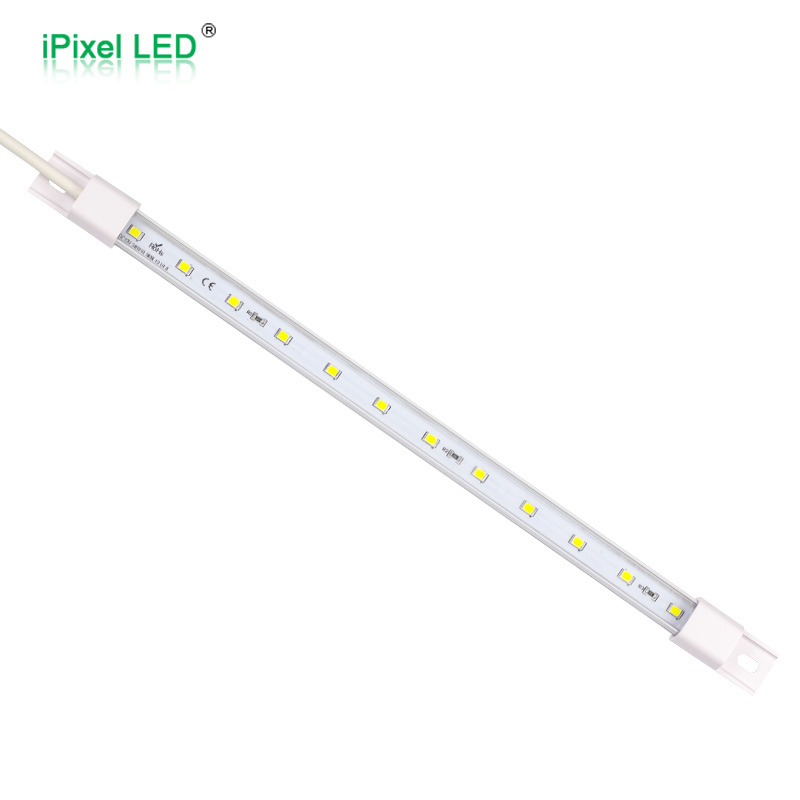

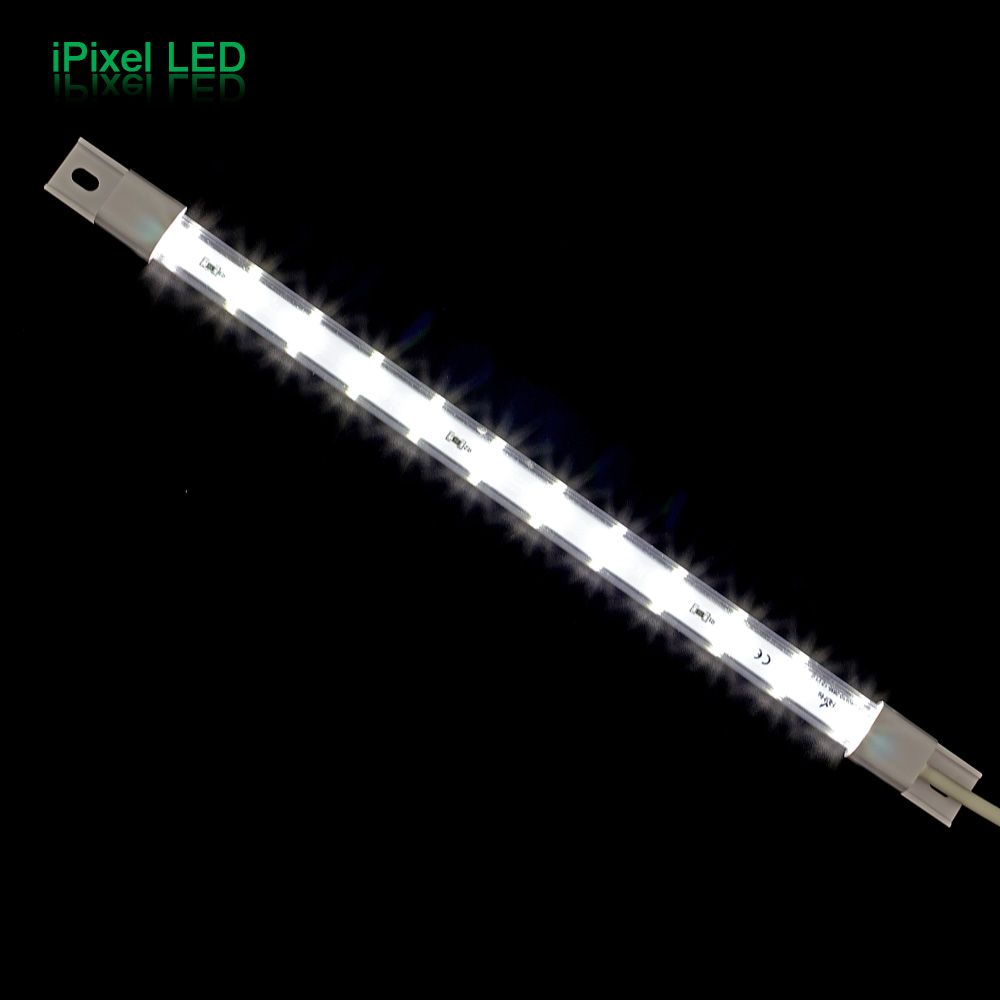

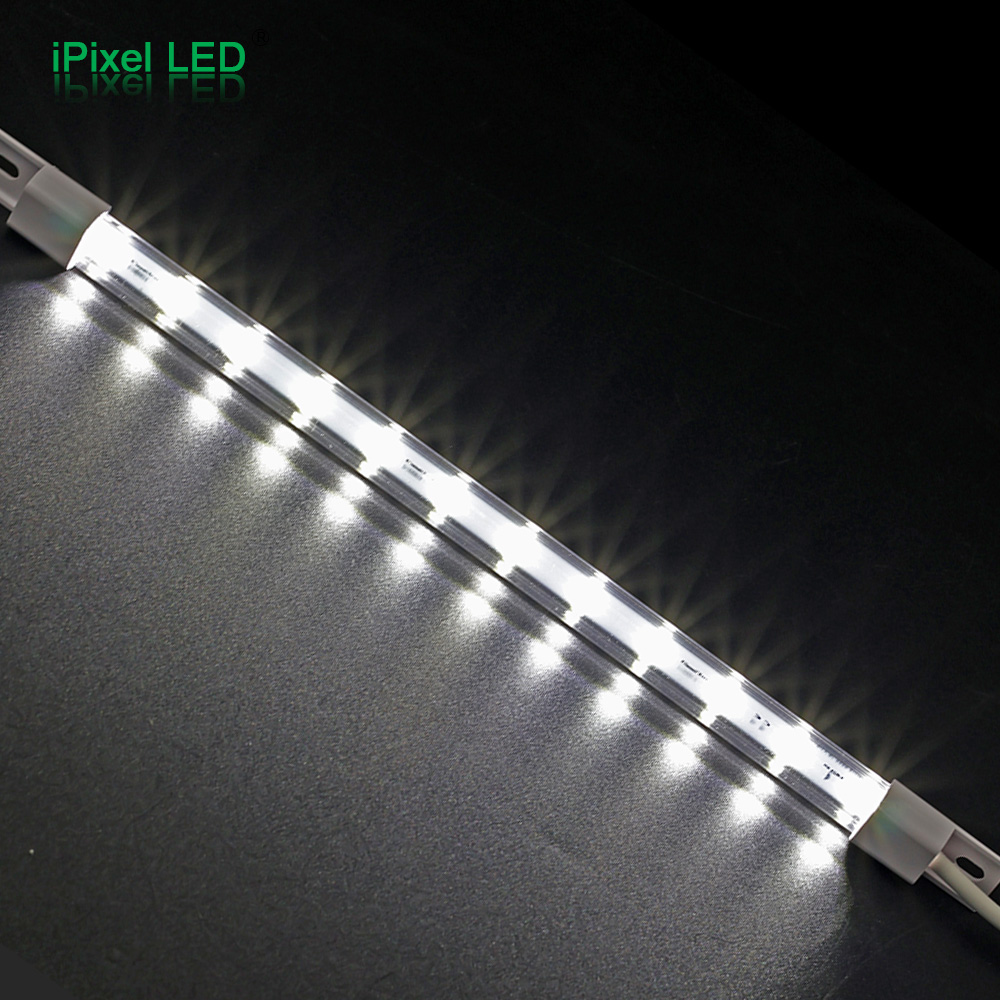

B012008BC1LZ Refrigeration LED Light Bar
B012008BC1LZ Refrigeration LED Light Bar Family
Ultra-compact DC24V aluminum LED light bars with a 120° extra-wide beam for broad, glare-free coverage in tight refrigeration spaces. Eight standard lengths from 400 mm to 1800 mm, rated IP65 for humid, low-temperature environments. Supplied with UL2464 20AWG PVC cable.
DC24V120°SMD2835IP65cULus
B012008BC1LZ Refrigeration LED Light Bar Family
Product Overview
The B012008BC1LZ series is a compact refrigeration LED light bar family designed for refrigerated display cabinets, beverage coolers and freezer applications requiring very slim, efficient linear illumination in confined spaces. Its 24V safe low-voltage design ensures stable operation for commercial refrigeration equipment, while the anodized aluminum housing improves heat dissipation and the PC cover softens the output. The 120° extra-wide beam delivers broad, glare-free coverage ideal for small compartments, corner illumination and tight refrigeration spaces. Eight standard lengths are available from 400 mm to 1800 mm, with customized lengths up to 200 cm also offered. The bar is rated IP65 and ships with a UL2464 20AWG PVC cable (red/black) for easy installation.
Key Features
- Safe DC24V low-voltage operation
- SMD2835 high-efficiency LED platform (8–84 LEDs per model)
- 120° extra-wide, glare-free beam angle
- CRI Ra80 for commercial product display
- Ultra-compact cross-section (~16 × 11 mm)
- Anodized aluminum profile + PC cover
- IP65 rated for humid, low-temperature environments
- UL2464 20AWG PVC cable (red/black) supplied
- cULus Listed, CE & RoHS compliant
- 3-year warranty
- Eight standard lengths (400–1800 mm)
- Custom lengths available up to 200 cm (cut to size)
- Suitable for freezers, beverage coolers and display cabinets
B012008BC1LZ Specification Matrix (8 Models)
| Model No. | LED Qty | Power | A (mm) | B (mm) | C (mm) | Luminous Flux* | CCT | Ra | Beam |
|---|---|---|---|---|---|---|---|---|---|
| B012008BC1LZ | 8 LEDs | 1.3 W | 463 | 451 | 400 | ~200 lm | 3000/4000/6000/076K | 80 | 120° |
| B012032BC1LZ-L1600 | 32 LEDs | 5.3 W | 1663 | 1651 | 1600 | ~815 lm | 3000/4000/6000/076K | 80 | 120° |
| B012032BC1LZ-L1200 | 32 LEDs | 5.8 W | 1263 | 1251 | 1200 | ~875 lm | 3000/4000/6000/076K | 80 | 120° |
| B012040BC1LZ | 40 LEDs | 6 W | 1663 | 1651 | 1800 | ~880 lm | 3000/4000/6000/076K | 80 | 120° |
| B012048BC1LZ | 48 LEDs | 7.9 W | 1663 | 1651 | 1600 | ~1195 lm | 3000/4000/6000/076K | 80 | 120° |
| B012056BC1LZ | 56 LEDs | 8.8 W | 1663 | 1651 | 1800 | ~1250 lm | 3000/4000/6000/076K | 80 | 120° |
| B012072BC1LZ | 72 LEDs | 4.3 W | 1663 | 1651 | 1600 | ~980 lm | 3000/4000/6000/076K | 80 | 120° |
| B012084BC1LZ | 84 LEDs | 4.9 W | 1663 | 1651 | 1800 | ~1150 lm | 3000/4000/6000/076K | 80 | 120° |
*Luminous flux values are taken directly from the catalog page 09 specification table. Values may vary by CCT; the table shows typical values at rated conditions. CCT 076 is a special color, subject to availability. Custom lengths up to 200 cm are available (cut to size).
Common Specifications
| Parameter | Specification |
|---|---|
| Product Type | Refrigeration LED Light Bar (Compact Series) |
| Operating Voltage | DC24V |
| LED Type | SMD2835 |
| Color Rendering Index | Ra80 |
| Color Temperature Options | 3000K / 4000K / 6000K / 076 (special) |
| Beam Angle | 120° extra-wide |
| Profile Size (Cross-section) | ~16 × 11 mm (aluminum profile + PC cover) |
| Standard Lengths (C dimension) | 400 / 1200 / 1600 / 1800 mm (see matrix for per-model A/B/C) |
| Custom Length | Available up to 200 cm (cut to size) |
| IP Rating | IP65 |
| Operating Temperature | Designed for low-temperature refrigeration; -20°C to +40°C typical |
| Housing Material | Anodized Aluminum Profile + PC Cover |
| Connection | UL2464 20AWG PVC Cable (Red / Black) |
| Cooling Method | Aluminum thermal conduction |
| Rated Lifetime | Up to 50,000 hours (typical) |
| Certifications | cULus Listed, CE, RoHS |
| Warranty | 3 Years |
Structure & Dimensions
| Dimension | Value |
|---|---|
| Width (B) | ~16 mm (varies slightly by end-cap; see drawing) |
| Height (C or H) | ~11 mm (cross-section height) |
| Overall Length (A) | 463 / 1263 / 1663 mm (varies by model) |
| Optical Length (C) | 400 / 1200 / 1600 / 1800 mm (per model) |
The dimension diagram shows three reference lengths (A, B, C) where A is overall length (including end caps), B is the housing length, and C is the optical/lens length. Each end cap occupies approximately 30–35 mm on each side. Cross-section is approximately 16 × 11 mm. A 300±10 mm reference dimension is shown in the drawing.
[ Dimension diagram — insert the catalog page 09 dimension drawing (A/B/C lengths, cross-section ~16×11 mm, UL2464 cable detail) here ]
Lens Selection
| Lens Option | Light Effect | Recommended Use |
|---|---|---|
| PC Cover (Integrated) | Extra-wide 120° beam with soft, glare-free output | Small compartments, corners and tight refrigeration spaces needing even coverage |
Recommended Installation Positions
Shelf-Beam or Frame Mounting
The ultra-compact form factor allows mounting inside narrow shelf beams, door frames or cabinet edges where space is limited. Use the supplied mounting clips for rigid attachment.
Magnetic Attachment (Optional)
A 3M adhesive-backed soft magnetic strip can be used for metal surfaces (available as an option).
Suitable Equipment
- Beverage coolers
- Refrigerated display cabinets
- Glass-door merchandisers
- Upright freezers
- Combination freezers
- Convenience-store refrigeration
- Tight compartments and corner illumination
Basic Wiring
100–240V AC ↓ DC24V Constant-Voltage Power Supply ↓ UL2464 Cable ↓ B012008BC1LZ LED Light Bar
Wiring Notes
- Use a DC24V constant-voltage power supply.
- Confirm polarity before power-on.
- Do not connect the light bar directly to AC mains power.
- Calculate the total power when several bars share one power supply.
- Reserve approximately 20% power-supply capacity for continuous operation.
Example: 4 × 8.8 W Bars (B012056BC1LZ) = 35.2 W total LED load. Recommended power supply: ≥ 44 W (DC24V constant voltage).
Supplied with UL2464 20AWG PVC cable (red/black). Cable length and connector type can be customized per customer requirement.
Standard & Optional Accessories
Standard Accessories
| Accessory | Qty | Function |
|---|---|---|

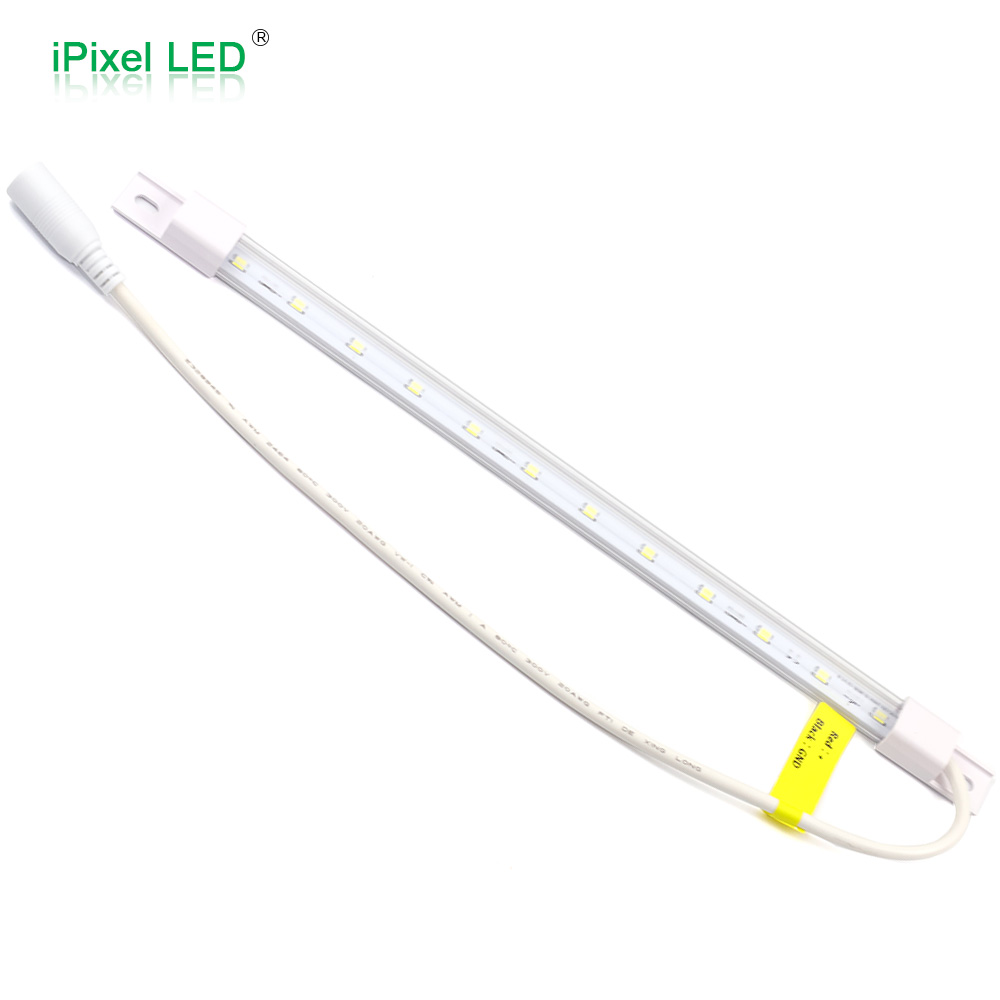

| UL2464 20AWG PVC Cable (Red / Black) | 1 pc | DC24V input cable supplied with the bar |
| Mounting Clip | 2 pcs | Secures the light bar to freezer or cabinet structure |
Optional / Customizable
- Custom cable length and connector type
- Constant-voltage power supply (DC24V)
- PWM dimmer
- Extension cables
- Multi-output wiring harness
Customization Options
| Customization Item | Available Options |
|---|---|
| Length | 8 standard lengths offered; custom up to 200 cm (cut to size) |
| CCT | 3000K / 4000K / 6000K / 076 (special color, subject to availability) |
| CRI | Ra80 |
| Beam Angle | 120° extra-wide (standard) |
| Cable | UL2464 20AWG PVC (standard); customizable length / type |
| Housing Finish | Anodized aluminum profile + PC cover |
| Packaging | Individual protective packaging / OEM packaging |
Final power, luminous flux and efficiency may change when the length, CCT, CRI or LED layout is customized. Specifications not explicitly listed in the catalog are marked (typical) and should be confirmed with the factory. CCT 076 is a special color, subject to availability.
Typical Applications
Commercial Refrigeration
- Beverage coolers
- Refrigerated multideck cabinets
- Glass-door merchandisers
- Upright freezers
- Combination freezers
- Food display refrigerators
Specialty Refrigeration
- Medical refrigeration equipment
- Wine coolers
- Bakery displays
- Convenience-store refrigeration
- Fresh-food display cabinets
FAQ
The 68° clear lens gives a wide, even beam (160 lm/W) ideal for broad shelf coverage inside refrigerated cabinets. Choose the opal lens when you want softer, more uniform light with reduced LED visibility for customer-facing displays (120 lm/W).
Six standard lengths are offered (154–1162 mm, ±5 mm tolerance). Customized lengths are available per customer requirement — contact the factory for cut-to-length and OEM options.
Yes. It is rated IP65 with IK02, has a silicone sealing structure and an M5 connector with double O-ring seals for moisture / condensation resistance, and operates from -20°C to +40°C. Food-contact compliance per (EU) No 10/2011 is available on request.
It mounts magnetically via the supplied 3M adhesive-backed soft magnetic strip or with the vertical freezer clips. Each unit ships with two 1500 mm M5 input cables (straight & right-angle), an 80 mm interconnection cable, 2 mounting clips and the magnetic strip.
