It runs on safe DC24V constant voltage. Do not connect it to AC mains — pair it with a 24V constant-voltage LED power supply. Power is delivered through the waterproof M5 locking connector; dimmers and extension cables are available as options.

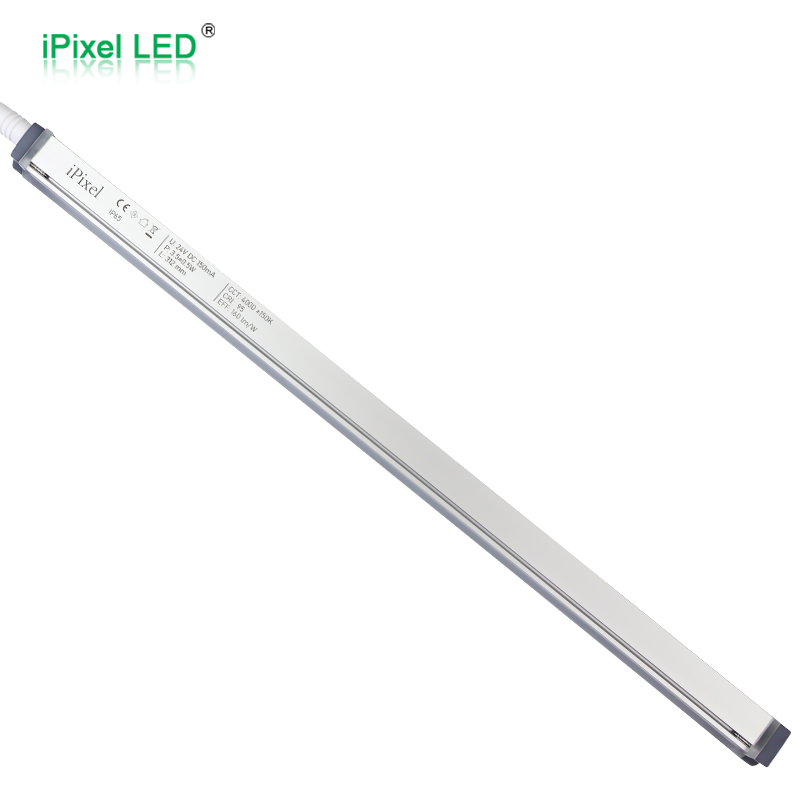

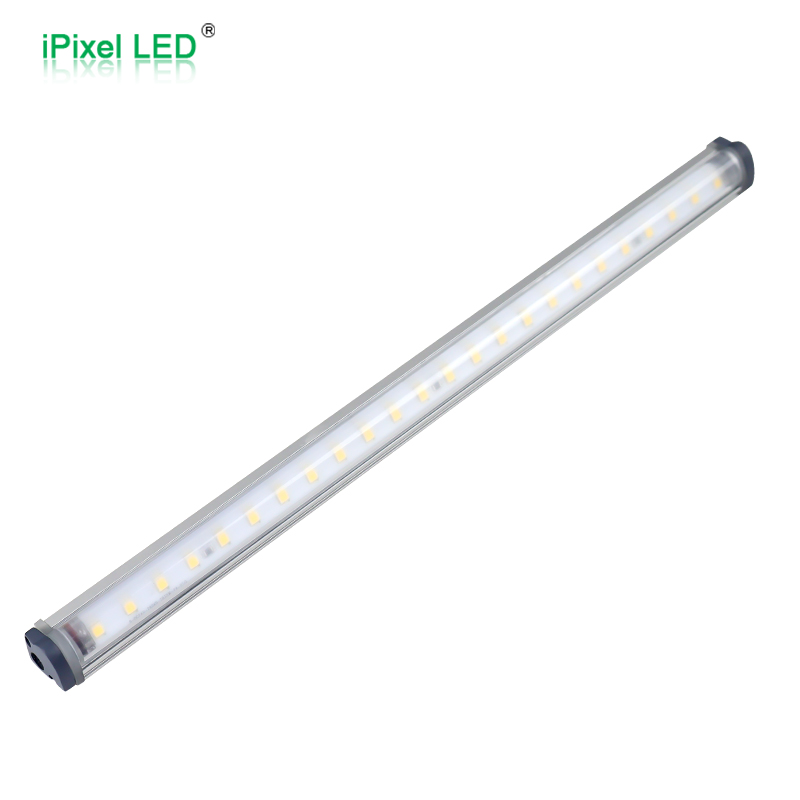

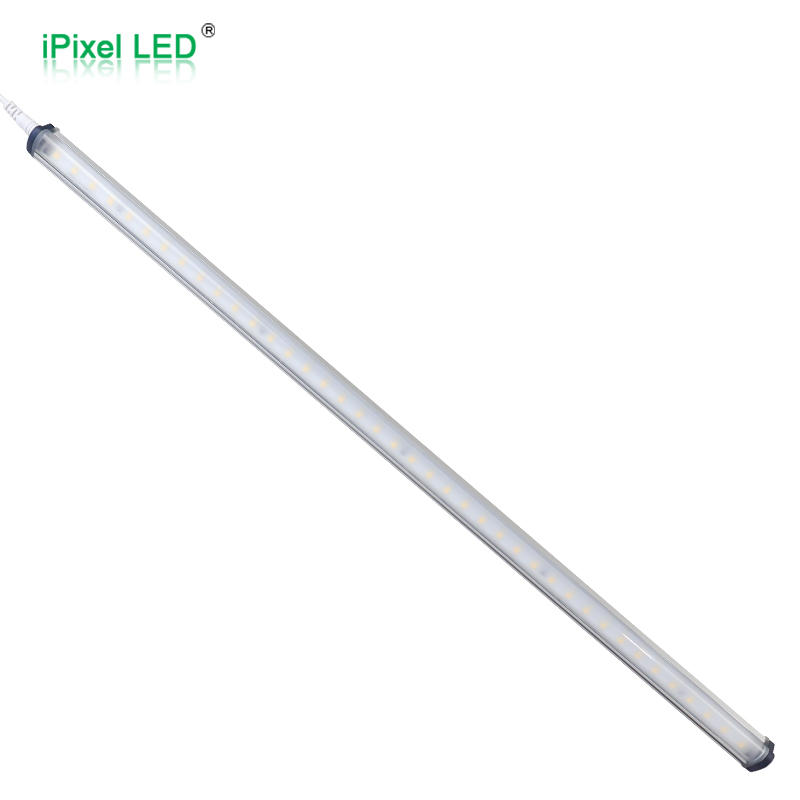

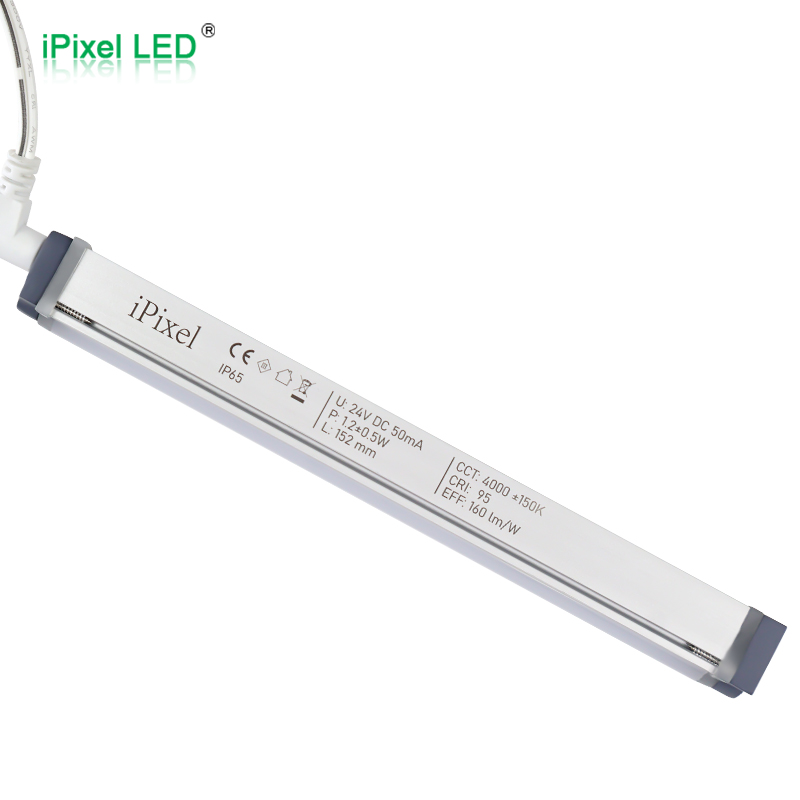

B017166BC1LZ68 Refrigeration LED Light Bar
B017166BC1LZ68 Refrigeration LED Light Bar
Slim DC24V aluminum LED light bar for refrigerated display cabinets and freezers, with a 68° wide-beam clear lens for broad, even shelf illumination. Six standard lengths from 154 mm to 1162 mm, rated IP65 for humid, low-temperature environments.
DC24V68°SMD2835160lm/WRa95
B017082B1HZ68 Refrigeration LED Light Bar
Product Overview
The B017166BC1LZ68 series is a horizontal shelf-lighting LED bar designed for refrigerated display cabinets, beverage coolers and freezers. Its 24V safe low-voltage design ensures stable operation for commercial refrigeration equipment. The 2835W LED solution delivers bright, uniform, low-glare light with good energy efficiency (up to 160 lm/W with the clear lens), while the anodized aluminum housing improves heat dissipation and the extruded PC lens softens the output. A silicone sealing structure and M5 waterproof locking connector (double O-ring seals) provide moisture and condensation resistance. Mounted on the shelf beam, it illuminates merchandise on every shelf level. Six standard lengths (154–1162 mm) are offered, with customized lengths available per customer requirement.
Key Features
- Safe DC24V low-voltage operation
- SMD2835W high-efficiency LED platform
- Up to 160 lm/W (clear lens), 120 lm/W (opal)
- CRI Ra95 (R9 ≥ 65) for true-color product display
- 68° wide beam for broad, even shelf coverage
- Anodized aluminum housing + PC extruded lens
- Silicone sealing structure for moisture resistance
- M5 waterproof locking connector (double O-ring seals)
- IP65 / IK02 rated for humid, low-temperature use
- Magnetic (3M soft strip) or clip-on mounting
- Standard & customized lengths (154–1162 mm)
- Food-contact compliance (EU) No 10/2011 available on request
B017166BC1LZ68 Specification Matrix
| Model No. | Length | Power | LED Qty | Luminous Flux* | CCT | CRI | Beam |
|---|---|---|---|---|---|---|---|
| B017166BC1LZ68-L154 | 154 mm | 1.5 W | 24 | 150 lm | 3000/4000/6500/076K | Ra95 | 68° |
| B017166BC1LZ68-L298 | 298 mm | 2.4 W | 48 | 320 lm | 3000/4000/6500/076K | Ra95 | 68° |
| B017166BC1LZ68-L586 | 586 mm | 4.5 W | 96 | 620 lm | 3000/4000/6500/076K | Ra95 | 68° |
| B017166BC1LZ68-L730 | 730 mm | 6 W | 120 | 780 lm | 3000/4000/6500/076K | Ra95 | 68° |
| B017166BC1LZ68-L874 | 874 mm | 7 W | 144 | 950 lm | 3000/4000/6500/076K | Ra95 | 68° |
| B017166BC1LZ68-L1162 | 1162 mm | 9.5 W | 192 | 1300 lm | 3000/4000/6500/076K | Ra95 | 68° |
Common Specifications
| Parameter | Specification |
|---|---|
| Product Type | Refrigeration LED Light Bar (Horizontal Shelf Lighting) |
| Operating Voltage | DC24V |
| LED Type | SMD2835W |
| Luminous Efficacy | 160 lm/W (Clear), 120 lm/W (Opal) |
| Color Rendering Index | Ra95 (R9 ≥ 65) |
| Color Consistency | ≤3 SDCM |
| Beam Angle | 68° (Clear) |
| Profile Size | 17 × 17 mm |
| Standard Lengths | 154 / 298 / 586 / 730 / 874 / 1162 mm |
| Custom Length | Available (per customer requirement) |
| IP Rating | IP65 |
| IK Rating | IK02 |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -20°C to +50°C |
| Operating Humidity | 20% to 85% RH |
| Housing Material | Anodized Aluminum + PC Extruded Lens + Silicone Seal |
| Lens Options | Clear (standard); Opal available |
| Connection | M5 waterproof locking connector (threaded, double O-ring seal) |
| Cooling Method | Aluminum thermal conduction |
| Rated Lifetime | 50,000 h (L80, B20, Ta=25°C, 12 h/day) |
| Certifications | CE / RoHS / IP65 |
| Food Contact Compliance | (EU) No 10/2011 available upon request |
| Document Version | Preliminary V1.0 (2026/07/08) — subject to change |
Structure & Dimensions
| Dimension | Value |
|---|---|
| Width | 17 mm |
| Height | 17 mm |
| Length | 154 / 298 / 586 / 730 / 874 / 1162 mm |
Lens Selection
| Lens Option | Light Effect | Recommended Use |
|---|---|---|
| Clear Lens | Higher luminous output and efficiency (160 lm/W); 68° wide beam | Freezer shelves and broad, even cabinet illumination |

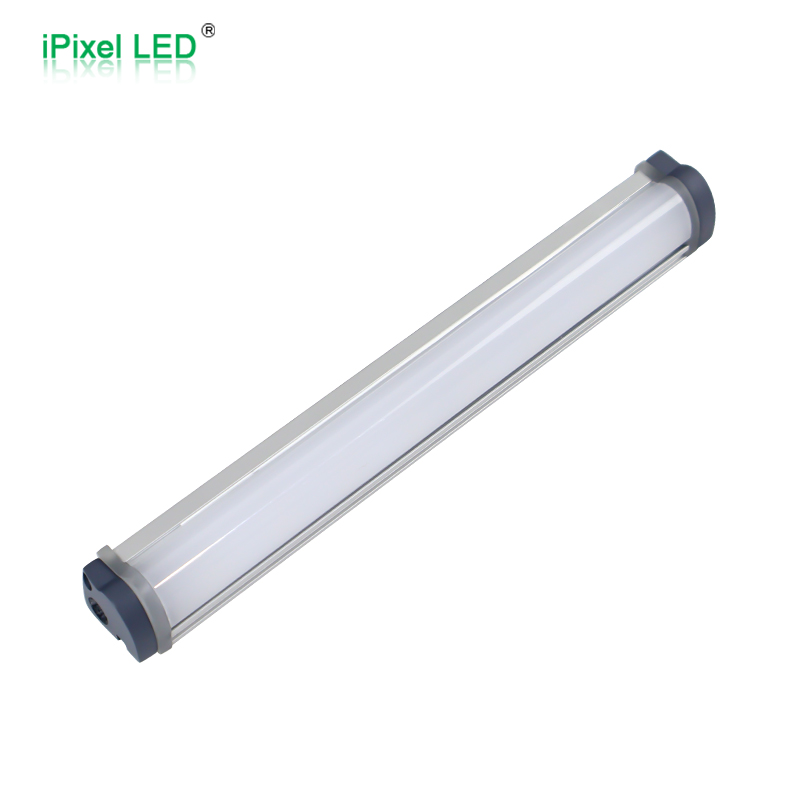

| Opal Lens | Softer, more uniform appearance with reduced LED dots (120 lm/W) | Door-frame lighting and customer-facing refrigerated displays |
Recommended Installation Positions
Shelf-Beam Mounting (Horizontal)
Attached to the shelf beam to provide even illumination for merchandise on every shelf level. Install horizontally along each shelf tier of the refrigerated cabinet.
Magnetic or Clip-On Attachment
Fix the bar with the supplied 3M adhesive-backed soft magnetic strip (for metal shelf beams), or use the vertical freezer mounting clips for rigid framing.
Suitable Equipment
- Refrigerated multi-deck cabinet
- Combi freezer
- Freezer (shelf / ORDC)
- Beverage cooler
- Refrigerated display cabinet
Basic Wiring
100–240V AC ↓ DC24V Constant-Voltage Power Supply ↓ M5 Input Cable ↓ B017166BC1LZ68 LED Light Bar
Wiring Notes
- Use a DC24V constant-voltage power supply.
- Confirm polarity before power-on.
- Do not connect the light bar directly to AC mains power.
- Calculate the total power when several bars share one power supply.
- Reserve approximately 20% power-supply capacity for continuous operation.
Example: 4 × 9.5 W Bars = 38 W total LED load. Recommended power supply: ≥ 48 W (DC24V constant voltage).
Supplied with 1500 mm M5 input cables (straight & right-angle, black) and an 80 mm M5 interconnection cable. Input-wire length and connector type are customizable per customer requirement. The soft magnetic strip is usually shipped separately.
Standard & Optional Accessories
Standard Accessories
| Accessory | Qty | Function |
|---|---|---|
| Input Cable (straight, M5, Black, 1500 mm) | 1 pc | Supplies DC24V to the bar via the waterproof M5 connector |
| Input Cable (right-angle, M5, Black, 1500 mm) | 1 pc | Space-saving right-angle entry for tight door-frame / frame mounts |
| Interconnection Cable (straight-to-straight, M5, Black, 80 mm) | 1 pc | Joins two bars end-to-end |
| Vertical Freezer Mounting Clip | 2 pcs | Secures the bar to freezer / cabinet structure |
| 3M Adhesive Soft Magnetic Strip (W15×H2 mm, 600Gs, 3M9448A) | 1 pc | Magnetic attachment to shelf beam / frame (usually shipped separately) |
Optional / Customizable
- Custom input-wire length and mating connector type per customer requirement
- Constant-voltage power supply (DC24V)
- PWM dimmer
- Female-to-female M5 extension cables
- Multi-output wiring harness
Customization Options
| Customization Item | Available Options |
|---|---|
| Length | Standard lengths offered / Customized per customer requirement |
| CCT | 3000K / 4000K / 6500K / 076 (special color, subject to availability) |
| CRI | Ra95 (R9 ≥ 65) |
| Lens | Clear (standard, 160 lm/W); Opal available (120 lm/W) |
| Cable Length | Customized input-wire length per requirement |
| Connector | M5 waterproof locking connector (type customizable) |
| Mounting | 3M soft magnetic strip / Vertical freezer clip (customizable) |
| Housing Finish | Anodized aluminum |
| Food Contact Compliance | (EU) No 10/2011 available upon request |
| Packaging | Corrugated carton with inner partitions / OEM packaging |
These pages are generated from the specification V1.0 (2026/07/08) and are subject to change without notice; mass-production validation is pending. Final power, luminous flux and efficiency may change when the lens, length, CCT, CRI or LED layout is customized. Specifications not explicitly listed in the spec are marked (typical) and should be confirmed with the factory.
Typical Applications
Commercial Refrigeration
- Beverage coolers
- Refrigerated multideck cabinets
- Glass-door merchandisers
- Upright freezers
- Combination freezers
- Food display refrigerators
Specialty Refrigeration
- Medical refrigeration equipment
- Wine coolers
- Bakery displays
- Convenience-store refrigeration
- Fresh-food display cabinets
FAQ
The 68° clear lens gives a wide, even beam (160 lm/W) ideal for broad shelf coverage inside refrigerated cabinets. Choose the opal lens when you want softer, more uniform light with reduced LED visibility for customer-facing displays (120 lm/W).
Six standard lengths are offered (154–1162 mm, ±5 mm tolerance). Customized lengths are available per customer requirement — contact the factory for cut-to-length and OEM options.
Yes. It is rated IP65 with IK02, has a silicone sealing structure and an M5 connector with double O-ring seals for moisture / condensation resistance, and operates from -20°C to +40°C. Food-contact compliance per (EU) No 10/2011 is available on request.
It mounts magnetically via the supplied 3M adhesive-backed soft magnetic strip or with the vertical freezer clips. Each unit ships with two 1500 mm M5 input cables (straight & right-angle), an 80 mm interconnection cable, 2 mounting clips and the magnetic strip.
