20×10mm Digital RGBW Flexible LED Wall Washer (TM1824/SPI, DC24V, TPU, IP67)
20×10mm Digital RGBW Flexible LED Wall Washer (TM1824/SPI, DC24V, TPU, IP67)
- Type: 20×10mm digital RGBW flexible wall washer, single-sided output, bendable up & down
- Electrical: DC24V; 42 LEDs/roll; 6 IC/roll; 12W/roll
- LED Source & Color: SMD 4040 RGBW; white CCT options 3000K/4000K/6500K (subject to order confirmation)
- Control: TM1824 / SPI digital control for chasing, flowing, jumping, gradient animations, etc.
- Protection & Reliability: IP67; high-transmittance TPU; salt tolerance, corrosion resistance, flame retardant, UV resistance; working temp -25~60℃
- Optics: Asymmetric distribution (approx. 30°±5° / 45°±5°, per datasheet/curve), suitable for wall-wash & edge outlining
- Dimensions & Length: 20×10mm cross-section; customizable length (diagram shows min ~180mm, max ~4970mm with tolerance)
- Mounting Options: aluminum profile + clips/end caps/covers/connectors available for fast installation

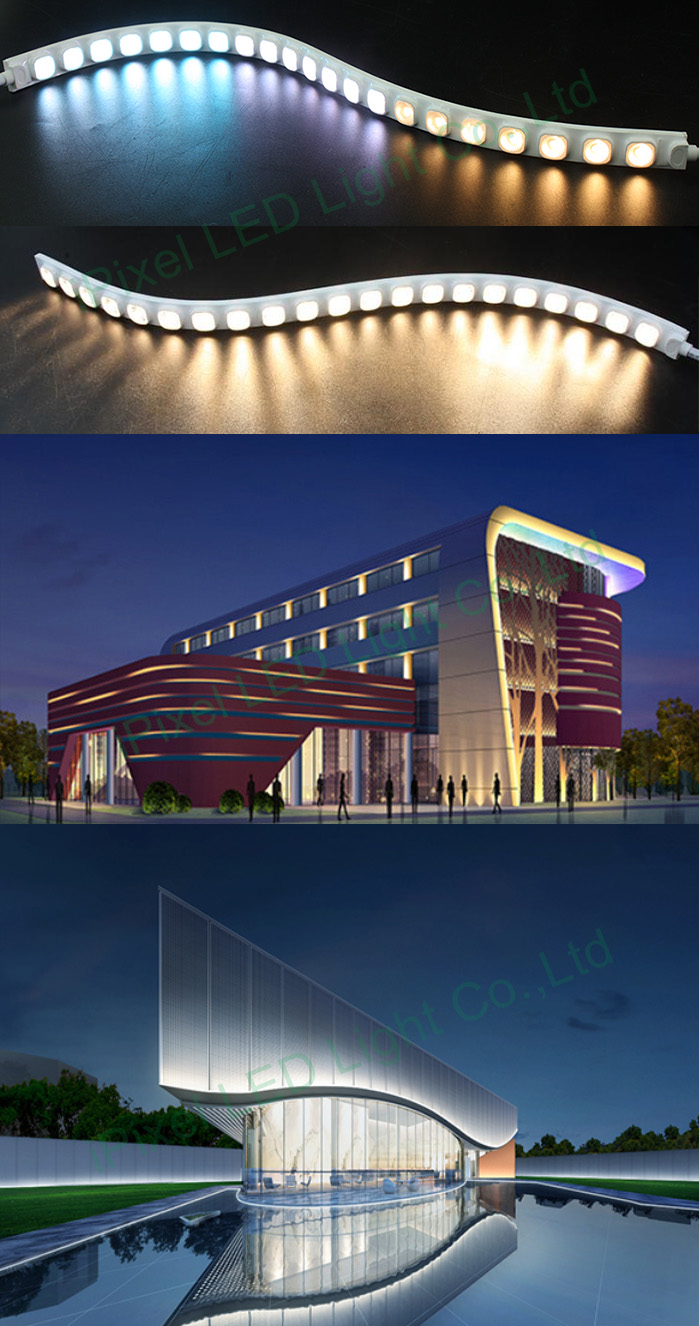

- Applications: architectural facade outline, signage lines, landscape accents, indoor wall washing, stage/exhibition decoration
- Compliance Note: RoHS/EMC/REACH documents can be provided based on actual shipping configuration and certifications
