D23mm 360° RGB Crystal Pixel Ball Light String (SPI/UCS1903 | DC12V | IP65)
D23mm 360° RGB Crystal Pixel Ball Light String (SPI/UCS1903 | DC12V | IP65)

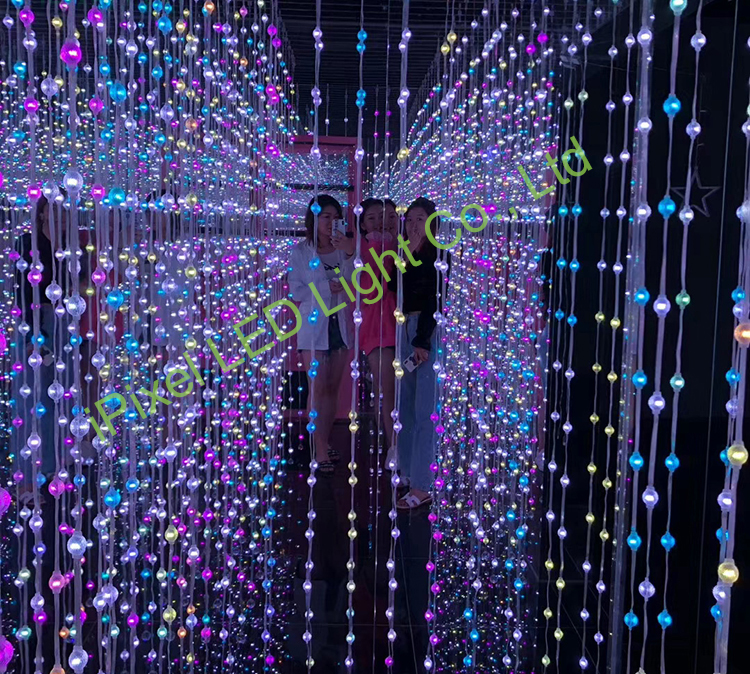

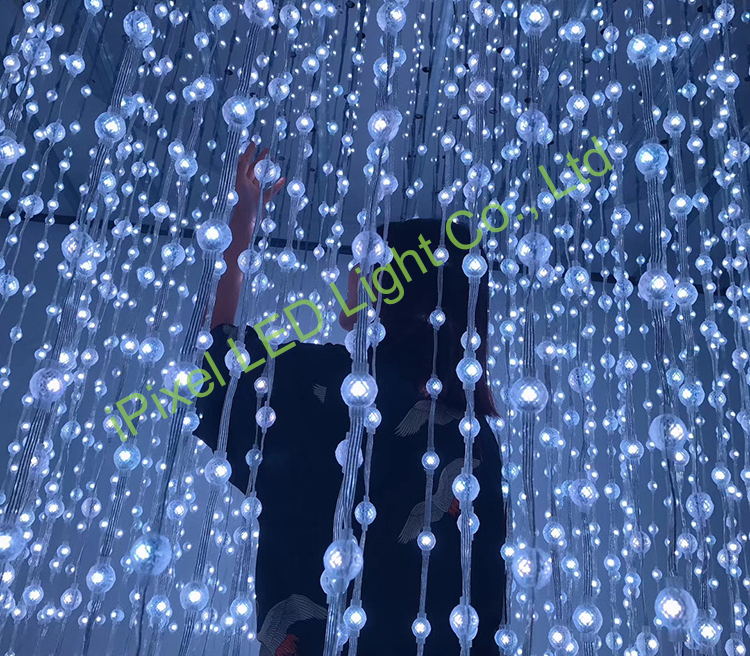

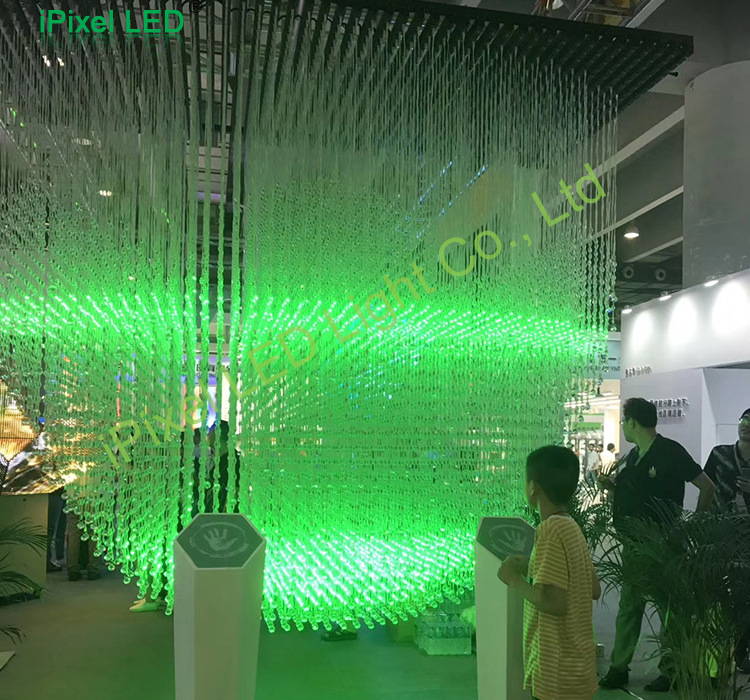

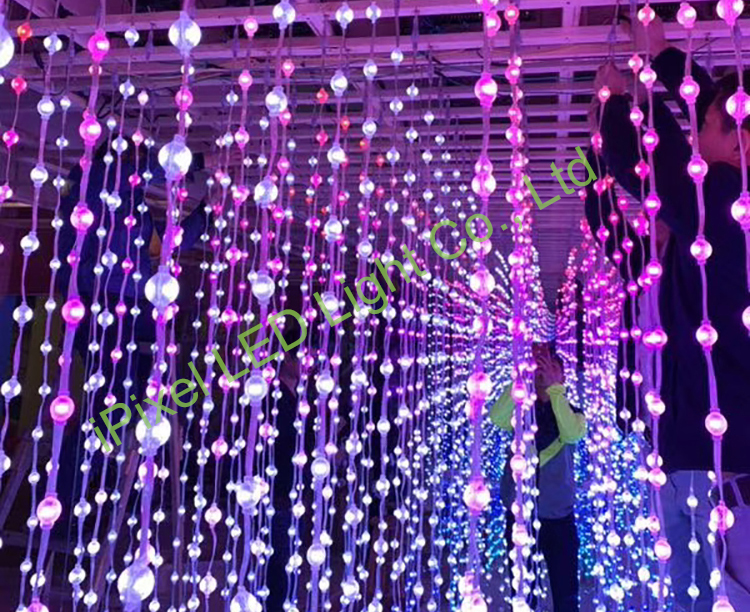

- 360° luminous pixel control: 1 ball = 1 pixel, SPI/UCS1903 control for animated patterns (chasing, waves, gradients), suitable for decorative installations and signage.
- Waterproof structure: IP65 rating with transparent PVC housing for indoor and semi-outdoor decorative applications.
- Standard configuration: 26pcs/string, 100mm pixel pitch; custom ball quantity and wire length available.
- Wiring & scaling: Single-end 4-core input (DC+, DAT, GND plus signal transfer wire). T-type connector solutions support fast multi-string installation.
- Power injection recommendation: For longer runs / multi-string systems, plan segmented or dual-end power feeding to minimize voltage drop and potential brightness/color deviation.
