France Big Mall Decoration | Ø50mm DMX512 RGB 360° LED Pixel Ball (P050006CC3DB8)
France Big Mall Decoration | Ø50mm DMX512 RGB 360° LED Pixel Ball (P050006CC3DB8)

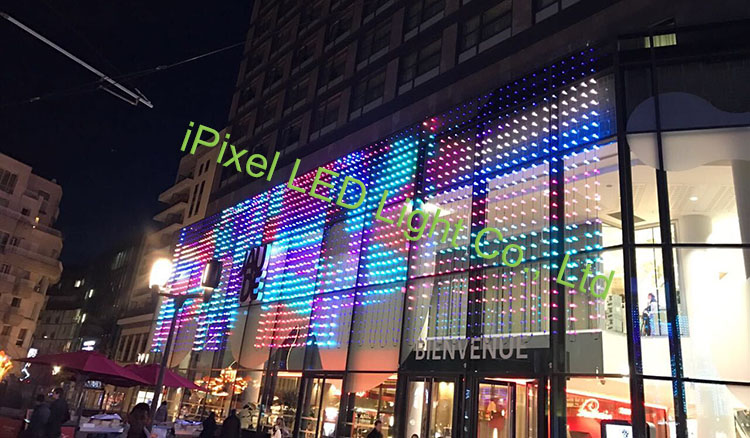

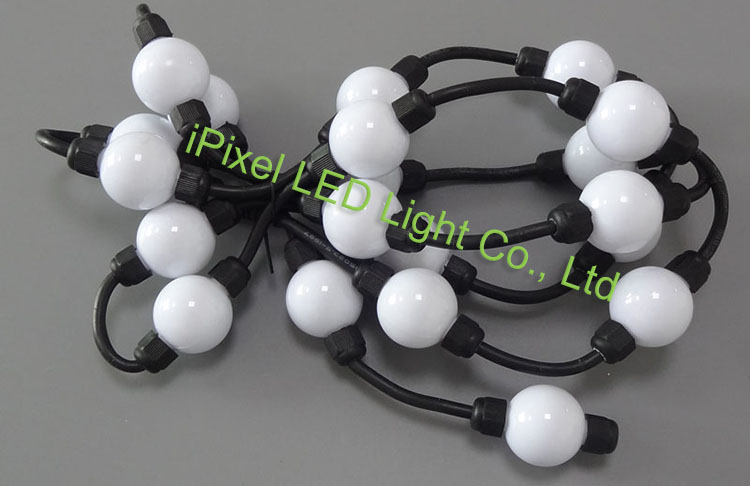

This project features Ø50mm DMX LED pixel balls (P050006CC3DB8) installed for a large mall decoration in France, delivering programmable dynamic pixel effects.
Key Specs (Datasheet):
- Product No.: P050006CC3DB8
- Light Source: Epistar 5050 SMD LEDs
- Beam Angle: 360°
- Emitting Color: IC RGB
- Operating Voltage: DC12V / DC24V (WS2801 ball: DC12V; DMX512 ball: DC24V)
- Control: WS2801 / DMX512
- Power: 1.44W (MAX)
- Waterproof Rating: IP20 / IP65 optional
- Luminance (MCD): R 4200 / G 3600 / B 10200
- Operation Temperature: -30°C ~ 50°C
- Size: Ø50mm
Project Implementation (Project Page):
- Control system: Art-Net Controller + MadMapper software for pixel mapping and animated scenes.
- Connection: T-type connector for flexible branching and easier installation/maintenance.
- Pixel pitch: 30cm (project design parameter)
