SA Lobby Decoration Case | Ø50mm 360° RGB LED Pixel Ball (P050004CC3SC)

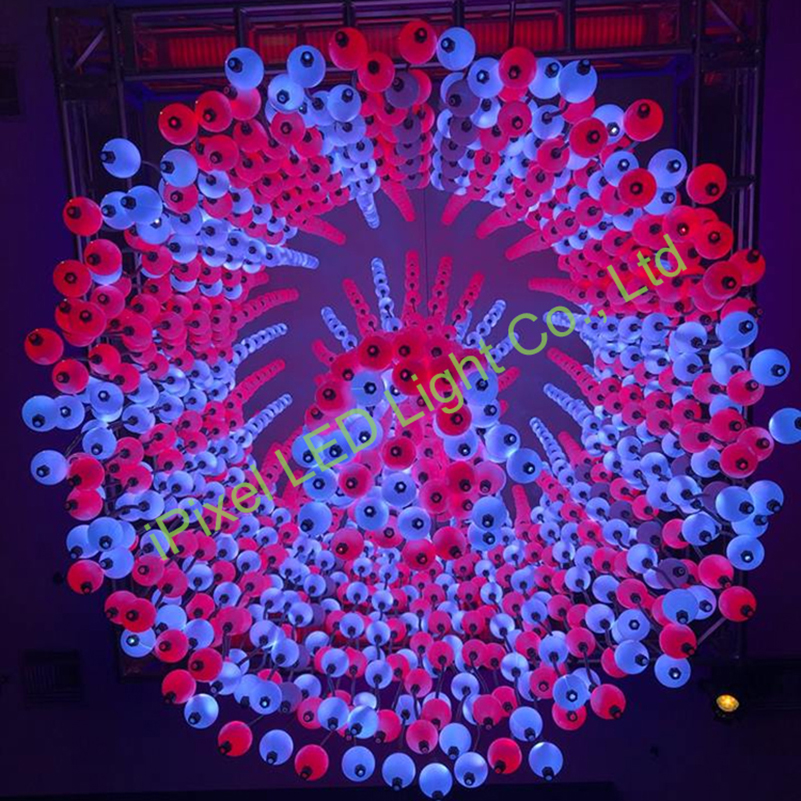

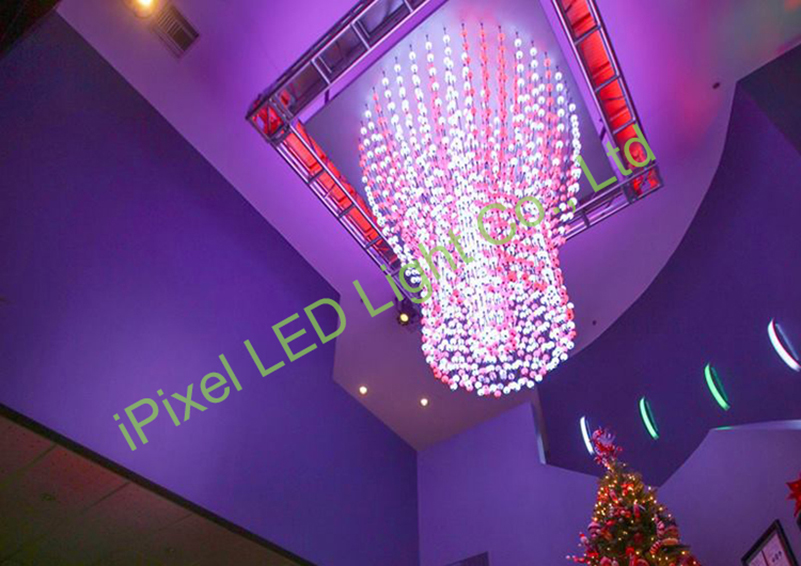

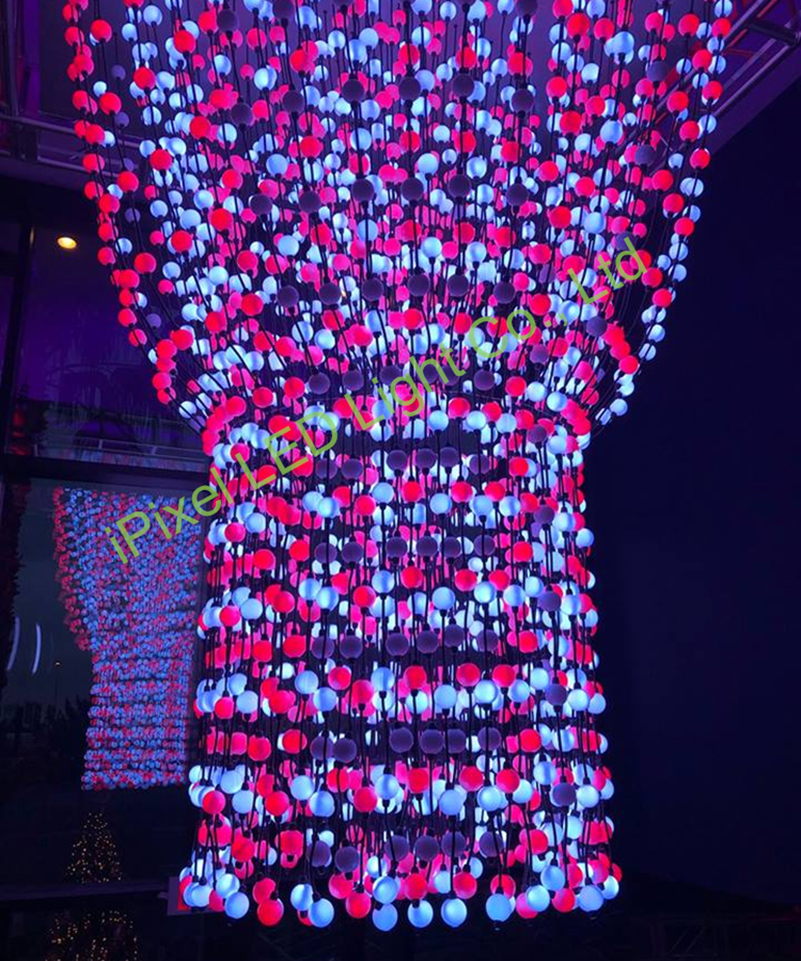

This case is a USA customer lobby installation using 360° pixel balls to create ambient “pixel-dot /

globe” effects. The project applies an approx. 20cm pixel pitch. The page also notes that the end of

the DMX ball string has no output connector, allowing customers to form some standalone

“globe” decorative elements at the end.

Key Specs (Datasheet):

Model: P050004CC3SC

Light source: 4 pcs Epistar 5050 SMD LEDs

Beam angle: 360°

Color: IC RGB full color

Input: DC24V

Control: SPI UCS1903 / DMX512 (two versions available)

Power: 1W (MAX)

IP rating: IP20

Working temp.: -30°C to 50°C

Luminous flux (LM/pc): R 1.2 / G 3.1 / B 0.26

Mechanical: 200mm cable length between balls; 20 balls per string, total length ~4.1m

Min. center distance suggestion: 125mm

Project Implementation (Project Page):

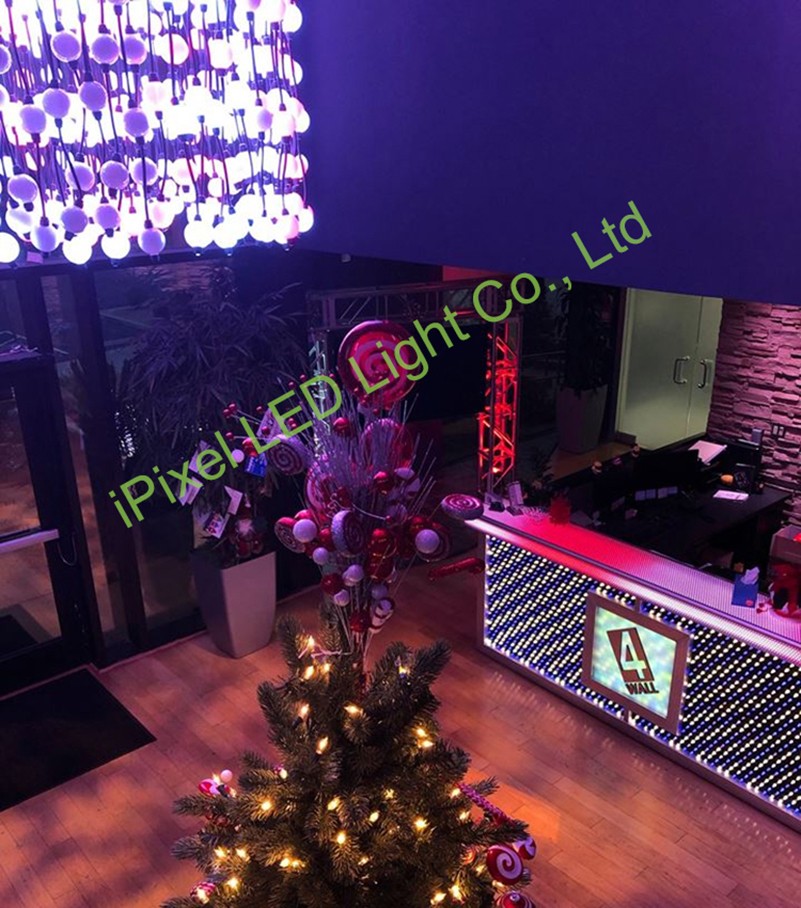

Scene: USA customer lobby (indoor)

Pitch: ~20cm

Structure note: the end ball has no output connector and can be formed into decorative “globes”

Please attention, the end of  DMX ball don't has the output connector,and our customers make it as some of the globes.
