Show Lighting Project | 3D DMX Vertical Pixel Tube Ø80mm 360° RGB (B080072/144CB3DS)

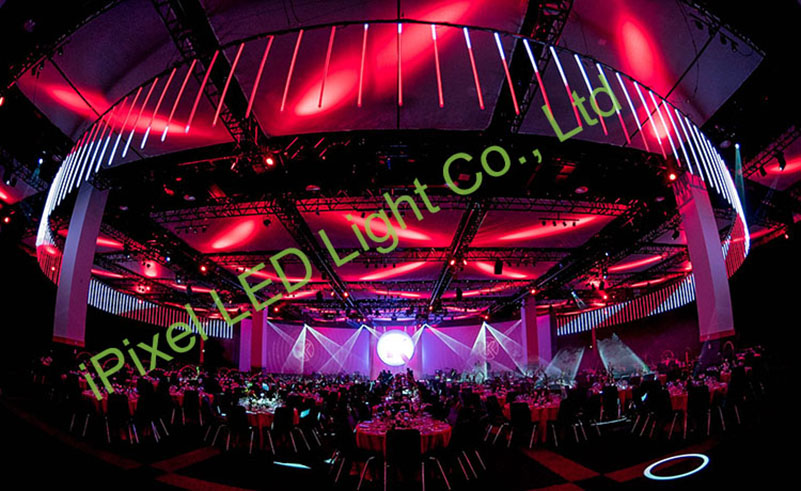

This project applies 3D DMX vertical pixel tubes to create dynamic show lighting. The setup uses 1.5m tubes with 24 pixels and a milky diffuser cover, controlled by an Art-Net controller and programmed in Hippotizer for animated scenes and transitions.
Key Specs (Datasheet):
- Series: Ø80mm DMX LED Tube (milky diffuser)
- Models: B080072CB3DS (0.5m) / B080144CB3DS (1m)
- LED: SMD 5050 RGB
- Beam Angle: 360°
- Control (IC): DMX512 (standard) / SPI (optional)
- Pixel Density: 24 pixels (72 DMX channels) per meter; Pixel pitch 13.5mm
- Power: 12W/pc (0.5m) / 20W/pc (1m)
- Voltage: DC12V (datasheet standard); 24V option available for longer runs
- IP Rating: IP20
- Operating Temp.: -40°C to 50°C
- Structure & Installation: standard pair of connectors + eye hook (top-side cable output only); anodized aluminum end/top caps; vertical or horizontal hanging; custom length available
- Optional Accessories (order separately): input XLR connector, link T connector (power injection), male & female connector, 3-pin power connector, extension cable, LED controller, DMX address writer, power supply, wire rope
Project Implementation (Project Page):

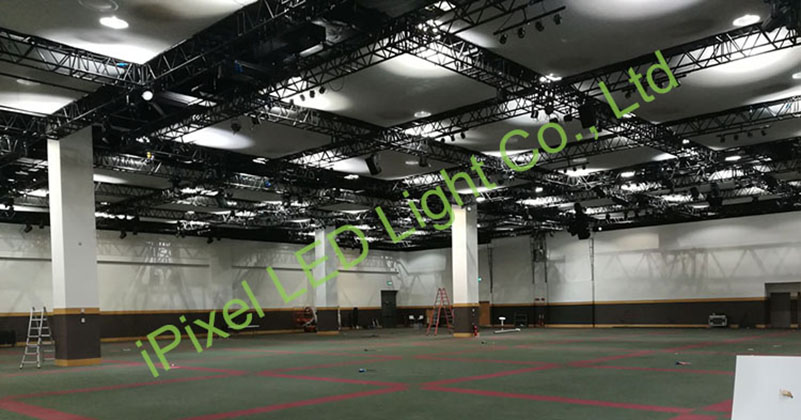

- Fixture type: 3D DMX Vertical Tube (hanging)
- Project parameters: 1.5m length, 24 pixels, DMX512, milky cover
- Control/Software: Art-Net Controller + Hippotizer
- Event & lighting design: Mavrix – House of Experience
