2.7mm COB is designed for extremely narrow installation spaces. 5mm COB offers more model options, higher brightness choices and IP65 protection options.

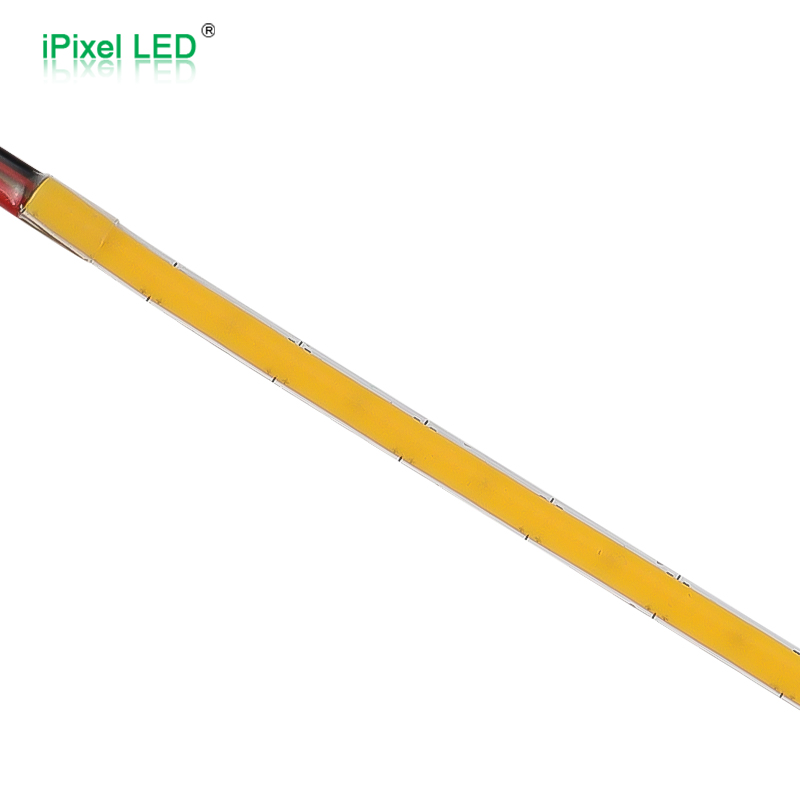

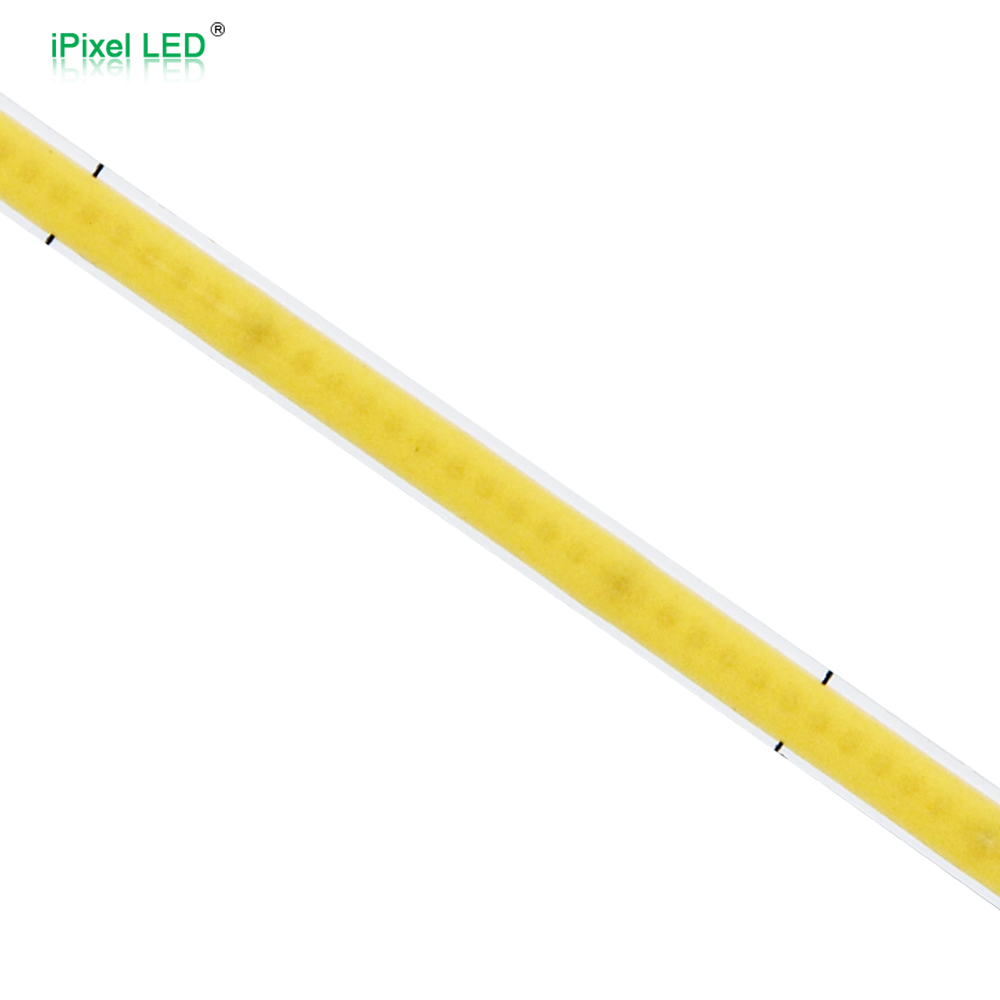

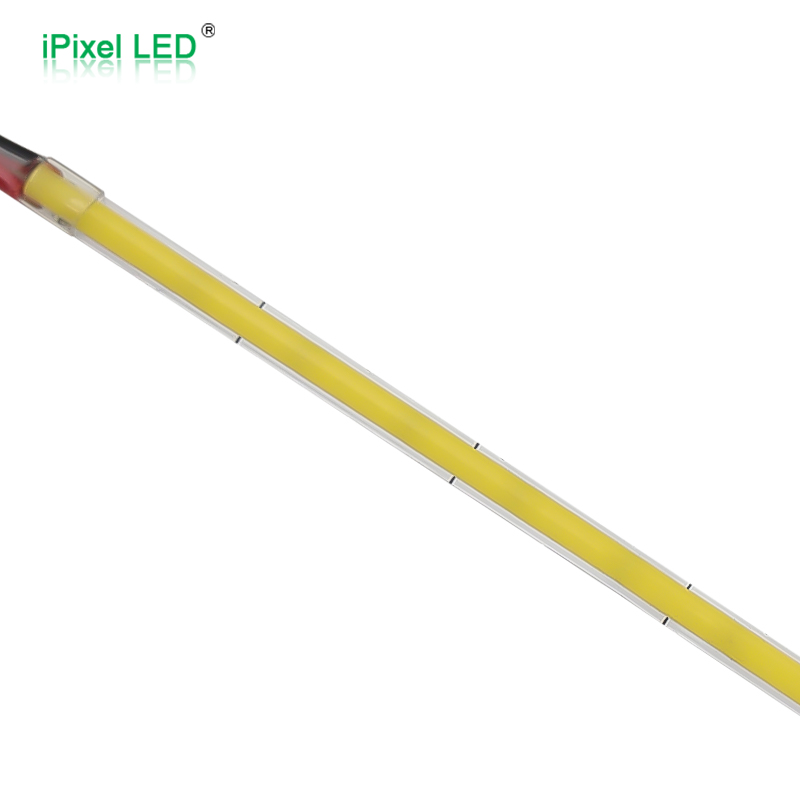

Single Color COB LED Strip Series
This single color COB LED strip series is designed for smooth, dot-free linear lighting in compact installation spaces. It includes 2.7mm super narrow COB, 5mm slim COB, and 8mm side-emitting COB options, covering DC5V, DC12V and DC24V systems.
Available in 3000K / 4000K / 6500K white options, the series supports flexible cut lengths, IP20 / IP65 protection options, and customized roll lengths for OEM lighting projects. The uploaded datasheets show front-emitting models from 2.7mm to 5mm PCB width and side-emitting models in 8mm PCB width, with operating voltage options from DC5V to DC24V.
DC5V/DC12V/DC24V320/480/504/528LEDs/m2.7/5/8mm WidchSingle ColorIP20/IP65
Overview & Key Features
Overview
This series combines multiple single color COB LED strip models into one selection platform. It is suitable for customers who need smooth linear lighting but have different installation constraints, such as ultra-narrow grooves, compact furniture profiles, shelf lighting channels, or side-emitting edge-lighting structures.
Key Features
- Dotless COB Light Output COB chip-on-board structure creates a continuous light surface with soft and uniform illumination, reducing hotspots and shadows.
- Ultra-Narrow PCB Options The series includes a 2.7mm super narrow model and several 5mm slim PCB models for narrow installation channels.
- Multiple Voltage Platforms DC5V, DC12V and DC24V versions are available, allowing the customer to select according to system voltage, run length and power supply design.
- Flexible Cut Lengths Cutting lengths include 7.94mm, 12.5mm, 13.89mm, 16.5mm, 25mm, 33mm and 45.45mm, depending on the model.
- Front-Emitting and Side-Emitting Options Front-emitting models are suitable for direct linear lighting. The 8mm side-emitting model is designed for edge lighting and side-view applications.
- IP20 / IP65 Protection Options Most 5mm and 8mm models support IP20 and IP65 versions. The datasheets note that IP protection processing may affect size, CCT and luminous flux, so final data should be confirmed by sample testing.
Product Specification Table
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S003480ZB1LZ | 480 | DC12V | 5W | 2.7mm Super Narrow COB / Front-emitting | 2.7mm | 3000K / 4000K / 6500K | 12.5mm | 350lm/m |
| S005320ZA1LZ | 320 | DC5V | 7.5W | 5mm Slim COB / Front-emitting | 5mm | 3000K / 4000K / 6500K | 25mm | 440lm/m |
| S005504ZB1LZ | 504 | DC12V | 6W | 5mm Slim COB / Front-emitting | 5mm | 3000K / 4000K / 6500K | 7.94mm | 570lm/m |
| S005504ZC1LZ | 504 | DC24V | 6W | 5mm Slim COB / Front-emitting | 5mm | 3000K / 4000K / 6500K | 13.89mm | 480lm/m |
| S005528ZC1LZ | 528 | DC24V | 8W | 5mm High Brightness COB / Front-emitting | 5mm | 3000K / 4000K / 6500K | 45.45mm | 875lm/m |
| S008480ZB1LZ(C) | 480 | DC12V | 10W | Side-emitting COB | 8mm | 3000K / 4000K / 6500K | 16.5mm | 800lm/m |
| S008480ZC1LZ(C) | 480 | DC24V | 10W | Side-emitting COB | 8mm | 3000K / 4000K / 6500K | 33mm | 800lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Extremely narrow installation space or ultra-slim groove | S003480ZB1LZ — 2.7mm PCB, DC12V, suitable for very narrow channels and compact decorative lighting. |
| 5V low-voltage system or short-length installation | S005320ZA1LZ — DC5V, 5mm PCB, 25mm cut length, suitable when the project already uses a 5V power platform. |
| 5mm COB strip with shortest cut length | S005504ZB1LZ — DC12V, 7.94mm cut length, suitable for furniture and display projects requiring precise length matching. |
| 24V furniture, cabinet or display lighting system | S005504ZC1LZ — DC24V, 5mm PCB, suitable for standard 24V low-voltage lighting systems. |
| Higher brightness in 5mm COB strip | S005528ZC1LZ — 875lm/m, 8W/m, suitable when higher output is required. |
| Edge lighting or side-view light output | S008480ZB1LZ(C) / S008480ZC1LZ(C) — 8mm side-emitting COB, suitable for edge lighting, side slots and profile lighting. |
| Indoor dry installation | IP20 Version — suitable for aluminum profiles, furniture grooves and dry indoor locations. |
| Higher protection requirement | IP65 Version — suitable for projects requiring extra surface protection; final size, CCT and lumen should be confirmed after IP process. |

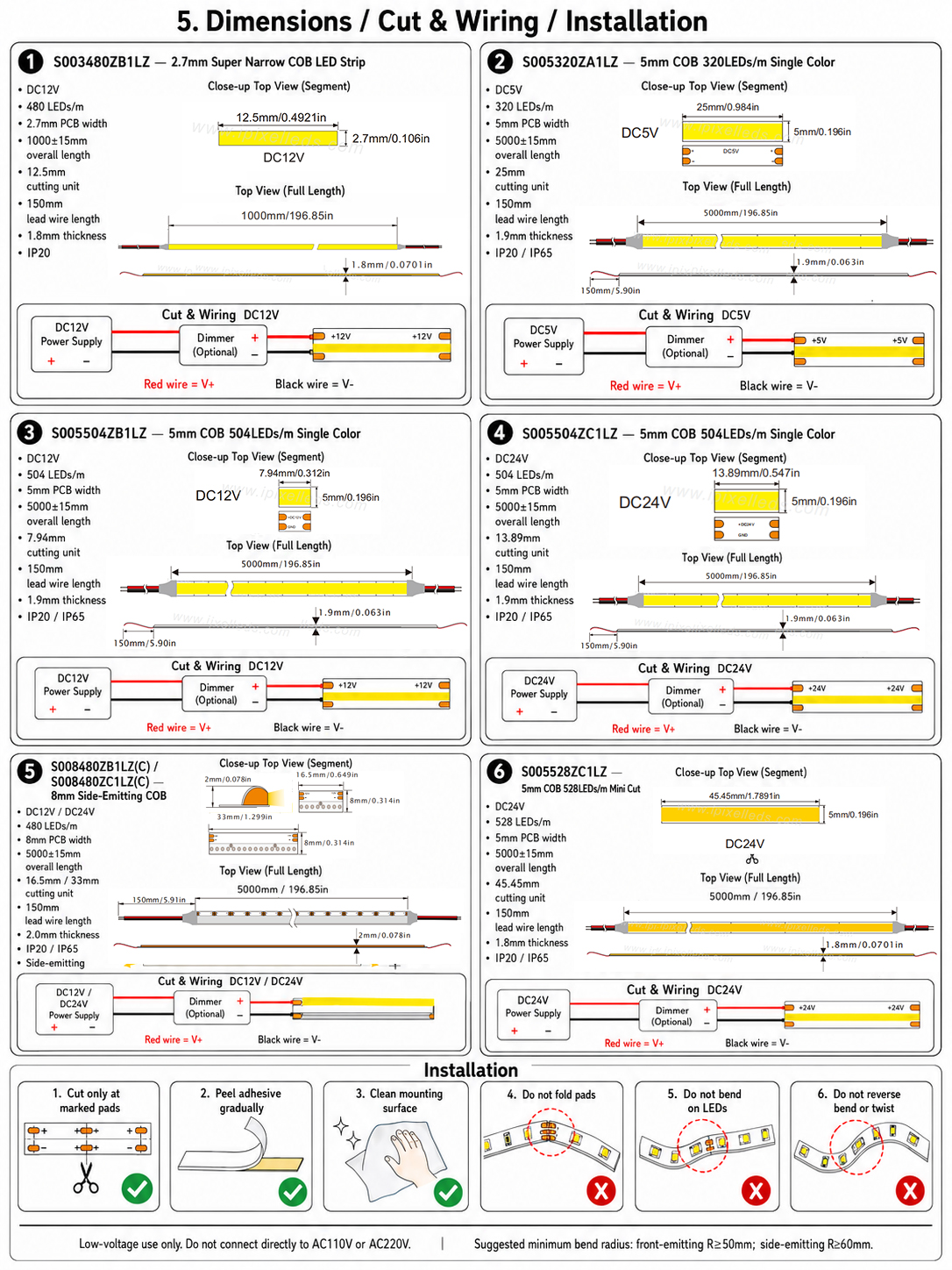

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V / DC12V / DC24V | Depends on model. DC5V is available for S005320ZA1LZ; DC12V and DC24V are available across different 2.7mm, 5mm and 8mm versions. |
| LED Type | COB | Chip-on-board LED structure for smooth, dotless and uniform linear lighting. |
| ColorType | Single Color | This series is for single color white COB LED strip. RGB, RGBW, CCT and addressable versions should be listed as related products. |
| Color Range | 3000K / 4000K / 6500K | Standard white options from the datasheets. Final CCT can be confirmed by project requirement and sample test. |
| PCB Width | 2.7mm / 5mm / 8mm | 2.7mm for ultra-narrow grooves; 5mm for slim front-emitting applications; 8mm for side-emitting edge lighting. |
| Power | 5W/m / 6W/m / 7.5W/m / 8W/m / 10W/m | Depends on model. Select by brightness requirement, heat dissipation condition and installation structure. |
| Control | On/off / PWM dimming / RF dimmer option | Single color COB strips can work with suitable low-voltage dimmers. Power supply and dimmer must match voltage and load. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use. IP65 is available for most 5mm and 8mm models. The 2.7mm model is listed as IP20. IP process may affect size, CCT and lumen output. |
| Length | 1m standard / 5m standard / custom length | S003480ZB1LZ is 1000mm standard. Most 5mm and 8mm models are 5000mm standard. Custom length is available for OEM projects. |
| Connector | Bare wire / soldered lead wire / terminal / custom connector | Datasheets show standard lead wire connection. Connector type and cable length can be customized according to project wiring design. |
| Mounting | Adhesive tape / aluminum profile / clips | Clean mounting surface before installation. Aluminum profile is recommended for better heat dissipation, protection and installation consistency. |
| Packing | Reel / antistatic bag / carton / OEM packing | Standard packing includes reel, antistatic bag and carton. OEM label, bag, carton and project packing can be discussed. |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
S005504ZB1LZ has a 7.94mm cut length, making it suitable for furniture and display projects requiring accurate length matching.
DC12V is suitable for shorter runs and compact systems. DC24V is more suitable when the project uses a 24V power platform or needs lower current compared with 12V at the same power level.
They can be installed with adhesive tape, but aluminum profiles are recommended for better heat dissipation, mechanical protection and cleaner installation, especially for cabinet, shelf and display applications.
