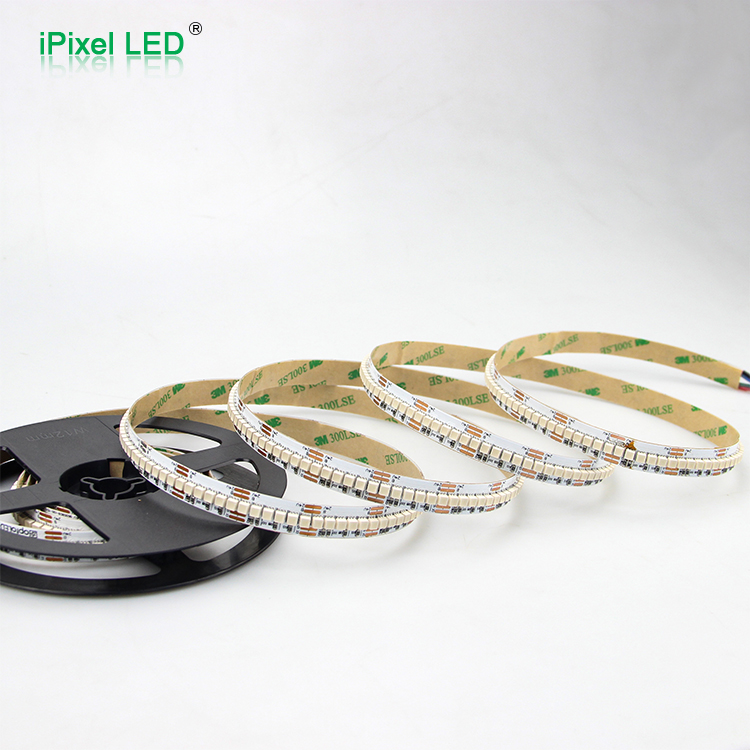

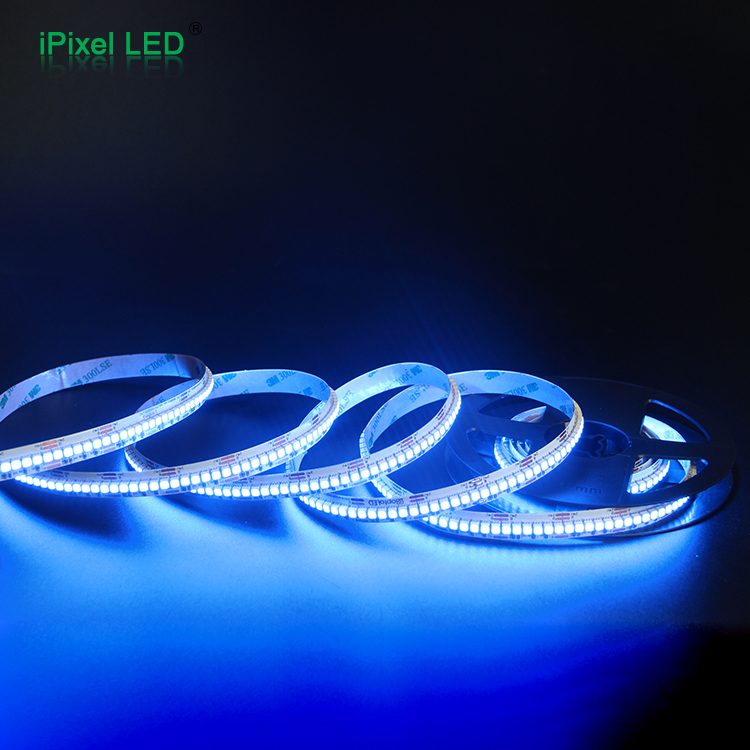

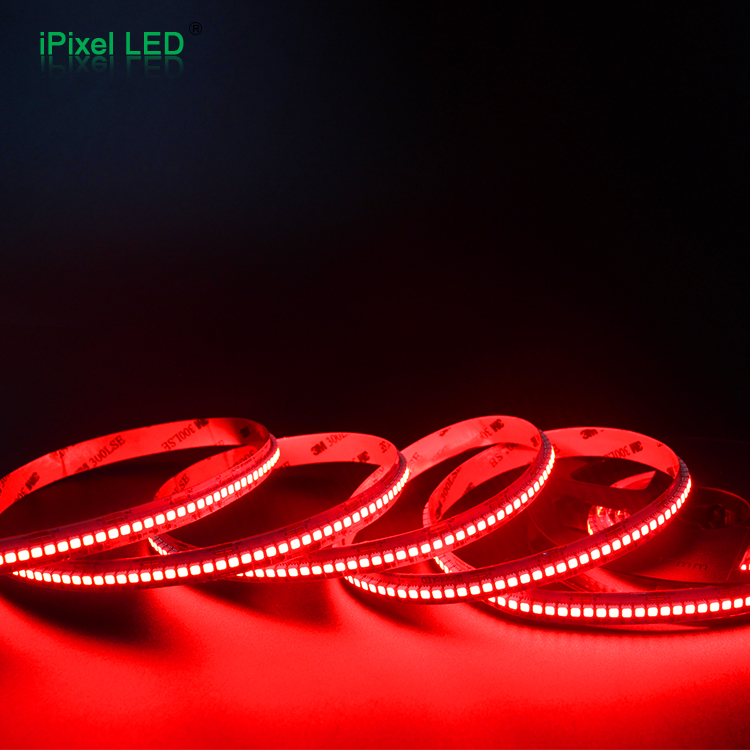

High Density RGB SMD3535 LED Strip
High Density RGB SMD3535 LED Strip

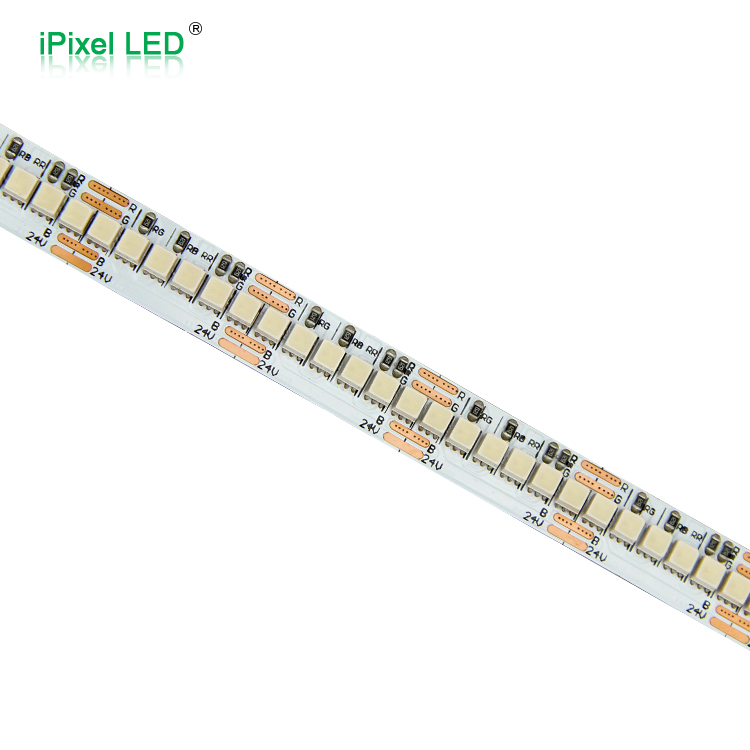

- This flex led strip uses SMD3535 RGB LED chip, 240LEDs/m, with high brightness
- The width of PCB is 12mm, and white PCB, 2+2 Ounce copper
- DC24V, cut-able every 6LEDs/25mm
- Standard size is 3M/roll, but custom lengths are accepted
- Both ends of led strip are welded with 4Pin power wire
- The back of strip with 3M adhesive
- The IP rate can be IP20, IP64, IP65 and IP67
DC24V240LEDs/m12mm WidchRGBIP20/IP64/IP65/IP67PWM
Series Overview & Key Features
Series Overview
This series features high-density SMD3535 RGB flexible strips with 240 LEDs/m, 28.8W/m power, and Ra80 for vivid color reproduction. The 12mm white FPC with 2+2oz thickened copper foil operates at DC24V to minimize voltage drop over long runs. Cuttable every 25mm (6 LEDs), standard 3m reel with custom lengths available. IP20 to IP67 ratings suit indoor and harsh outdoor environments.
Key Features
- Ultra‑high density 240 LEDs/m for superior brightness and uniform mixing.
- Ra80 high CRI for accurate color rendering.
- 2+2oz copper FPC reduces voltage drop and enhances durability.
- DC24V operation, cuttable every 25mm for flexible sizing.
- Multiple IP options (IP20–IP67) for diverse applications.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | Cutting Length | IP Rating | Lumen/m | Length | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|---|
| S012240DC3PZ | 240 | 24V | 28.8W | PWM | 12mm | 25mm/6LED | IP20 | R:116 G:301 B:42lm | 5M | Download |
How to Choose
| Application Need | Recommended Voltage | Recommended IP | Notes |
|---|---|---|---|
| Indoor Dry Environment | DC24V | IP20 | Cost-effective for indoor use |
| Indoor Damp Environment | DC24V | IP65 | Silicone coating for moisture resistance |
| Outdoor /Harsh Environment | DC24V | IP65/IP68 | Higher IP level for harsh condittion |
| Commercial/Display | DC24V | IP20/IP65 | High density for better visual effect |

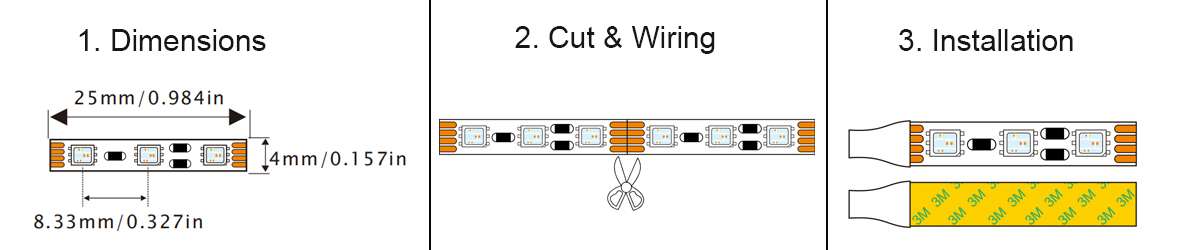

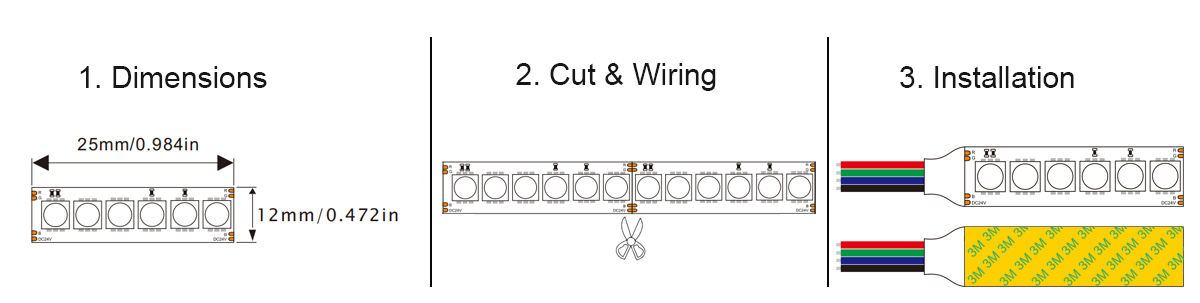

Structure & Installation
Protection, Customization & Options
| Item | Options/Details | Remarks |
|---|---|---|
| IP Rating | IP20/IP65 | IP65 Sllicone Coating. |
| Color Option | RGB | Other CCTs available on request. |
| Connector | Wiring Sequence / Color | Fast connectors for easy installation. |
| Length | 5M (Standard) | Custom lengths available. |
| PCB Color | White | Other PCB color available (Black). |
FAQ
3-7 Days
