The main difference is voltage, pixel density, cutting length and max length. N020060CB3SF is DC12V, 20 pixels/m, 50mm cut, max 10m. N020060CC3SF is DC24V, 10 pixels/m, 100mm cut, max 15m.
N2020 Addressable RGB Neon Flex Series

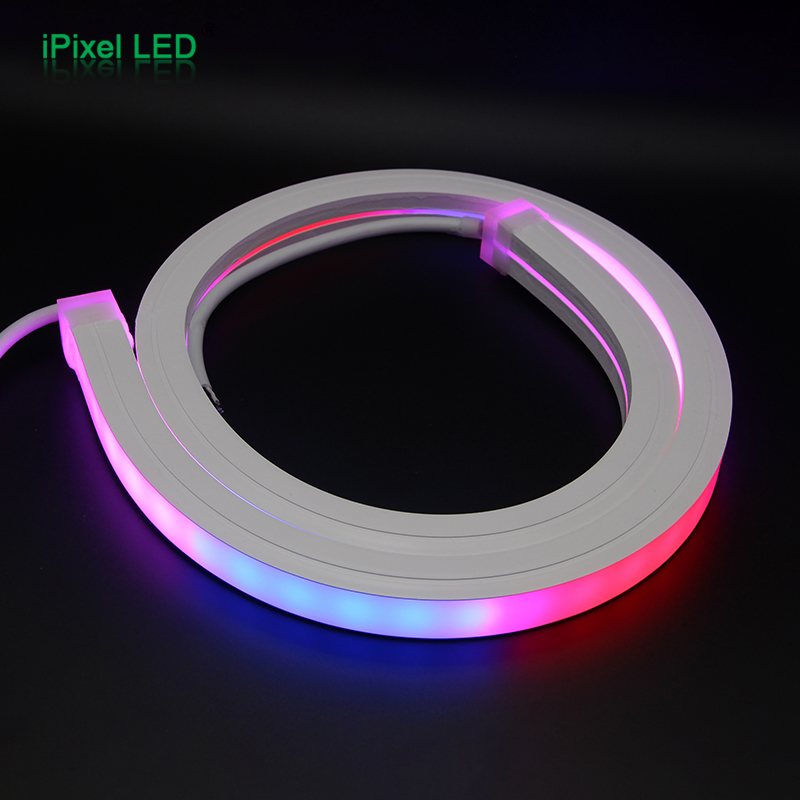

The N2020 Addressable RGB Neon Flex Series is a 20×20mm single-sided digital RGB neon flex designed for dynamic architectural contour lighting, signboard lighting, outdoor decoration, interior decorative lighting, and programmable linear lighting projects.
This series uses SMD5050 RGB LEDs, WS2811 SPI control, and a silicone neon diffuser structure to create soft, uniform RGB light output. It includes DC12V and DC24V versions, allowing customers to choose between higher pixel density or longer-run voltage performance. The datasheet shows RGB animation effects such as flowing water, chasing, jumping, and gradients.
DC12V/DC24V60LEDs/m20mm WidthRGBIP65
Overview & Key Features
Series Overview
The N020060CB3SF(N2020) is the DC12V version, with 20 pixels/m, 50mm cutting length, and 10m max length. It is suitable for projects that require finer pixel control and shorter cutting intervals.
The N020060CC3SF(N2020) is the DC24V version, with 10 pixels/m, 100mm cutting length, and 15m max length. It is more suitable for longer runs, lower current, and better voltage-drop control.
Both models share the same 20×20mm single-sided neon structure, 60 LEDs/m, 14.4W/m, WS2811 SPI control, RGB color output, and 5025±15mm standard length.
Key Features

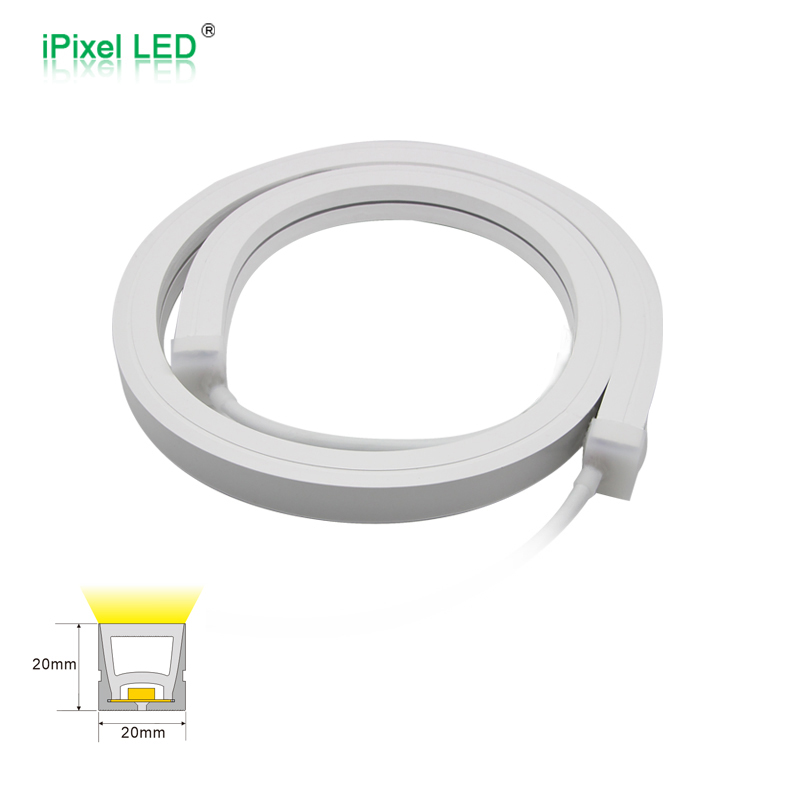

- 20×20mm single-sided addressable RGB neon flex
- SMD5050 RGB LED source
- 60 LEDs/m
- WS2811 SPI signal control
- DC12V / DC24V options
- 14.4W/m power rating
- 20 pixels/m or 10 pixels/m depending on voltage version
- RGB color output: R 620–630nm / G 520–530nm / B 460–470nm
- Typical brightness: R 53lm/m, G 128lm/m, B 20lm/m
- Single-sided light output with up/down bending

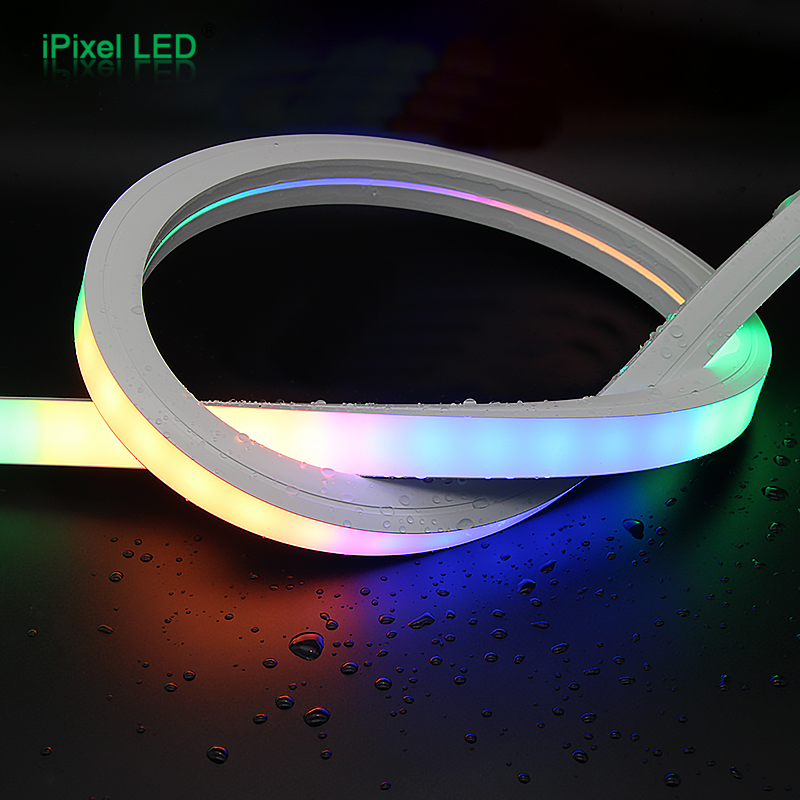

- Soft silicone body, uniform surface light, no obvious shadow
- 5025±15mm standard length
- Max length: 10m for DC12V, 15m for DC24V
- SPI animation effects: flowing, chasing, jumping, gradients
- Strengthened anti-interference capability

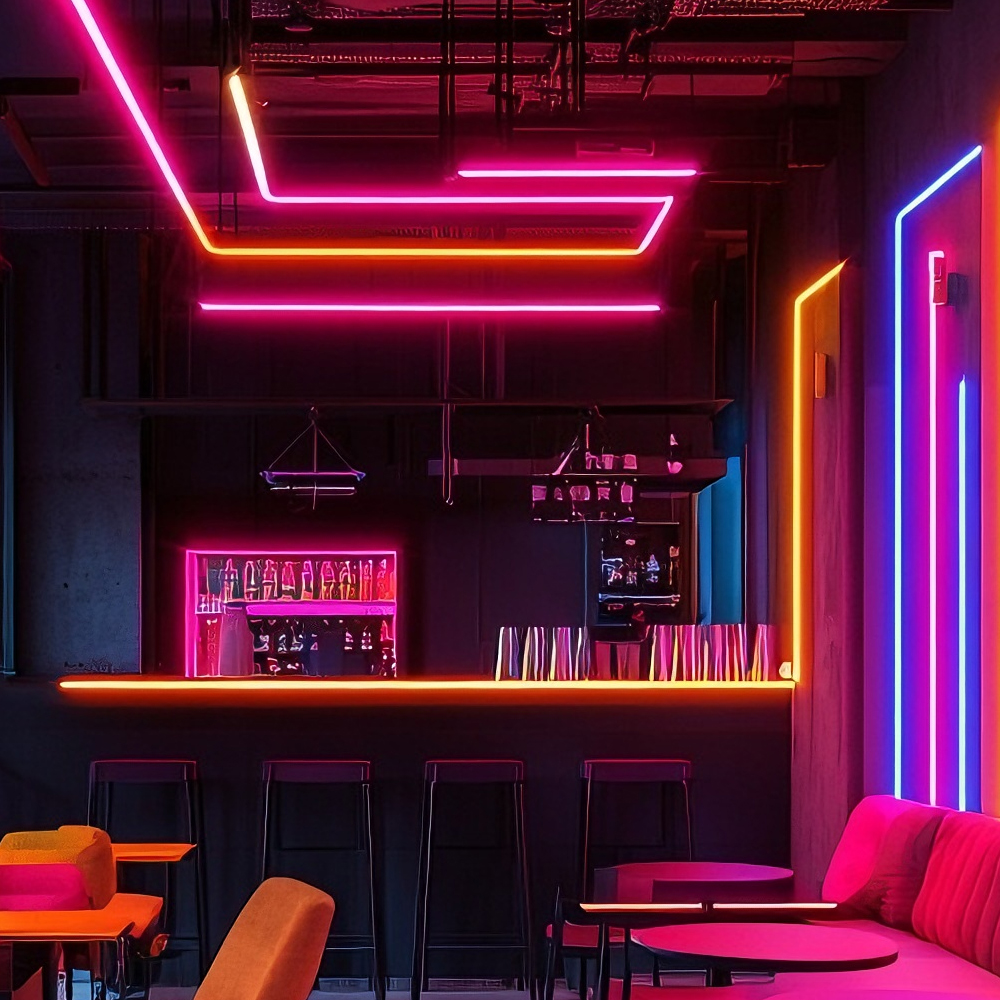

- Suitable for signage, outdoor/interior decoration and architectural contour lighting
- 2-year quality assurance, working life ≥36,000 hours
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N020060CB3SF(N2020) | 60 LEDs/m | DC12V | 14.4W/m | SPI / WS2811 | 20×20mm profile | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 50mm | R:53lm / G:128lm / B:20lm | DC12V, 20 pixels/m, max 10m |
| N020060CC3SF(N2020) | 60 LEDs/m | DC24V | 14.4W/m | SPI / WS2811 | 20×20mm profile | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 100mm | R:53lm / G:128lm / B:20lm | DC24V, 10 pixels/m, max 15m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need higher pixel density | N020060CB3SF(N2020) — 20 pixels/m |
| Need shorter cutting length | N020060CB3SF(N2020) — 50mm cut |
| Need longer max run length | N020060CC3SF(N2020) — max 15m |
| Need lower current and better voltage-drop control | N020060CC3SF(N2020) — DC24V |
| Need standard RGB animation effects | Both models |
| Need WS2811 SPI control | Both models |
| Need outdoor signage or façade contour lighting | Both models, confirm final IP structure |
| Need large 20×20mm neon visual effect | Both models |
| Need precise pixel animation | Prefer DC12V 20 pixels/m version |
| Need long linear installation | Prefer DC24V 10 pixels/m version |

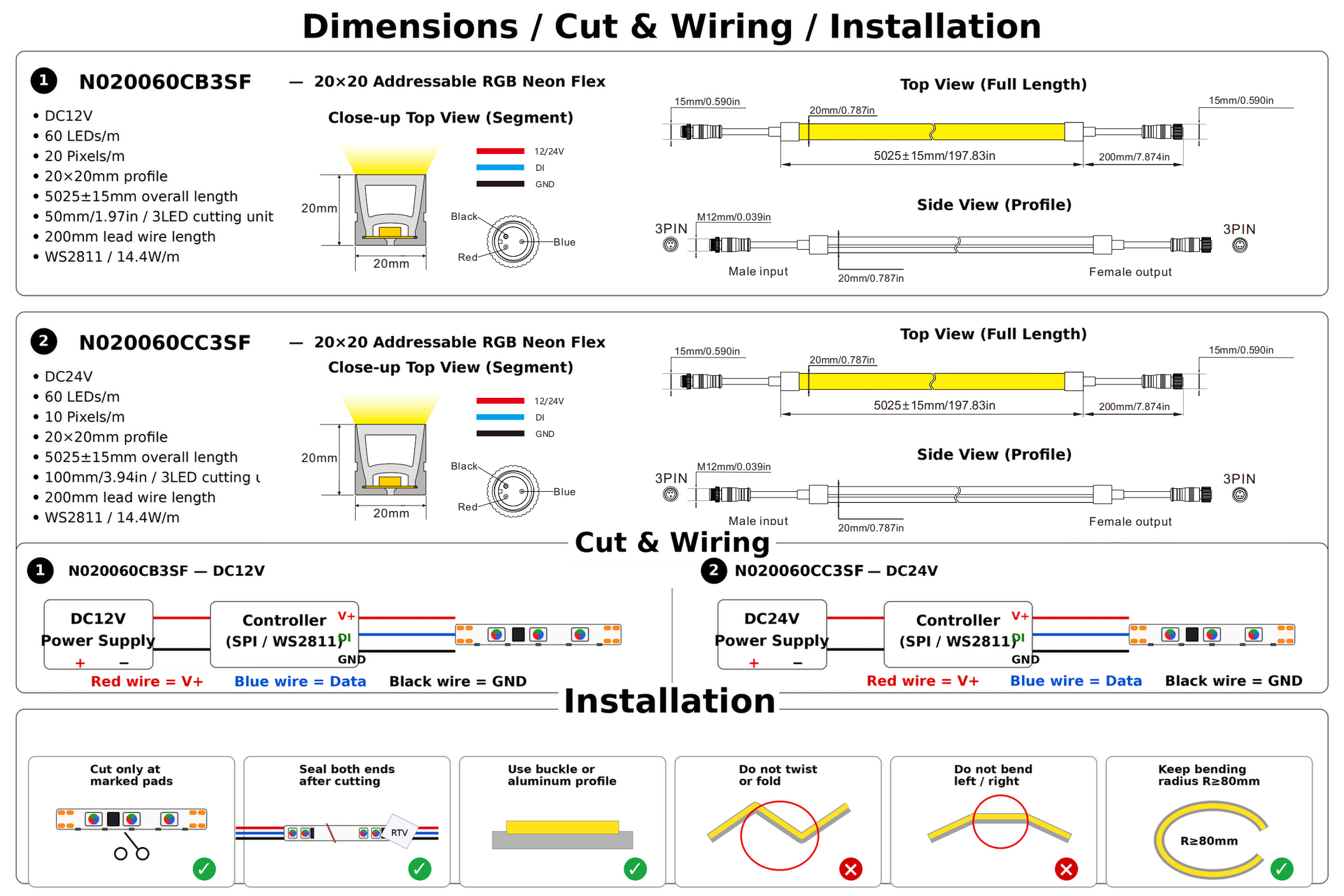

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V: N020060CB3SF; DC24V: N020060CC3SF |
| LED Type | SMD5050 RGB | 60 LEDs/m |
| ColorType | RGB addressable | SPI digital RGB control |
| Color Range | R 620–630nm / G 520–530nm / B 460–470nm | RGB wavelength values from datasheet |
| PCB Width | 20×20mm profile | For neon products, this refers to silicone body size |
| Power | 14.4W/m | Same for both voltage versions |
| Control | SPI / WS2811 | Controller must match WS2811 signal |
| IPRating | IP65 / IP67 to be confirmed | Cover page shows IP65; product label page mentions IP67. Confirm final IP version before publishing/order |
| Length | 5025±15mm standard / custom length | Max length: DC12V 10m, DC24V 15m |
| Connector | 3PIN connector / male input / female output | Red V+, Blue DI, Black GND |

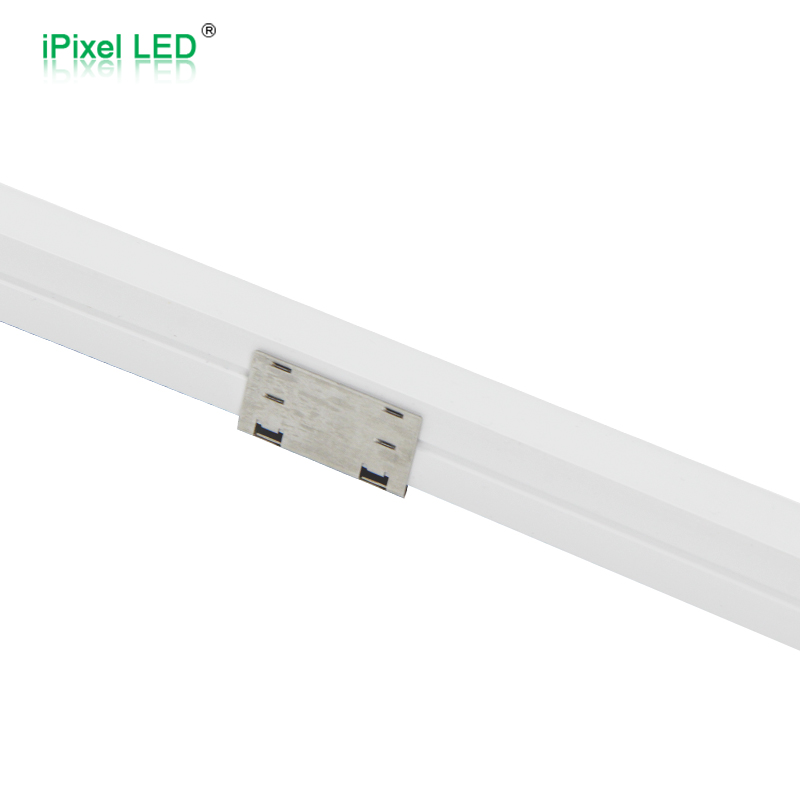

| Mounting | Buckle / aluminum profile / shapable mounting slot | Buckle size L20×W22.5×H21.5mm; aluminum profile L1000×W22.5×H21.5mm |
| Packing | Carton / wooden case / custom packing | Datasheet shows 15m and 60m carton packing options |
Related Items
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
RV Lighting – 12V Robustness, Vibration Resistance & Safe Installation
Cabinet & Furniture Lighting – Dotless, Tight Tolerance & Easy Installation
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
N020060CB3SF(N2020) is better because it has 20 pixels/m, giving finer pixel resolution.
N020060CC3SF(N2020) is better because it uses DC24V and supports up to 15m max length.
Use a compatible SPI / WS2811 controller.
