It runs on safe DC24V constant voltage. Do not connect it to AC mains — use a 24V constant-voltage LED power supply with the waterproof M5 locking connector. Dimmers and extension harnesses are available as options.

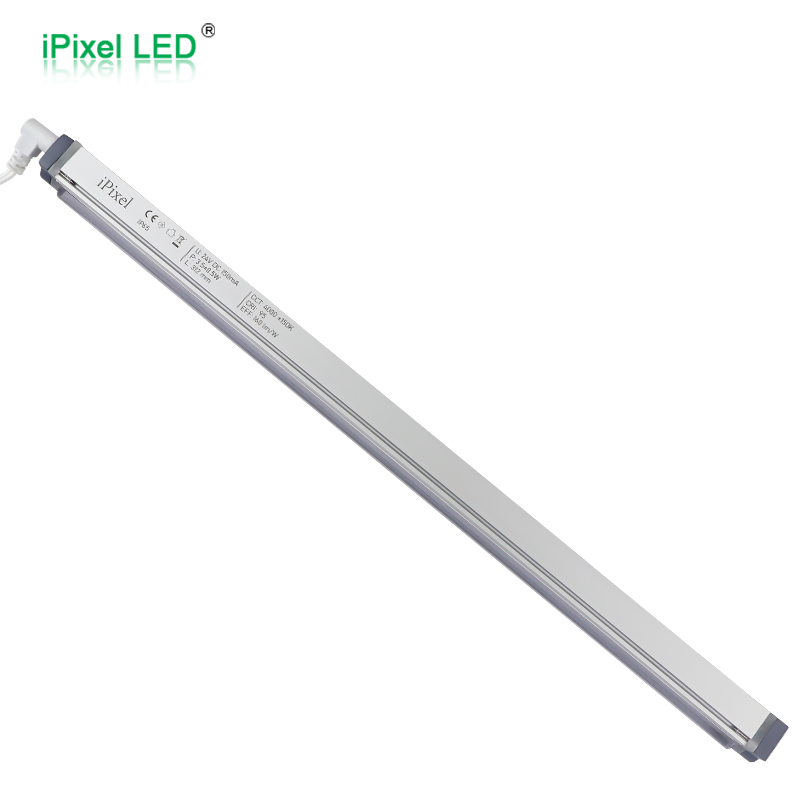

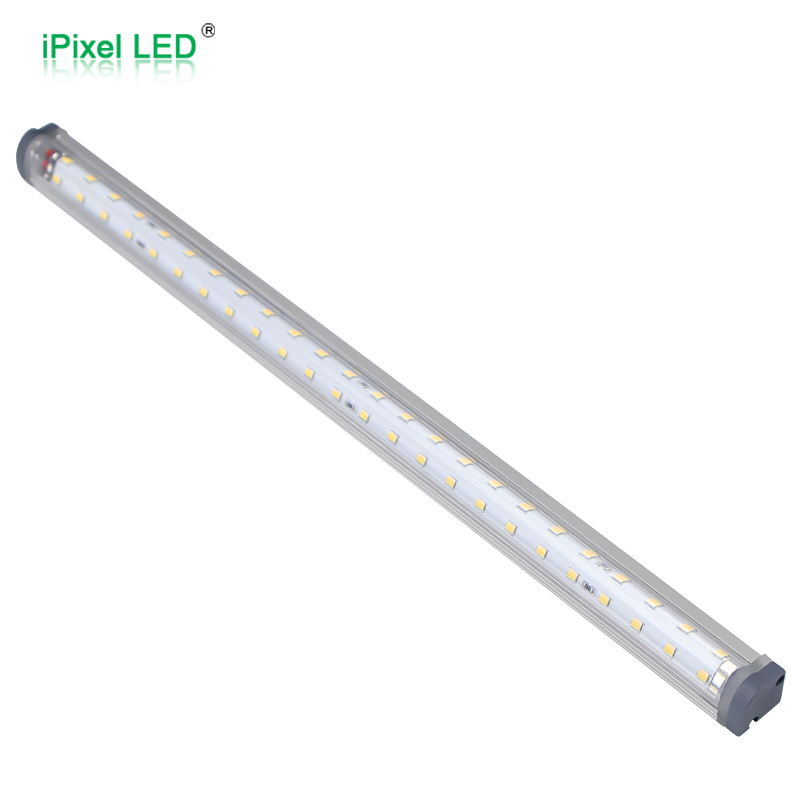

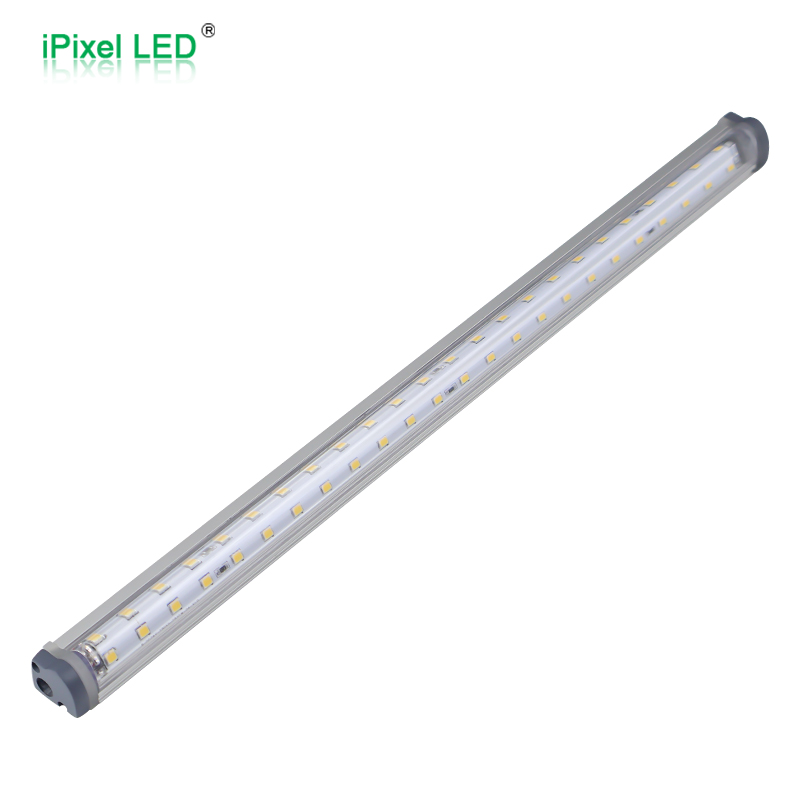

B017166BC1LZ24 Refrigeration LED Light Bar
B017166BC1LZ24 Refrigeration LED Light Bar
DC24V aluminum vertical LED light bar for freezer door frames and glass-door merchandisers, with a narrow 24° asymmetric clear lens for focused front-of-goods illumination. Five standard lengths from 778 mm to 1642 mm, rated IP65 for frozen, humid environments.
DC24VSMD2835W160lm/W24°Ra95
Product Overview
The B017166BC1LZ24 series is a vertical lighting LED bar designed for the door frame of refrigerated display cabinets, beverage coolers, combi freezers and upright freezers. Its 24V safe low-voltage design ensures stable operation for commercial refrigeration equipment. The 2835W LED solution delivers bright, uniform, low-glare light with high efficiency (up to 160 lm/W with the clear lens), and the anodized aluminum housing provides heat dissipation while the extruded PC lens softens the output. A silicone sealing structure and M5 waterproof locking connector (double O-ring seals) resist moisture and condensation. Mounted on the door frame, it illuminates the goods at the front. Five standard lengths (778–1642 mm) are offered, with customized lengths available per customer requirement.
Key Features
- Safe DC24V low-voltage operation
- SMD2835W high-efficiency LED platform
- Up to 160 lm/W (clear lens), 120 lm/W (opal)
- CRI Ra95 (R9 ≥ 65) for true-color product display
- 24° narrow asymmetric beam for focused door-frame lighting
- Anodized aluminum housing + PC extruded lens
- Silicone sealing structure for moisture resistance
- M5 waterproof locking connector (double O-ring seals)
- IP65 / IK02 rated for frozen, humid environments
- Magnetic (3M soft strip) or clip-on vertical mounting
- Standard & customized lengths (778–1642 mm)
- Food-contact compliance (EU) No 10/2011 available on request
B017166BC1LZ24 Specification Matrix
| Model No. | Length | Power | LED Qty | Luminous Flux* | CCT | CRI | Beam |
|---|---|---|---|---|---|---|---|
| B017166BC1LZ24-L778 | 778 mm | 9.5 W | 128 | 1150 lm | 3000/4000/6500/076K | Ra95 | 24° |
| B017166BC1LZ24-L1162 | 1162 mm | 15 W | 192 | 1800 lm | 3000/4000/6500/076K | Ra95 | 24° |
| B017166BC1LZ24-L1450 | 1450 mm | 17.5 W | 240 | 2100 lm | 3000/4000/6500/076K | Ra95 | 24° |
| B017166BC1LZ24-L1546 | 1546 mm | 18.5 W | 256 | 2350 lm | 3000/4000/6500/076K | Ra95 | 24° |
| B017166BC1LZ24-L1642 | 1642 mm | 20 W | 272 | 2400 lm | 3000/4000/6500/076K | Ra95 | 24° |
Common Specifications
| Parameter | Specification |
|---|---|
| Product Type | Refrigeration LED Light Bar (Vertical Door-Frame Lighting) |
| Operating Voltage | DC24V |
| LED Type | SMD2835W |
| Luminous Efficacy | 160 lm/W (Clear), 120 lm/W (Opal) |
| Color Rendering Index | Ra95 (R9 ≥ 65) |
| Color Consistency | ≤3 SDCM |
| Beam Angle | 24° (Clear, asymmetric optic) |
| Profile Size | 17 × 17 mm |
| Standard Lengths | 778 / 1162 / 1450 / 1546 / 1642 mm |
| Custom Length | Available (per customer requirement) |
| IP Rating | IP65 |
| IK Rating | IK02 |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -20°C to +50°C |
| Operating Humidity | 20% to 85% RH |
| Housing Material | Anodized Aluminum + PC Extruded Lens + Silicone Seal |
| Lens Options | Clear (standard); Opal available |
| Connection | M5 waterproof locking connector (threaded, double O-ring seal) |
| Cooling Method | Aluminum thermal conduction |
| Rated Lifetime | 50,000 h (L80, B20, Ta=25°C, 12 h/day) |
| Certifications | CE / RoHS / IP65 |
| Food Contact Compliance | (EU) No 10/2011 available upon request |
| Document Version | Preliminary V1.0 (2026/07/08) — subject to change |
Structure & Dimensions
| Dimension | Value |
|---|---|
| Width | 17 mm |
| Height | 17 mm |
| Length | 778 / 1162 / 1450 / 1546 / 1642 mm |
Lens Selection
| Lens Option | Light Effect | Recommended Use |
|---|---|---|
| Clear Lens | Higher luminous output and efficiency (160 lm/W); 24° narrow asymmetric beam | Vertical door-frame lighting, focused front-of-goods illumination |
| Opal Lens | Softer, more uniform appearance with reduced LED dots (120 lm/W) | Customer-facing refrigerated displays |
Recommended Installation Positions
Door-Frame Mounting (Vertical)
Attached to the cabinet door frame to illuminate the goods at the front. Install vertically along the door frame of glass-door merchandisers and freezers.
Magnetic or Clip-On Attachment
Fix the bar with the supplied 3M adhesive-backed soft magnetic strip (for metal frames), or use the vertical freezer mounting clips for rigid mounting.
Suitable Equipment

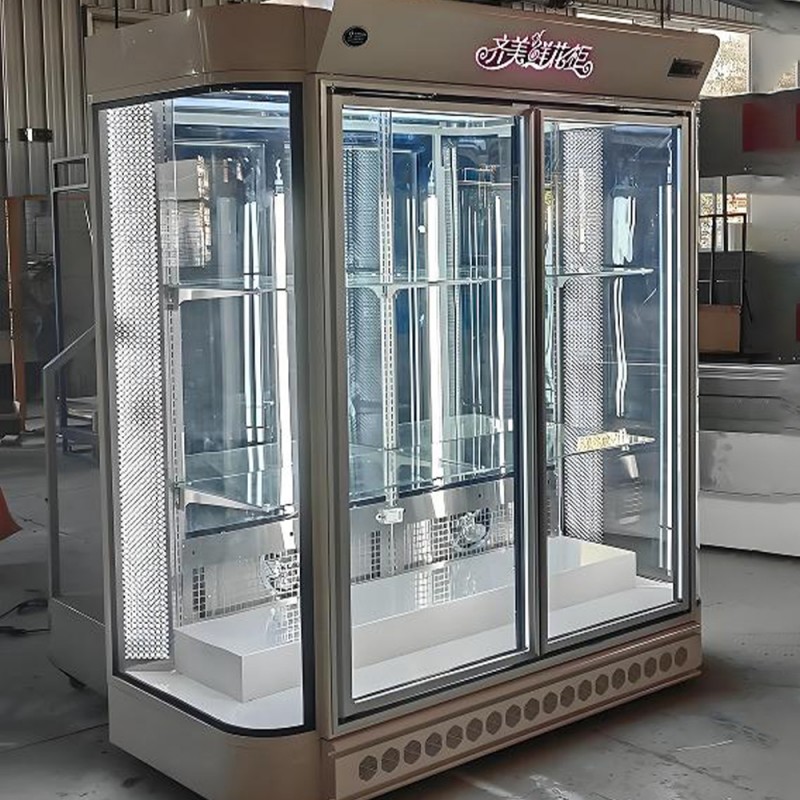

- Refrigerated multi-deck cabinet
- Combi freezer
- Freezer (glass-door merchandiser / upright freezer)
- Beverage cooler
- Refrigerated display cabinet
Basic Wiring
100–240V AC ↓ DC24V Constant-Voltage Power Supply ↓ M5 Input Cable ↓ B017166BC1LZ24 LED Light Bar
Wiring Notes
- Use a DC24V constant-voltage power supply.
- Confirm polarity before power-on.
- Do not connect the light bar directly to AC mains power.
- Calculate the total power when several bars share one power supply.
- Reserve approximately 20% power-supply capacity for continuous operation.
Example: 4 × 20 W Bars = 80 W total LED load. Recommended power supply: ≥ 100 W (DC24V constant voltage).
Supplied with 1500 mm M5 input cables (straight & right-angle, black) and an 80 mm M5 interconnection cable. Input-wire length and connector type are customizable per customer requirement. The soft magnetic strip is usually shipped separately.
Standard & Optional Accessories
Standard Accessories
| Accessory | Qty | Function |
|---|---|---|
| Input Cable (straight, M5, Black, 1500 mm) | 1 pc | Supplies DC24V to the bar via the waterproof M5 connector |
| Input Cable (right-angle, M5, Black, 1500 mm) | 1 pc | Space-saving right-angle entry for tight door-frame / frame mounts |
| Interconnection Cable (straight-to-straight, M5, Black, 80 mm) | 1 pc | Joins two bars end-to-end |
| Vertical Freezer Mounting Clip | 2 pcs | Secures the bar to freezer / cabinet structure |
| 3M Adhesive Soft Magnetic Strip (W15×H2 mm, 600Gs, 3M9448A) | 1 pc | Magnetic attachment to shelf beam / frame (usually shipped separately) |
Optional / Customizable
- Custom input-wire length and mating connector type per customer requirement
- Constant-voltage power supply (DC24V)
- PWM dimmer
- Female-to-female M5 extension cables
- Multi-output wiring harness
Customization Options
| Customization Item | Available Options |
|---|---|
| Length | Standard lengths offered / Customized per customer requirement |
| CCT | 3000K / 4000K / 6500K / 076 (special color, subject to availability) |
| CRI | Ra95 (R9 ≥ 65) |
| Lens | Clear (standard, 160 lm/W); Opal available (120 lm/W) |
| Cable Length | Customized input-wire length per requirement |
| Connector | M5 waterproof locking connector (type customizable) |
| Mounting | 3M soft magnetic strip / Vertical freezer clip (customizable) |
| Housing Finish | Anodized aluminum |
| Food Contact Compliance | (EU) No 10/2011 available upon request |
| Packaging | Corrugated carton with inner partitions / OEM packaging |
These pages are generated from the preliminary specification V1.0 (2026/07/08) and are subject to change without notice; mass-production validation is pending. Final power, luminous flux and efficiency may change when the lens, length, CCT, CRI or LED layout is customized. Specifications not explicitly listed in the spec are marked (typical) and should be confirmed with the factory.
Typical Applications
Commercial Refrigeration
- Beverage coolers
- Refrigerated multideck cabinets
- Glass-door merchandisers
- Upright freezers
- Combination freezers
- Food display refrigerators
Specialty Refrigeration
- Medical refrigeration equipment
- Wine coolers
- Bakery displays
- Convenience-store refrigeration
- Fresh-food display cabinets
FAQ
The 24° clear lens is a narrow, asymmetric optic (noted as '24° × 2' in the spec) designed to throw light down the front of the goods when mounted vertically on a door frame, avoiding glare into the aisle. The opal lens gives a softer, more uniform look (120 lm/W) for customer-facing displays.
Five standard lengths are offered (778–1642 mm, ±5 mm tolerance). Customized lengths are available per customer requirement — contact the factory for cut-to-length and OEM options.
Yes. Rated IP65 / IK02 with silicone sealing and M5 double O-ring seals for condensation resistance, operating from -20°C to +40°C. Food-contact compliance per (EU) No 10/2011 is available on request.
It mounts vertically on the door frame via the supplied 3M adhesive-backed soft magnetic strip or the vertical freezer clips. Each unit ships with two 1500 mm M5 input cables (straight & right-angle), an 80 mm interconnection cable, 2 mounting clips and the magnetic strip.
