16-Pixel DMX512 Addressable LED Guardrail Tube (Aluminum + PC Cover) | B050048DB3DG | 1m RGB IP65

B050048DB3DG 16-pixel DMX LED guardrail tube is built for architectural outlines and dynamic ambient lighting in commercial and entertainment spaces. It balances mechanical strength, stable heat dissipation, and DMX system compatibility.

1) Housing & Optics

• Aluminum housing for robust structure and stable thermal performance
• PC cover options: milky (more uniform diffusion) / clear (higher punch)
• 140° wide beam angle for linear wash and background effects

2) Control & Pixel Details

• DMX512 control
• 16 pixels per 1m, 48 DMX channels
• Suitable for chasing, gradient, pixel animation, and dynamic effects

3) Electrical & Protection

• DC12V input
• Power: 12W/m
• IP65 protection
• Operating temperature: -25°C to 60°C

4) Installation & Wiring

• Supplied with 2 aluminum mounting clips per tube
• 5-pin waterproof connector for easy daisy-chain wiring
• Wire definition (confirm with your actual harness): Red=DC12V, Black=GND, Blue=A+, Gray=PI, Green=B-

5) Typical Applications

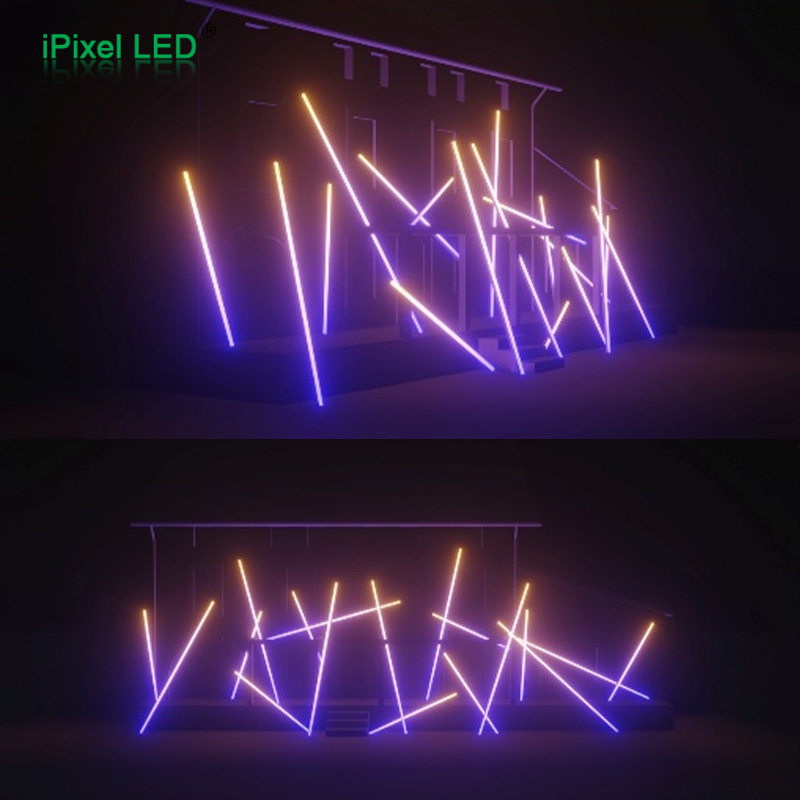

Outdoor building illumination, façade outline lighting, stage & club background lighting, commercial decorative lighting, etc.
