Indoor Kart Track Lighting Project with WS2811 SPI RGB Digital LED Strip

iPixel supplied WS2811 SPI RGB digital LED strips for an indoor kart track lighting project. The customer needed a dynamic lighting effect along the race track to create a more attractive and immersive driving atmosphere.

For this project, the customer selected our S010030CB3SF digital RGB LED strip. The strip uses 30pcs SMD5050 RGB LEDs per meter with 10 pixels per meter, allowing chasing, flowing and color-changing effects along the track.

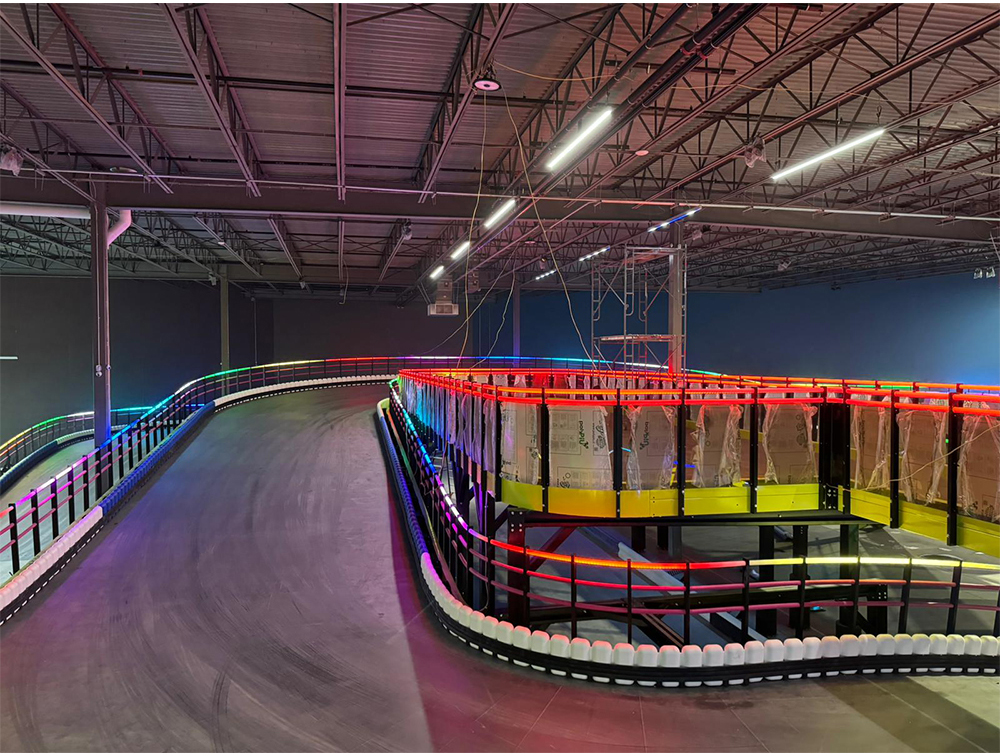

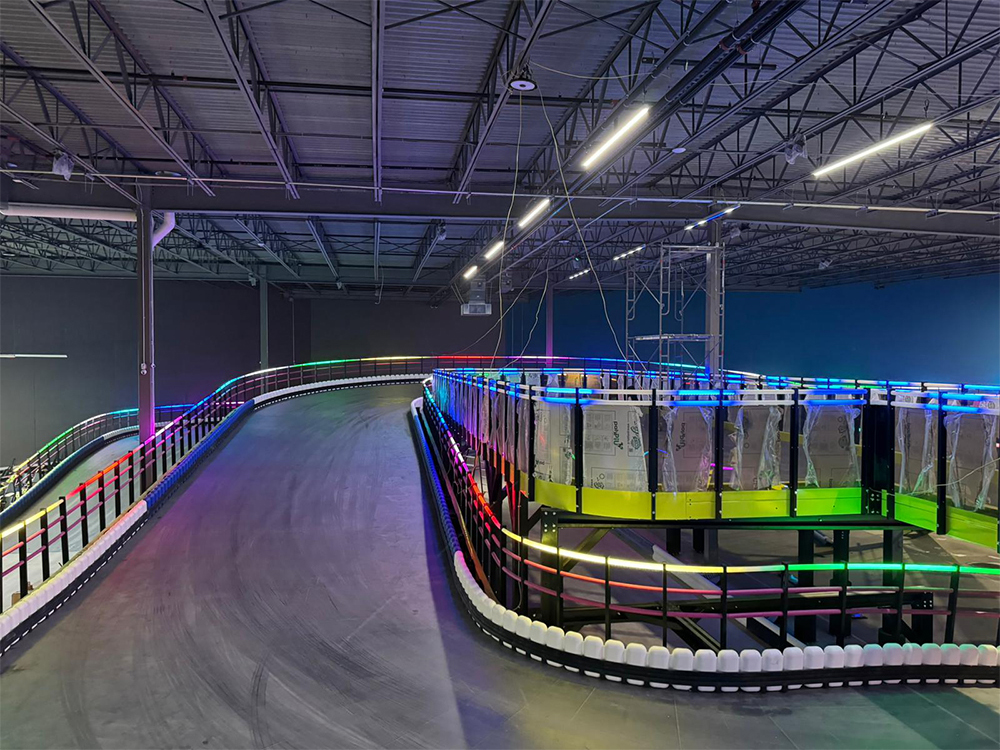

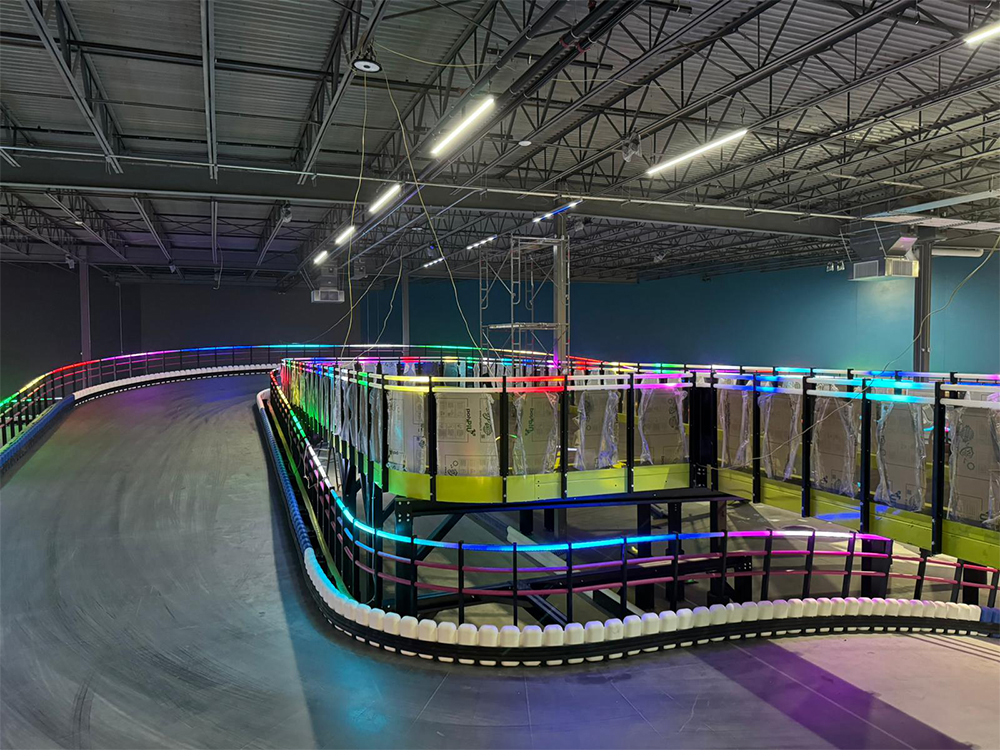

The LED strips were customized into 20-meter sections and installed inside 360° luminous tubes. This structure helped create a continuous lighting effect around the kart track while protecting the strip and making the visual effect more uniform.

Item Specification

Model :S010030CB3SF

Product Type :WS2811 SPI RGB Digital LED Strip

LED Type: SMD5050 RGB

LED Quantity: 30 LEDs/m

Pixel Quantity: 10 pixels/m

Voltage: DC24V customized for this project

Power: 6W/m

PCB Width: 10mm

Cutting Length: 100mm / 3 LEDs

Control: WS2811 / SPI

Brightness: R 59lm/m, G 141lm/m, B 32lm/m

Waterproof Options: IP20 / IP64 / IP65 / IP67

Indoor kart track lighting, entertainment lighting, RGB ambient lighting

Project Features

The main challenge in this project was the long installation distance around the race track. To reduce wiring complexity and improve installation efficiency, the customer required longer LED strip sections instead of many short segments.

For this project, iPixel supported 20-meter customized strip sections. With the proper voltage design and project wiring, the voltage drop was kept under control, allowing each 20-meter section to be powered from one end in this application.

The customer also required reliable LED strips with certification support. iPixel provided UL-certified LED strip support for the project, helping the customer meet the basic compliance requirements for indoor commercial entertainment spaces.

Why WS2811 SPI RGB Strip Was Used

WS2811 SPI RGB strip is suitable for applications that need dynamic lighting effects but do not require every single LED to be controlled individually. In this product, every 3 LEDs form one controllable pixel section, giving 10 pixels per meter.

This makes it suitable for chasing, flowing, rainbow and color-changing effects along kart tracks, amusement facilities, stage decoration, entertainment venues and commercial ambient lighting projects.

Customization Support

For similar kart track or entertainment lighting projects, iPixel can support customized voltage, roll length, cable length, connector type, waterproof process, PCB color, packaging and controller matching. Samples can be prepared before mass production to confirm the lighting effect, installation method and voltage drop performance.
