Korea Project Case | Ø50mm DMX512 RGB 360° LED Pixel Ball (P050006CC3DB8)
Korea Project Case | Ø50mm DMX512 RGB 360° LED Pixel Ball (P050006CC3DB8)

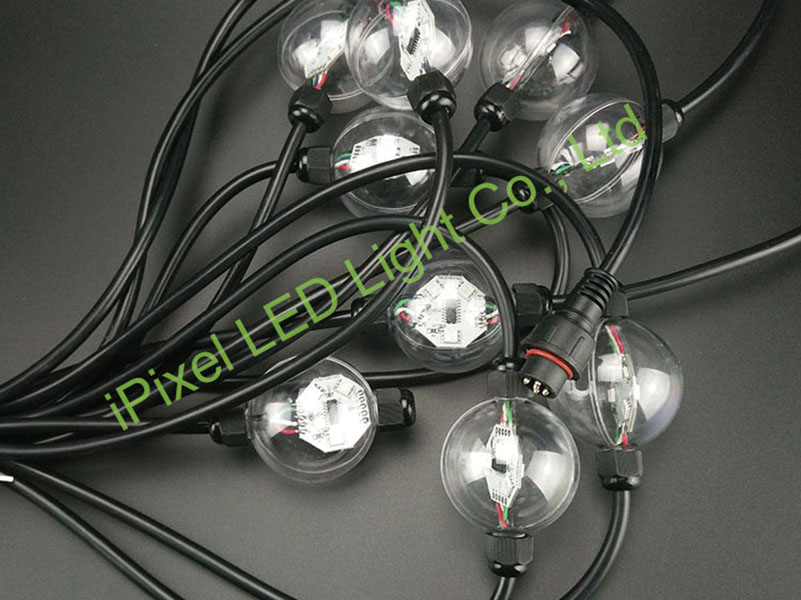

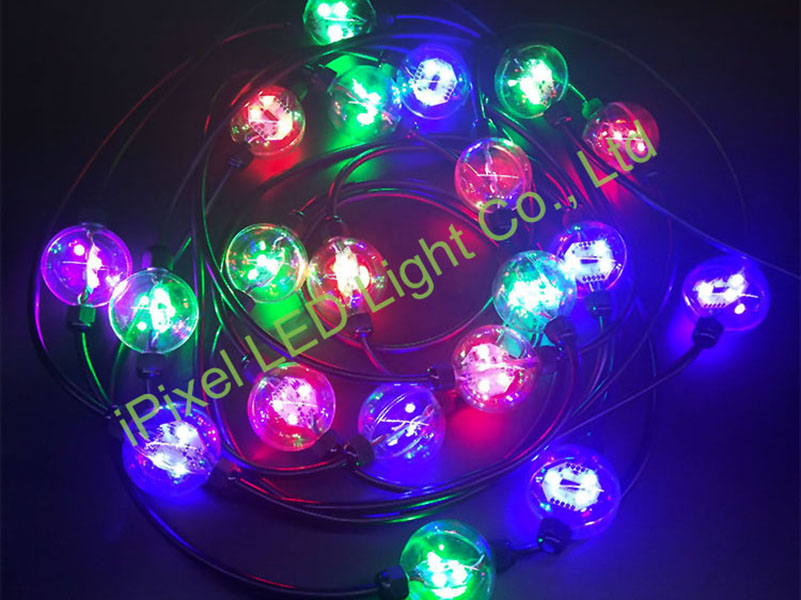

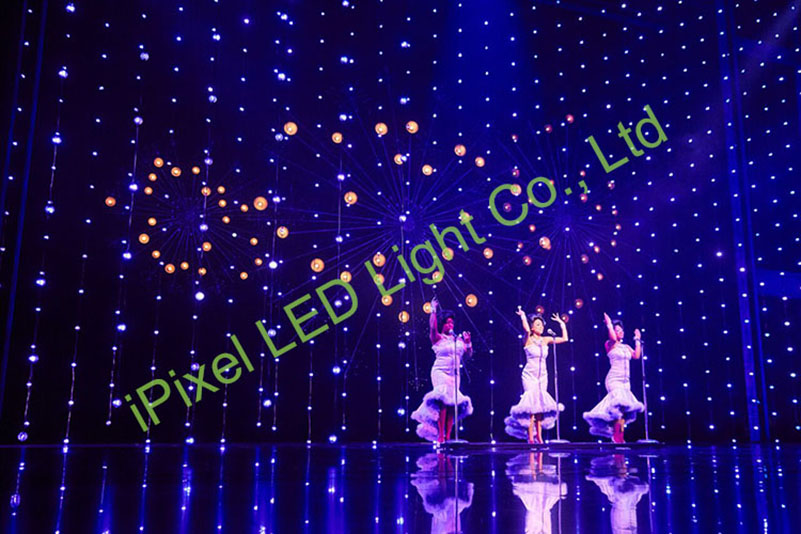

This case is the Korea “Dreamgirls” project, where iPixel 360° LED balls were used to build programmable pixel-dot lighting effects. The project uses DMX512 IC with DC24V input, offering true 360° viewing and a clear cover (milky white optional). The cable length between balls can be customized for the project. Photo courtesy of Adam Koch Associates.
Key Specs (Datasheet):
- Product No.: P050006CC3DB8
- Light Source: Epistar 5050 SMD LEDs
- Beam Angle: 360°
- Emitting Color: IC RGB
- Control: WS2801 / DMX512
- Operating Voltage: DC12V / DC24V (WS2801=12V; DMX512=24V)
- Power: 1.44W (MAX, per ball)
- Waterproof Rating: IP20 / IP65 optional
- Luminance (MCD): R 4200 / G 3600 / B 10200
- Operating Temperature: -30°C ~ 50°C
- Size: Ø50mm
Project Implementation (Project Page):
- Location: Korea
- Version used: DMX512 IC / DC24V
- Cover: Clear cover (milky white optional)
- Cable/spacing: Customized lengths between the balls
