As a landmark mall in Tsim Sha Tsui, iSQUARE needed a ceiling feature that is both visually striking and service-friendly. By using an addressable rigid matrix approach, the whole animated ceiling is modularized into five hanging sections—making installation and maintenance easier while still achieving synchronized, large-area animation across the ceiling.

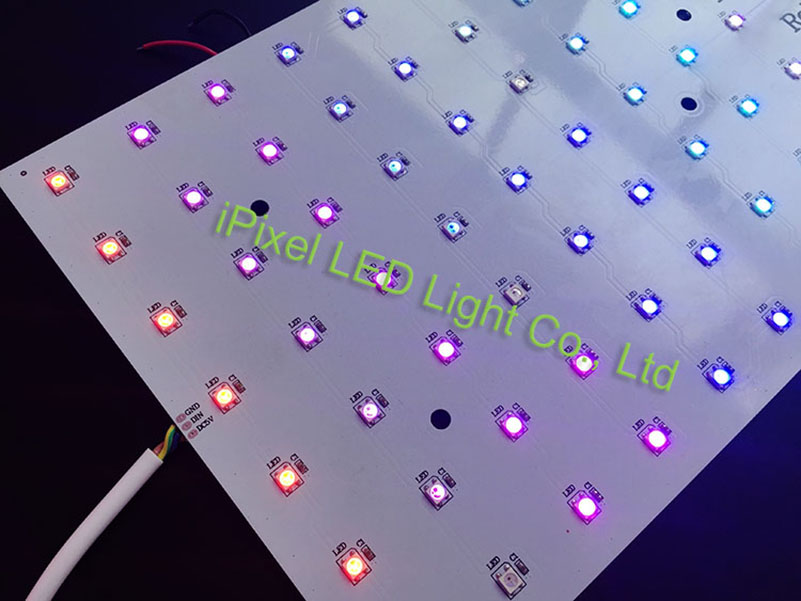

Matrix module reference specs (for structured product description):
- Part Number: M140072CB4SA1 (Internal Code: 10604-0145-00)
- LED: 5050 RGBW; IC: SK6805 (addressable)
- Voltage: DC12V; Power: 16.2W/pc; LEDs: 72 LEDs/pc
- Dimension: 290×140mm (matrix size/pixel density/connectors can be customized per project)

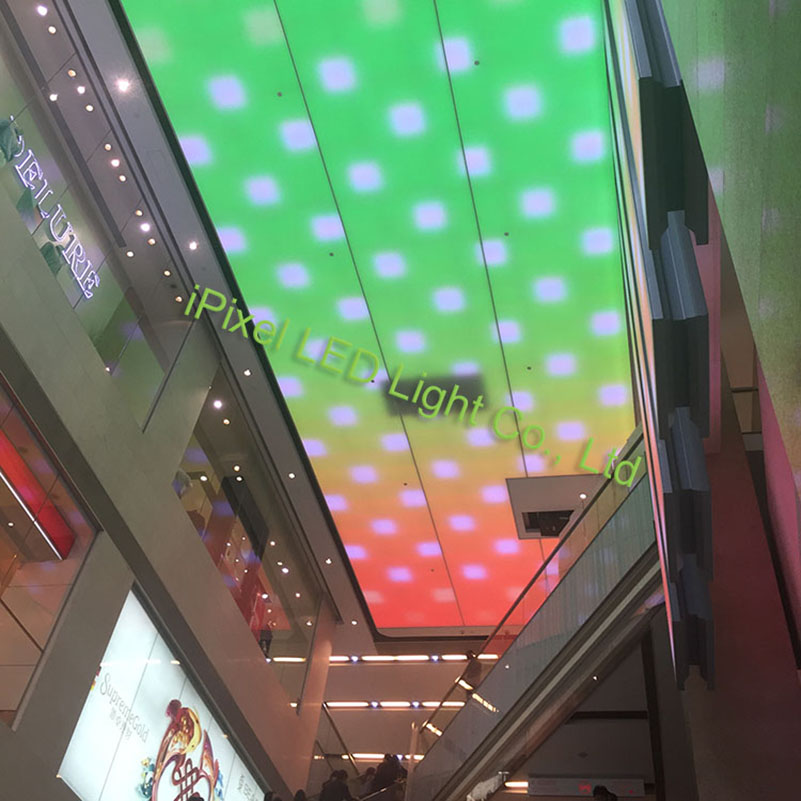

Downstair view beside the lift.
This indoor ceiling project looks quite simple and confusing customer thinking it's must used DMX512 Pannel,especially when scanning the White color Pannel in animation,but our client installed addressable LED rigid matrix.
Ceiling 20meters Long *7Meter wide on ceiling there are 5 seperate standing matrix hanging on ceiling but controlled together by one systerm.
The DMX LED matrix video of i Square Shopping center:
