Custom Retail Shelf & Display Lighting Solutions

Goal: fast installation with uniform brightness, low glare, and consistent color across multiple shelves.

Risks addressed: voltage drop on long runs, inconsistent color bins, poor mounting reliability, field maintenance issues.

Deliverables: standardized light + harness kit, install guide, QC/traceability controls for repeatable rollouts.

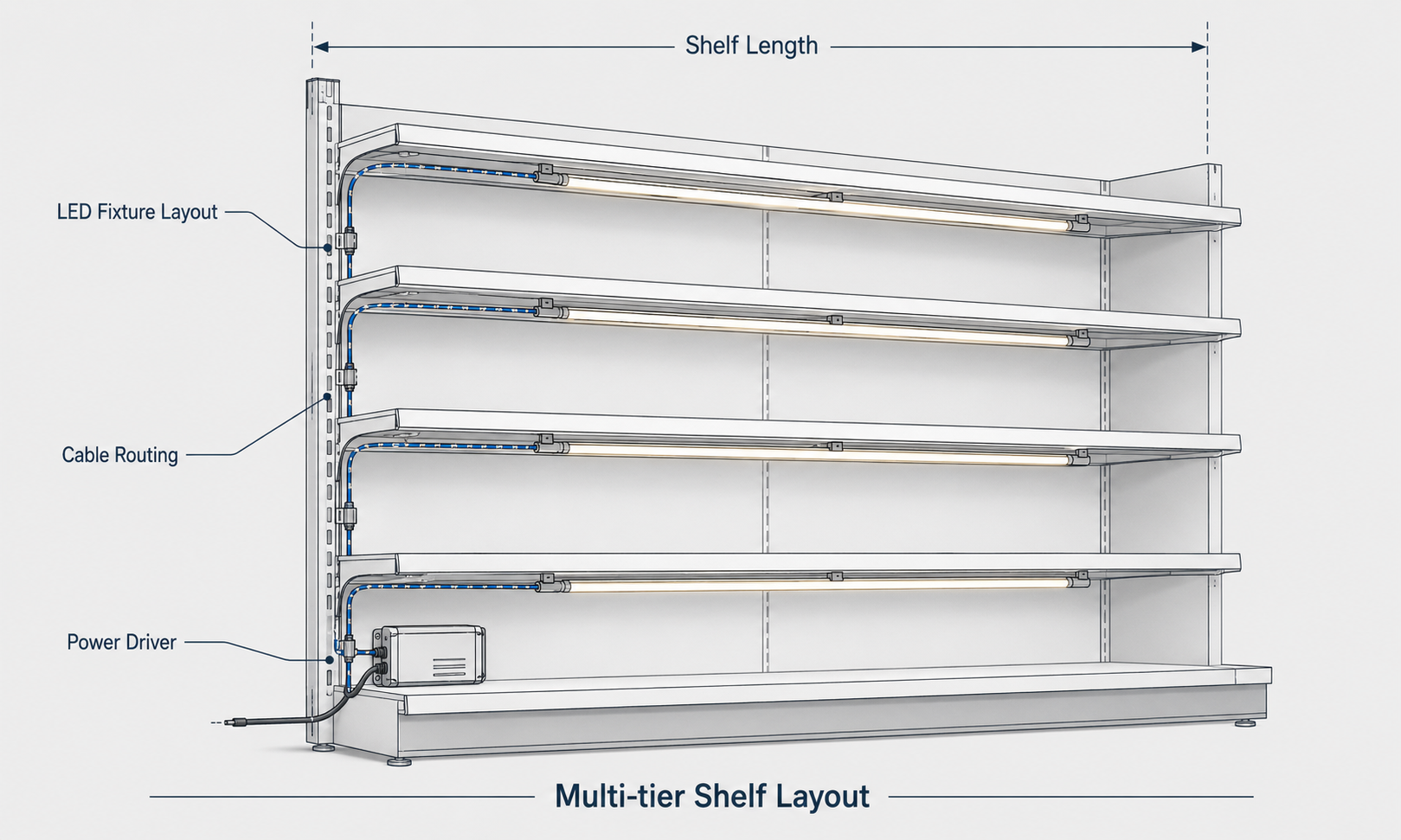

Fixture layout (shelf lengths, quantity, wiring route, driver location)

Target lighting effect (dotless, hotspot-free, beam direction, glare limits)

Brightness target and uniformity tolerance; CCT/CRI; SDCM target if needed

Power & control (24/48V; dimming method; sensor requirements)

Mounting method preference (adhesive, clips, aluminum profile, magnetic)

Serviceability expectations (replaceable modules vs permanent)

Compliance/document requirements and sample/rollout schedule

Brightness drop at far end due to long runs and insufficient power planning

Glare/hotspots visible to customers; inconsistent appearance between shelves

Color mismatch between shelves/batches causing uneven merchandising

Install time too long; too many custom wires/connectors in the field

Adhesive failures on powder-coated metal or textured surfaces

Maintenance difficulty and inconsistent field repairs

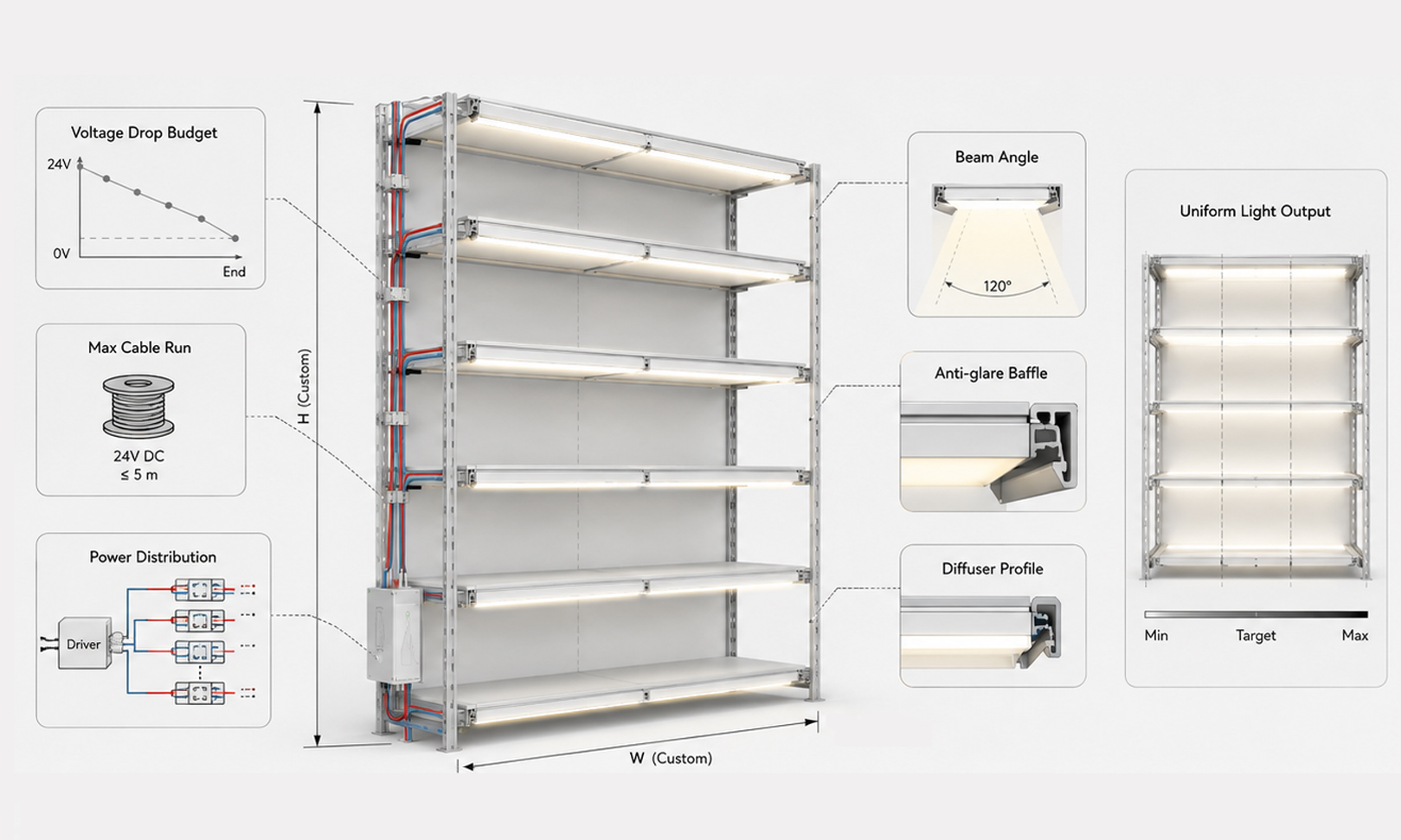

Uniformity planning: voltage-drop budgeting; define max run length; injection strategy; verify worst-case shelves

Optics & glare:  diffuser/profile selection; shielding line-of-sight; consistent aiming angles

Color control: lock CCT/CRI/SDCM targets; incoming bin control; batch sampling and record keeping

Fast install harness: standard lengths, keyed connectors, clear pinout; strain relief; labeling for installers

Mounting reliability: surface prep guidance; adhesive selection; clip/profile options for replaceable modules

Rollout QA: CTQ checkpoints and traceability; change control for revisions

Validation requirements are confirmed according to the final product configuration, fixture dimensions and operating environment.

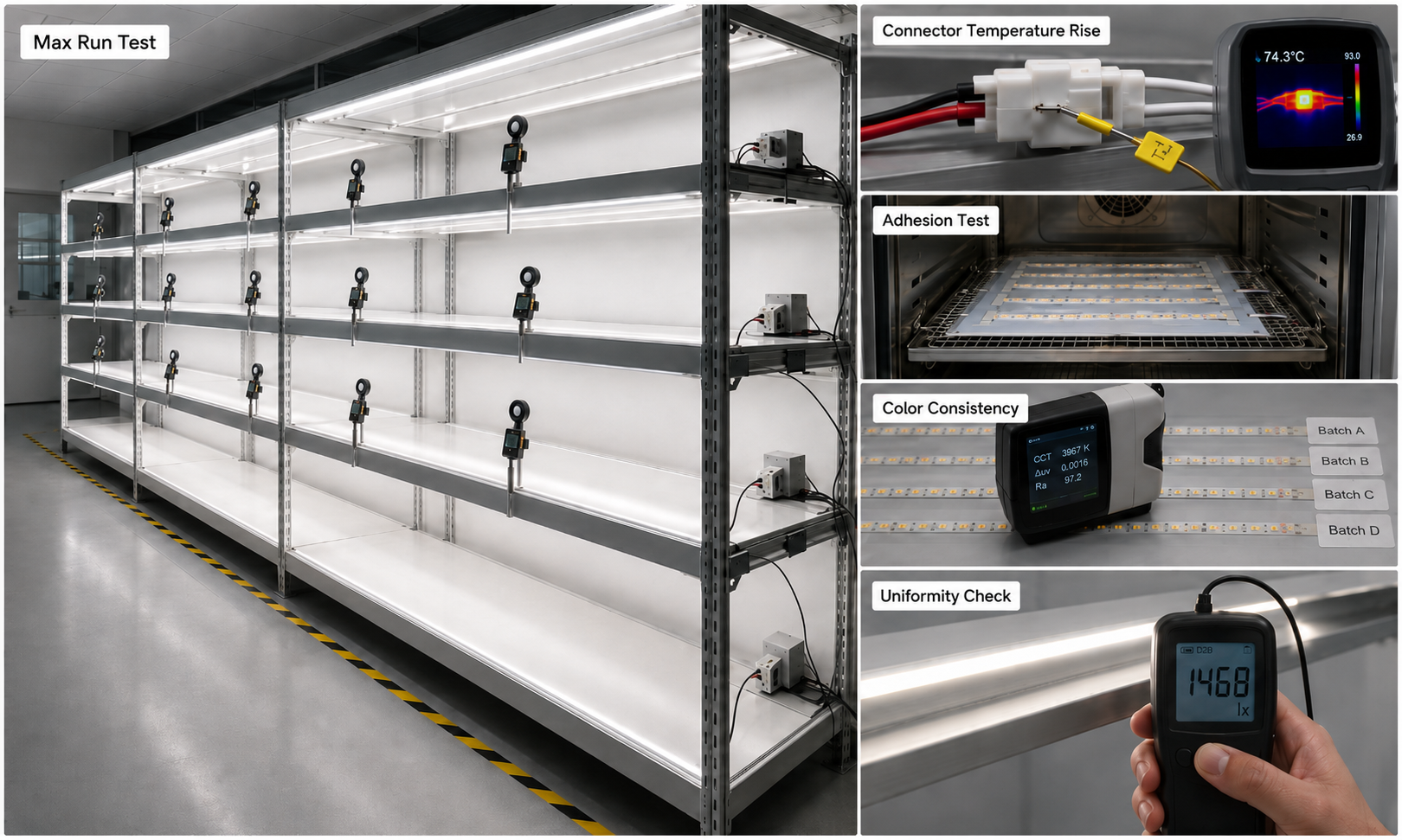

A project validation plan may include:

Brightness and uniformity evaluation at the maximum proposed shelf length

Voltage-drop measurement under the specified electrical load

Appearance and glare review from defined customer viewing angles

Connector and wiring temperature-rise evaluation at maximum current

Mounting or adhesion evaluation on the actual shelf material

CCT, CRI and color-tolerance checks using production samples

Representative installation trials before store rollout

Test conditions, acceptance limits and sample quantities are documented in the approved project specification or validation plan.

Compliance requirements are confirmed according to the final product model, electrical configuration and target market.

Available support may include:

CE documentation where applicable

RoHS and REACH documentation

UL- or ETL-related component records where applicable

Product specifications

Wiring and harness drawings

Connector pinout documentation

Installation instructions

Project-specific validation plans or report summaries

Incoming and in-process inspection checklists

Batch traceability records where agreed

ECN/PCN change documentation

Certification scope must be verified for the final product model and system configuration. Component-level documentation must not be represented as certification of the customer’s complete fixture or equipment.

Retail display lighting must remain consistent across different shelf lengths, fixture layouts and store locations. We support OEM customers from initial application review through prototype evaluation and repeat production.

Our project support can include:

Review of fixture drawings, shelf dimensions and lighting positions

Selection of LED strips, rigid light bars, diffusers and profiles

Voltage-drop planning for long or multi-shelf installations

Standardized wiring harnesses, connectors and mounting components

Prototype samples for brightness, uniformity and glare evaluation

Installation guidance for repeatable store rollouts

Production specifications and quality-control checkpoints

Batch traceability and controlled engineering changes where required

Project specifications, validation conditions and documentation scope are confirmed according to the final lighting configuration and customer requirements.
