The series is rated IP67 and can withstand dust and temporary water exposure. Cable joints, connectors and installation enclosures must also be properly sealed. The power supply should not be used for permanent underwater installation.
Ultra-Thin IP67 LED Power Supply H Series – 60W to 250W
Ultra-Thin IP67 LED Power Supply H Series – 60W to 250W

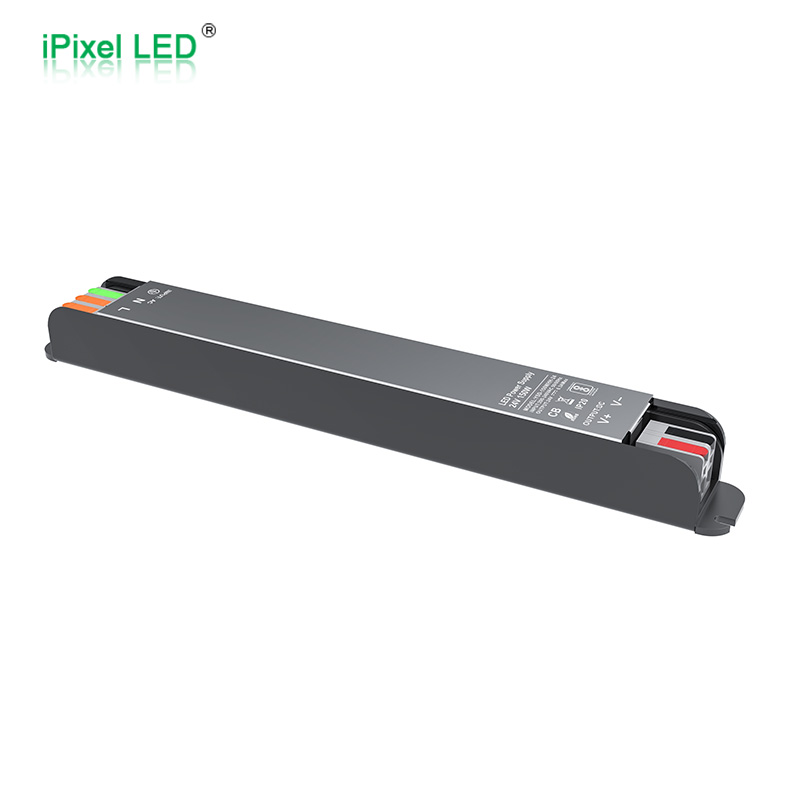

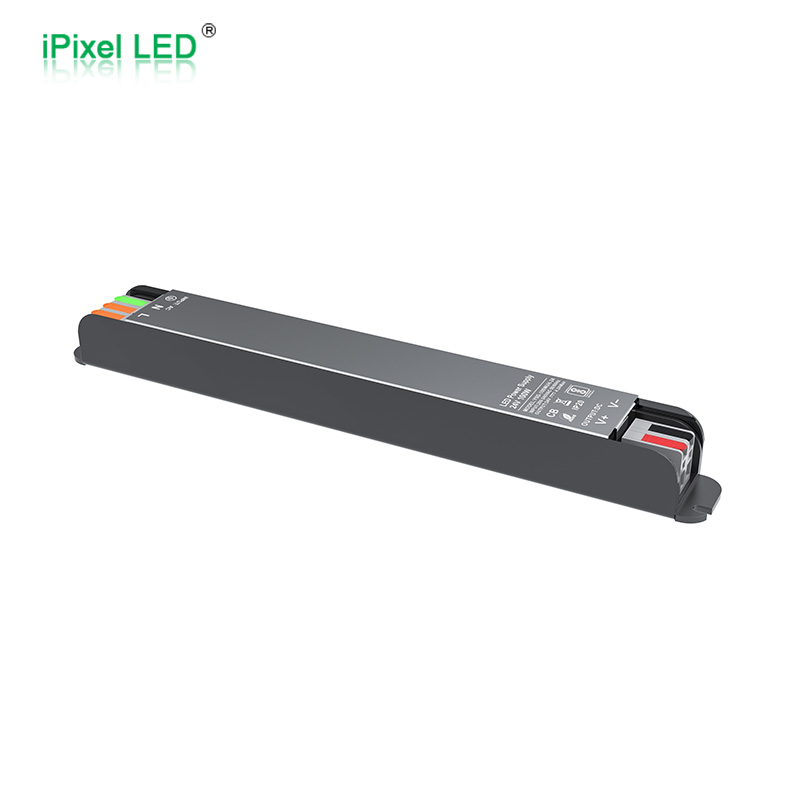

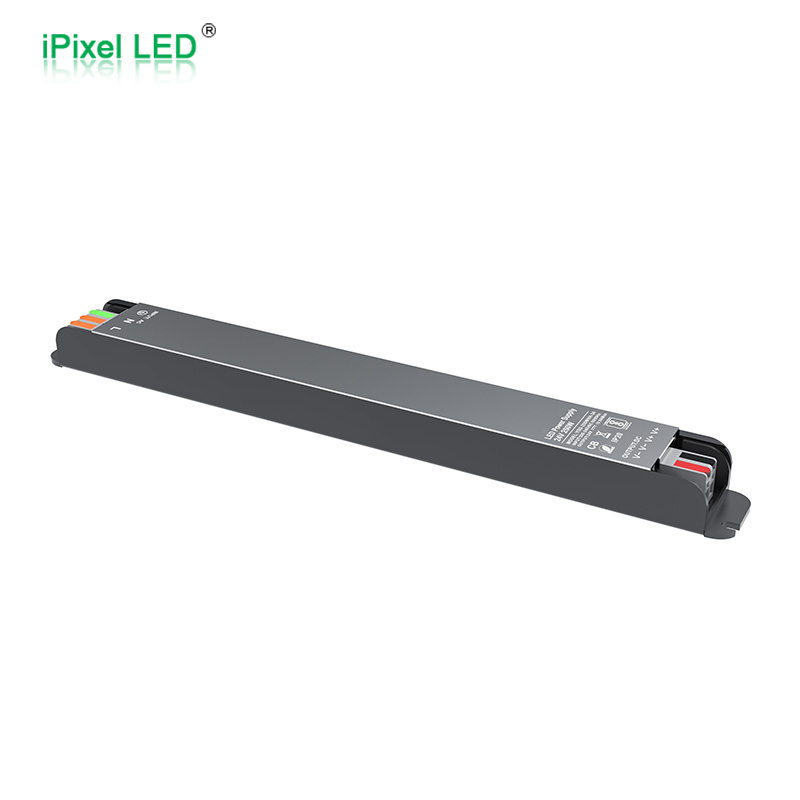

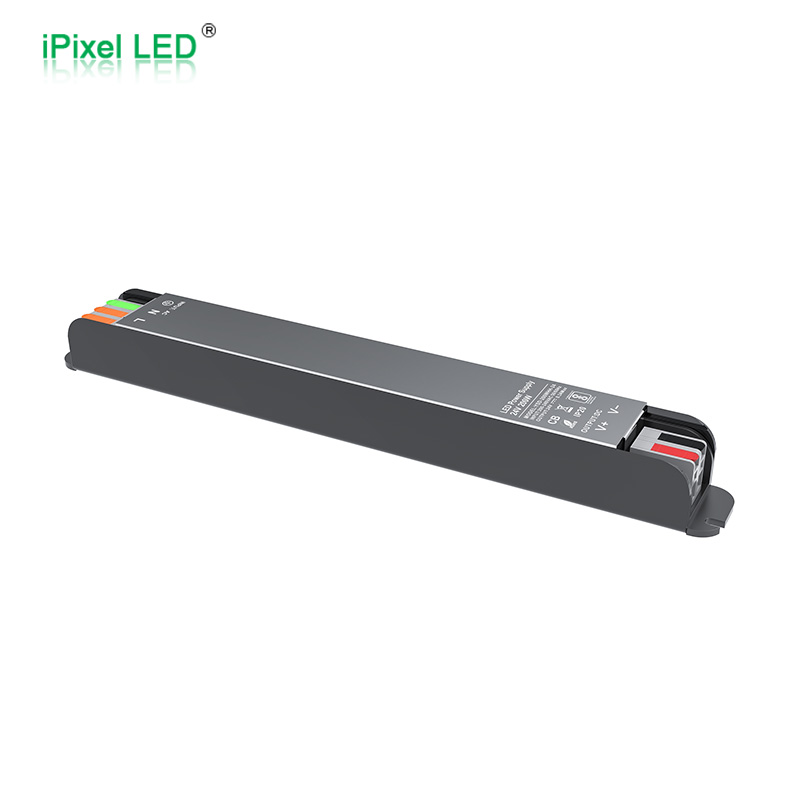

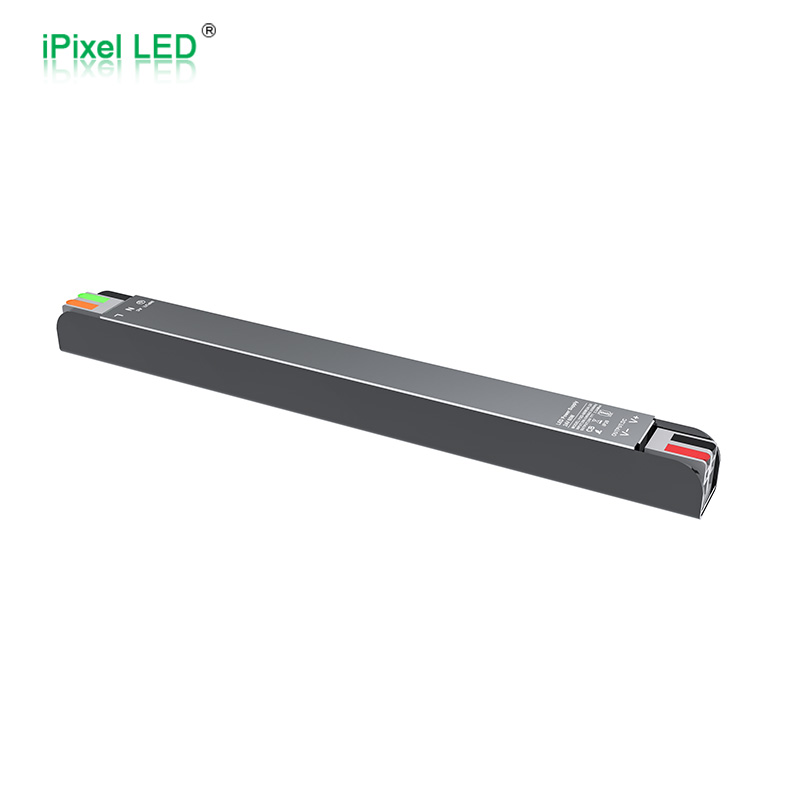

The H Series provides a slim and waterproof power solution for LED strips, rigid LED bars, signage and equipment lighting. Its narrow linear housing is suitable for concealed installation where conventional rectangular power supplies cannot fit.
All models feature universal 110–277V AC input, active PFC, low standby power consumption and built-in protection against short circuit, overload, overvoltage and overtemperature. Five power platforms are available to match different LED system loads.
Product Series Specification Matrix
| Model Options | 12V Output | 24V Output | 36V Output | 48V Output | Rated Power | Dimensions | Weight | Max. Efficiency | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|
| YSD-60WUF-12 / 24 / 36 / 48 | 5A | 2.5A | 1.7A | 1.25A | 60W | 280 × 35 × 18mm | 360g | 89.5% | Download |
| YSD-100WUF-12 / 24 / 36 / 48 | 8.33A | 4.17A | 2.8A | 2.1A | 100W | 320 × 35 × 18mm | 374g | 92% | Download |
| YSD-150WUF-12 / 24 / 36 / 48 | 12.5A | 6.25A | 4.2A | 3.2A | 150W | 320 × 35 × 18mm | 390g | 94% | Download |
| YSD-200WUF-12 / 24 / 36 / 48 | 16.7A | 8.3A | 5.5A | 4.2A | 200W | 360 × 36 × 21.5mm | 590g | 94% | Download |
| YSD-250WUF-12 / 24 / 36 / 48 | 21A | 10.5A | 6.94A | 5.21A | 250W | 360 × 36 × 21.5mm | 590g | 94% | Download |
FAQ
Yes. The listed input range is 110–277V AC, allowing use in many international markets. Final certification requirements should still be confirmed for the destination country.
The current specifications do not list a built-in dimming input. For brightness or color control, install a compatible low-voltage PWM controller between the power supply and the LED load.
Approximately 20% spare capacity is recommended for continuous LED operation. Installation temperature, cable loss and ventilation should also be considered.
