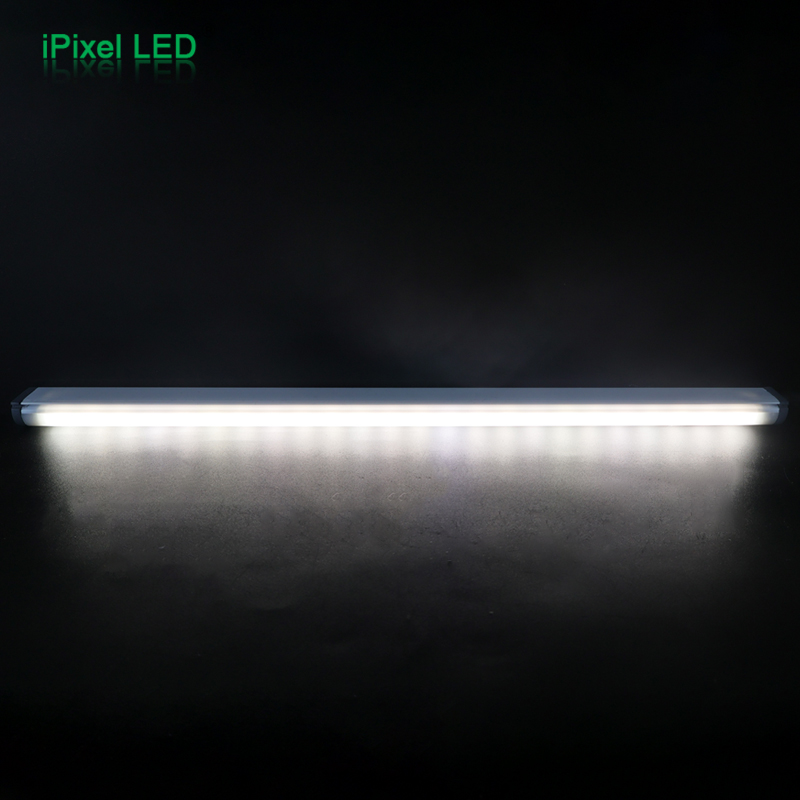

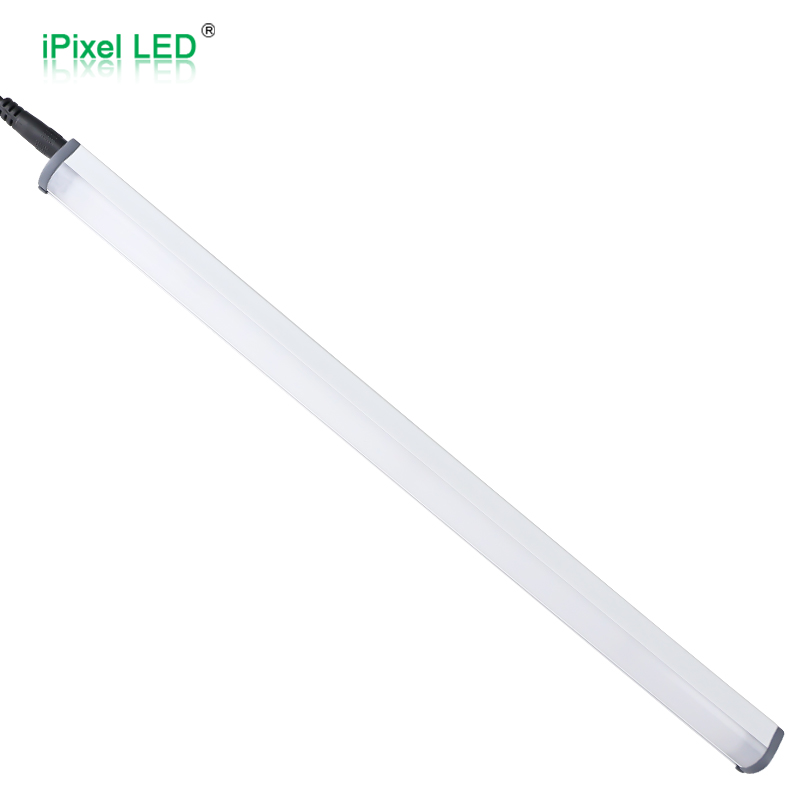

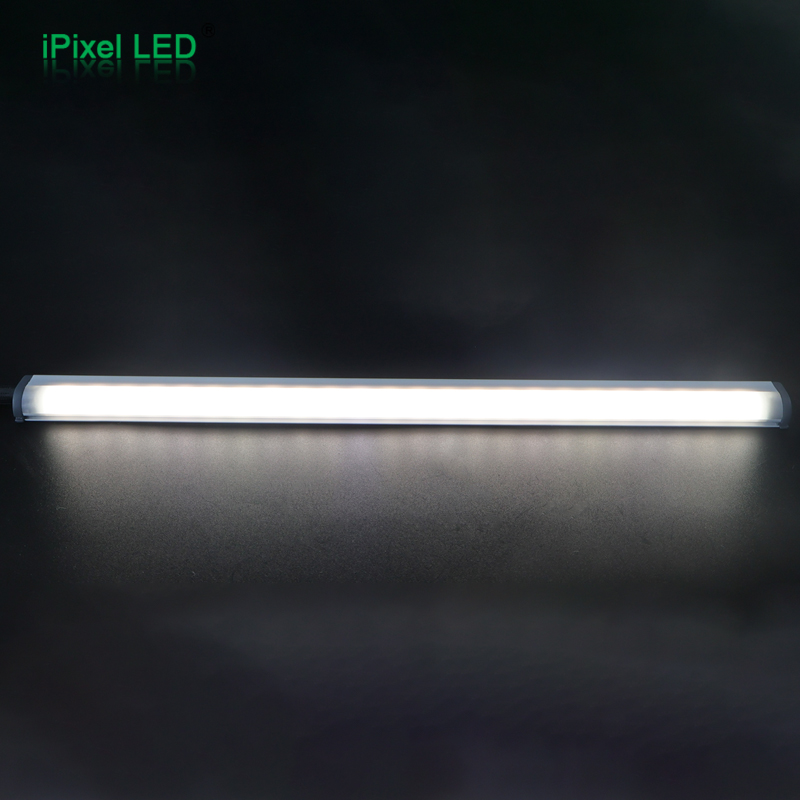

B018080BC1LZ Refrigeration LED Light Bar
B018080BC1LZ Refrigeration LED Light Bar
24V LED light bar with an integrated dual-color PC extrusion tube that makes light non-glaring and uniform. Three standard lengths (302–850 mm) with a 100° wide beam for soft, even refrigeration illumination.
B018080BC1LZ Refrigeration LED Light Bar
Product Overview
The B018080BC1LZ series is designed for refrigerated display cabinets, beverage coolers and freezer applications, delivering bright and uniform illumination with stable performance in low-temperature environments. The 24V safe low-voltage design ensures stable operation for commercial refrigeration equipment. The integrated dual-color PC tube makes the light non-glaring and more uniform, while the 100° wide beam covers shelf faces evenly. Three standard lengths are available from 302 mm to 850 mm, with customized lengths also available for OEM projects.
Key Features
- Safe DC24V low-voltage operation
- SMD2835 high-efficiency LED platform
- Dual-color PC tube: non-glaring, uniform light
- CRI Ra95 for true-color product display
- 100° wide beam for soft, even coverage
- Integrated PC extrusion, no visible LED dots
- Fiberglass PCB for stable low-temperature performance
- Silicone-sealed plug structure
- Standard and customized lengths (up to 200 cm)
- Suitable for low-temperature refrigeration equipment
- Easy clip mounting and replacement
B018080BC1LZ Specification Matrix
| Model No. | Length | Power | LED Qty | Luminous Flux | CCT | CRI | Beam |
|---|---|---|---|---|---|---|---|
| B018080BC1LZ-L302 | 302 mm | 3.5 W | 24 LEDs | ~350 lm | 3000/4000/6000/076K | Ra95 | 110° |
| B018080BC1LZ-L550 | 550 mm | 5.8 W | 40 LEDs | ~580 lm | 3000/4000/6000/076K | Ra95 | 110° |
| B018080BC1LZ-L850 | 850 mm | 9 W | 64 LEDs | ~900 lm | 3000/4000/6000/076K | Ra95 | 110° |
Luminous flux is calculated from the 100 lm/W clear-lens efficacy. A 12W variant is also available; consult the factory for length mapping. CCT 076 is a special color, subject to availability.
Common Specifications
| Parameter | Specification |
|---|---|
| Product Type | Refrigeration LED Light Bar |
| Operating Voltage | DC24V |
| LED Type | SMD2835 |
| Luminous Efficacy | ≥100 lm/W (clear lens) |
| Color Consistency | ≤3 SDCM (typical) |
| Profile Size | 18 × 12 mm |
| Standard Lengths | 302 / 550 / 850 mm |
| Custom Length | Available (up to 200 cm, cut to size) |
| IP Rating | IP20 (typical, dry cabinet interior); silicone-sealed plug for condensation resistance |
| Operating Temperature | Designed for low-temperature refrigeration; -20°C to +40°C typical |
| Housing Material | Fiberglass PCB + Integrated PC Extrusion |
| Lens Options | Integrated dual-color PC (Clear effect) |
| Connection | 2-pin DC quick connector |
| Cooling Method | Aluminum-free PC conduction |
| Rated Lifetime | Up to 50,000 hours (typical) |
| Certifications | cULus Listed (E509505), RoHS |
| Warranty | 3 Years |
Structure & Dimensions
| Dimension | Value |
|---|---|
| Width | 18 mm |
| Height | 12 mm |
| Length | 302 / 550 / 850 mm |
Lens Selection
| Lens Option | Light Effect | Recommended Use |
|---|---|---|
| Dual-Color PC Tube | Non-glaring, highly uniform light output | Customer-facing refrigerated displays and door frames |
Recommended Installation Positions
Center Door-Frame Lighting
Mounted vertically at the center of the refrigerated door frame to illuminate products on both sides.
Side Door-Frame Lighting
Installed along the left or right cabinet frame to direct light toward the product fronts.
Top or Shelf Lighting
Mounted horizontally above shelves or inside the cabinet for general product illumination.
Suitable Equipment
- Closed multideck coolers
- Glass-door refrigerators
- Beverage coolers
- Upright freezers
- Combination freezers
- Refrigerated display cabinets
- Commercial food-display equipment
Basic Wiring
100–240V AC ↓ DC24V Constant-Voltage Power Supply ↓ Input Cable ↓ B018080BC1LZ LED Light Bar
Wiring Notes
- Use a DC24V constant-voltage power supply.
- Confirm polarity before power-on.
- Do not connect the light bar directly to AC mains power.
- Calculate the total power when several bars share one power supply.
- Reserve approximately 20% power-supply capacity for continuous operation.
Example: 4 × 9W Bars = 36W LED Load. Recommended Power Supply: Approx. 45W or Above.
Standard black DC input cable; UL2464 20AWG PVC cable available on request.
Standard & Optional Accessories
Standard Accessories
| Accessory | Standard Quantity | Function |
|---|---|---|
| Input Cable | 1 pc | DC connector (black), supplies power to the bar |
| Vertical Mounting Clip | 2 pcs | Secures the light bar to the freezer or cabinet structure |
Optional Accessories
- Extension cable
- Male and female connector
- Multi-output wiring harness
- Constant-voltage power supply (24V / 12V)
- PWM dimmer
- Customized mounting clip
- Customized cable length
Customization Options
| Customization Item | Available Options |
|---|---|
| Length | Standard lengths / Custom |
| CCT | Standard options; other CCTs subject to evaluation |
| CRI | Standard CRI; higher CRI can be evaluated |
| Lens | Clear / Opal (where applicable) |
| Cable Length | Customized |
| Connector | Standard 2-pin / project-specific |
| Outlet Direction | End / Side / project-specific |
| Mounting Clip | Standard / Customized |
| LED Quantity | Project-specific |
| Power | Project-specific |
| Housing Finish | Anodized aluminum / project-specific |
| Packaging | Individual protective packaging / OEM packaging |
Final power, luminous flux and efficiency may change when the lens, length, CCT, CRI or LED layout is customized. Specifications not explicitly listed in the catalog are marked (typical) and should be confirmed with the factory.
Typical Applications
Commercial Refrigeration
- Beverage coolers
- Refrigerated multideck cabinets
- Glass-door merchandisers
- Upright freezers
- Combination freezers
- Food display refrigerators
Specialty Refrigeration
- Medical refrigeration equipment
- Wine coolers
- Bakery displays
- Convenience-store refrigeration
- Fresh-food display cabinets
FAQ
The integrated dual-color PC extrusion tube softens the output and removes visible LED dots, while the 100° wide beam delivers soft, even coverage — an opal-like effect is built in, ideal for customer-facing displays.
Three standard lengths (302 / 550 / 850 mm) are offered. Custom lengths up to 200 cm are available for OEM refrigeration projects; contact the factory for cut-to-size options.
Yes. It is designed for refrigerated display cabinets, beverage coolers and freezers, and its fiberglass PCB provides stable performance in low-temperature environments (typical IP20 for the dry cabinet interior).
It uses a 2-pin DC quick connector and ships with a vertical mounting clip (2 pcs) for easy clip mounting. Optional accessories include extension cables, multi-output harnesses, 24V power supplies and PWM dimmers.
