A pigtail cable has a JST-SM connector on one end and open wires on the other end. An extension cable is used to extend an existing JST-SM connection, normally with matching connectors for plug-and-play wiring.
JST-SM Extension Cable Series
JST-SM Extension Cable Series
The JST-SM Extension Cable Series is designed to extend the connection distance between LED strips, LED rigid bars, LED modules, controllers, and power supplies.
Unlike pigtail cables, this series normally includes JST-SM connectors on both ends, making it suitable for plug-and-play extension in LED lighting systems. The current file includes 2Pin, 3Pin, 4Pin, and 5Pin JST-SM extension cables, mainly with PVC insulation, tinned copper conductor, 20AWG wire, and 1000mm standard length.
This series should be separated from pigtail cables because customers use it differently: pigtail cables are mainly for soldering or open-wire assembly, while extension cables are used for extending an existing connector-to-connector connection.

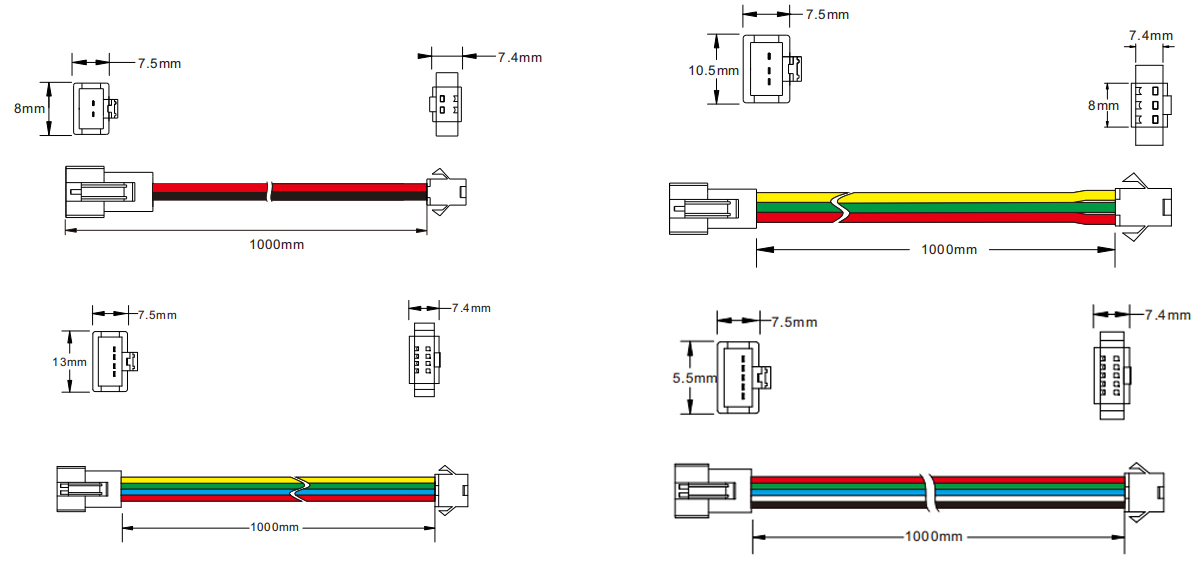

Product Series Specification Matrix
| Product Name | Pin | Type | Plug Model | P/N | Wire Gauge | Length | Wire Color | Notes |
|---|---|---|---|---|---|---|---|---|

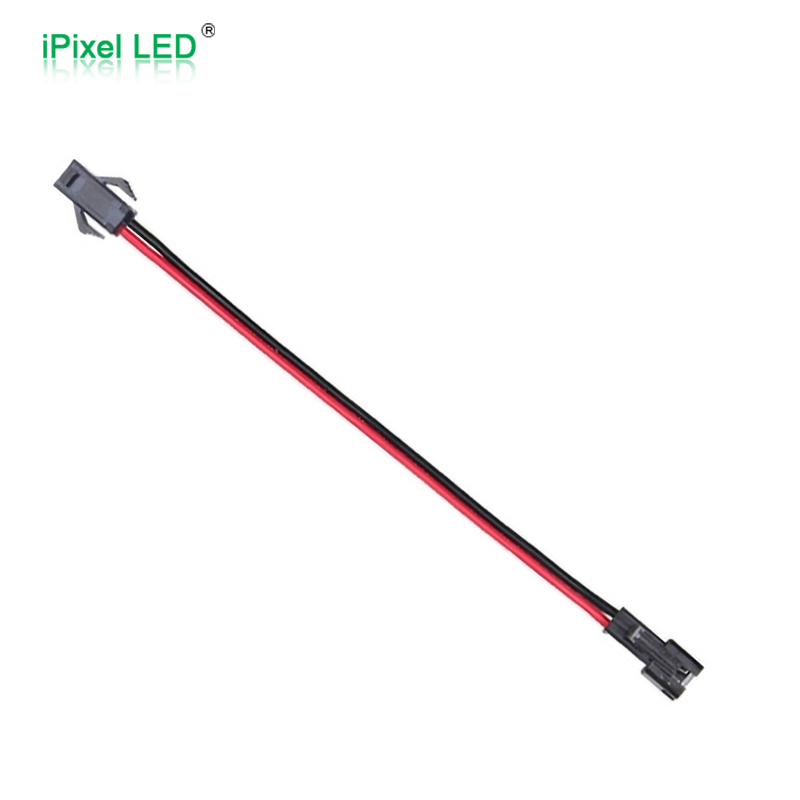

| 2Pin JST-SM Extension Cable | 2Pin | Extension Cable | JST-SM-02V | DZGT-01000-V2 | 20AWG | 1000mm | Red, Black | For single-color extension |

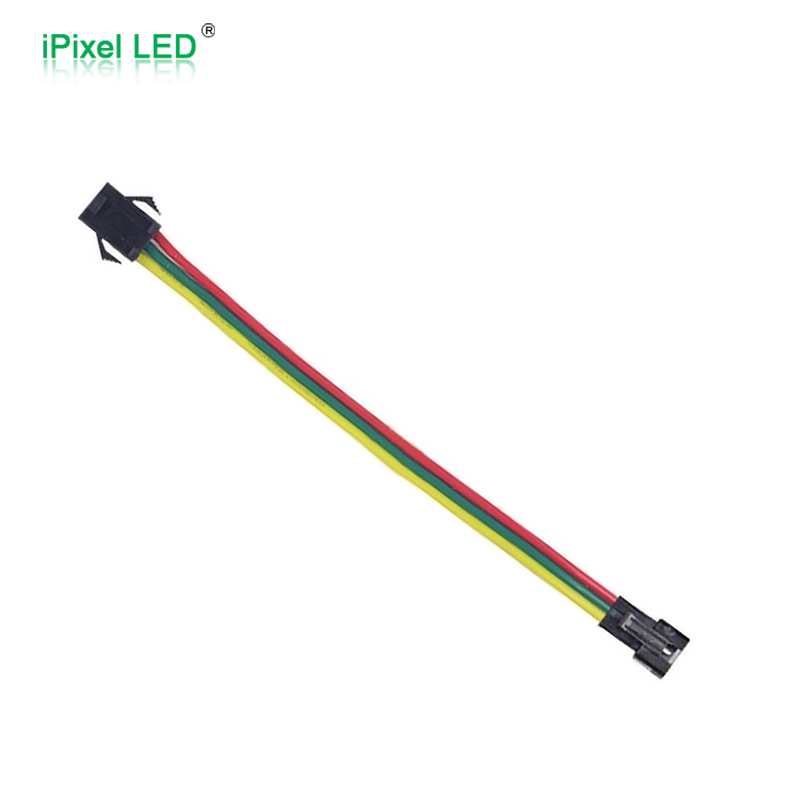

| 3Pin JST-SM Extension Cable | 3Pin | Extension Cable | JST-SM-03V | DZMT-01000-V3 | 20AWG | 1000mm | Yellow, Green, Red | For signal / low-voltage extension |

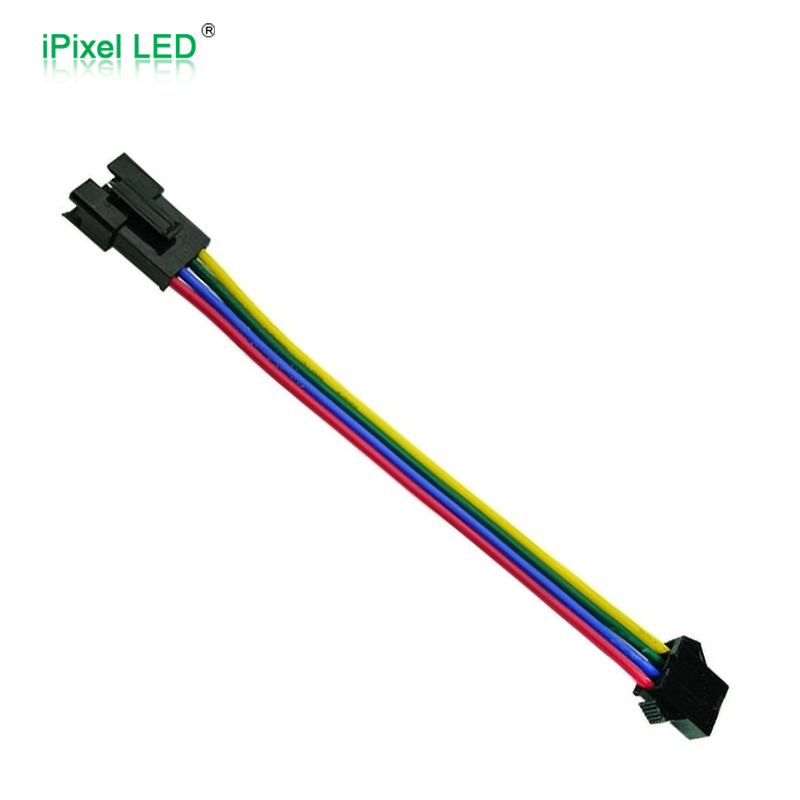

| 4Pin JST-SM Extension Cable | 4Pin | Extension Cable | JST-SM-4V | DZGT-01000-V4 | 20AWG | 1000mm | Yellow, Green, Blue, Red | Common for RGB extension |

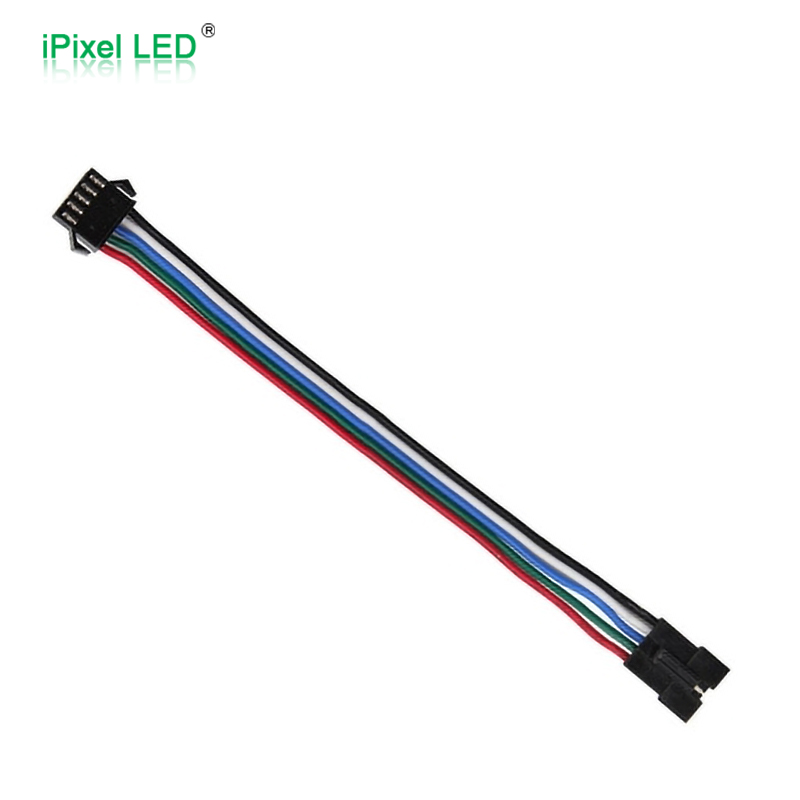

| 5Pin JST-SM Extension Cable | 5Pin | Extension Cable | JST-SM-4V* | DZLJ-01000-V5 | 20AWG | 1000mm | Red, Green, Blue, White, Black | For RGBW / multi-channel extension |
FAQ
They are used for LED strips, LED rigid bars, LED modules, RGB lighting systems, controller extension, power connection extension, and cabinet or signage wiring.
The listed standard length is 1000mm. Custom length can be made according to the project.
2Pin is for single-color power wiring, 3Pin for signal or simple control wiring, 4Pin for RGB, and 5Pin for RGBW or multi-channel LED wiring.
