The single-color version provides fixed 3000K white light with CRI 90 and 30W power. The DMX512 version provides RGB color effects, 24 controllable pixels and a maximum power of 60W.
Custom Flexible LED Sheet Series
Custom Flexible LED Sheet Series

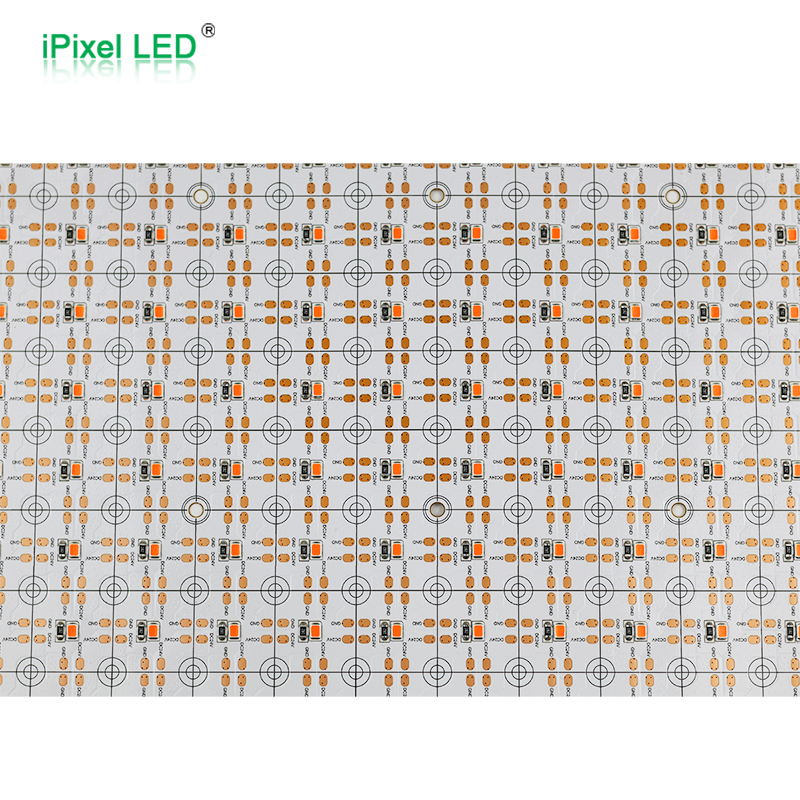

The Custom Flexible LED Sheet Series provides a flexible alternative to conventional rigid LED panels and linear LED strips. Its large-area PCB structure distributes LEDs across a 480 × 240mm sheet, helping create more uniform illumination over wide surfaces.

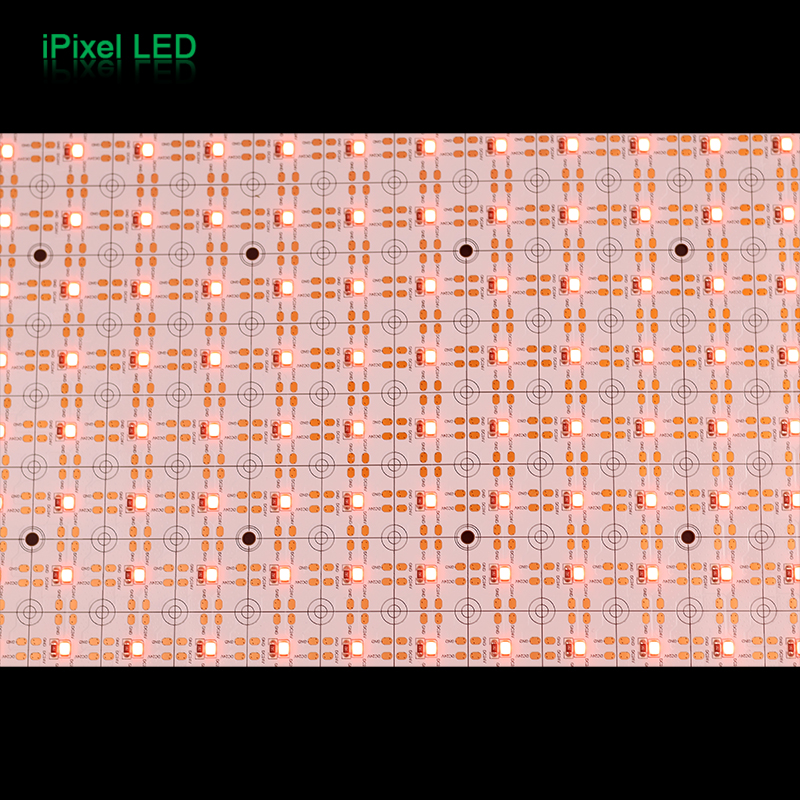

Two reference configurations are currently available. The single-color version provides 3000K white light with CRI 90 and a highly flexible cutting structure. The DMX512 RGB version divides the sheet into multiple controllable pixels for dynamic color effects.
These models are reference custom projects rather than standard stock products. LED color, control method, cutting structure, wiring and final dimensions should be confirmed according to the application.
Product Series Specification Matrix
| Parameter | Single-Color White Version | DMX512 RGB Version |
|---|---|---|
| Product Model | M240288BC1LZ | M240288CC3DE1 |
| Product Type | Flexible White LED Sheet | Flexible DMX RGB LED Sheet |
| Operating Voltage | DC24V | DC24V |
| LED Quantity | 288 LEDs/sheet | 288 LEDs/sheet |
| LED Type | SMD2835 | To Be Confirmed |
| Light Color | 3000K Warm White | RGB |
| CRI | CRI 90 | Not Applicable |
| Control Method | On/Off or PWM Dimming | DMX512 |
| Pixel Quantity | Non-Addressable | 24 Pixels/sheet |
| Rated Power | 30W/sheet | Max. 60W/sheet |
| Sheet Size | 480 × 240mm | 480 × 240mm |
| Cutting Unit | Cuttable by individual LED | 40 × 120mm |
| PCB Color | White | White |
| IP Rating | IP20 | IP20 |
| Main Advantage | Flexible cutting and uniform white illumination | Individually controlled RGB effects |
| Typical Use | Backlighting and general illumination | Decorative and dynamic lighting |
How to Choose
| Project Requirement | Recommended Version |
|---|---|
| Uniform warm-white backlighting | Single-Color White |
| High color-rendering white light | Single-Color White |
| Irregular trimming around product structures | Single-Color White |
| Simple brightness adjustment | Single-Color White + PWM Dimmer |
| RGB color-changing effects | DMX512 RGB |
| Independent lighting zones | DMX512 RGB |
| Programmed animation effects | DMX512 RGB |
| Large decorative lighting surface | DMX512 RGB |
| Exact custom shape or hole position | Engineering Review Required |
| Moisture-resistant installation | Additional Protection Design Required |
Cutting & Splicing
Single-Color White Version

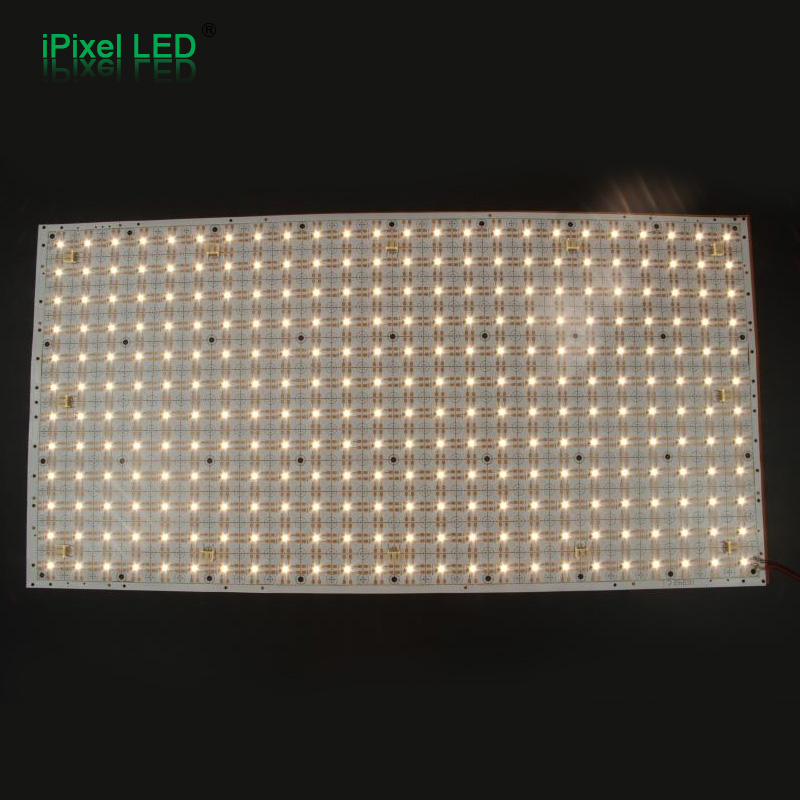

The single-color version can be cut around individual LED positions, allowing the sheet to be trimmed around structural openings or irregular installation boundaries.
It is suitable for custom light boxes, equipment structures, illuminated furniture and other applications requiring irregular cutting or large-area white illumination.
DMX512 RGB Version

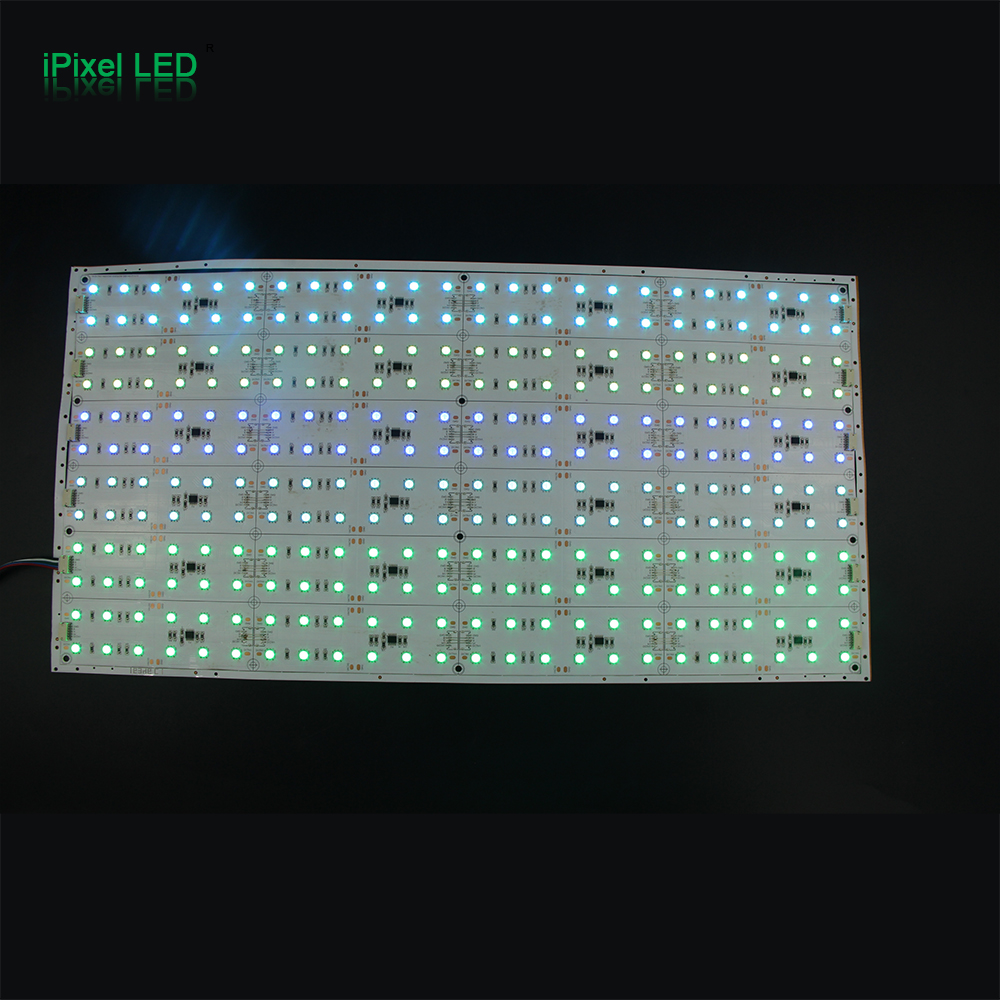

The DMX512 RGB version uses a 40 × 120mm cutting unit. Each sheet contains 24 controllable pixels, so cutting and wiring must follow the designated pixel and signal layout.
The DMX512 version must not be described as cuttable by each LED because its control addresses and electrical circuits are organized by pixel blocks.
Basic Connection
Single-Color Version
AC Power → 24V Constant-Voltage Power Supply → Optional PWM Dimmer → Single-Color Flexible LED Sheet
DMX512 RGB Version
DMX Control Software / Console → DMX Controller → DMX512 RGB Flexible LED Sheet
AC Power → 24V Constant-Voltage Power Supply → LED Sheet Power Input
The LED sheet requires a correctly sized DC24V power supply. The DMX512 version also requires a compatible DMX512 control system.
Typical Applications
| Single-Color White Version | DMX512 RGB Version |
|---|---|
| Retail display backlighting | Decorative wall panels |
| Illuminated wall panels | Entertainment equipment |
| Acrylic and fabric light boxes | Gaming and amusement machines |
| Furniture backlighting | Exhibition installations |
| Cabinet and shelf lighting | Branded retail displays |
| Equipment interior illumination | Hospitality decoration |
| Custom-shaped luminous surfaces | Dynamic architectural features |
Customization Options
| Customization Item | Available Direction | Notes |
|---|---|---|
| Sheet Size | Project-Specific | Subject to PCB and production review |
| Light Color | Single-Color White / RGB | Other options require evaluation |
| CCT | Project-Specific White CCT | Current reference model is 3000K |
| CRI | Project-Specific | Current white reference model is CRI 90 |
| Control | PWM / DMX512 | Confirm according to lighting effects |
| Pixel Layout | Project-Specific | DMX address structure must be reviewed |
| Cutting Structure | Individual LED / Pixel Block | Depends on circuit configuration |
| PCB Color | White or Project-Specific | Current white model uses white PCB |
| Cable Outlet | Project-Specific | Confirm position and direction |
| Connector | Customized | Match the controller and equipment |
| Protection | IP20 or Additional Protection | Waterproof treatment requires redesign |
| Mounting | Adhesive / Clips / Integrated Structure | Final method depends on the application |
Not every option can be freely combined. The final circuit, cutting unit and control method must be confirmed through engineering review.
