CCT COB uses dual white LEDs and a controller to adjust between warm white and cool white. Dim-to-Warm COB changes from warmer light to brighter warm white through dimming, typically from 2100K to 2700K.
COB single color 480LEDs/m led strip DC12/24V
Tunable White COB LED Strip Series

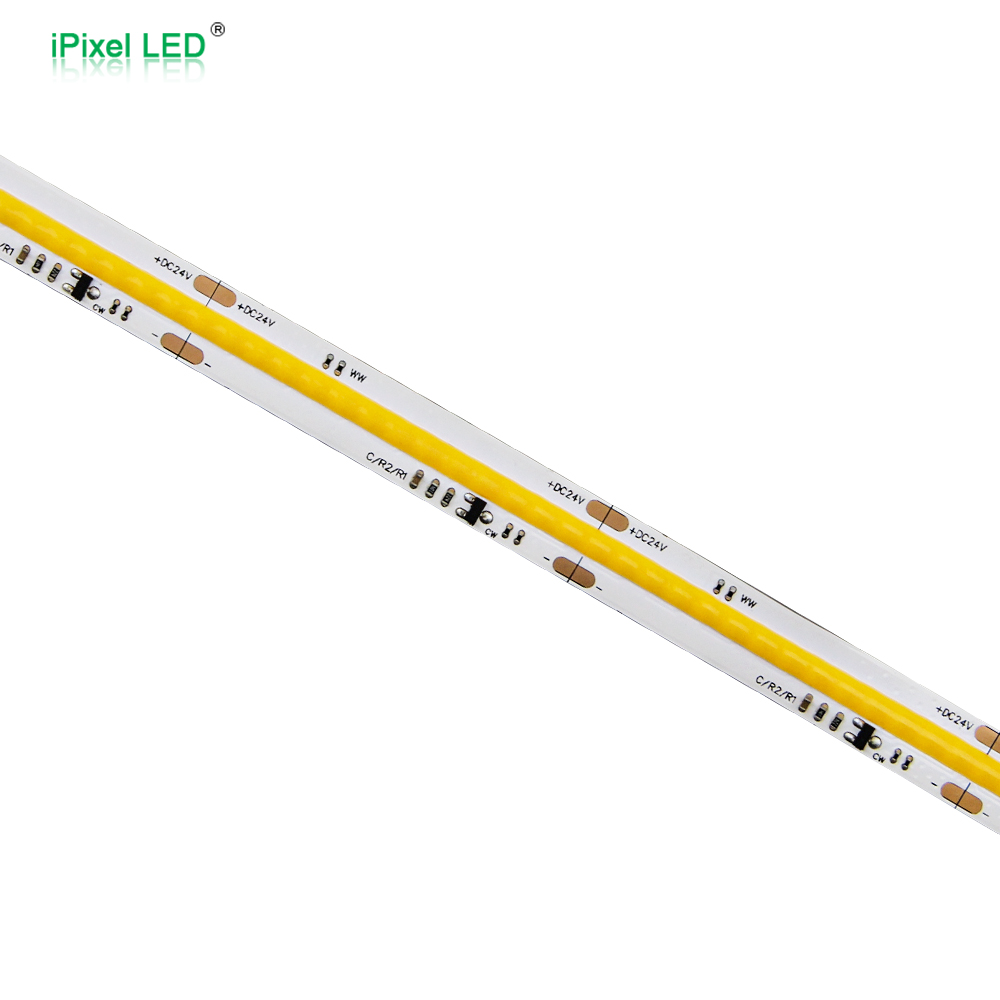

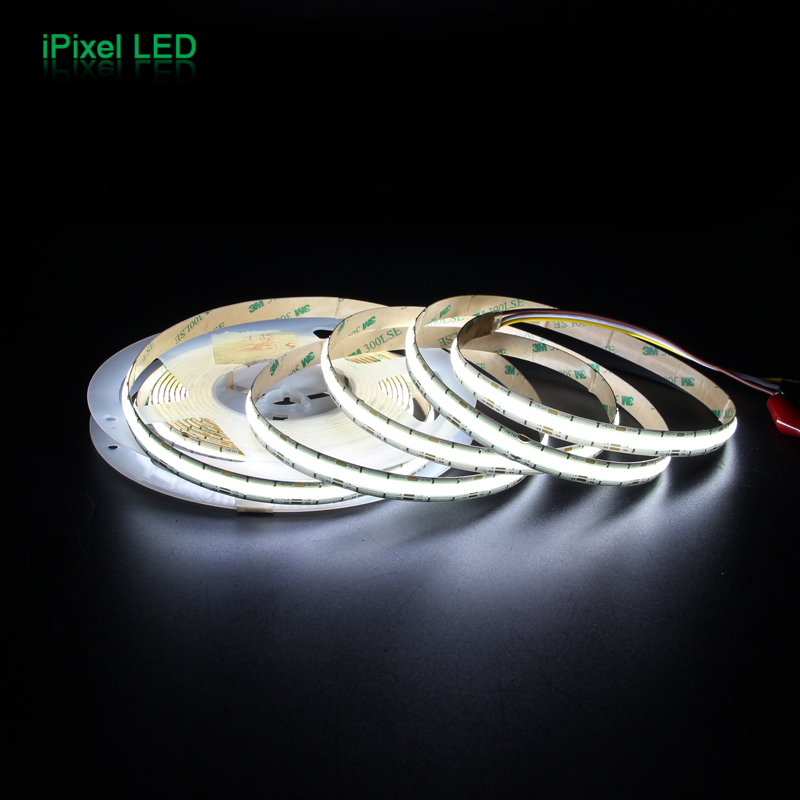

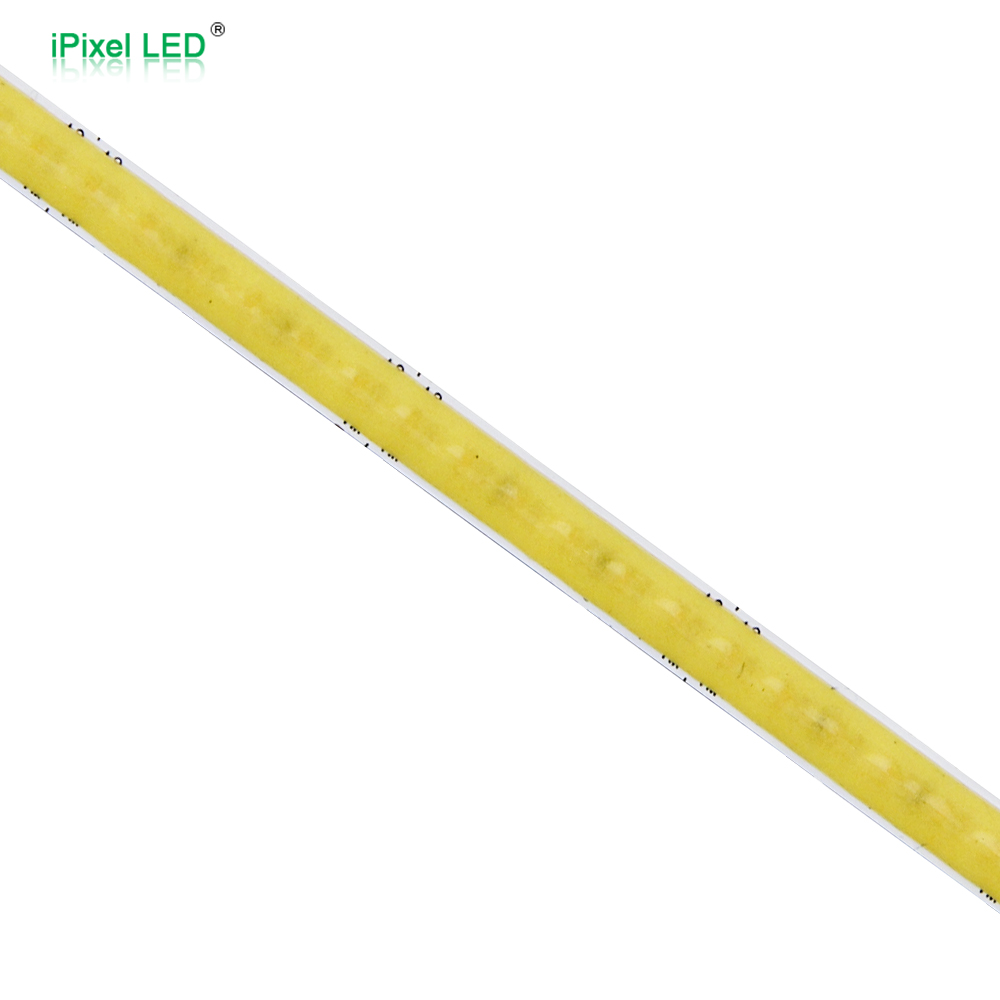

This Tunable White COB LED Strip Series is designed for projects that require smooth dotless lighting with adjustable white color temperature. The series includes 2-wire CCT COB LED strips for 2700K–6500K color temperature adjustment and Dim-to-Warm COB LED strips for warm dimming from 2700K down to 2100K.

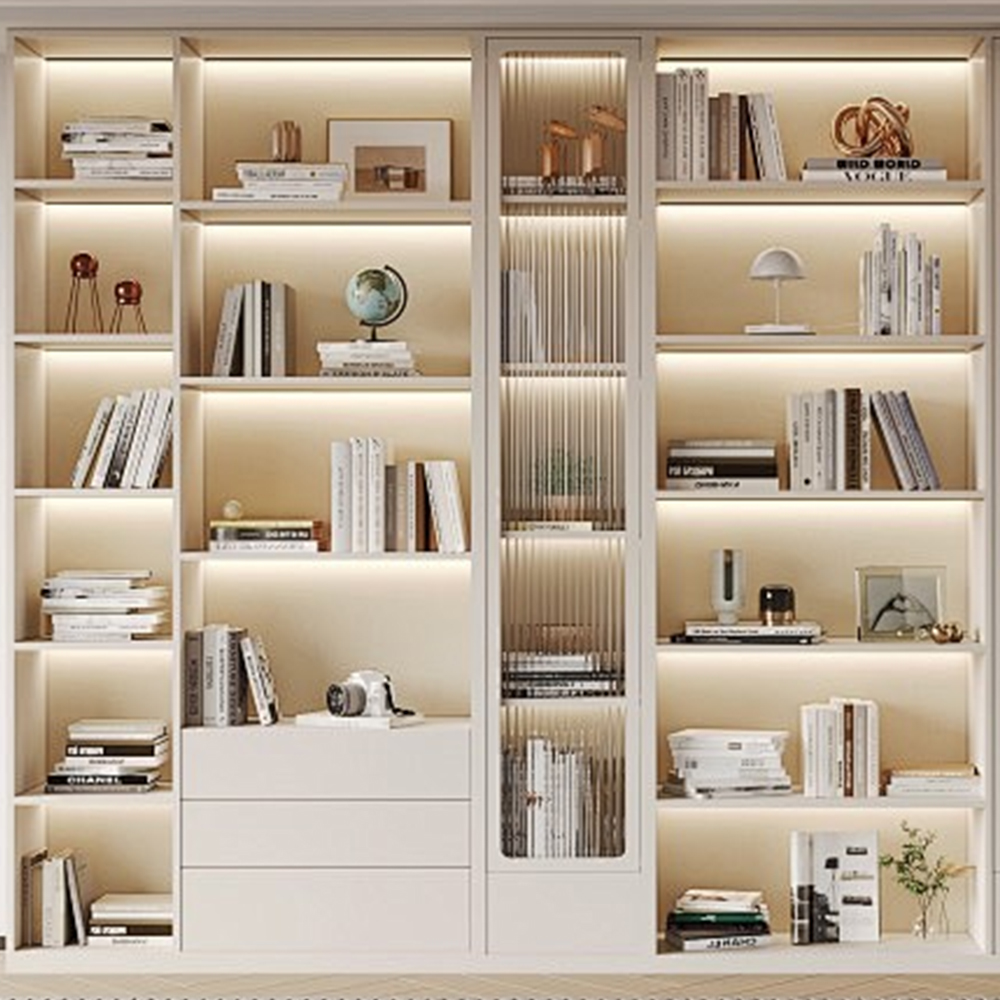

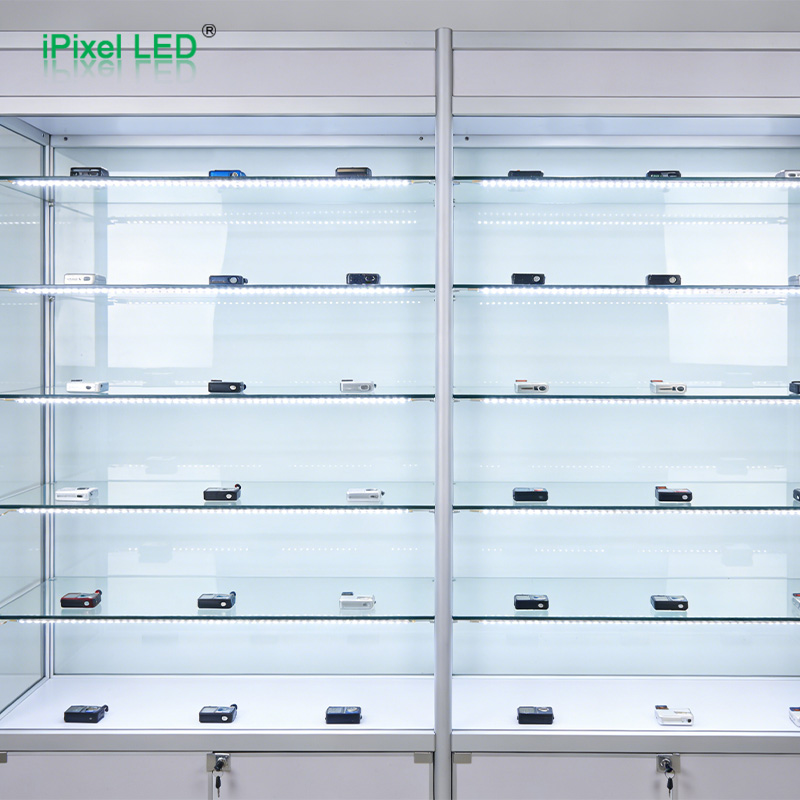

With high-density COB construction, 5mm / 8mm / 10mm PCB options, DC12V and DC24V versions, and IP20 / IP65 protection options, this series is suitable for cabinet lighting, furniture lighting, retail display fixtures, hospitality lighting, residential linear lighting and architectural detail lighting. The datasheets describe these products as high-density COB strips with even lighting, double-layer PCB for voltage drop and heat dissipation balance, SDCM <5, and standard 5m/roll with custom length available.
DC12V/DC24V560/576/640LEDs/m5/8/10mm WidthCCTIP20/IP65
Overview & Key Features
Series Overview
This series combines CCT adjustable COB strips and Dim-to-Warm COB strips into one selection platform. It is suitable for customers who want the dotless appearance of COB lighting but need more flexible white-light control than fixed CCT single-color strips.

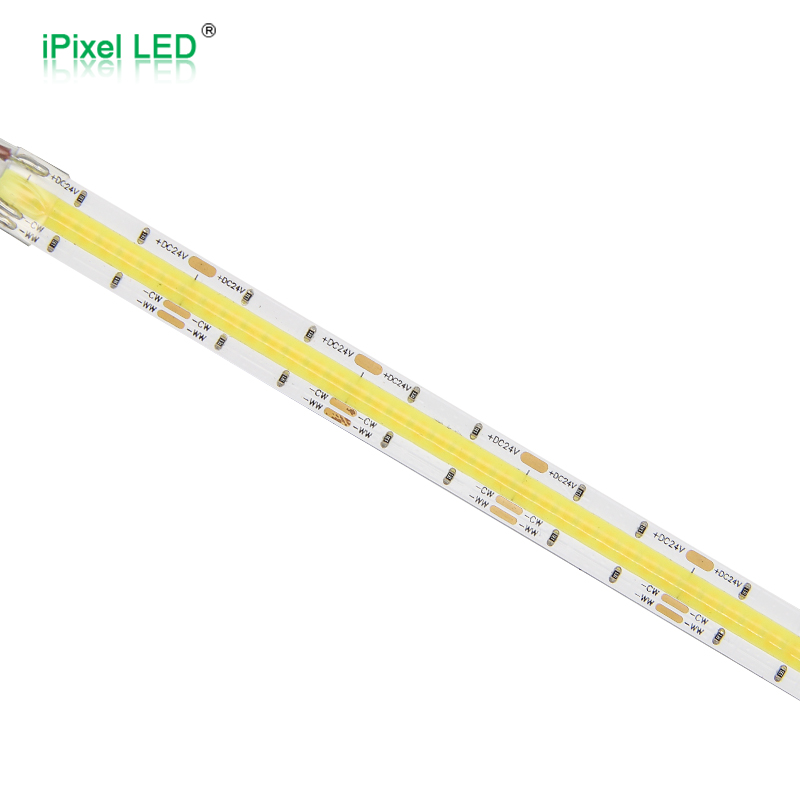

The 2-wire CCT models provide adjustable white output between 2700K and 6500K through a matching CCT controller. The Dim-to-Warm model changes from 2700K at full brightness to 2100K when dimmed, using a traditional dimmer.
Key Features
- Dotless COB light output
- 2-wire CCT and Dim-to-Warm options
- 2700K + 6500K CCT adjustable versions
- 2100K–2700K Dim-to-Warm version
- 5mm / 8mm / 10mm PCB width options
- DC12V / DC24V available
- 576 / 560 / 640 LEDs/m options
- CRI 90 options
- 180° beam angle
- IP20 / IP65 protection options
- Standard 5m/roll, custom length available
- Compatible with CCT controller, PWM controller or traditional dimmer depending on model
- Suitable for furniture, cabinet, wardrobe, shelf, hotel, residential and commercial ambient lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m | Spec Sheet |
|---|---|---|---|---|---|---|---|---|---|
| S005576ZB2PZ | 576 | DC12V | 6W | 2-Wire CCT COB | 5mm | 2700K + 6500K | 20.83mm | C:360lm/m / W:450lm/m | Download |
| S008640ZB2PZ | 640 | DC12V | 8W MAX | 2-Wire CCT COB | 8mm | 2700K + 6500K | 25mm | W:620lm/m / C:730lm/m | Download |
| S008640ZC2PZ | 640 | DC24V | 8W MAX | 2-Wire CCT COB | 8mm | 2700K + 6500K | 50mm | W:620lm/m / C:730lm/m | Download |
| S010560ZC2PZ | 560 | DC24V | 12W | Dim-to-Warm COB | 10mm | 2100K–2700K | 50mm | 900lm/m | Download |
| S010640ZC2PZ | 640 | DC24V | 16W | CCT COB / PWM | 10mm | 2700K + 6500K | 50mm | CW:1029lm/m / WW:722lm/m | Download |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need narrow 5mm CCT strip for compact grooves | S005576ZB2PZ — 5mm PCB, DC12V, 576 LEDs/m, suitable for slim furniture or cabinet lighting. |
| Need 8mm CCT strip with DC12V system | S008640ZB2PZ — DC12V, 8mm PCB, 25mm cut, suitable for 12V tunable white systems. |
| Need 8mm CCT strip with DC24V system | S008640ZC2PZ — DC24V, 8mm PCB, 50mm cut, suitable for 24V furniture, cabinet and display lighting systems. |
| Need warm dimming effect with traditional dimmer | S010560ZC2PZ — Dim-to-Warm, 2100K–2700K, suitable for hospitality, residential and warm ambient lighting. |
| Need higher-output 10mm CCT COB strip | S010640ZC2PZ — 16W/m, 10mm PCB, PWM control, suitable for projects requiring stronger tunable white output. |
| Need precise short cut length | S005576ZB2PZ — 20.83mm cut length, shortest cut option in this group. |
| Need better voltage-drop control for longer runs | DC24V models — S008640ZC2PZ, S010560ZC2PZ or S010640ZC2PZ. |
| Need simple warm-dimming without CCT controller | S010560ZC2PZ — works with traditional dimmer for dim-to-warm effect. |
| Need full CCT adjustment from warm white to cool white | S005576ZB2PZ / S008640ZB2PZ / S008640ZC2PZ / S010640ZC2PZ — use matching CCT or PWM controller. |

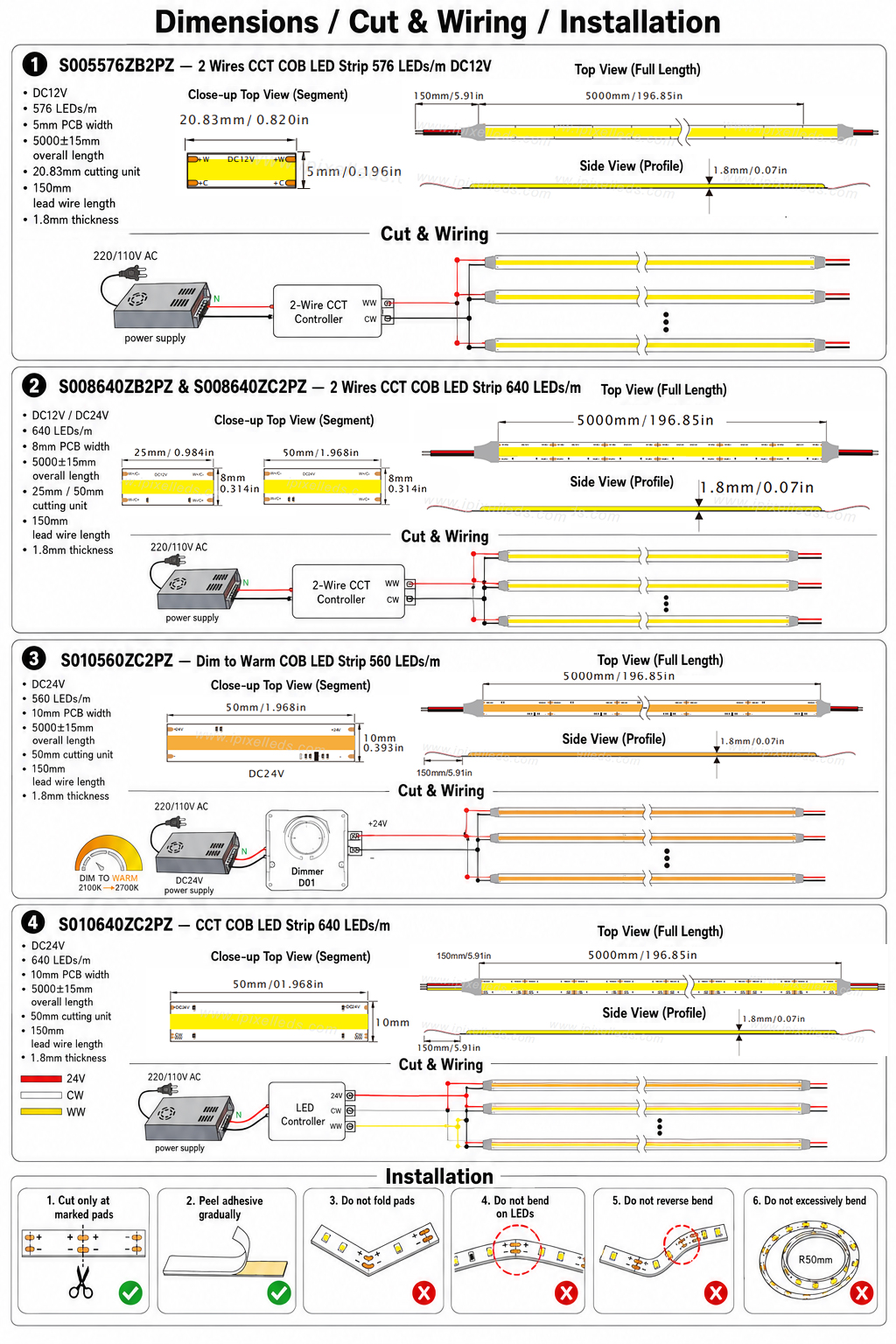

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V available for S005576ZB2PZ and S008640ZB2PZ. DC24V available for S008640ZC2PZ, S010560ZC2PZ and S010640ZC2PZ. |
| LED Type | COB | High-density COB structure for smooth, dotless and uniform lighting. |
| ColorType | CCT adjustable / Dim-to-Warm | CCT models use dual white control. Dim-to-Warm model changes CCT according to dimming level. |
| Color Range | 2700K + 6500K / 2100K–2700K | 2-wire CCT and PWM CCT models cover 2700K + 6500K. Dim-to-Warm model covers 2100K–2700K. |
| PCB Width | 5mm / 8mm / 10mm | 5mm for narrow grooves, 8mm for standard CCT strips, 10mm for higher-power CCT or dim-to-warm versions. |
| Power | 6W/m / 8W/m MAX / 12W/m / 16W/m | Select by brightness requirement, heat dissipation condition and control method. |
| Control | 2-wire CCT controller / PWM controller / traditional dimmer | 2-wire CCT models need CCT controller. S010640ZC2PZ uses PWM control. S010560ZC2PZ can use traditional dimmer. |
| IPRating | IP20 / IP65 | IP20 for dry indoor use. IP65 silicone tube option available. IP process may affect final size, CCT and lumen output. |
| Length | 5m standard / custom length | Datasheets show standard 5m/roll; length can be customized. |
| Connector | Bare wire / CCT connector / custom connector | Related product pages show connector options such as O2P-10-L / OB2P-10 for some CCT models. |
| Mounting | Adhesive tape / aluminum profile / clips | Aluminum profile is recommended for heat dissipation, protection and cleaner installation. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. OEM packing can be discussed. |
FAQ
For 2-wire CCT and PWM CCT models, use a matching CCT / PWM controller. For the Dim-to-Warm model, a suitable traditional dimmer can be used.
Yes. The datasheets list IP20 / IP65 options. IP65 uses silicone tube protection, and the IP process may affect final size, CCT and luminous flux.
S010640ZC2PZ has the highest listed output in this group, with CW:1029lm/m and WW:722lm/m in the Product Datasheet table.
