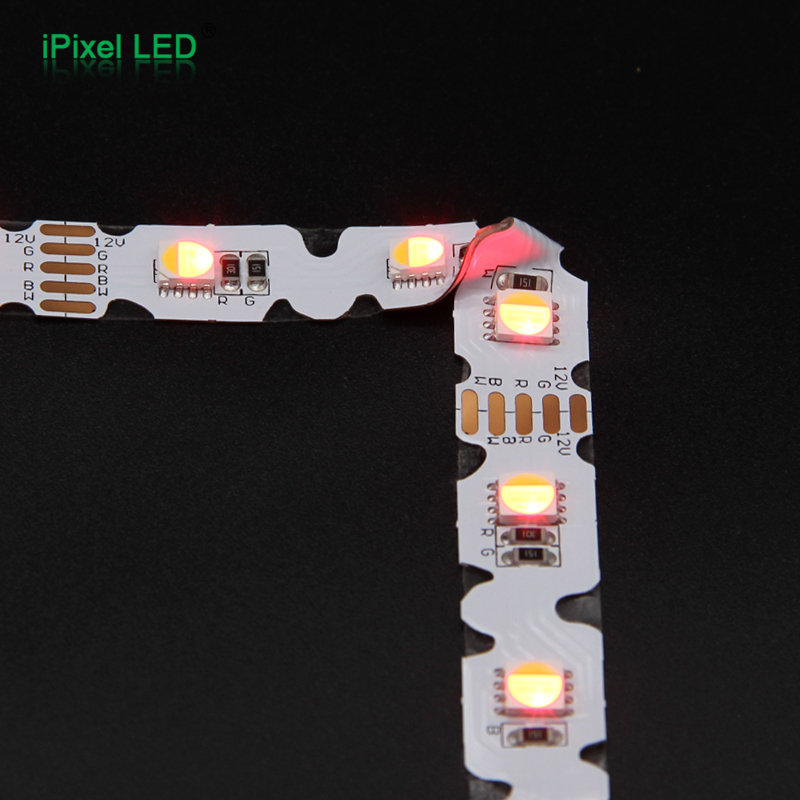

The S-shape zigzag PCB allows the strip to bend around curves, corners and irregular paths more easily than standard straight LED strips.
S-Shape SMD5050 RGBW LED Strip Series

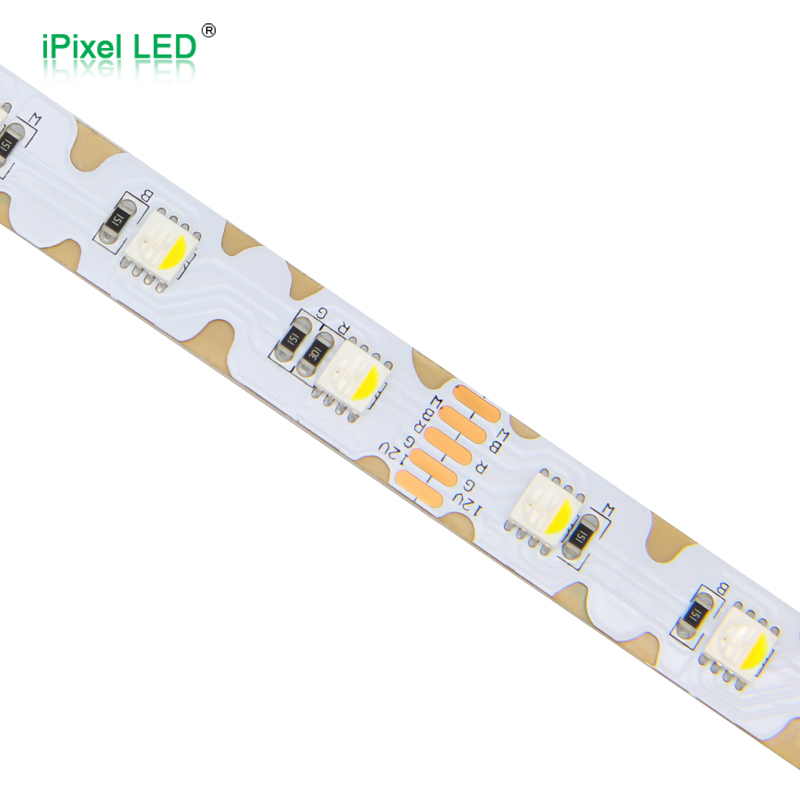

-S shape(zigzag) flex led strip with SMD5050 RGBW
48LEDs/m
-The biggest advantage is the S shape, which can be
bend at any angle
-Only available in IP20 non-waterproof version

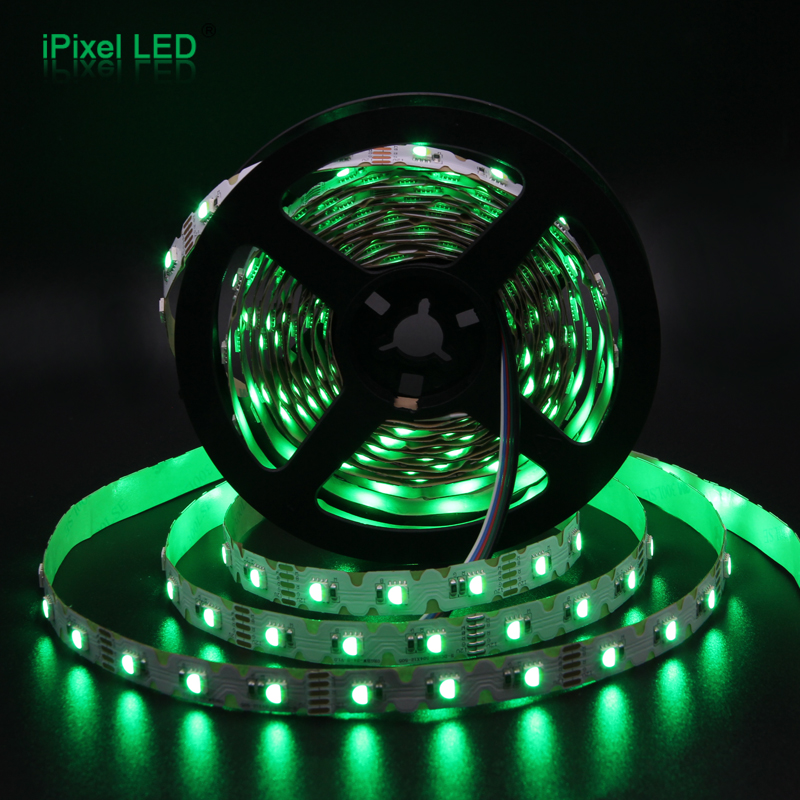

-Standard 5m per roll, the length also can be customized
DC12V/24V48LEDs/m12mm WidchRGBWPWM
Overview & Key Features
Series Overview
This S-shape SMD5050 RGBW LED strip series is designed for shaped lighting applications where the strip needs to bend around curves, corners or irregular paths. Compared with standard straight RGBW strips, the zigzag PCB structure allows more flexible installation and easier layout adjustment.
The series includes DC12V and DC24V versions, both using SMD5050 RGBW LEDs with 48 LEDs per meter, 12mm PCB width and 15W/m power. Standard white channel options include 3000K, 4000K and 6500K. It is suitable for signage, display structures, decorative lighting, furniture accents, entertainment facilities and other indoor modeling applications.
Key Features
- S-shape / zigzag flexible PCB for curved and irregular installation.
- SMD5050 RGBW LED package for RGB color mixing plus white channel.
- DC12V and DC24V versions available.
- 48 LEDs/m layout.
- 15W/m power design.
- 12mm PCB width.
- RGBW white channel options: 3000K / 4000K / 6500K.
- PWM control with compatible RGBW controller.
- DC12V version: 62.5mm / 3LED cutting unit.
- DC24V version: 125mm / 6LED cutting unit.
- IP20 only, for indoor non-waterproof applications.
- Standard 5m per roll, custom length can be discussed.
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Product Type | PCB Width | Color | Cut | Lumen/m |
|---|---|---|---|---|---|---|---|---|
| S012048CB4PZ(S) | SMD5050 48LEDs/m | DC12V | 15W/m | S-Shape SMD5050 RGBW LED Strip | 12mm | RGBW: 3000K / 4000K / 6500K | 62.5mm / 3LED | R:120 lm/m, G:282 lm/m, B:55 lm/m, W:409 lm/m |
| S012048CC4PZ(S) | SMD5050 48LEDs/m | DC24V | 15W/m | S-Shape SMD5050 RGBW LED Strip | 12mm | RGBW: 3000K / 4000K / 6500K | 125mm / 6LED | R:120 lm/m, G:282 lm/m, B:55 lm/m, W:409 lm/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need shorter cutting pitch | DC12V version，62.5mm / 3LED |
| Need lower current or better for slightly longer connections | DC24V version，125mm / 6LED |
| Need installation along curved, corner, or irregular paths | S-shape / zigzag RGBW strip |
| Need RGB color + white channel | This RGBW version is suitable |
| For lettering, signage, and decorative shapes | Recommended |
| For indoor display structures or entertainment equipment | Recommended |
| Need waterproof or outdoor use | Not recommended; this series is IP20 only |
| Needs to be controlled by a traditional dimmer | Consider high-density RGBW strip instead |
| Need standard straight installation | Standard RGBW LED strip may be more cost‑effective |
| Need high‑density uniform light output | Consider high‑density RGBW strip instead |

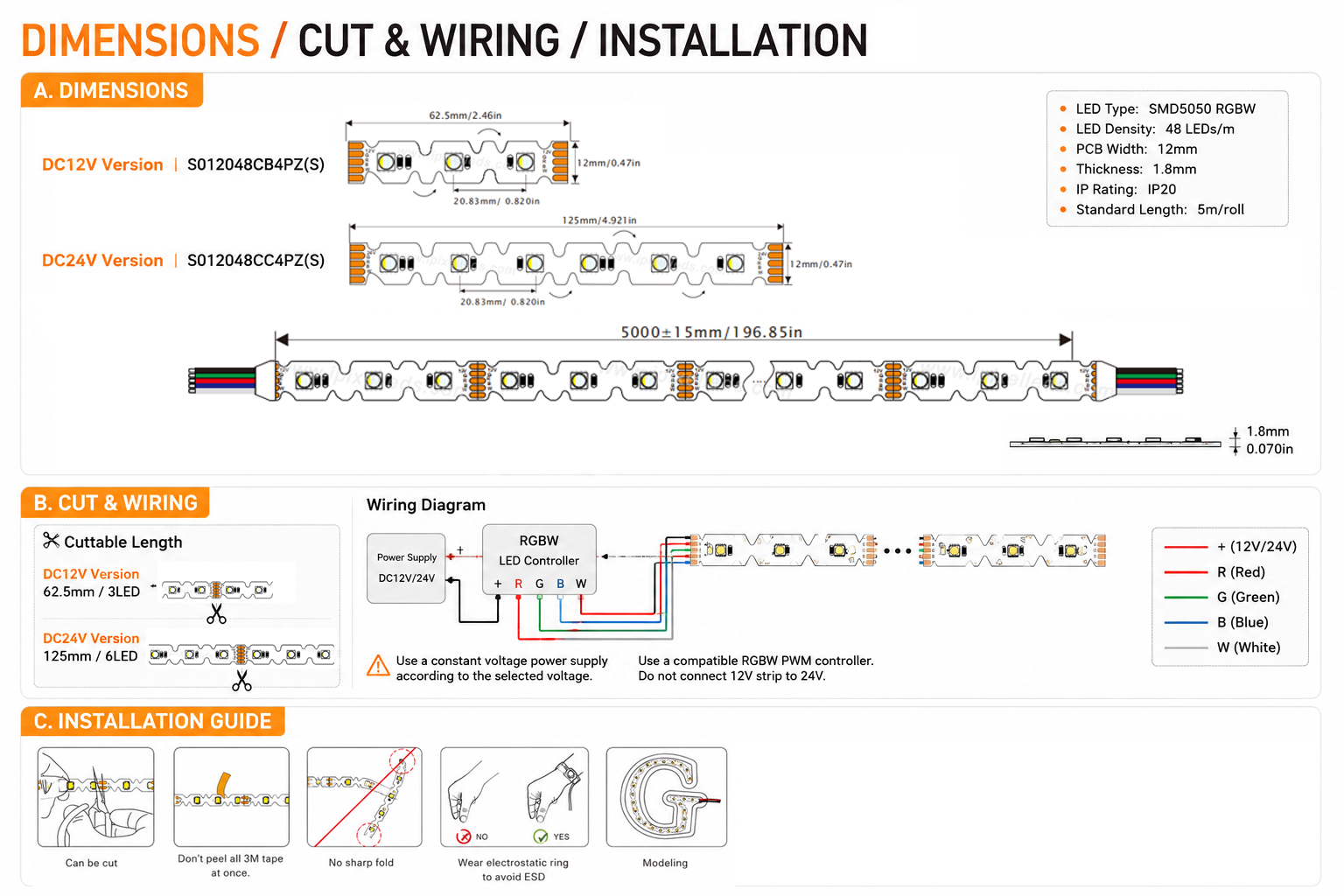

Structure & Installation
Protection, Customization & Options

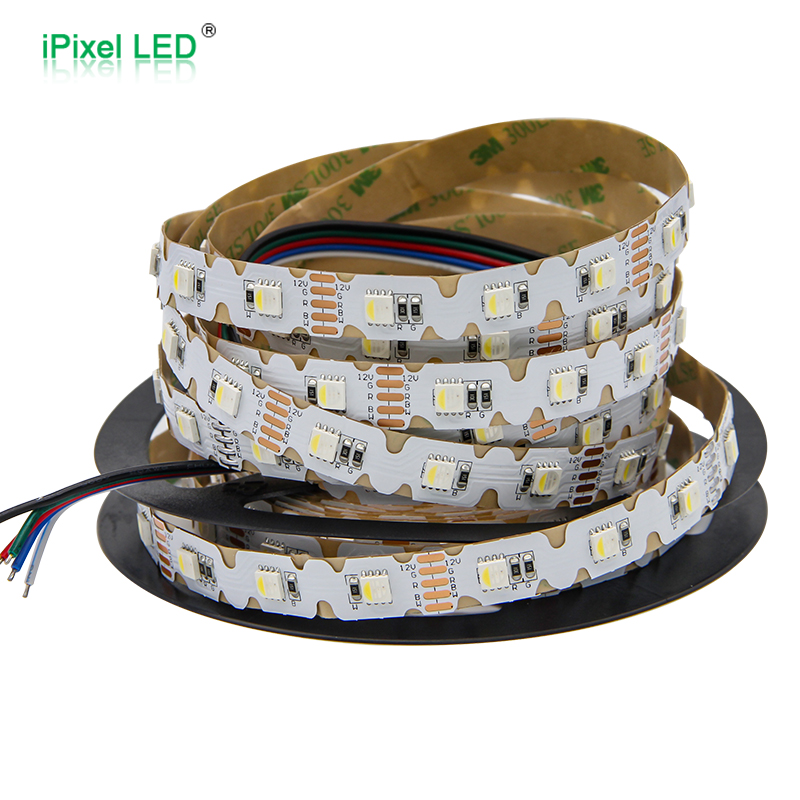

| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V/24V | Choose according to cutting length and wiring requirement |
| LED Type | SMD5050 RGBW | RGB + white channel |
| White Channel | 3000K / 4000K / 6500K | Select according to application effect |
| PCB Structure | S-shape / zigzag FPC | Suitable for curved and shaped installation |
| PCB Width | 12mm | Confirm groove or mounting space |
| Control | PWM RGBW control | Requires compatible RGBW controller |
| IP Rating | IP20 only | Non-waterproof indoor version |
| Length | 5m standard / custom length | Custom length can be discussed |
| Cable | 5-wire RGBW lead wire / custom wire length | Based on assembly method |
| Connector | Bare wire / terminal / custom connector | For OEM projects |
| Mounting | 3M adhesive / clips / shaped groove | Avoid sharp folding |
| Accessories | Power supply, RGBW controller | 12V or 24V power supply should match selected version |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
The DC12V version can be cut every 62.5mm / 3LED. The DC24V version can be cut every 125mm / 6LED.
No. This series is only available in IP20 non-waterproof version.
A compatible RGBW PWM controller should be used.
