N010060CB4PZ is DC12V PWM RGBW, N010060CC4PZ is DC24V PWM RGBW, and N010060CB4ST is DC12V digital RGBW SPI version.
10×20 RGBW Side View Neon Flex Series

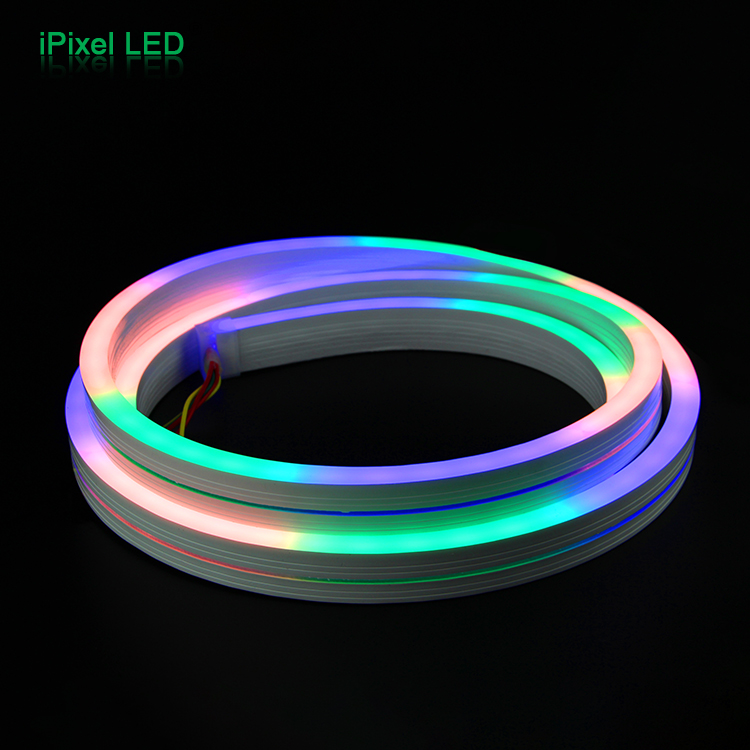

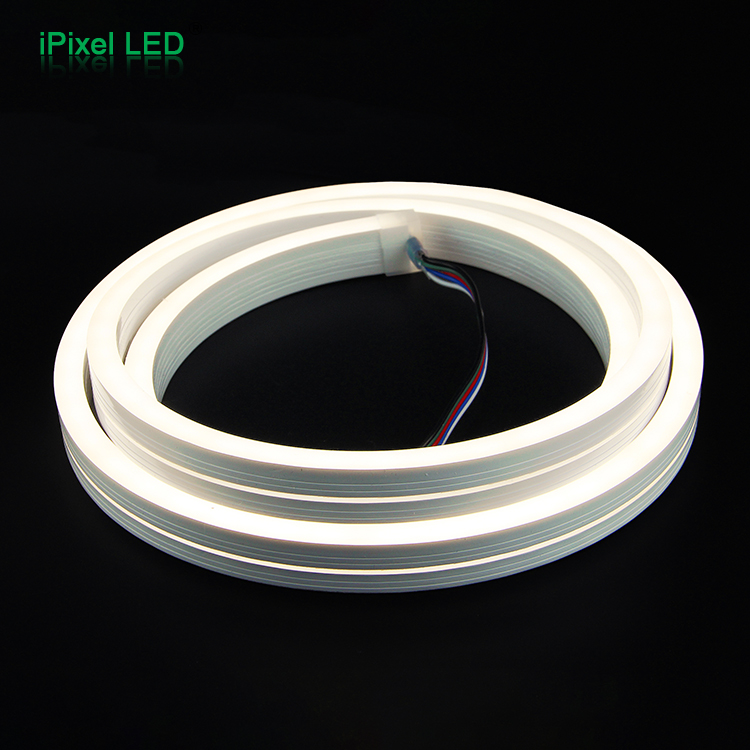

The 10×20 RGBW Side View LED Neon Flex Series is designed for RGBW color-changing linear lighting applications where both decorative RGB effects and functional white light are required.
This series includes DC12V PWM RGBW, DC24V PWM RGBW, and DC12V digital RGBW SPI versions. All models use a 10×20mm side-view silicone neon structure, SMD5050 LEDs, 19.2W/m power, IP65 protection, and a 5m standard roll format.
DC12V/DC24V60LEDs/m10mm WidthRGBWIP67
Overview & Key Features
Series Overview

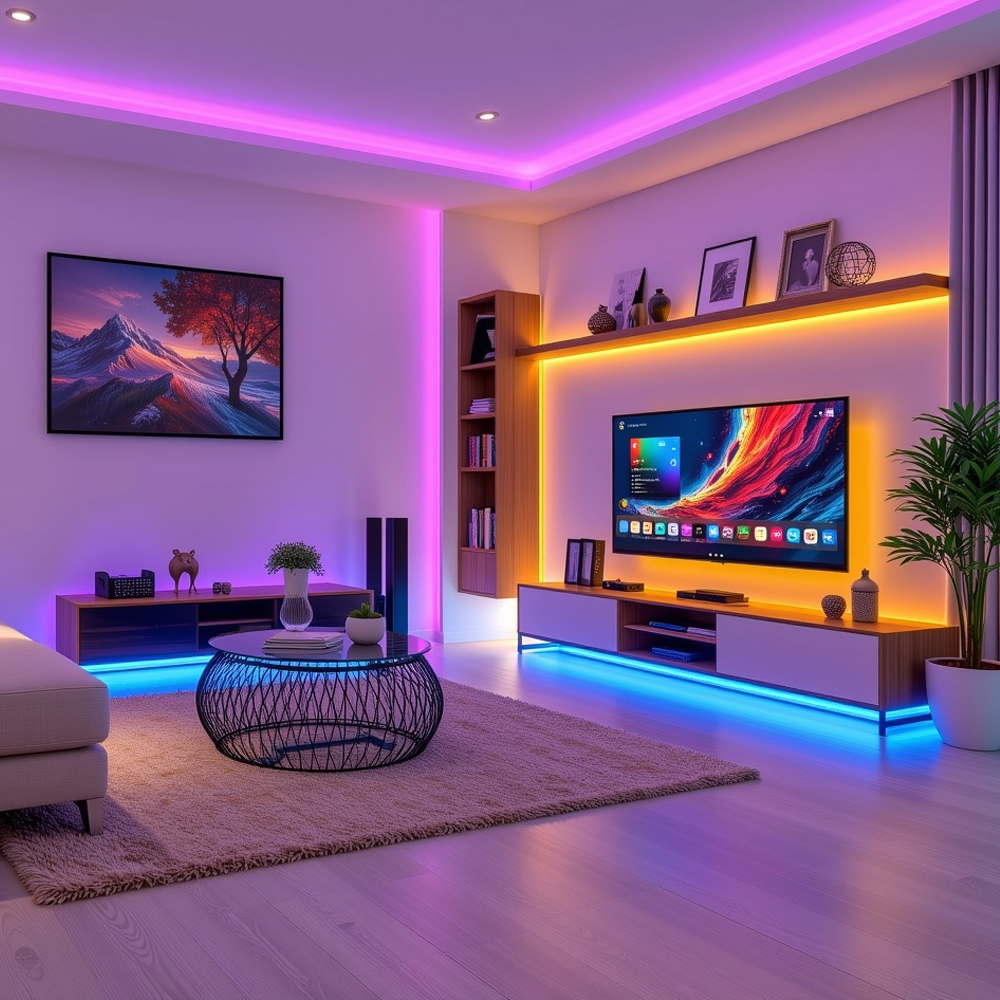

This series is suitable for projects requiring a larger side-view RGBW neon profile, such as signage, decorative outlines, retail display, architectural contour lighting, commercial interiors, entertainment lighting, and custom linear lighting projects.
The N010060CB4PZ and N010060CC4PZ are non-pixel PWM RGBW versions, suitable for standard RGBW color mixing and white light output. The N010060CB4ST is a digital RGBW SPI version using UCS2904 control, suitable for dynamic chasing, programmed lighting effects, and controller-based digital applications.
Key Features

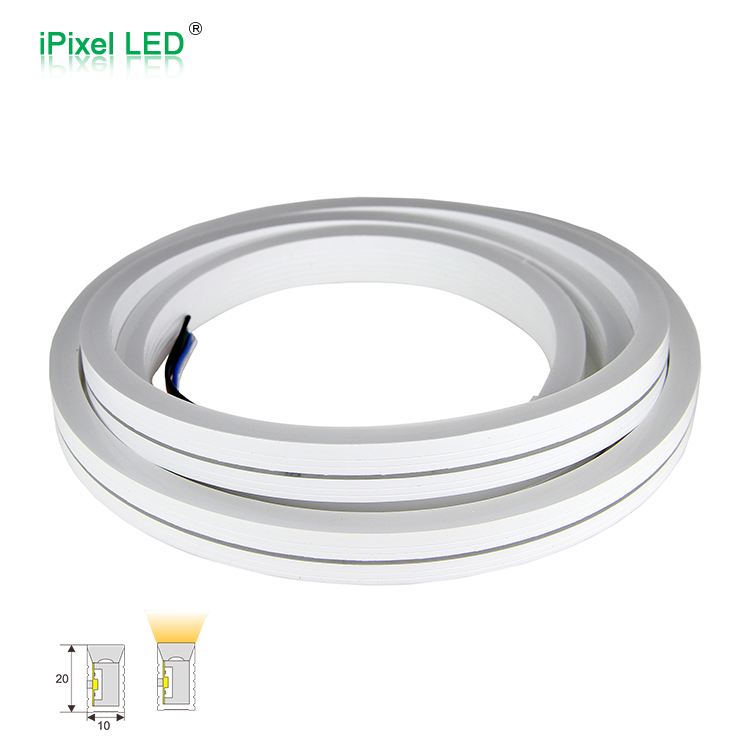

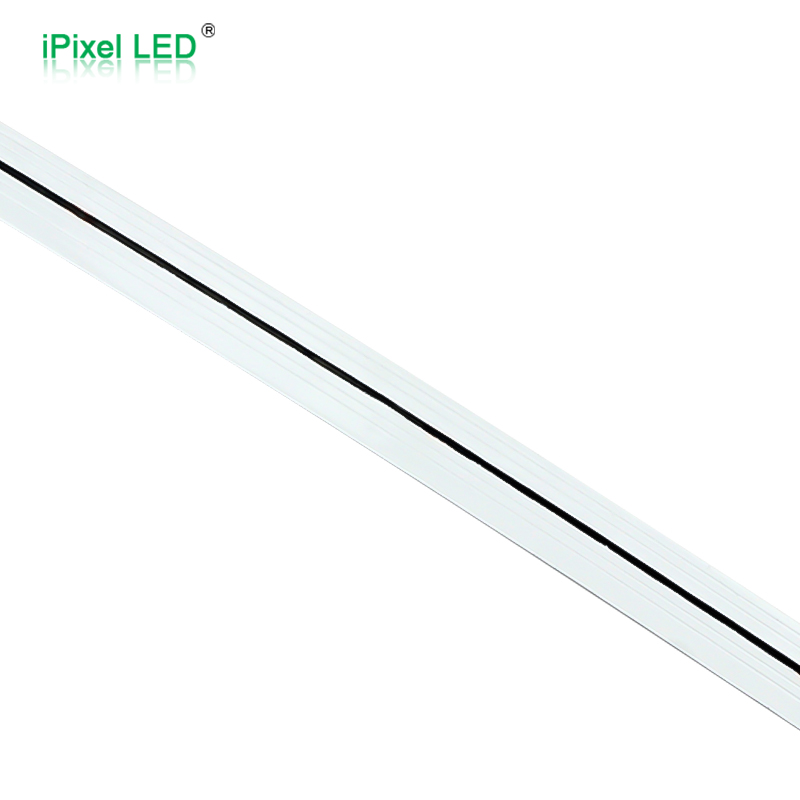

- 10×20mm side-view silicone neon flex profile
- RGBW 4-in-1 SMD5050 LED inside
- PWM and SPI digital control versions available
- DC12V and DC24V options
- Uniform, dot-free silicone diffusion
- IP65 protection
- 120° beam angle
- 50mm / 100mm cutting options depending on voltage and model
- Standard 5m roll with mounting clips
- Stainless steel clip and aluminum profile available
- Suitable for indoor/outdoor decorative and project lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N010060CB4PZ | 60 pcs/m | DC12V | 19.2W/m | PWM RGBW / Non-pixel | 10mm | RGB+W: 3000K / 4000K / 6000K | 50mm | R:30 / G:120 / B:20 / W:180 lm/m | 10×20 RGBW Side View |
| N010060CB4ST | 60 pcs/m | DC12V | 19.2W/m | SPI-UCS2904 / Digital RGBW | 10mm | RGB+W: 3000K / 4000K / 6500K | 50mm | R:70 / G:121 / B:27 / W:215 lm/m | 10×20 Digital RGBW Side View |
| N010060CC4PZ | 60 pcs/m | DC24V | 19.2W/m | PWM RGBW / Non-pixel | 10mm | RGB+W: 3000K / 4000K / 6000K | 100mm | R:91 / G:155 / B:37 / W:322 lm/m | 10×20 RGBW Side View |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Standard RGBW color mixing, DC12V system | N010060CB4PZ |
| Standard RGBW color mixing, DC24V system | N010060CC4PZ |
| Longer wiring distance / lower voltage drop concern | N010060CC4PZ |
| Dynamic digital RGBW effects / chasing effects | N010060CB4ST |
| Project requires SPI controller or programmable effects | N010060CB4ST |
| Project needs simple RGBW controller wiring | N010060CB4PZ / N010060CC4PZ |
| Need 6000K white channel | N010060CB4PZ / N010060CC4PZ |
| Need 6500K white channel | N010060CB4ST |
| Higher white-light lumen output among these models | N010060CC4PZ |

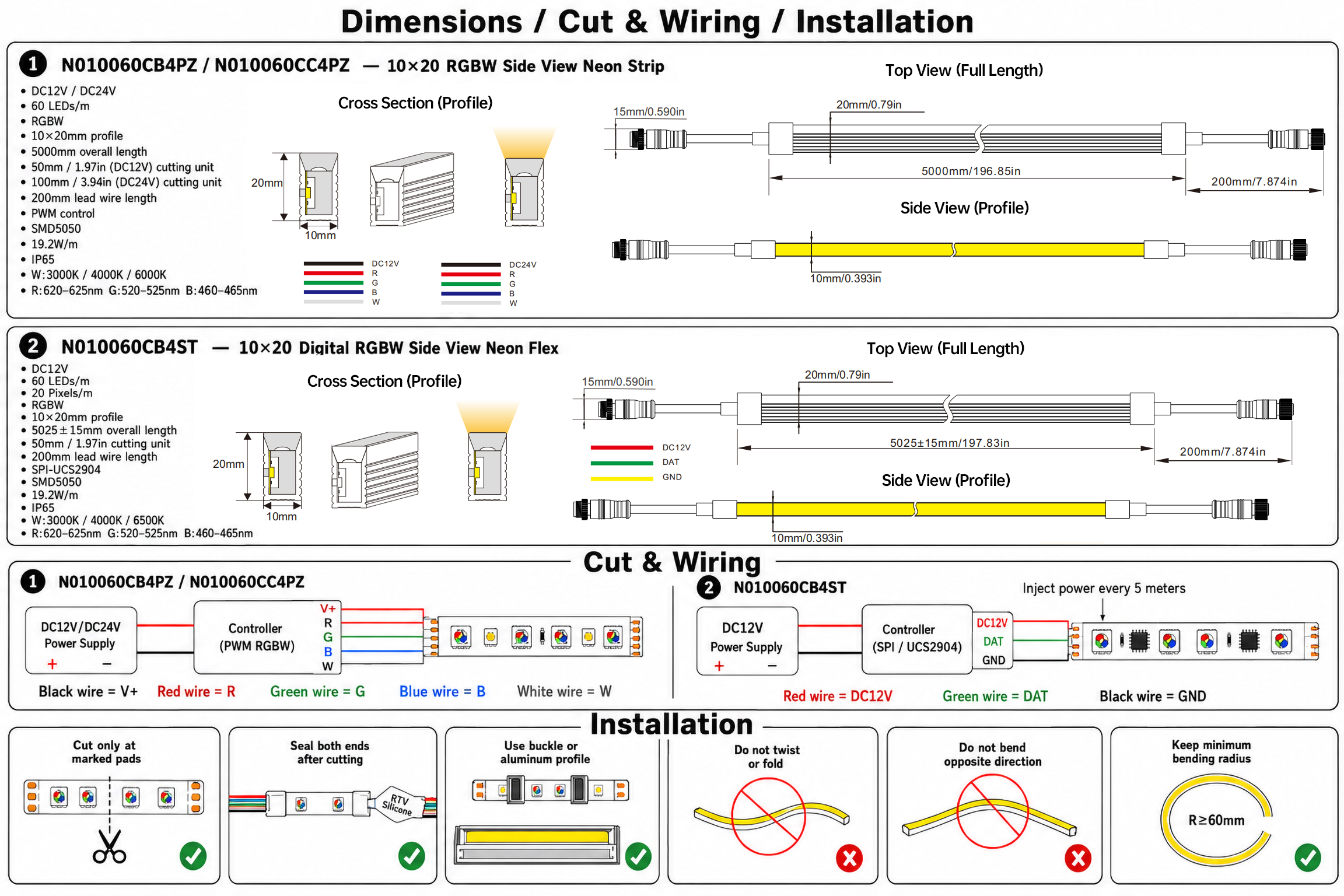

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | N010060CB4PZ and N010060CB4ST are DC12V; N010060CC4PZ is DC24V. |
| LED Type | SMD5050 | All three models use SMD5050 LEDs. |
| Color Type | RGBW | 4-in-1 RGBW LED tape inside. |
| Color Range | RGB + White CCT | RGB wavelength: R 620–625nm, G 520–525nm, B 460–465nm. White CCT: 3000K / 4000K / 6000K or 6500K depending on model. |
| PCB Width | 10mm | Suggested final wording: PCB / Profile Width: 10mm. Full profile size is 10×20mm. |
| Power | 19.2W/m | Same power for all three models. |
| Control | PWM RGBW / SPI-UCS2904 Digital RGBW | N010060CB4PZ and N010060CC4PZ are PWM non-pixel versions; N010060CB4ST is SPI-UCS2904 digital version with 20 pixels/m. |
| IP Rating | IP65 | All three datasheets show IP65. |
| Length | 5m standard roll / custom length available | N010060CB4PZ and N010060CC4PZ show 5000mm length; N010060CB4ST shows 5025±15mm. |
| Connector | 5-pin bare wire / JST connector / input-output cable | PWM versions show 5-pin bare wire output; digital version shows JST connector output from each side. |
| Mounting | Stainless steel clip / aluminum profile | Standard clips and 1m aluminum profile are shown in the accessory section. |
| Packing | 5m/roll standard packing | Each 5m roll includes 10pcs mounting clips according to the product description. |
Related Items
Arcade & Gaming Machine Lighting – SPI RGB/Addressable Strips, Robust Solder Pads & UL + CE Compliance
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
RV Lighting – 12V Robustness, Vibration Resistance & Safe Installation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Choose N010060CB4ST, because it uses SPI-UCS2904 control and supports digital RGBW effects.
Choose N010060CC4PZ, because it is the DC24V version and is generally more suitable for longer runs than DC12V.
All three models use a 10×20mm side-view neon flex profile.
