The main difference is LED density and power. S010030CA3SA1 is 30 LEDs/m and 6W/m, S010060CA3SA1 is 60 LEDs/m and 12W/m, and S012144CA3SA1 is 144 LEDs/m and 24W/m.

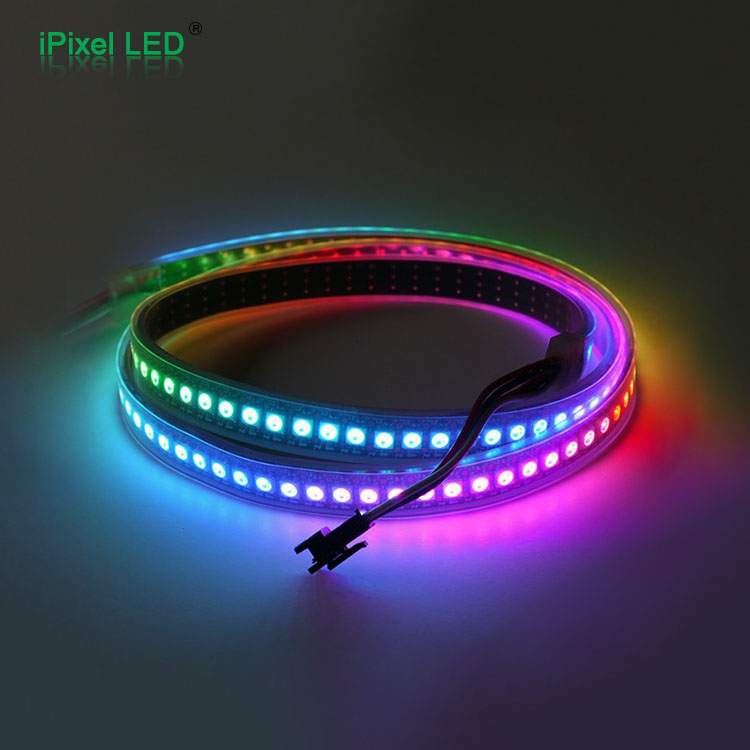

SK6812 Addressable RGB LED Strip Series

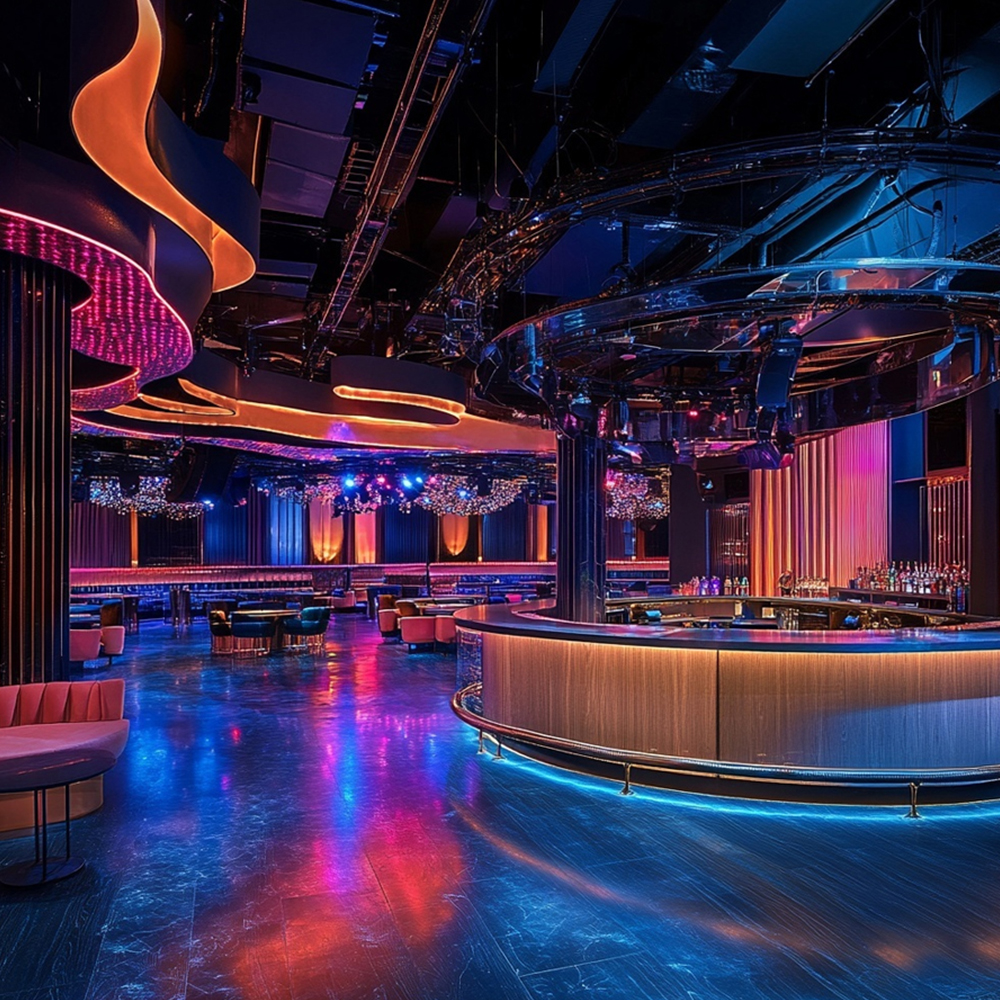

This SK6812 RGB Addressable LED Strip Series is designed for pixel-controlled RGB lighting effects using DC5V SPI digital control. Each LED can be controlled as an individual pixel, making the series suitable for dynamic color effects, signage, decorative lighting, gaming equipment, display fixtures, entertainment lighting and custom OEM lighting systems.
The series includes 30 LEDs/m, 60 LEDs/m and 144 LEDs/m options. All three models use SMD5050 RGB LEDs, SPI/SK6812 control, single-LED cutting unit, 3-pin JST SM connector, and IP20 / IP64 / IP65 protection options. The datasheets describe white and black PCB options, large solder pads, customized size availability and 3-pin JST SM male/female connector configuration.
DC5V30/60/144LEDs/m10/12mm WidthIP20/IP65
Overview & Key Features
Series Overview
This series is a built-in IC addressable RGB LED strip family. Each LED can be controlled as an individual pixel, making it suitable for dynamic color effects and programmable lighting.
The 30 LEDs/m version is suitable for lower power and wider pixel spacing. The 60 LEDs/m version is the standard balanced option. The 144 LEDs/m version provides higher density and smoother effects for close-view applications.
Key Features
- DC5V addressable RGB LED strip
- SMD5050 RGB LED package
- SPI / SK6812 control
- WS2812B / SK6812 compatible option for high-density version
- 30 / 60 / 144 LEDs/m options
- One LED per pixel
- Cuttable at every single LED

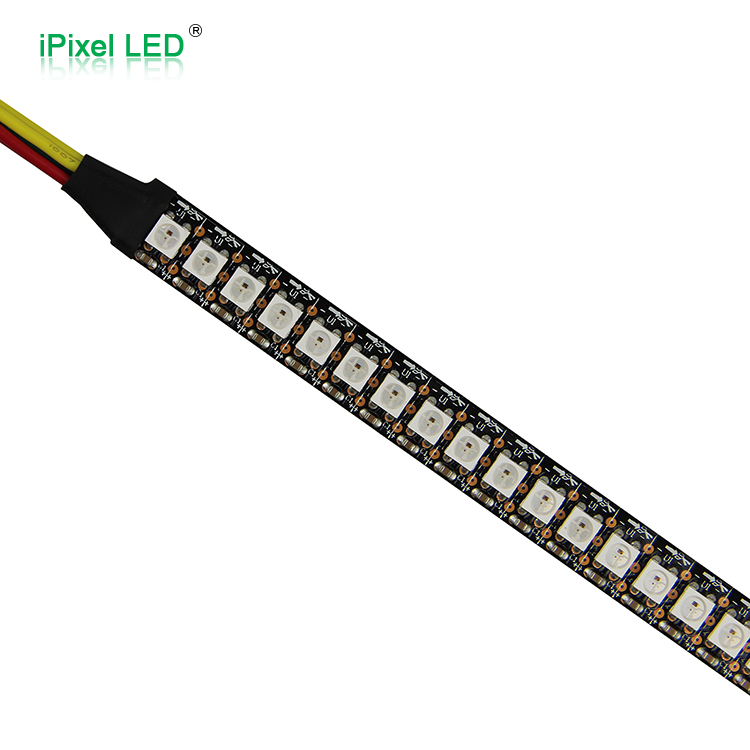

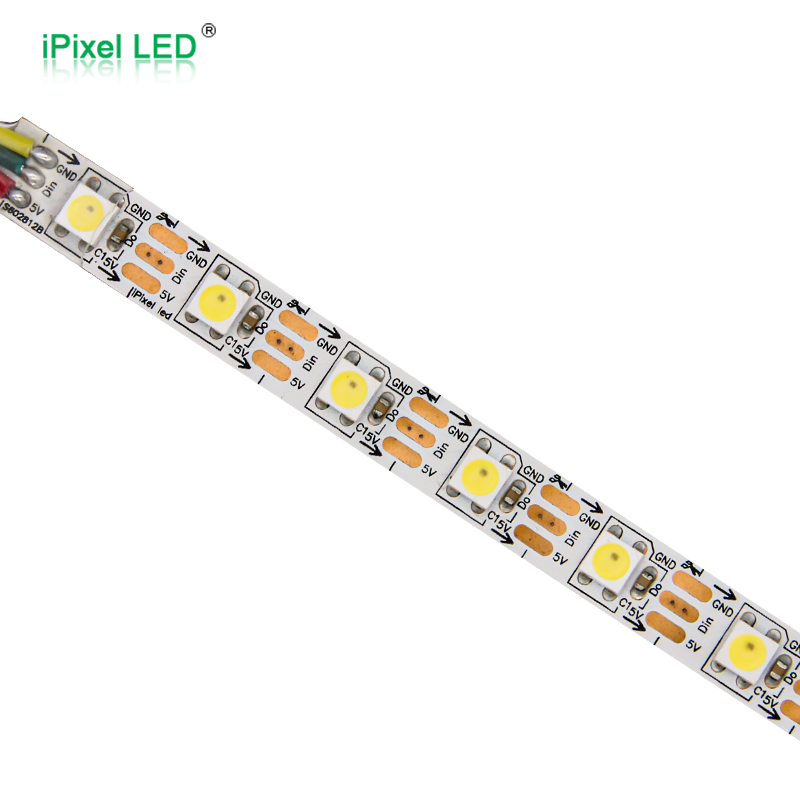

- White PCB and black PCB options
- Large solder pads for easier wiring
- 3-pin JST SM male/female connector
- IP20 / IP64 / IP65 protection options
- 5m standard reel for 30LEDs/m and 60LEDs/m versions
- 1m high-density version for 144LEDs/m, custom length available
- Suitable for programmable RGB effects and dynamic lighting
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Version | PCB Width | CCT | Cut | Lumen/m | Control |
|---|---|---|---|---|---|---|---|---|---|
| S010030CA3SA1 | 30 | DC5V | 6W | SK6812 RGB Addressable / SMD5050 | 10mm | RGB | 33.33mm / 1LED | R:36 / G:103 / B:23lm | SPI / SK6812 |
| S010060CA3SA1 | 60 | DC5V | 12W | SK6812 RGB Addressable / SMD5050 | 10mm | RGB | 16.66mm / 1LED | R:70 / G:199 / B:46lm | SPI / SK6812 |

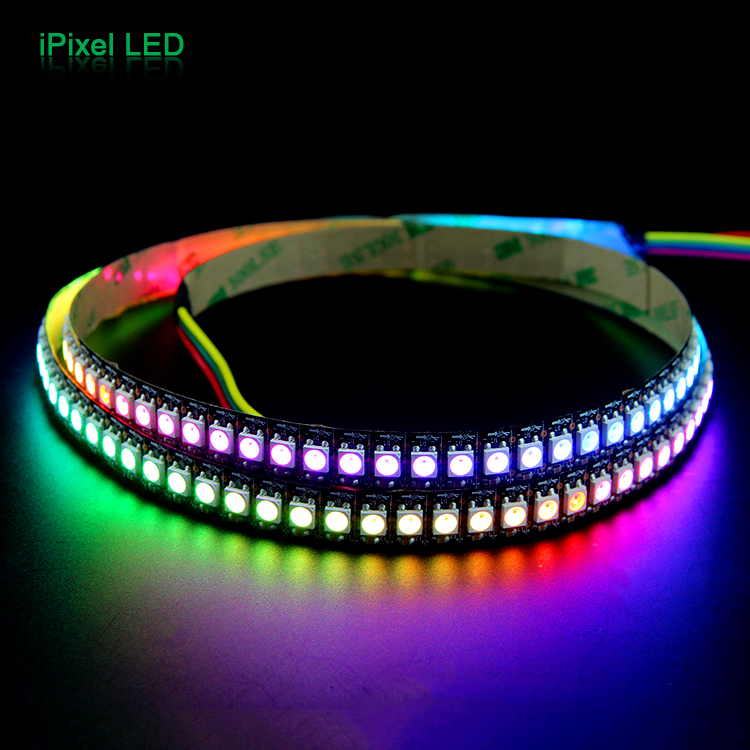

| S012144CA3SA1 | 144 | DC5V | 24W | SK6812 RGB Addressable / SMD5050 | 12mm | RGB | 6.94mm / 1LED | R:153 / G:442 / B:100lm | SPI / SK6812 / WS2812B |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need lower power and wider pixel spacing | S010030CA3SA1 — 30 LEDs/m, 6W/m, suitable for decorative RGB effects where high density is not required. |
| Need a standard balanced digital RGB strip | S010060CA3SA1 — 60 LEDs/m, 12W/m, suitable for most addressable RGB applications. |
| Need high-density close-view RGB effects | S012144CA3SA1 — 144 LEDs/m, 24W/m, suitable for smoother and denser visual effects. |
| Need shortest cutting length | S012144CA3SA1 — 6.94mm / 1LED cutting unit. |
| Need lower system power | S010030CA3SA1 — lowest power version in this series. |
| Need 10mm PCB compatibility | S010030CA3SA1 / S010060CA3SA1 — both use 10mm PCB width. |
| Need higher output per meter | S012144CA3SA1 — highest listed RGB lumen output in this series. |
| Need IP protection | IP64 / IP65 version — select according to installation environment. |
| Need programmable pixel effects | All models — all support SPI / SK6812 digital control. |

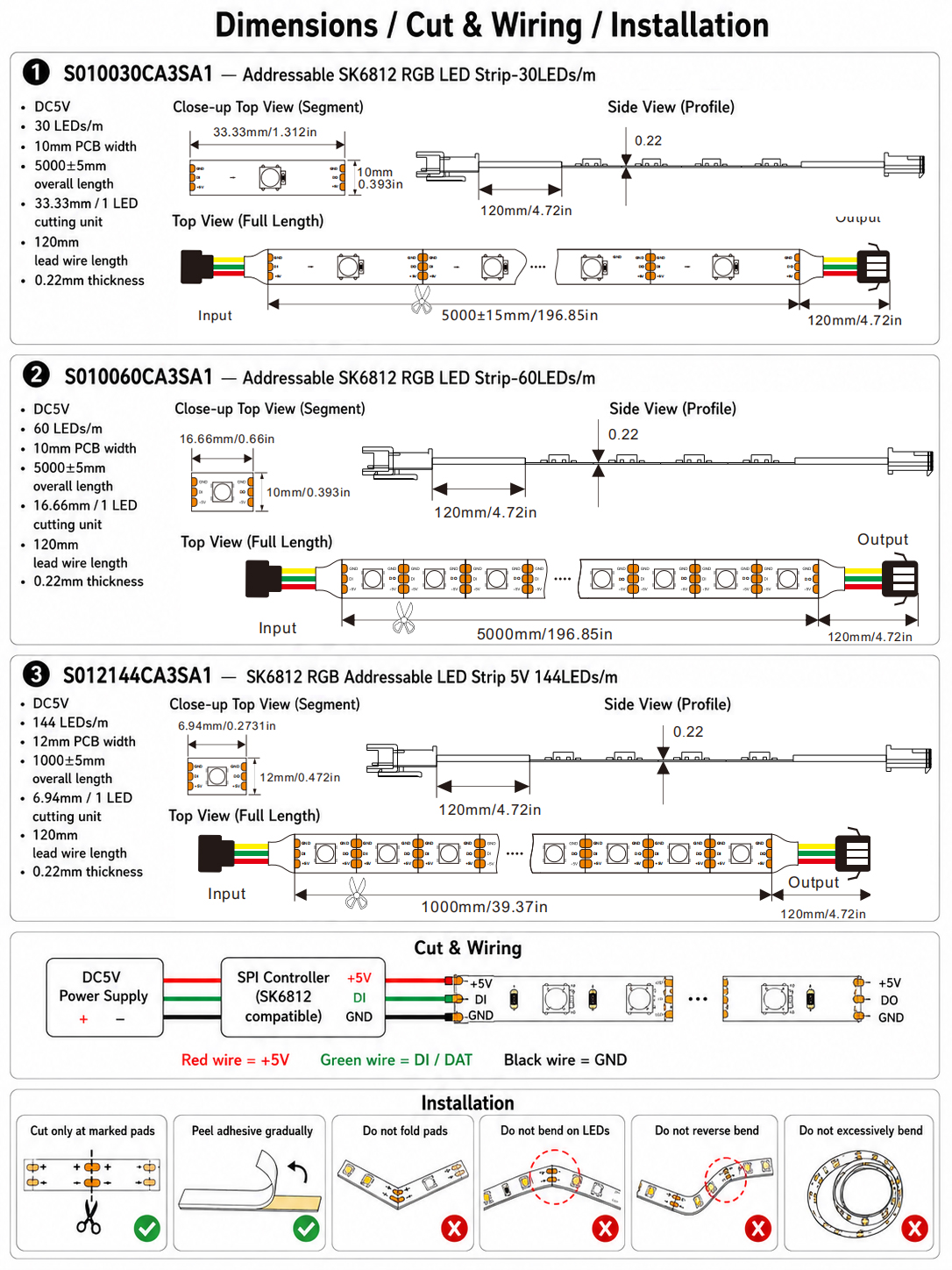

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V | All models use DC5V input. |
| LED Type | SMD5050 built-in IC RGB LED | SK6812 / WS2812B compatible addressable RGB LED package. |
| ColorType | RGB | Red, green and blue programmable color mixing. |
| Color Range | RGB | Wavelength depends on model; typical range includes R 615–630 / 620–625nm, G 520–535 / 520–525nm, B 450–460 / 460–465nm. |
| PCB Width | 10mm / 12mm | 30LEDs/m and 60LEDs/m use 10mm PCB; 144LEDs/m uses 12mm PCB. |
| Power | 6W/m / 12W/m / 24W/m | Select according to LED density, brightness and power budget. |
| Control | SPI / SK6812 / WS2812B compatible | Controller must match DC5V, protocol and total pixel quantity. |
| IPRating | IP20 / IP64 / IP65 | IP20 for dry indoor use; IP64 glue option; IP65 silicone tube option. IP process may affect final size and luminous flux. |
| Length | 5m standard / 1m high-density / custom length | 30LEDs/m and 60LEDs/m show 5m/reel; 144LEDs/m shows 1m/reel in product description and outline. |
| Connector | 3-pin JST SM male/female connector / bare wire / custom connector | Standard connector shown in datasheets; custom wiring can be discussed. |
| Mounting | 3M adhesive tape / aluminum profile / clips | Aluminum profile recommended for heat dissipation and straight installation. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. |
Related Items
Medical Refrigeration Lighting – Traceability, Reliability Pack & Low-Temp Stability
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Slot Machine Lighting – EMI/Signal Integrity, Serviceable Mounting & Long-Run Stability
Refrigeration Lighting – Low-temp, Condensation & Cleaning Reliability
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
Yes. Each LED is one pixel and can be individually controlled through SPI / SK6812 protocol.
All three models use DC5V.
Use a controller compatible with SK6812 / WS2812B SPI signal, such as K-1000C or another suitable digital LED controller.
