DE1002 is suitable for LED strips up to 10.5mm width, including common 8mm / 10mm LED strips such as 3528, 2835, and 3014 series.

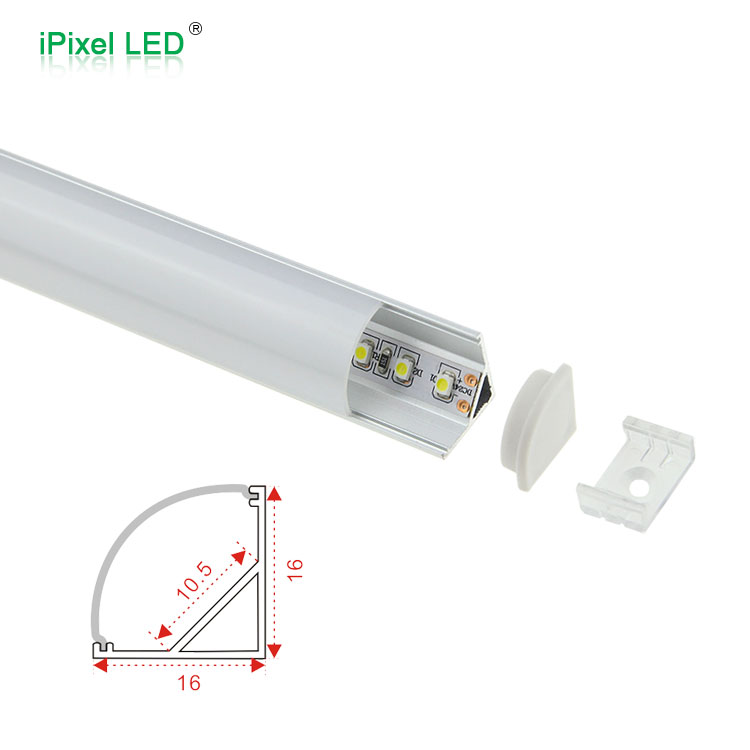

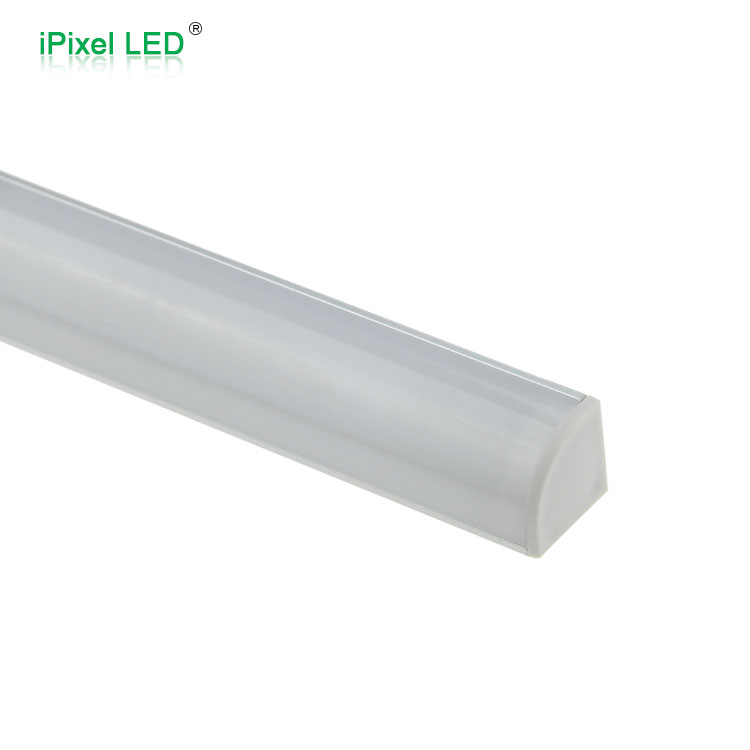

DE1002 Aluminum LED Profile
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 10.55mm(Max)
Recommend LED Strip type: 120leds/m(3528/2835/3014)

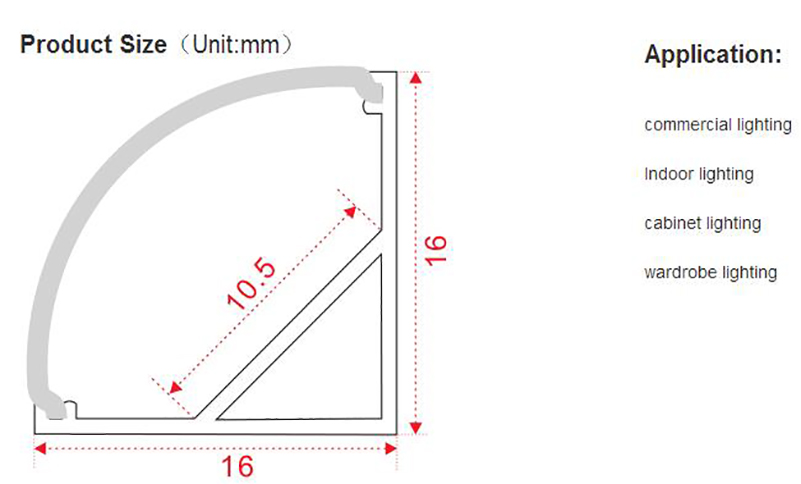

Bar Size: W 16*H 16mm
Bar Length: 100-3000mm
Product Description
1.This LED Channel System includes our high quality aluminum channel and compatible frosted diffuser.
2.Suitable for custom high brightness fixtures. Creating a professional LED strip light installation has never been easier.
3.Comes in 100cm segments and can be cut to any length.
4.16 mm wide by 16 mm high.

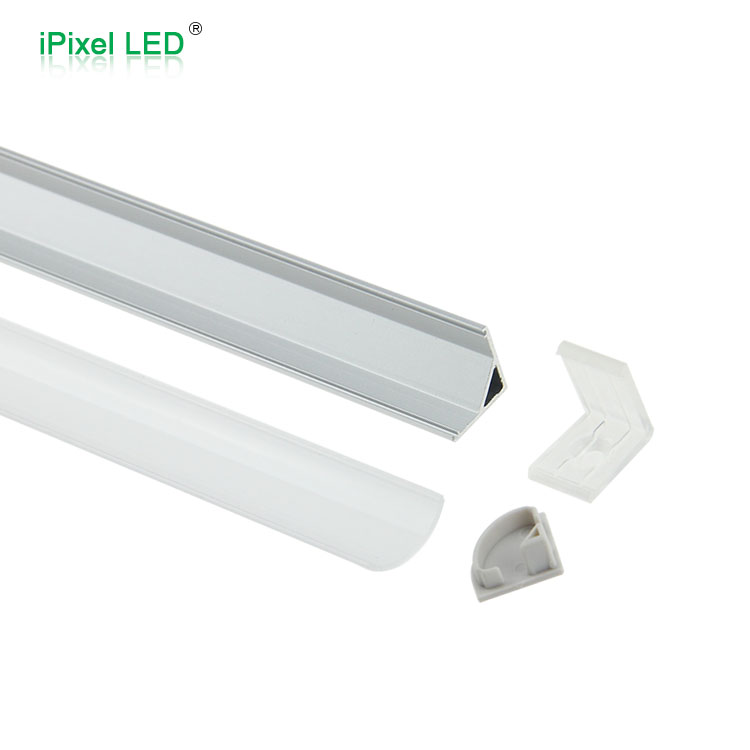

5.Includes aluminum channel and diffuser.
6.Perfect for mounting LED Strip Light up to 10 mm in width.
7.The frosted diffuser protects LED strip light from the elements and softens lighting effects.

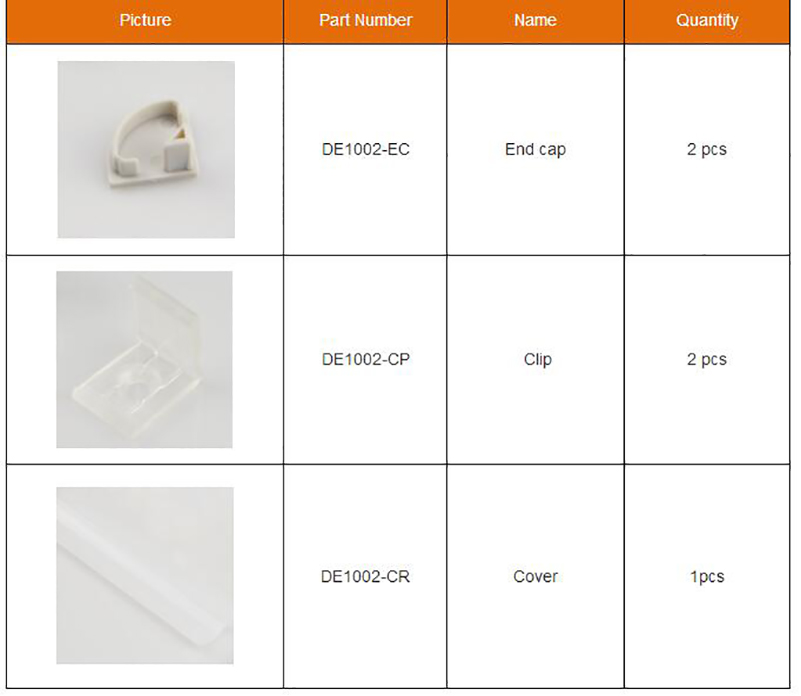

Accessories：
Related Items
FAQ
DE1002 uses a 45° corner / angled lighting structure, which directs the light outward and helps create better illumination for cabinets, wardrobes, shelves, and corner installations.
Yes. The frosted PC diffuser helps soften the light, reduce visible LED spots, and protect the LED strip from dust and touch during indoor use.
DE1002 is commonly used for commercial lighting, indoor lighting, cabinet lighting, wardrobe lighting, display shelves, and furniture linear lighting, especially where angled light output is required.
