Clear cover provides higher light output and better brightness efficiency. Opal cover provides softer, more diffused light and helps reduce visible LED dots.

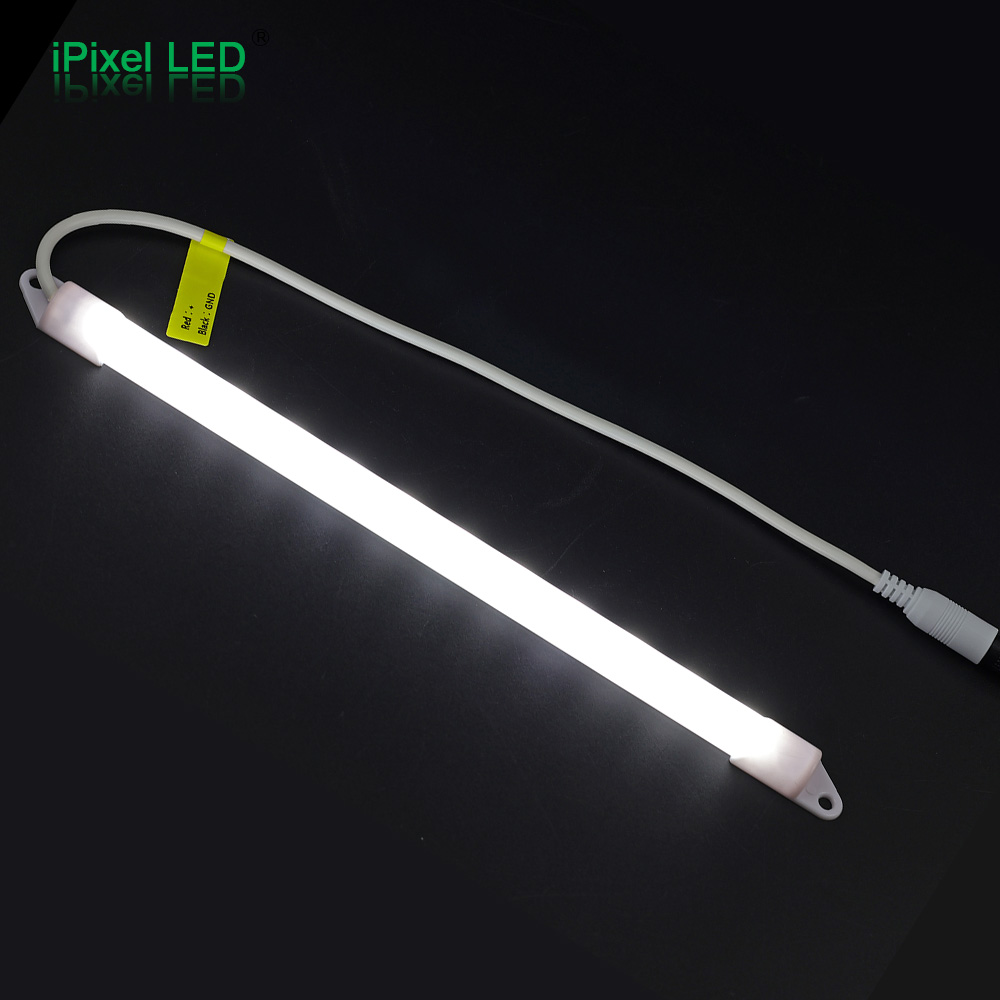

IP65 SMD2835 Refrigerator / Freezer LED Light Bar Series

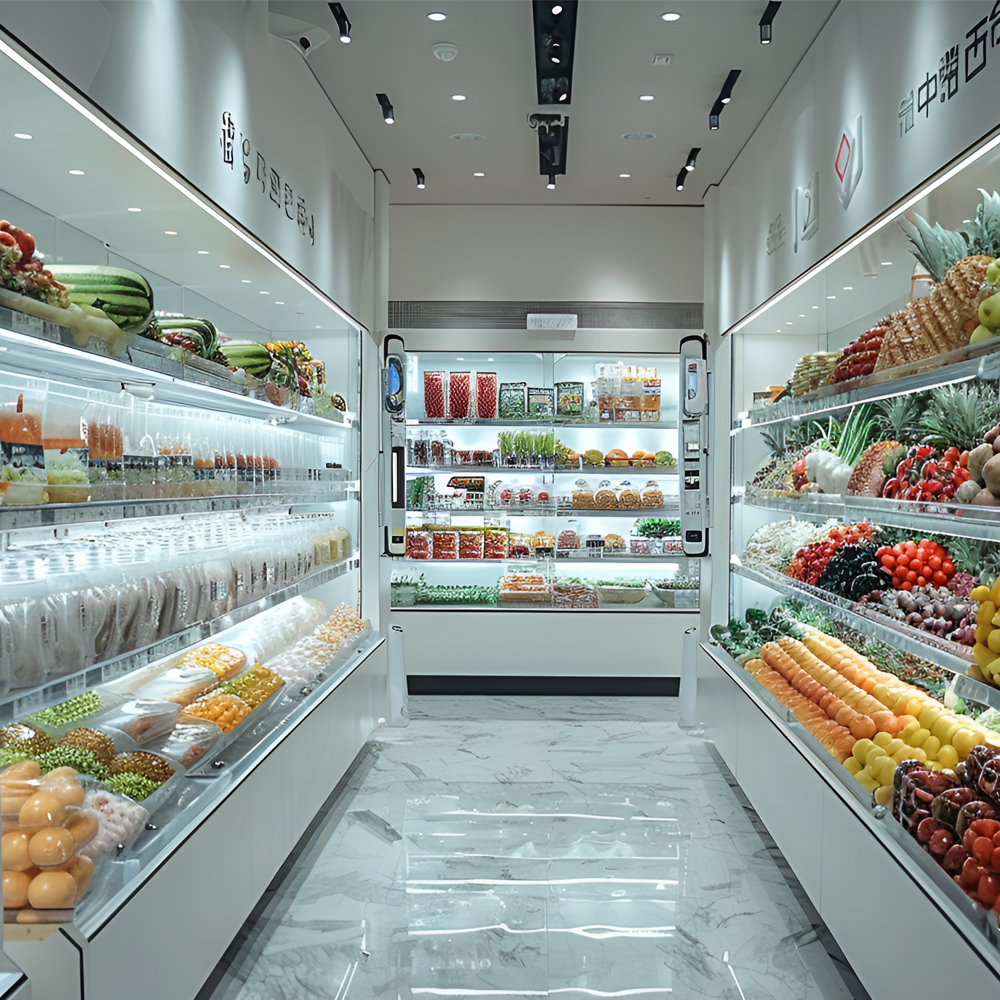

The IP65 SMD2835 Refrigerator / Freezer LED Light Bar Series is designed for commercial refrigeration cabinets, freezer displays, beverage coolers, chilled showcases, and other low-voltage refrigerated display applications.
This series uses high-brightness SMD2835 LEDs with an aluminum substrate for heat dissipation, providing stable brightness, long service life, and uniform illumination without obvious dark areas, stripes, or light spots. The series is available in multiple profile sizes and cover options to match different cabinet structures and lighting requirements.
Available models include compact narrow-profile options and wider-profile versions for stronger visual presence or larger cabinet frames. Clear and opal cover options are available depending on whether the project requires higher light output or softer diffused lighting.
DC12V12LEDs/m16/17/24mm WidthSingle ColorIP65
Overview & Key Features
Series Overview
This series is developed for refrigerator and freezer lighting where stable brightness, moisture protection, compact structure, and easy customization are required. All models operate at DC12V, use 12pcs SMD2835 LEDs per light bar, and support 3000K / 4000K / 6500K color temperatures. The standard products are rated IP65 and support custom lengths up to 200cm.
The series includes:

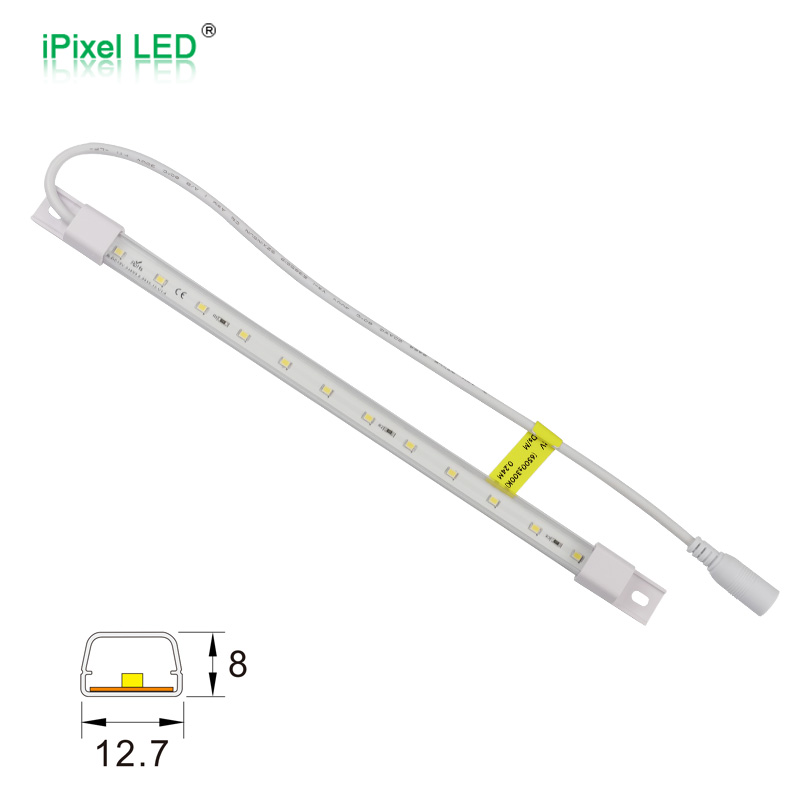

- B013012BB1LZ(FL) — slim 16mm-class clear version for narrow cabinet frames.

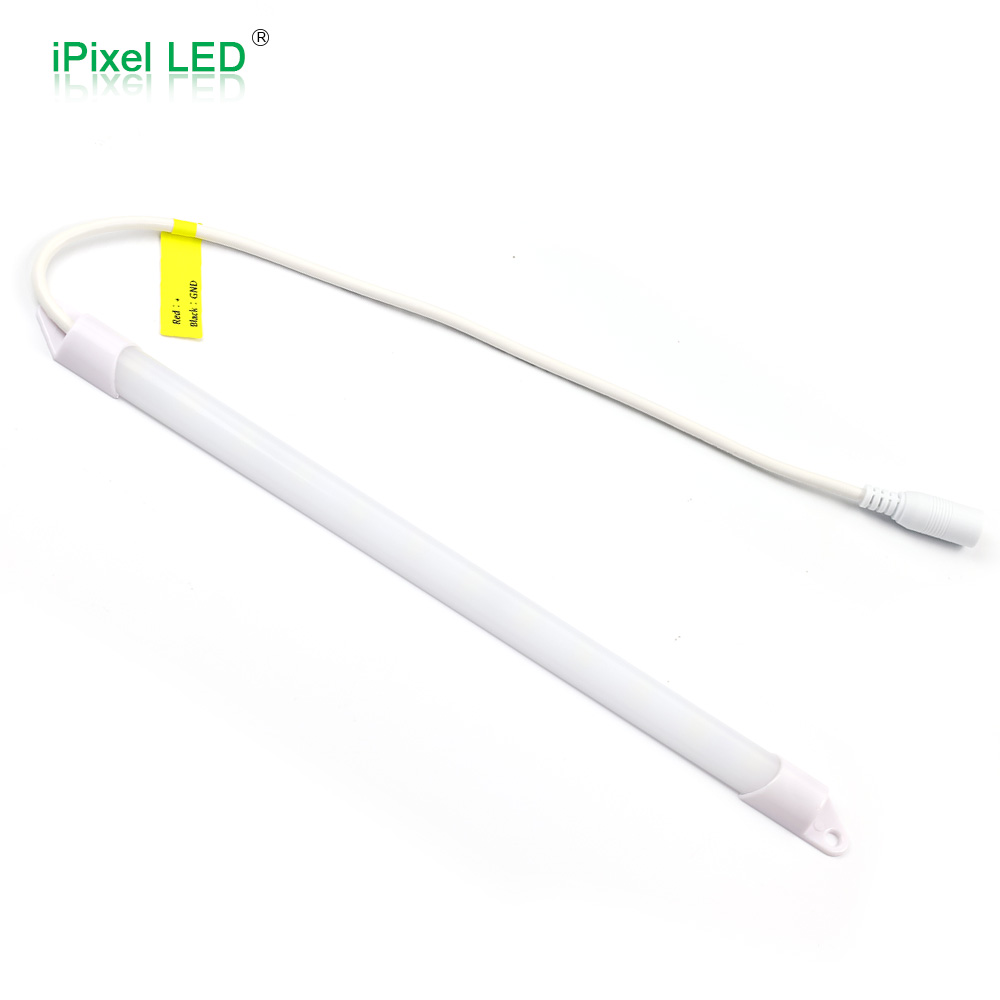

- B015012BB1LZ(FL) — 17mm-class clear / opal version for general refrigeration lighting.

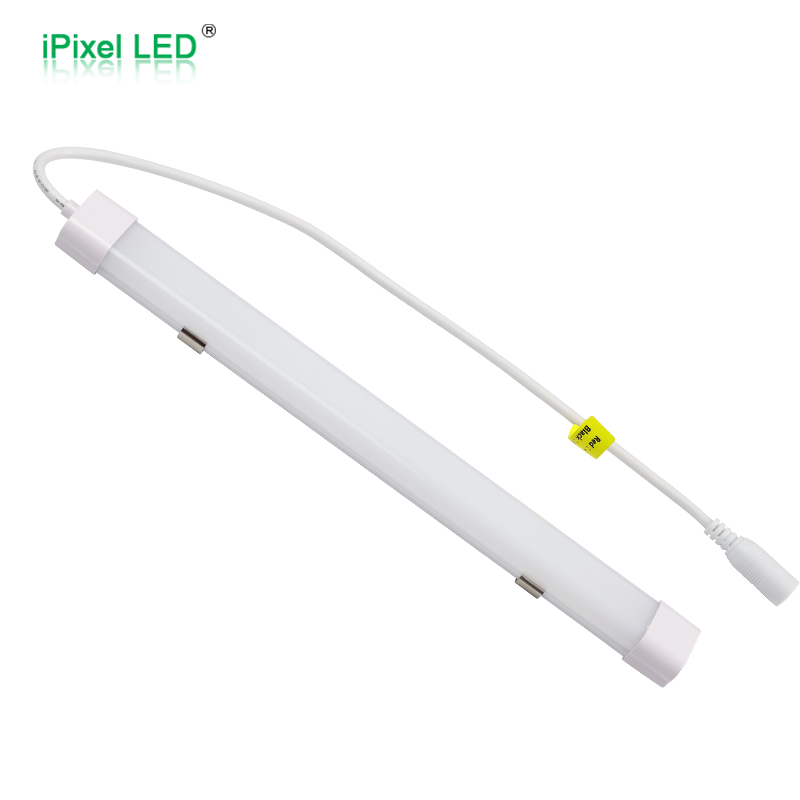

- B023012BB1LZ(FL) — 24mm-class clear / opal version for wider frames or stronger structure.
Key Features
- Designed for refrigerator and freezer lighting
Suitable for refrigerated display cabinets, commercial freezers, beverage coolers, supermarket display cabinets, and similar low-temperature display applications. - High-brightness SMD2835 LED source
Uses large-chip SMD2835 LEDs for high brightness, low attenuation, and long service life. - High thermal-conductivity aluminum substrate
Aluminum substrate improves heat dissipation and helps maintain stable performance during long operation. - Uniform light output
Designed to reduce dark areas, stripes, and visible light spots, making it suitable for product display lighting. - Clear and opal cover options
Clear cover provides higher luminous output, while opal cover provides softer and more diffused lighting. - IP65 protection
Suitable for damp or condensation-prone refrigeration environments - Custom length available
Standard drawings indicate custom lengths up to 200cm, cut to size.
Product Series Specification Matrix
| Model No | LED Qty | Voltage | Power/m | Size (mm) | IP Rate | CCT | Luminance |
|---|---|---|---|---|---|---|---|
| B013012BB1LZ(FL) Clear | 12 LEDs/pcs | DC12V | 1.6W/pcs, approx. 5.8W/m | 274×16×11mm | IP65 | 3000K / 4000K / 6500K | 260lm, 162lm/W |
| B015012BB1LZ(FL) Clear | 12 LEDs/pcs | DC12V | 1.6W/pcs, approx. 6.0W/m | 268×17×10mm | IP65 | 3000K / 4000K / 6500K | 256lm, 160lm/W |
| B015012BB1LZ(FL) Opal | 12 LEDs/pcs | DC12V | 1.6W/pcs, approx. 6.0W/m | 268×17×10mm | IP65 | 3000K / 4000K / 6500K | 240lm, 150lm/W |
| B023012BB1LZ(FL) Clear | 12 LEDs/pcs | DC12V | 1.6W/pcs, approx. 6.1W/m | 264×24×14mm | IP65 | 3000K / 4000K / 6500K | 258lm, 161lm/W |
| B023012BB1LZ(FL) Opal | 12 LEDs/pcs | DC12V | 1.6W/pcs, approx. 6.3W/m | 252×24×13mm | IP65 | 3000K / 4000K / 6500K | 240lm, 150lm/W |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need the narrowest structure for compact refrigerator frames | B013012BB1LZ(FL) Clear |
| Need a balanced size for standard refrigerator or freezer lighting | B015012BB1LZ(FL) |
| Need softer light with less visible LED dots | B015012BB1LZ(FL) Opal or B023012BB1LZ(FL) Opal |
| Need higher brightness and maximum light output | Clear cover version |
| Need a wider and stronger profile for larger cabinet structures | B023012BB1LZ(FL) |
| Need cooler visual effect for beverage or freezer display | 6500K |
| Need warmer light for specialty food, wine, or premium display | 3000K / 4000K |
| Need customized cabinet length | Choose any model with customized length up to 200cm |

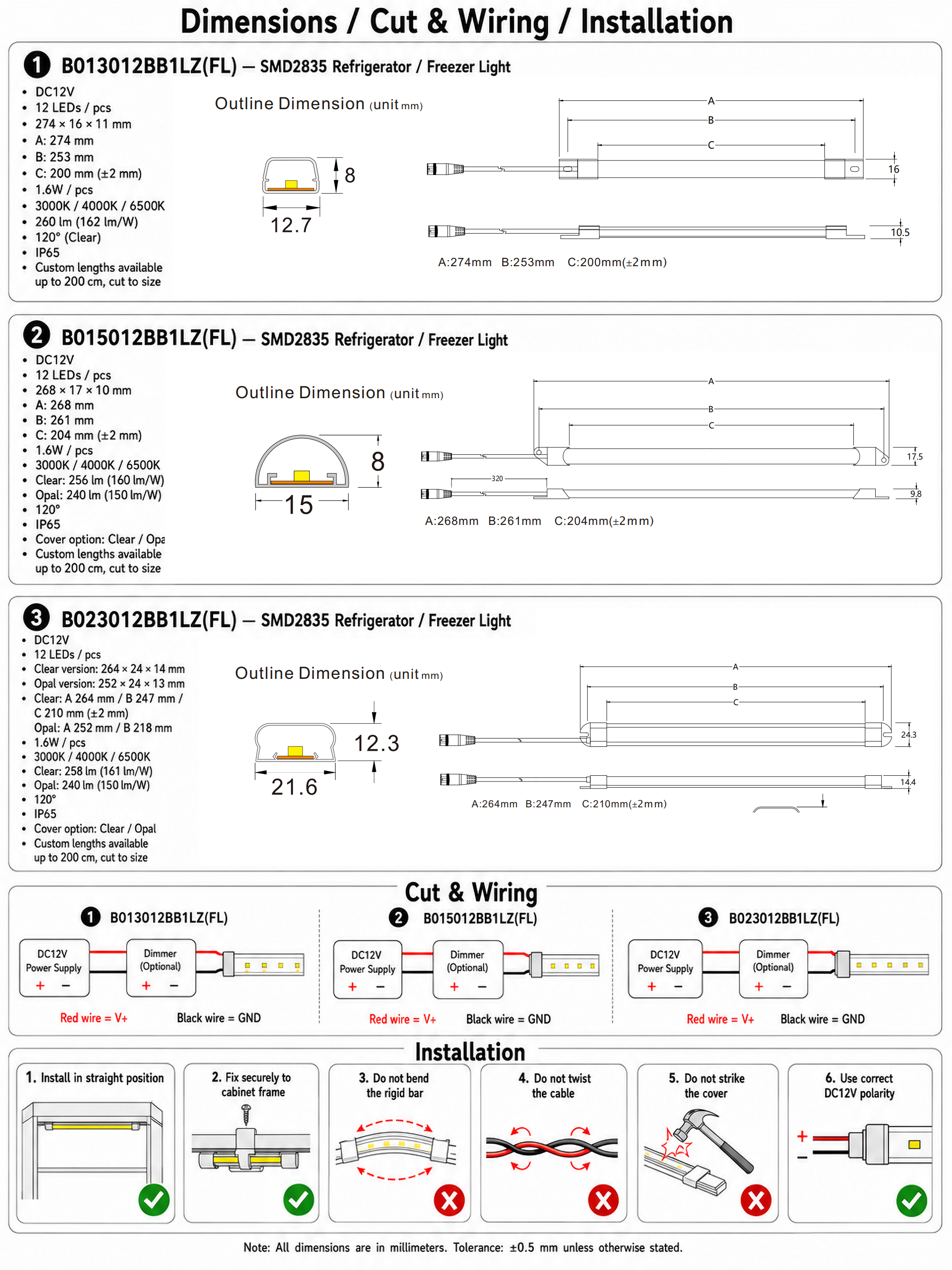

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V | Standard voltage for this series |
| LED Type | SMD2835 | High-brightness 2835 LED source |
| Color Type | Single color white | Standard white light series |
| Color Range | 3000K / 4000K / 6500K | Other CCT can be discussed by project |
| Size (mm) | 274×16×11mm / 268×17×10mm / 264×24×14mm / 252×24×13mm | Final size depends on model and cover type |
| Power | 1.6W/pcs | Approx. 6W/m equivalent depending on customized length |
| IP Rating | IP65 | Suitable for refrigerator / freezer lighting environments |
| Length | Standard length by model; custom length up to 200cm | Cut-to-size available |
| Connector | Standard lead wire / project connector | Connector can be customized according to cabinet wiring |
| Mounting | Fixed installation / cabinet frame mounting / customized bracket or end-cap design | Mounting method depends on cabinet structure |
| Packing | Individual packing / bulk project packing | Can be customized for OEM or project delivery |
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
B013012BB1LZ(FL) is recommended for narrow cabinet frames because it uses a slim 16mm-class profile.
Yes. The datasheets indicate that custom lengths are available up to 200cm, cut to size. Final length should be confirmed according to the cabinet drawing.
Yes. The series is designed as refrigerator/freezer light bars and is rated IP65, with an operating temperature range of -25°C to 60°C.
