Because they all use the N1222 / 12×22mm Arc silicone neon structure, with the same general installation logic, bending direction and application positioning.
12×22 Arc LED Neon Flex Series

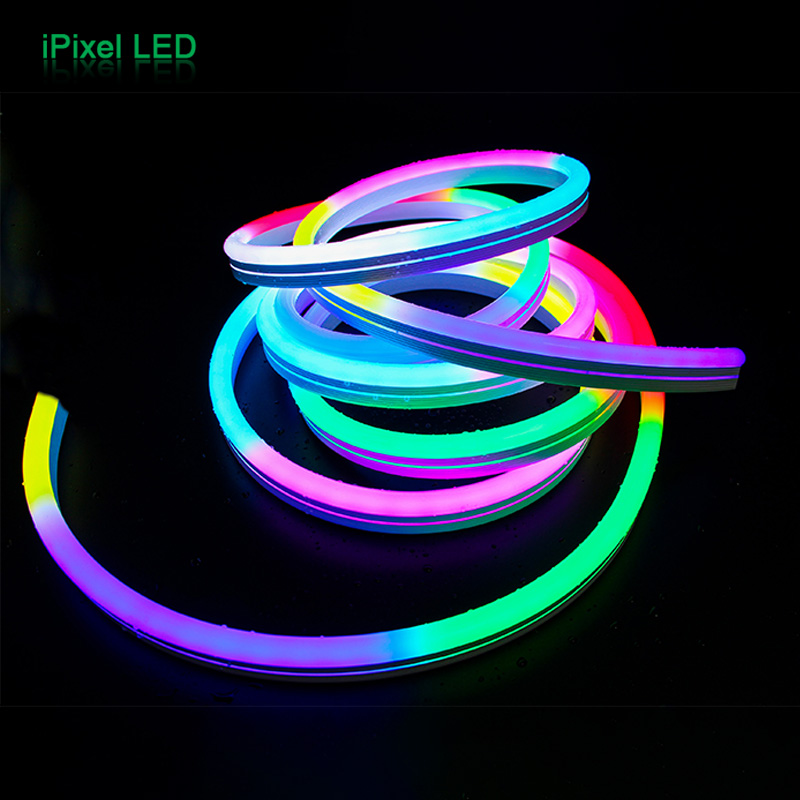

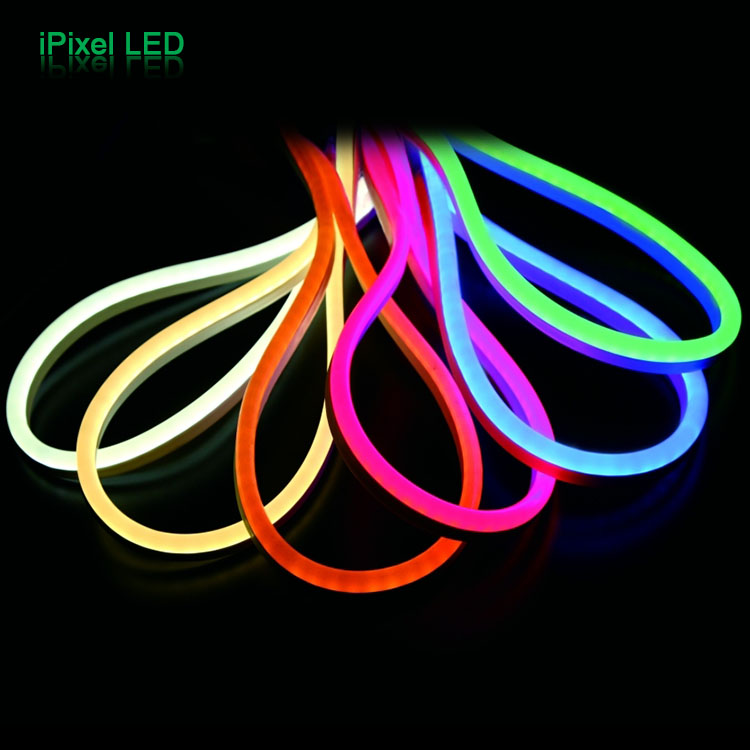

The 12×22 Arc LED Neon Flex Series is designed for architectural contour lighting, signage lighting, indoor/outdoor decorative lighting, and project-based linear lighting applications requiring a smooth arc luminous surface.
This series includes single color white, RGB SPI addressable, and RGBW DMX512 / differential signal versions. All models use a 12×22mm arc surface neon flex structure, high-transmittance silicone material, soft dot-free illumination, and left/right bending capability with R＞100mm bending reference.
DC12V/DC24V60/120LEDs/m12mm Widthsingle color/RGB/RGBWIP65/IP67
Overview & Key Features
Series Overview
This series is positioned as a medium-large arc neon family for projects that require higher visual presence than small-size neon flex. The 12×22mm profile provides a wider luminous surface and more suitable appearance for building outlines, signboards, decorative borders, commercial interiors, and outdoor contour lighting.
The single-color version is suitable for stable white lighting. The RGB SPI version is suitable for addressable dynamic color effects. The RGBW DMX512 version is suitable for project-level RGBW control where signal stability and anti-interference performance are important.
Key Features

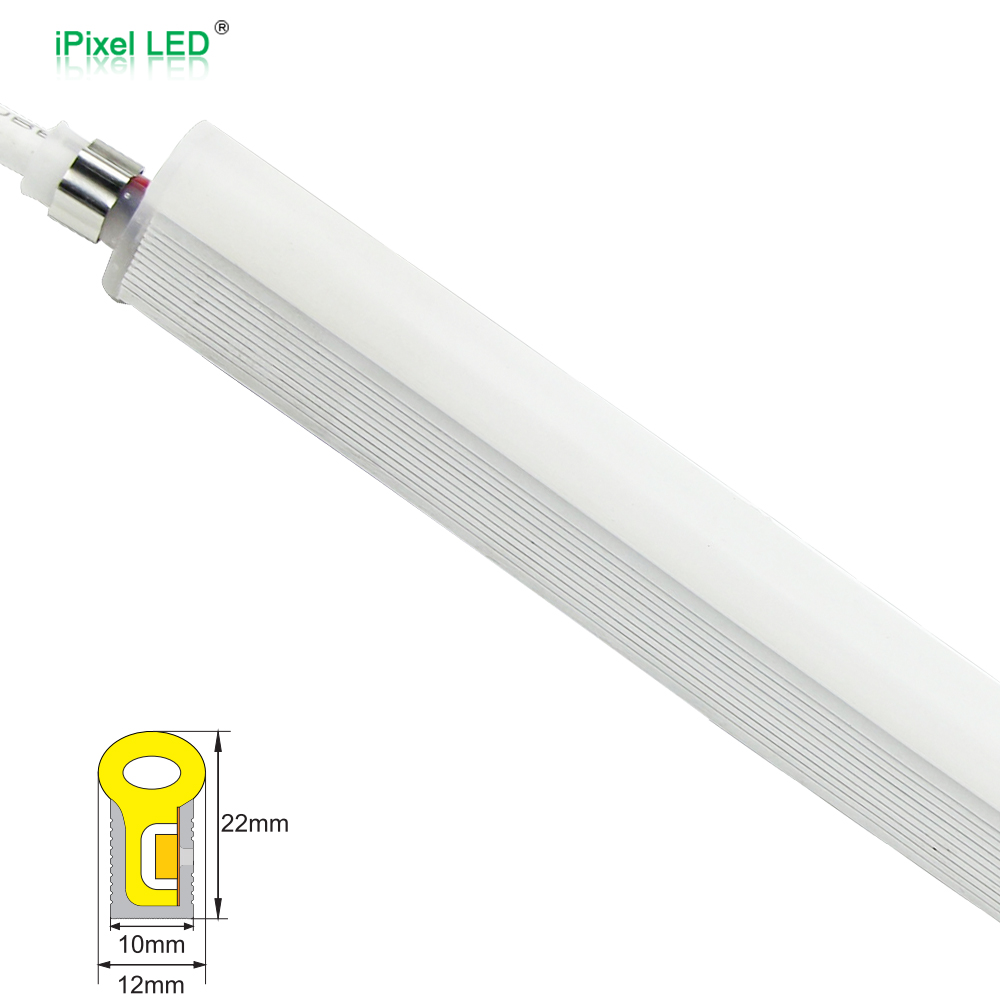

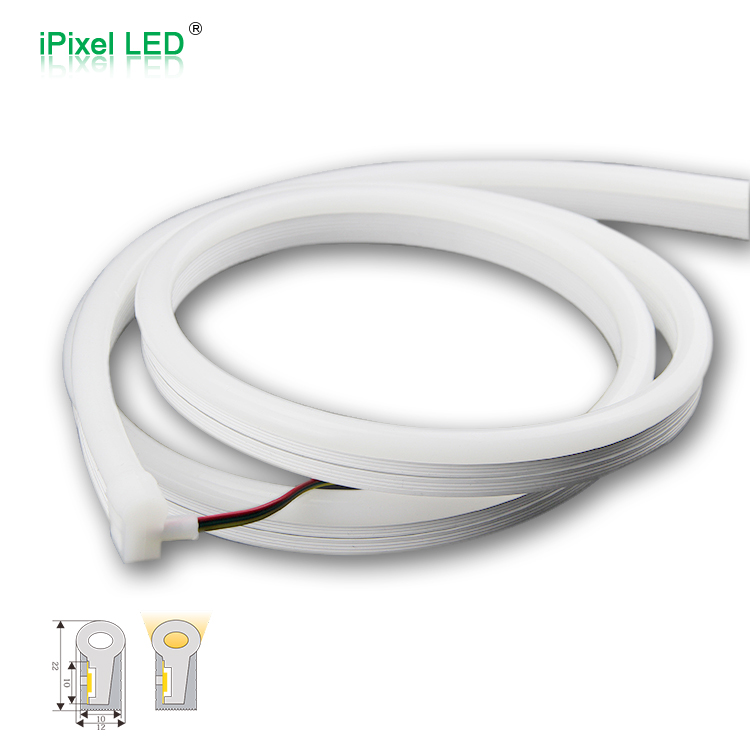

- 12×22mm arc surface neon flex profile
- Single color / RGB / RGBW versions available
- DC12V and DC24V options
- SMD5050 LED source
- SPI / WS2811 addressable RGB option
- DMX512 / Hi512 / TM512AC RGBW option
- Uniform, soft, dot-free silicone illumination
- R＞100mm bending reference
- Straight outlet, side outlet and bottom outlet options depending on version
- IP67 shown on specification covers
- Standard length: 5025±15mm
- Max length: 15m
- Suitable for signage, architectural contour and indoor/outdoor decoration
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| N012120BB1LZ | 120 pcs/m | DC12V | 12W/m | Single Color / 2-wire | 12mm | 3000K / 4000K / 6500K | 25mm | W: 390 lm/m | N1222 Arc Single Color |
| N012120BC1LZ | 120 pcs/m | DC24V | 12W/m | Single Color / 2-wire | 12mm | 3000K / 4000K / 6500K | 50mm | W: 390 lm/m | N1222 Arc Single Color |
| N012060CB3SF | 60 pcs/m | DC12V | 12W/m | SPI / WS2811 RGB | 12mm | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 50mm | R:31 / G:65 / B:15 lm/m | N1222 Arc RGB SPI / 20 pixels/m |
| N012060CC3SF | 60 pcs/m | DC24V | 12W/m | SPI / WS2811 RGB | 12mm | RGB: R 620–630nm / G 520–530nm / B 460–470nm | 100mm | R:31 / G:65 / B:15 lm/m | N1222 Arc RGB SPI / 10 pixels/m |
| N012060CC4DE1 | 60 pcs/m | DC24V | 19.2W/m | DMX512 / Hi512 / TM512AC RGBW | 12mm | RGBW: 3000K / 4000K / 6500K | 100mm | R:60 / G:138 / B:40 / W:197 lm/m | N1222 Arc RGBW DMX |
| N012060CC4DC0 | 60 pcs/m | DC24V | 19.2W/m | DMX512 / Hi512 / TM512AC RGBW | 12mm | RGBW: 3000K / 4000K / 6500K | 100mm | R:60 / G:138 / B:40 / W:197 lm/m | N1222 Arc RGBW DMX |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Stable white contour lighting | N012120BB1LZ / N012120BC1LZ |
| DC12V single-color white project | N012120BB1LZ |
| DC24V single-color white project | N012120BC1LZ |
| RGB dynamic effect / addressable control | N012060CB3SF / N012060CC3SF |
| Higher pixel density RGB effect | N012060CB3SF, 20 pixels/m, DC12V |
| Longer DC24V RGB installation | N012060CC3SF, 10 pixels/m, DC24V |
| RGBW color effect with white channel | N012060CC4DE1 / N012060CC4DC0 |
| Project requires DMX512 / stronger anti-interference signal | N012060CC4DE1 / N012060CC4DC0 |
| Need tighter cutting accuracy | DC12V versions: 25mm or 50mm cut depending on model |
| Outdoor signage / architectural outline | N1222 Arc Series with proper waterproof end sealing |

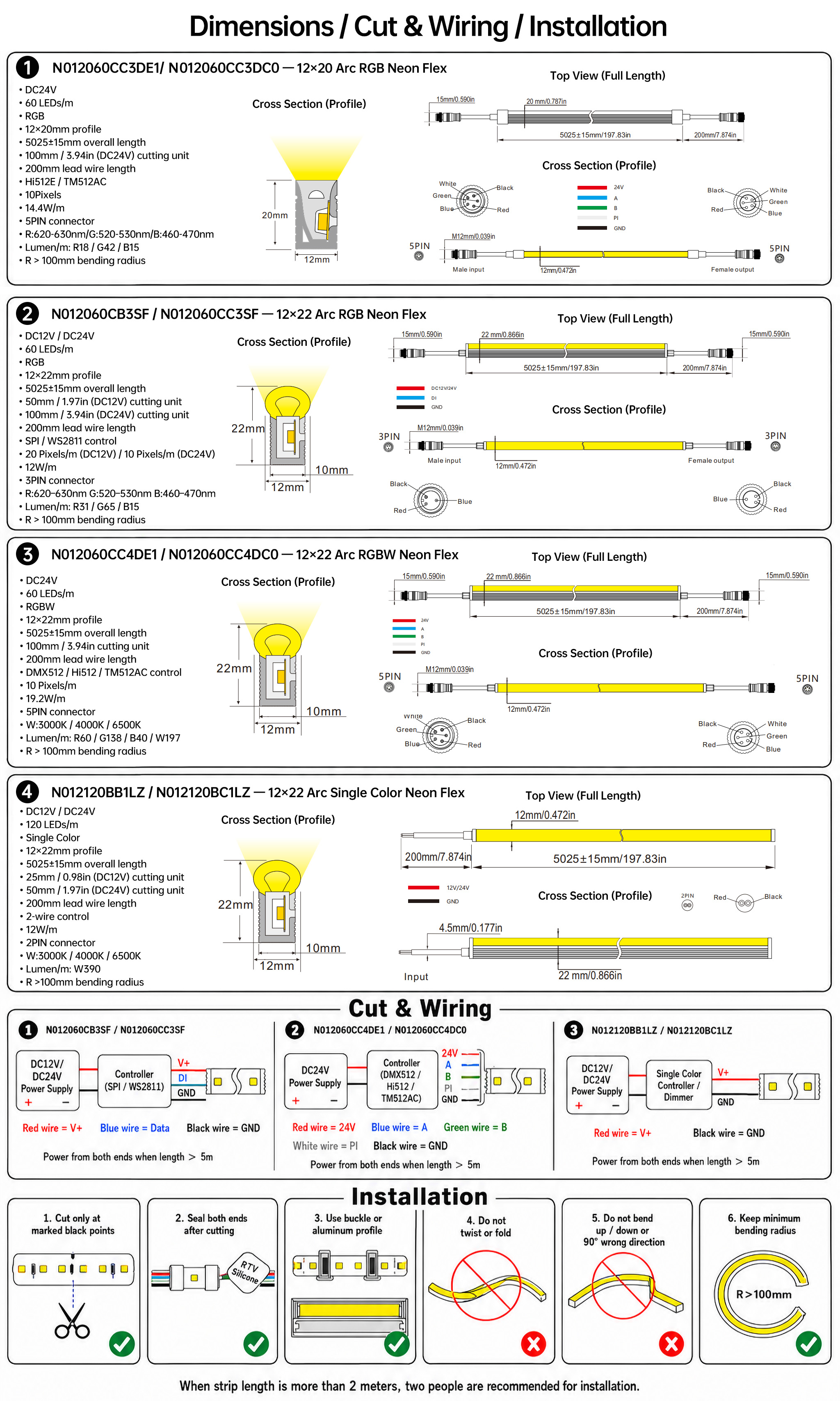

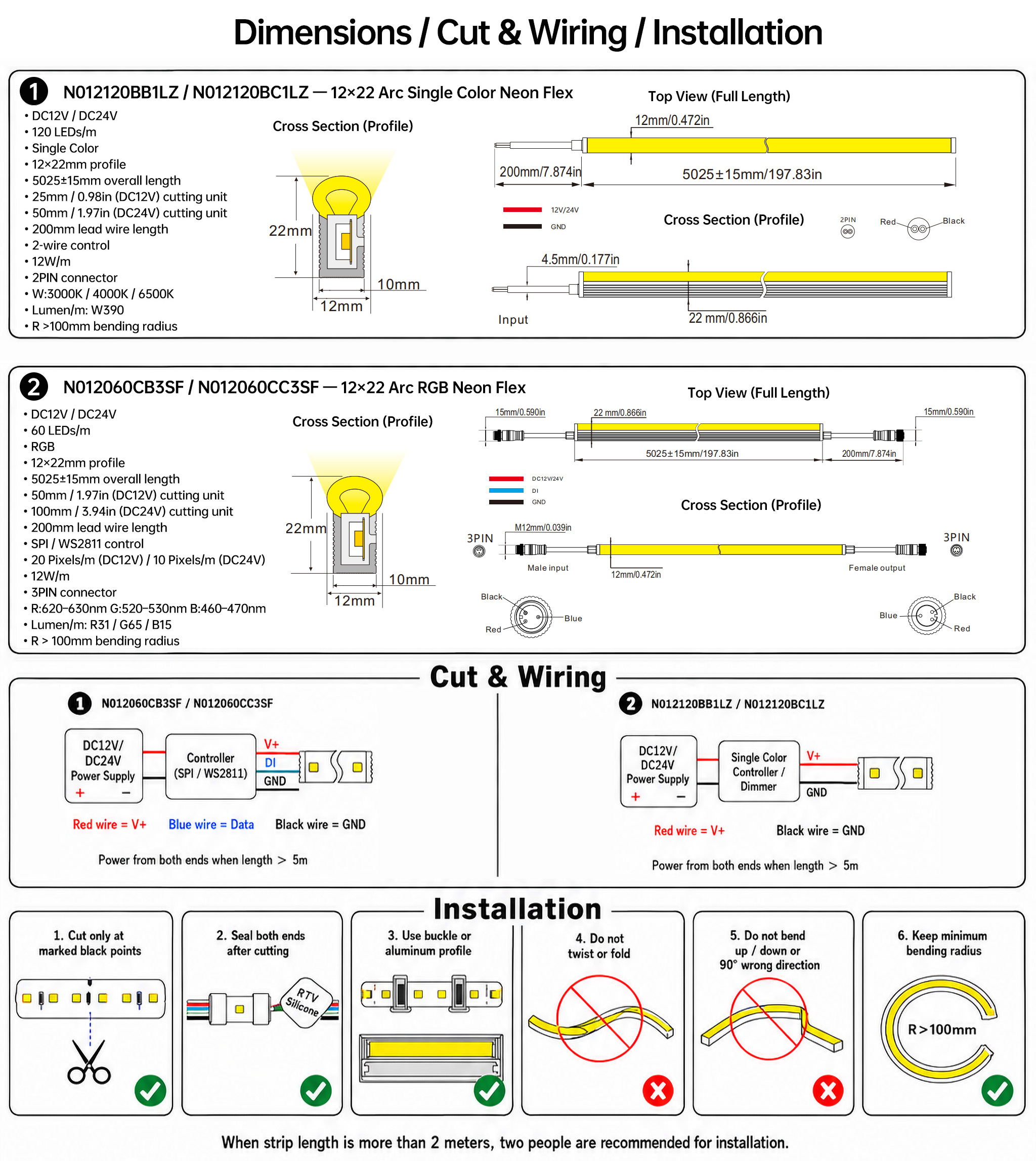

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC12V / DC24V | DC12V: N012120BB1LZ, N012060CB3SF. DC24V: N012120BC1LZ, N012060CC3SF, N012060CC4DE1, N012060CC4DC0. |
| LED Type | SMD5050 | All listed N1222 models use SMD5050. |
| Color Type | Single Color / RGB / RGBW | Single-color white, RGB SPI, and RGBW DMX versions are included in this merged series. |
| Color Range | White CCT / RGB wavelength / RGBW CCT | White: 3000K / 4000K / 6500K. RGB wavelength: R 620–630nm, G 520–530nm, B 460–470nm. RGBW version includes 3000K / 4000K / 6500K white options. |
| PCB Width | 12mm | Suggested final wording: PCB / Profile Width: 12mm. Full profile size is 12×22mm. |
| Power | 12W/m / 19.2W/m | Single-color and RGB SPI versions are 12W/m; RGBW DMX versions are 19.2W/m. |
| Control | 2-wire single color / SPI WS2811 / DMX512 Hi512 or TM512AC | Select controller according to product version. Do not mix SPI and DMX wiring. |
| IP Rating | IP67 / IP65 label confirmation required | Specification covers show IP67. RGBW DMX packaging label snippets show IP65, so final IP rating must be confirmed before publishing. |
| Length | 5025±15mm standard length; max 15m | When the product is longer than 5m, power feeding from both ends is recommended. |
| Connector | 2PIN / 3PIN / 5PIN; straight outlet / side outlet / bottom outlet | Single-color uses 2PIN; RGB SPI uses 3PIN; RGBW DMX uses 5PIN. Mechanical pages show straight, side and bottom outlet options depending on version. |
| Mounting | Buckle / aluminum profile / embedded mounting / shapable mounting slot | Buckle and aluminum profile are standard installation methods; shapable mounting slot is listed in accessories. |
| Packing | 5m roll; carton / single carton / wooden case | Packaging pages show 5m×2 / 10m carton and 5m×8 / 40m carton options, with wooden case customized to order. |
Related Items
Wine Cabinet Lighting – Low-Heat, Condensation-Safe & Color-Consistent Illumination
Electric Fireplace Lighting – High-Temp Stability, Long Life & Safe Integration
Range Hood Lighting – Heat/Grease/Chemical Resistance & Safe Integration
Industrial Cabinet Lighting – High-Temp, Oil/Solvent Resistance & Flicker-Free Operation
Documents & Compliance
| Document Name | Type | Language | Verslon | Download/Remark |
|---|---|---|---|---|
| Datasheet | EN | V1.2 | Download | |
| User Manual | EN | V1.0 | Download | |
| IES File | IES | EN | V1.0 | Download |
| RoHS | Certificate | EN | V1.0 | Download |
| CE | Certificate | EN | V1.0 | Download |
| LM-80 Test Report | EN | V1.0 | Download |
FAQ
The main differences are color type, control method, voltage, cutting length and pixel quantity. Single-color models use 2-wire control; RGB models use SPI / WS2811; RGBW models use DMX512 / Hi512 / TM512AC.
N012120BB1LZ and N012120BC1LZ are single-color white versions.
N012060CB3SF and N012060CC3SF are RGB SPI / WS2811 versions.
