The main advantage is that the PCB can bend sideways and follow curves, letters, signs and irregular outlines more easily than a standard straight LED strip.

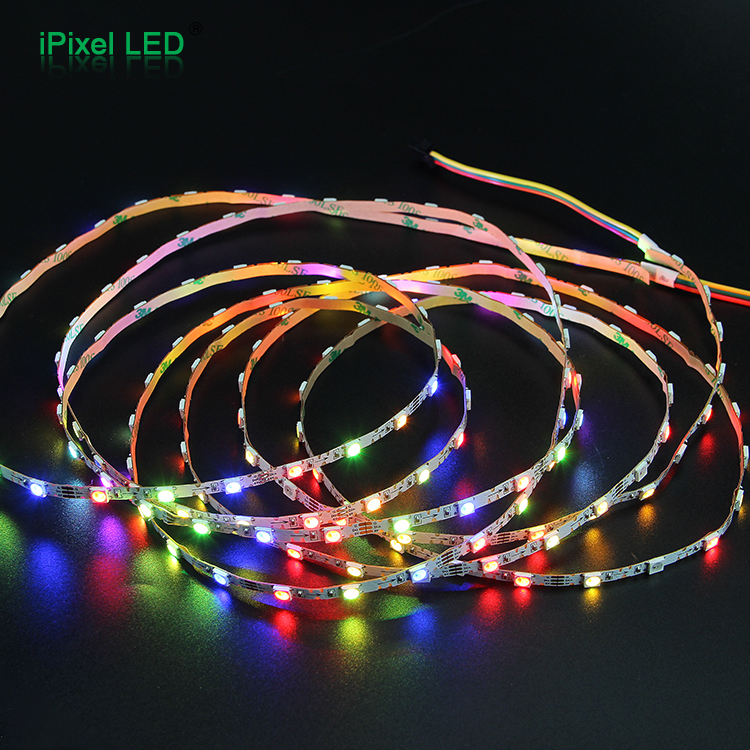

S-Shape / Zigzag Addressable LED Strip Series

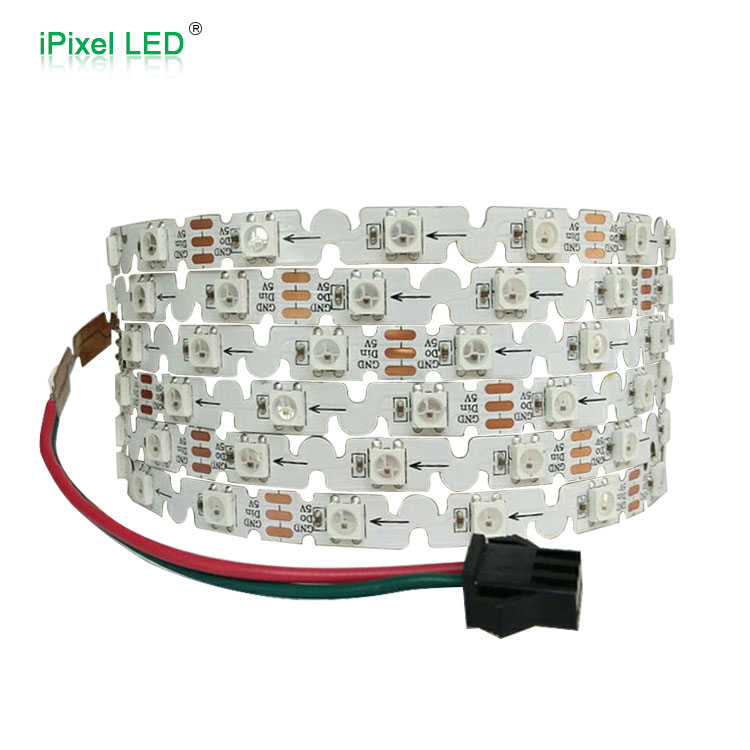

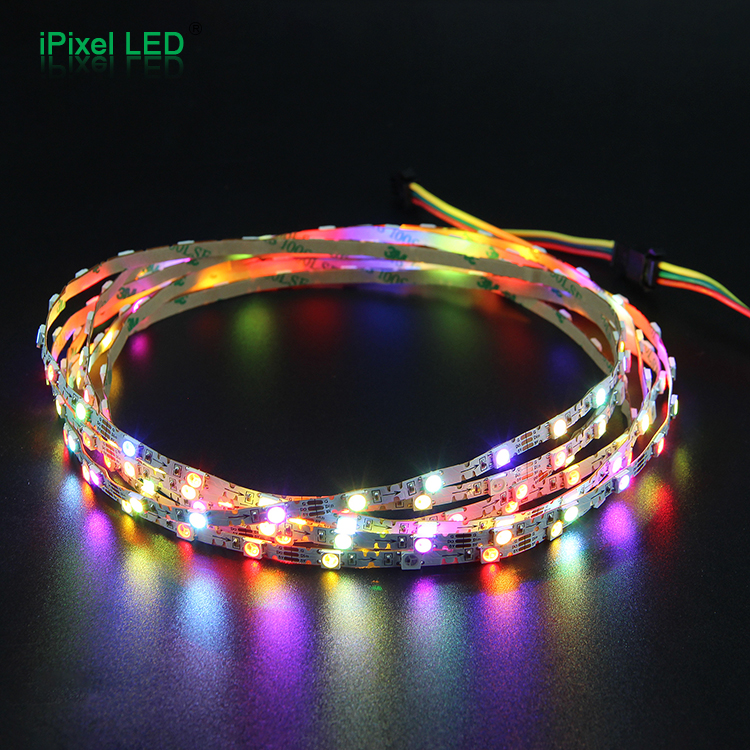

This S-Shape / Zigzag Addressable LED Strip Series is designed for curved, irregular and shape-following RGB / RGBW lighting applications. The special zigzag PCB structure allows the strip to bend sideways and follow letters, logos, signs, curved outlines and decorative contours more easily than standard straight LED strips.
The series includes 5mm RGB 48LEDs/m, 8mm RGB 60LEDs/m, and 8mm RGBW 60LEDs/m versions. All models use DC5V input, SPI / SK6812 addressable control, SMD5050 LEDs, 3 LEDs per cutting section, 5m per reel, and IP20 non-waterproof structure. The datasheets describe the biggest advantage as the S shape, which can be bent at different angles for flexible modeling applications.
DC5V48/60LEDs/m5/8mm WidchRGBIP20/IP65
Overview & Key Features
Series Overview
This series is suitable for projects where a normal straight LED strip cannot follow the required shape. The zigzag PCB design allows the strip to be arranged along curved lines, corners, signs and irregular outlines.
The S005048CA3SA1(S) is a 5mm narrow RGB version with 48 LEDs/m. The S008060CA3SA1(S) is an 8mm RGB version with 60 LEDs/m. The S008060CA4SA1(S) is an 8mm RGBW version with an additional white channel available in 3000K / 4000K / 6500K.
Key Features
- S-shape / zigzag addressable LED strip series
- DC5V low-voltage input
- SPI / SK6812 digital control
- RGB and RGBW options
- SMD5050 LED package
- 48LEDs/m and 60LEDs/m options
- 5mm and 8mm PCB width options
- 3 LEDs per cutting section
- Designed for side-bending and irregular layouts
- 5m per reel standard length
- IP20 non-waterproof version
- 120° beam angle
- Suitable for signage, logo lighting, decorative contours, curved shapes and custom RGB / RGBW effects
Product Series Specification Matrix
| Model No | LED Qty/m | Voltage | Power/m | Control | PCB Width | CCT | Cut | Lumen/m | Version |
|---|---|---|---|---|---|---|---|---|---|
| S005048CA3SA1(S) | 48 | DC5V | 10W | SPI / SK6812 | 5mm | RGB | 62.5mm / 3LED | R:30 / G:87 / B:18lm | 5mm S-shape RGB, 48 pixels/m |
| S008060CA3SA1(S) | 60 | DC5V | 12W | SPI / SK6812 | 8mm | RGB | 50mm / 3LED | R:60 / G:180 / B:40lm | 8mm S-shape RGB, 60 pixels/m |
| S008060CA4SA1(S) | 60 | DC5V | 13W | SPI / SK6812 | 8mm | RGB+W: 3000K / 4000K / 6500K | 50mm / 3LED | R:45 / G:120 / B:30 / W:320lm | 8mm S-shape RGBW, 60 pixels/m |
How to Choose
| Project Requirement | Recommended Option |
|---|---|
| Need the narrowest S-shape strip | S005048CA3SA1(S) — 5mm PCB width, suitable for tighter grooves or narrower signage layouts. |
| Need standard RGB zigzag addressable effect | S008060CA3SA1(S) — 8mm PCB, 60LEDs/m, RGB output. |
| Need RGB color effects plus functional white | S008060CA4SA1(S) — RGBW version with 3000K / 4000K / 6500K white options. |
| Need lower power consumption | S005048CA3SA1(S) — 10W/m, lowest power in this group. |
| Need brighter RGB output than the 5mm version | S008060CA3SA1(S) — higher listed RGB lumen output. |
| Need white channel for display or decorative lighting | S008060CA4SA1(S) — independent white channel available. |
| Need shorter cutting section | S008060CA3SA1(S) or S008060CA4SA1(S) — 50mm / 3LED cutting length. |
| Need curved logo / letters / irregular outline | All models — choose by width, density and RGB/RGBW requirement. |
| Need waterproof version | Not recommended in this series — datasheets show IP20 only. Use another waterproof flexible neon or protected strip if waterproofing is required. |

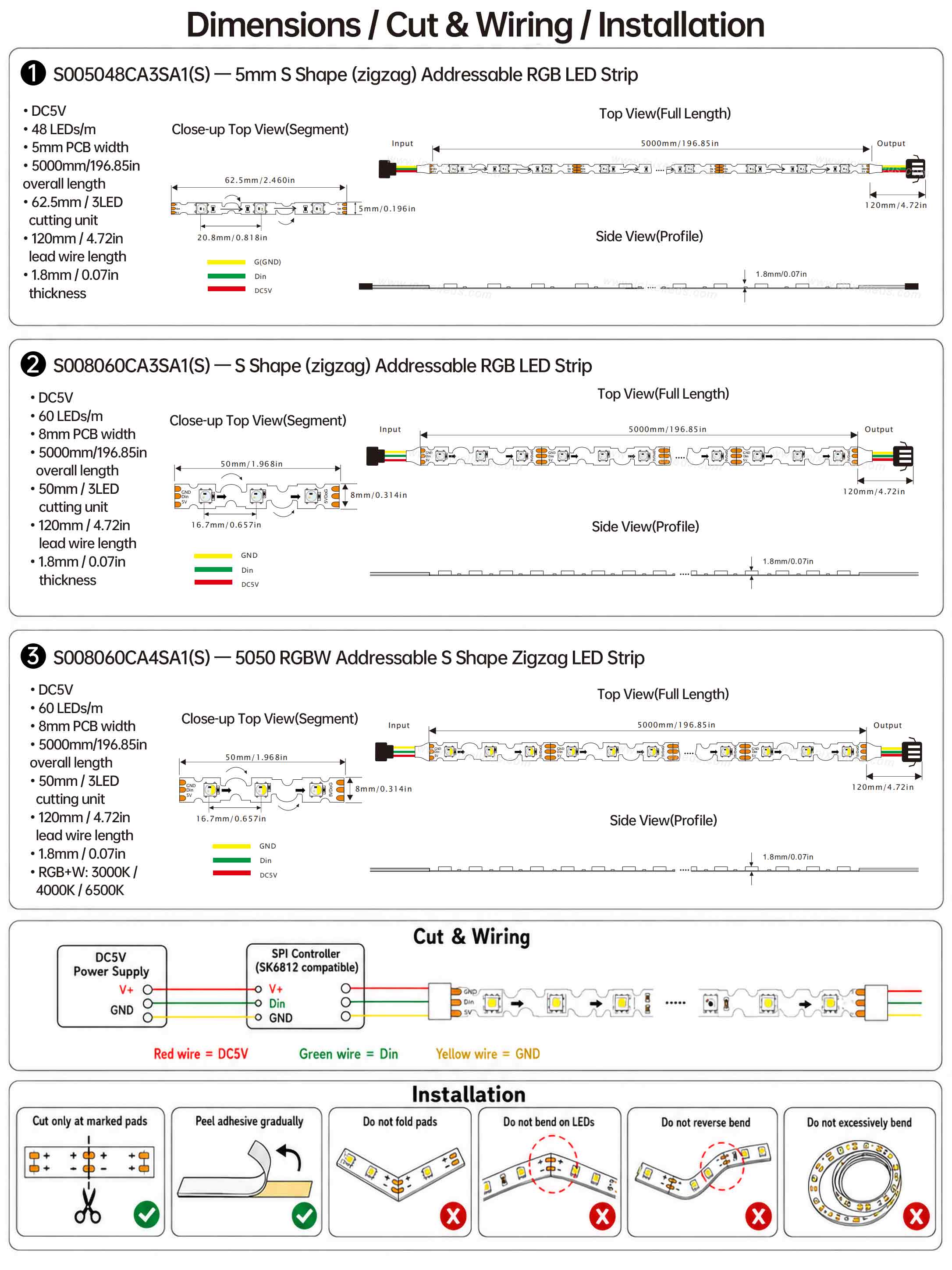

Structure & Installation
Protection, Customization & Options
| Option Type | Available Options | Notes |
|---|---|---|
| Voltage | DC5V | All models in this series use DC5V. |
| LED Type | SMD5050 RGB / SMD5050 RGBW | RGB for S005048CA3SA1(S) and S008060CA3SA1(S); RGBW for S008060CA4SA1(S). |
| ColorType | RGB / RGBW | Select RGB for dynamic color effects; select RGBW when white light is required. |
| Color Range | RGB / RGB+W | RGB wavelength: R 615–630 / 620–625nm, G 520–535 / 520–525nm, B 450–460 / 460–465nm. RGBW white options: 3000K / 4000K / 6500K. |
| PCB Width | 5mm / 8mm | 5mm for narrow RGB layout; 8mm for RGB and RGBW versions. |
| Power | 10W/m / 12W/m / 13W/m | Select by brightness, color type and thermal requirement. |
| Control | SPI / SK6812 | Controller must match SK6812 protocol, DC5V input and pixel quantity. |
| IPRating | IP20 | Datasheets state IP20 only / non-waterproof version. |
| Length | 5m standard / custom length | Datasheets show 5m per reel; custom length can be discussed. |
| Connector | JST SM connector / bare wire / custom connector | Connector should match DC5V / Din / GND and signal direction. |

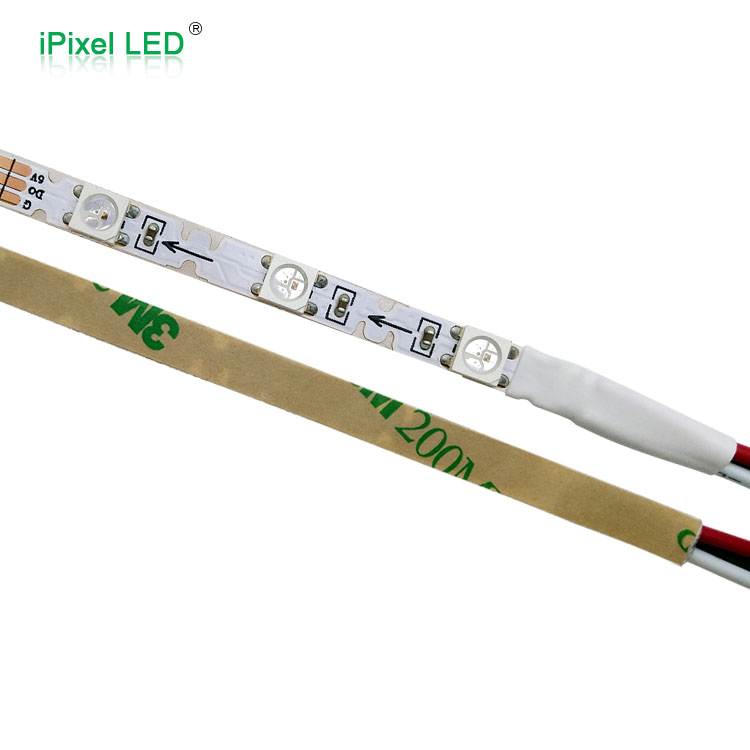

| Mounting | 3M adhesive tape / mechanical fixing if needed | Apply gradually; avoid forced bending at component areas. |
| Packing | Reel / antistatic bag / carton / OEM packing | Datasheets show reel, antistatic bag and carton packing. |
