Calculate the total power of all connected LED products and reserve approximately 20% operating capacity. For example, a 40W LED load should normally use a 60W driver.
24/36/60/100W Cabinet Driver Series
24/36/60/100W Cabinet Driver Series
This compact slim LED driver series is designed for low-voltage indoor lighting systems where installation space is limited. The series includes 24W, 36W, 60W and 100W power platforms, with both 12V and 24V constant-voltage output options.
The low-profile housing, starting from only 18.5mm in height, allows the driver to be concealed inside cabinets, furniture panels, retail displays, shelving systems and other compact structures. Multiple power ratings make it easier to match different LED strip lengths and system loads.
Product Series Specification Matrix
| Power | Product Model | Input Volt. | Output Volt. | Output Current | IP grade | Product size （L*W*H） | Unit Weight | Efficiency | Warranty | Certification | Unit Parking | Carton size |

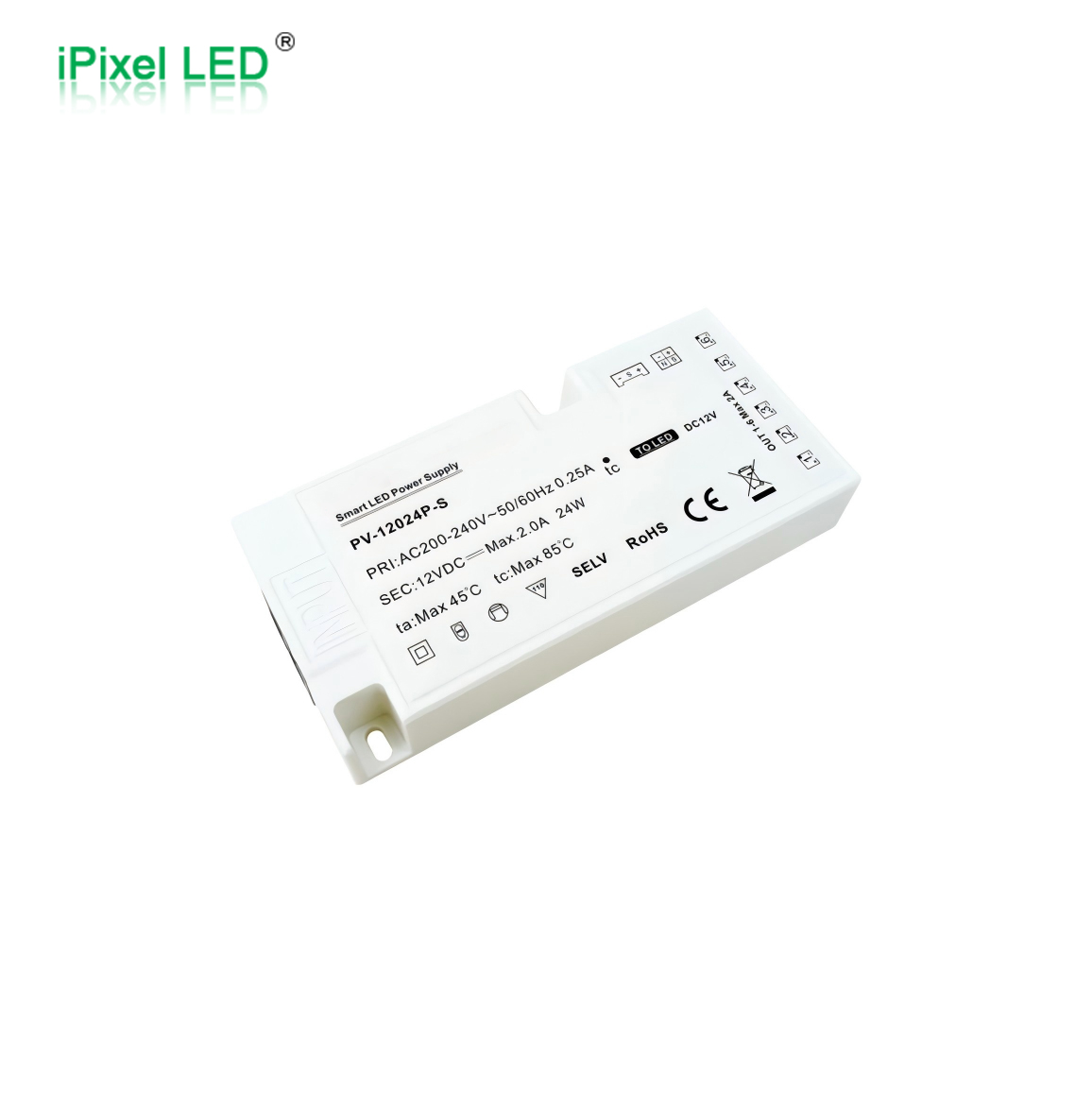

| 24W | PV-12024P-S | AC170-264V | DC12V | 2A | IP20 | 117*54.5*18.5mm | 90g | ≥84% | 3Years | CE/CB RoHS | 150pcs/CTN | SIZE: 315*265*320mm |
| PV-24024P-S | DC24V | 1A | ≥86% | |||||||||

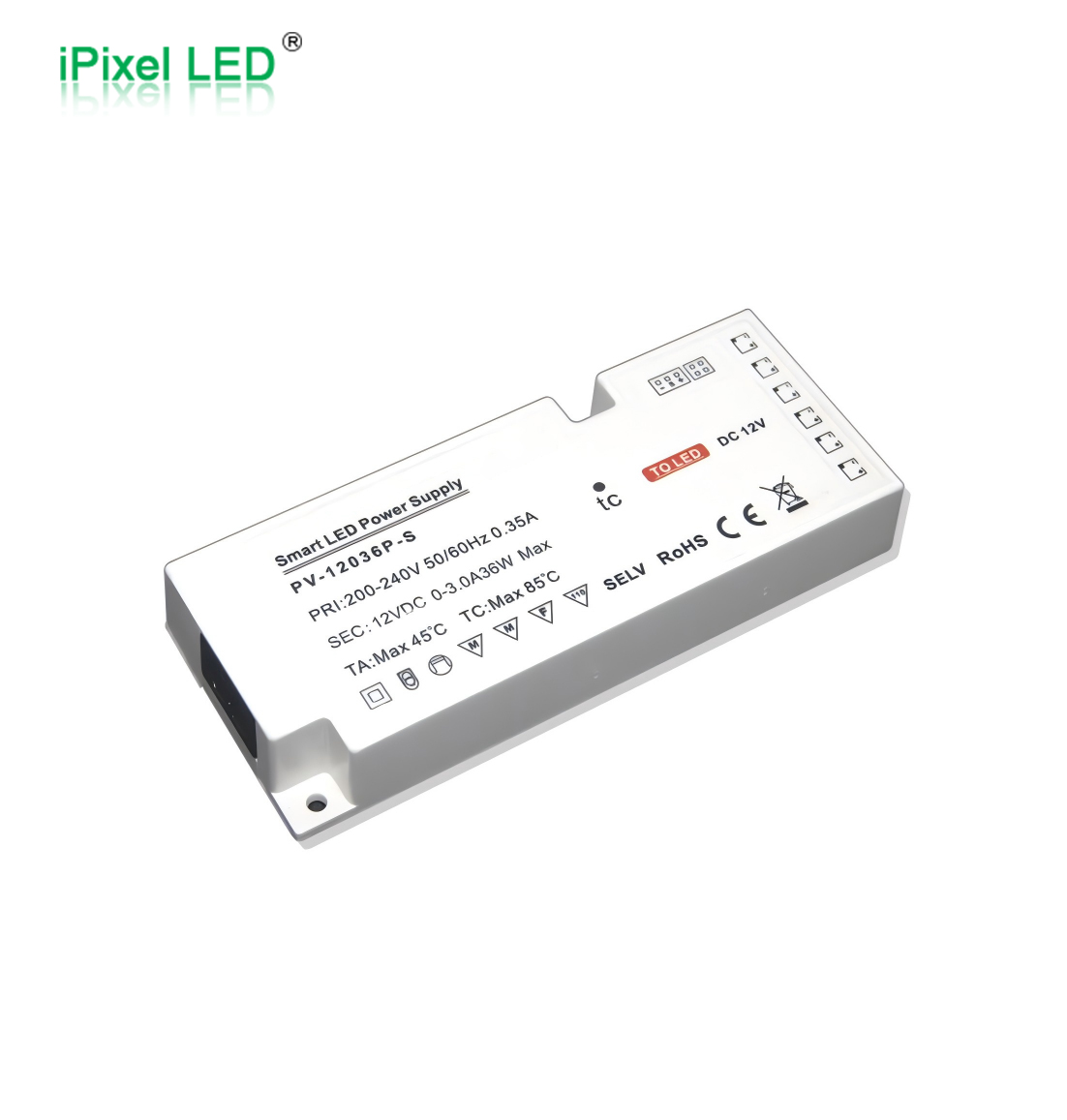

| 36W | PV-12036P-S | AC170-264V | DC12V | 3A | IP20 | 138*54.5*18.5mm | 105g | ≥85% | 3Years | CE/CB RoHS | 120pcs/CTN | SIZE: 450*265*255mm |
| PV-24036P-S | DC24V | 1.5A | ≥87% | |||||||||

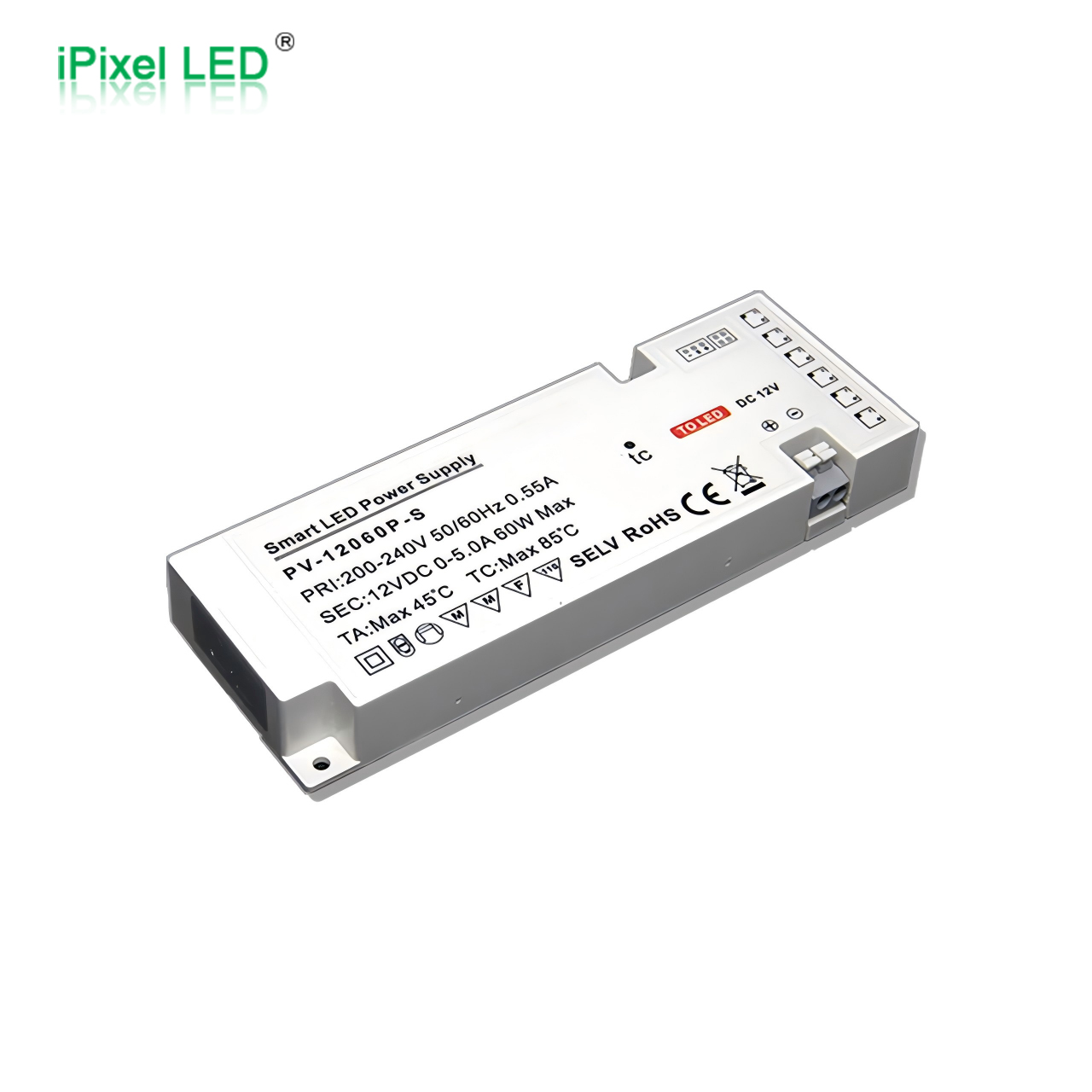

| 60W | PV-12060P-S | AC170-264V | DC12V | 5A | IP20 | 170*60*20mm | 170g | ≥88% | 3Years | CE/CB RoHS | 80pcs/CTN | SIZE: 375*265*280mm |
| PV-24060P-S | DC24V | 2.5A | ||||||||||

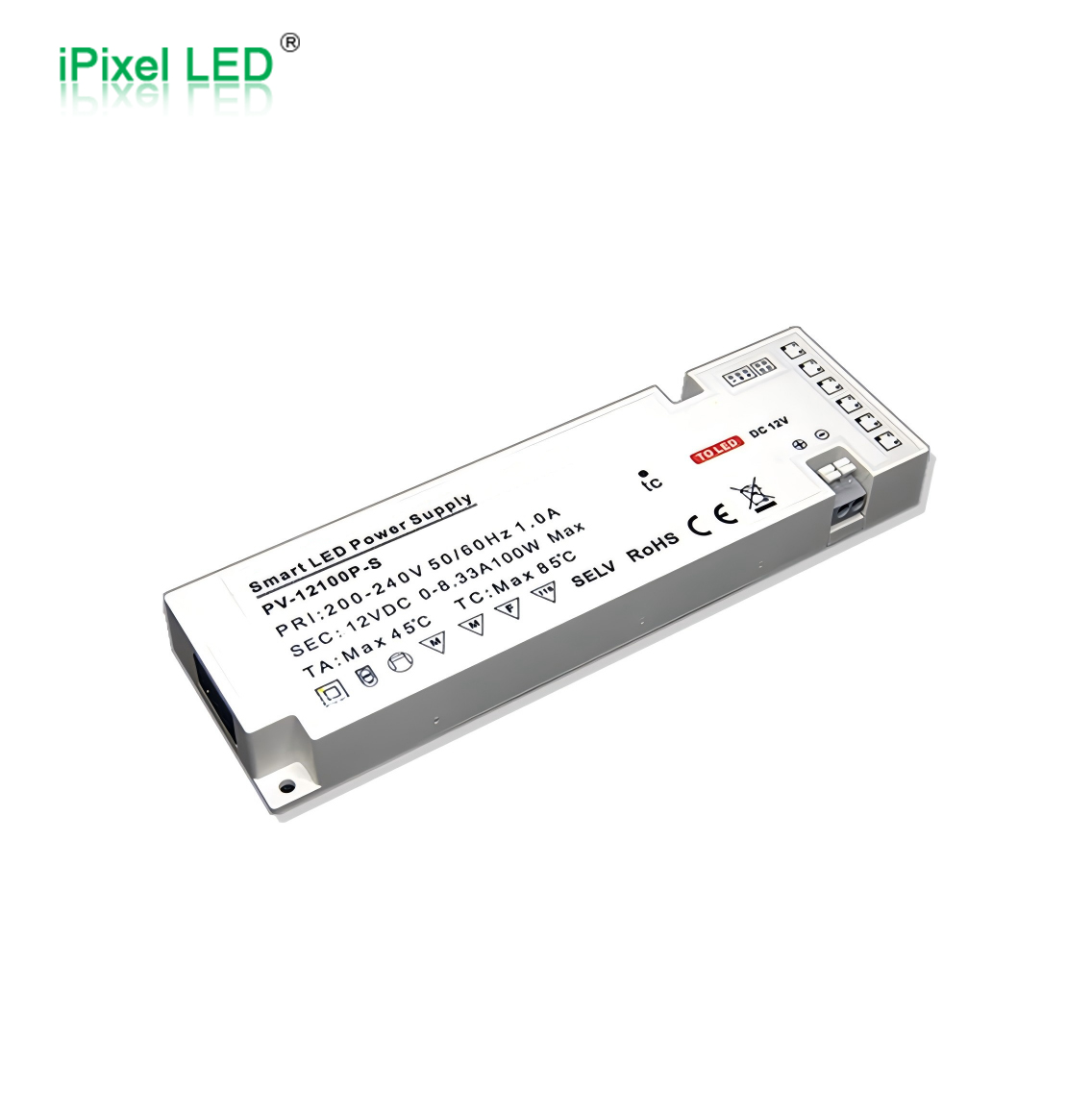

| 100W | PV-12100P-S | AC170-264V | DC12V | 8.33A | IP20 | 200*60*20mm | 210g | ≥88% | 3Years | CE/CB RoHS | 60pcs/CTN | SIZE: 430*265*215mm |
| PV-24100P-S | DC24V | 4.17A | ≥89% |
FAQ
Yes. Multiple LED strips or rigid LED bars can share one driver if they use the same voltage and their combined load remains within the recommended capacity.
The voltage must match the LED product. For longer cable runs and higher-power systems, 24V is generally preferred because it requires less current and helps reduce voltage drop.
The main differences are maximum output power, output current, housing dimensions and weight. The electrical load and available installation space should be considered together.
